3DAFP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 3DAFP

3DAFP: Descriptionfilter line rfi flange 3A pcb; CategoryThe connector; File Size222KB，2 Pages; ManufacturerAll Sensors

Download Datasheet Parametric Compare View All

3DAFP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3DAFP	-	-	View	Buy Now

3DAFP Overview

filter line rfi flange 3A pcb

3DAFP Parametric

Parameter Name	Attribute value
Datasheets
DA Series
Other Related Documents
Corcom EMI/RFI Filter Selector Ch
3D Model
6609075-3.pdf
Standard Package	40
Category	Connectors, Interconnects
Family	Power Entry Connectors - Inlets, Outlets, Modules - Filtered
Connector Style	Custom Connecti
Features	-
Filter Type	General Purpose
Curre	3A
Voltage	125VDC
Mounting Type	Panel Mount, Screw Hole
Through Hole
Termination Style	PCB Pins
Fuse Drawe	Fuse Not Required
Other Names	1609075-33DAFP-ND6609075-3CCM2005

Preview

Download Datasheet

View All

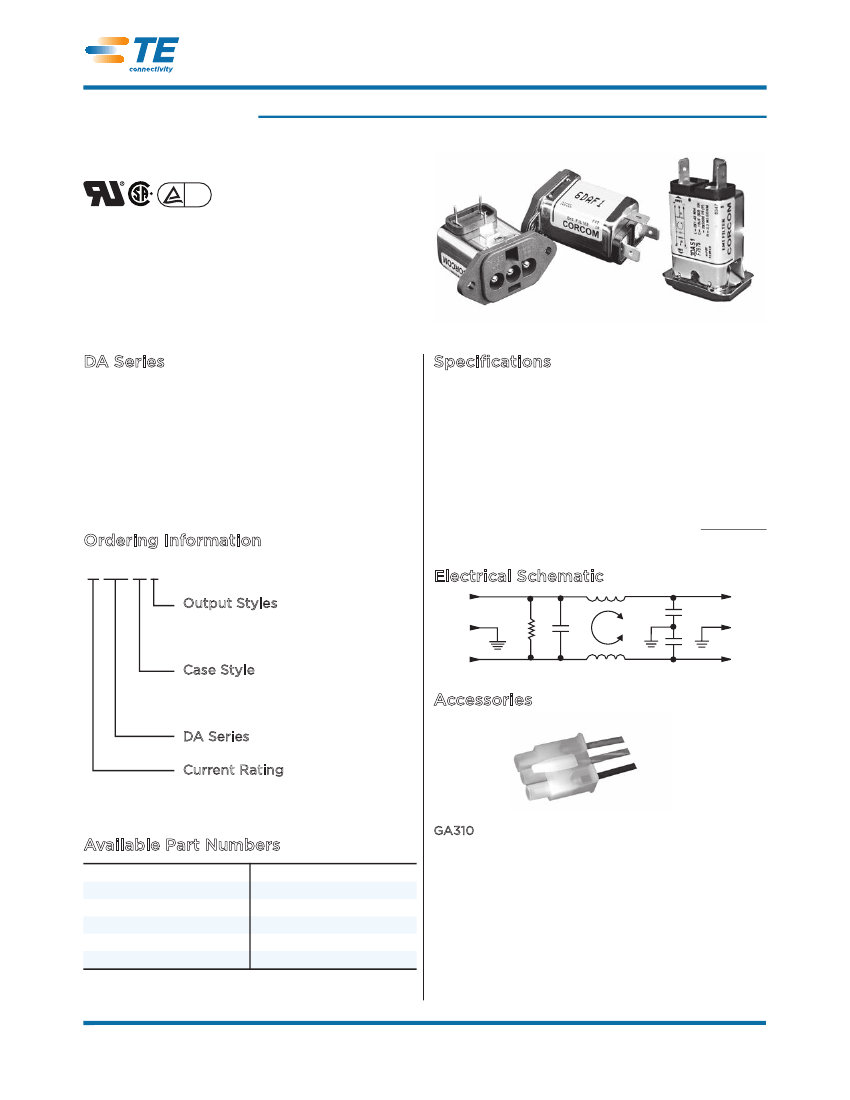

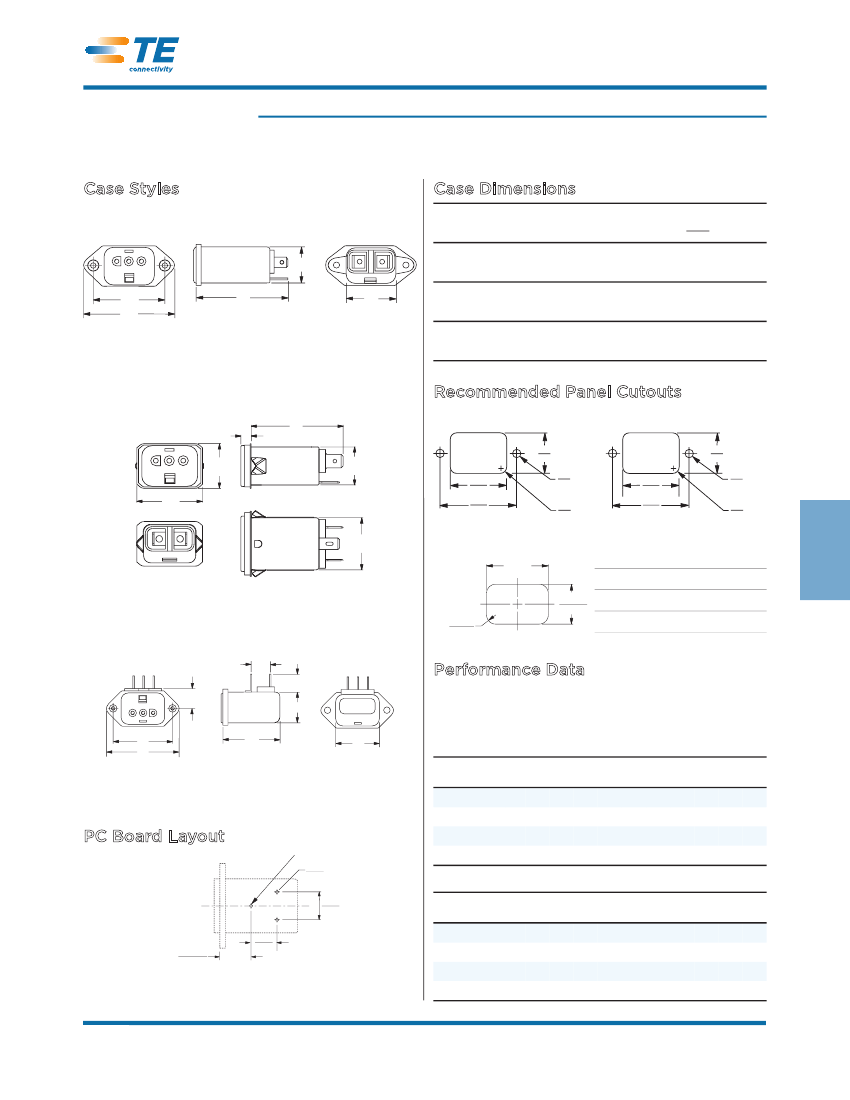

Corcom Product Guide

Compact RFI Line Filter with DC Inlet Connection

Catalog: 1654001

Issue Date: 06.2011

DA Series

60 950

UL Recognized

CSA Certiﬁed

TUV Certiﬁed

DAFP

DAF1

DAS1

DA Series

• General purpose line ﬁlters for DC applications up

to 125VDC.

• Compact with a 3-pin inlet connector

• Available in 3, 6, 10 and 15A versions

• Flange mount with 1/4” or PCB terminals

• Mates with a standard MOLEX* connector

(HCS Series)

Speciﬁcations

Hipot rating (one minute):

Line to Ground:

LIne to Line:

Rated Voltage (max):

Rated Current:

2250 VDC

1450 VDC

125 VDC

3 to 15A

Ordering Information

3 DA F 1

Output Styles

1 – .250 [6.3] spade terminals

P – PC board mount pins

Case Style

F – Flange mount

S – Snap-in

DA Series

Current Rating

3, 6, 10 or 15A

Operating Ambient Temperature Range

(at rated current Ir):

-10°C to +55°C

In an ambient temperature (Ta) higher than +55°C

the maximum operating current (Io) is calculated as

follows: Io = Ir

(85-Ta)/45

Electrical Schematic

LINE

LOAD

Accessories

Red

Green/Yellow

Black

Available Part Numbers

3DAF1

3DAS1

3DAFP

6DAF1

6DAS1

6DAFP

10DAF1

10DAS1

10DAFP

15DAF1

15DAS1

15DAFP

GA310 – (shown above) Pre-assembled connector

housing and terminals with three 36” long 18 gauge

wires to mate with DA Series ﬁlters

MOLEX* connector part numbers:

03-12-1036

18-12-1222

Connector housing for DA Series

Female terminals (3 per connector)

 ½½ ½½

212

Dimensions are in inches and millimeters unless otherwise speciﬁed. Values in italics

are metric equivalents. Dimensions are shown for reference purposes only.

Speciﬁcations subject to change.

For email, phone or live chat, please go to

te.com/help

corcom.com

3DAFP Related Products

	3DAFP	6DAF1	10DAS1	2-6609075-9	3DAS1	2-6609075-1	6609075-7	6609075-9
Description	filter line rfi flange 3A pcb	filter line rfi flange 6A	filter line rfi snap-IN 10 amp	filter line rfi snap-IN 15 amp	filter line rfi snap-IN 3amp	filter line rfi snap-IN 6 amp	filter line rfi flange 10a pcb	filter line rfi flange 15a pcb
Standard Package	40	40	40	40	40	40	40	40
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Power Entry Connectors - Inlets, Outlets, Modules - Filtered	Power Entry Connectors - Inlets, Outlets, Modules - Filtered	Power Entry Connectors - Inlets, Outlets, Modules - Filtered	Power Entry Connectors - Inlets, Outlets, Modules - Filtered	Power Entry Connectors - Inlets, Outlets, Modules - Filtered	Power Entry Connectors - Inlets, Outlets, Modules - Filtered	Power Entry Connectors - Inlets, Outlets, Modules - Filtered	Power Entry Connectors - Inlets, Outlets, Modules - Filtered
Connector Style	Custom Connecti	Custom Connecti	Custom Connecti	Custom Connecti	Custom Connecti	Custom Connecti	Custom Connecti	Custom Connecti
Filter Type	General Purpose	General Purpose	General Purpose	General Purpose	General Purpose	General Purpose	General Purpose	General Purpose
Curre	3A	6A	10A	15A	3A	6A	10A	15A
Voltage	125VDC	125VDC	125VDC	125VDC	125VDC	125VDC	125VDC	125VDC
Mounting Type	Panel Mount, Screw Hole	Panel Mount, Screw Hole	Panel Mount, Snap-I	Panel Mount, Snap-I	Panel Mount, Snap-I	Panel Mount, Snap-I	Panel Mount, Screw Hole	Panel Mount, Screw Hole
Termination Style	PCB Pins	Quick Connec	Quick Connec	Quick Connec	Quick Connec	Quick Connec	PCB Pins	PCB Pins
Fuse Drawe	Fuse Not Required	Fuse Not Required	Fuse Not Required	Fuse Not Required	Fuse Not Required	Fuse Not Required	Fuse Not Required	Fuse Not Required
Other Names	1609075-33DAFP-ND6609075-3CCM2005	1609075-66609075-6	2-6609075-5	15DAS115DAS1-ND	1-6609075-7	2660907516DAS16DAS1-ND	10DAFP10DAFP-ND1609075-7	15DAFP15DAFP-ND1609075-9CCM1970
