0039532325: Descriptionconn ffc 32pos 1.25mm vert zif; CategoryThe connector; File Size123KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

0039532325 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	0039532325	-	-	View	Buy Now

0039532325 Overview

conn ffc 32pos 1.25mm vert zif

0039532325 Parametric

Parameter Name	Attribute value
Datasheets
0039532325
Standard Package	400
Category	Connectors, Interconnects
Family	FFC, FPC (Flat Flexible) Connectors
Packaging	Tray
Flat Flex Type	FFC, FPC
Mounting Type	Through Hole
Connector/Contact Type	Contacts, Vertical, 1 Sided
Number of Positions	32
Pitch	0.049" (1.25mm)
Terminati	Solde
FFC, FCB Thickness	0.30mm
Height Above Board	0.295" (7.50mm)
Locking Feature	Slide Lock
Cable End Type	Straigh
Contact Material	Phosphor Bronze
Contact Finish	Tin Bismuth
Housing Material	Polybutylene Terephthalate (PBT), Polyeste
Actuator Material	Polybutylene Terephthalate (PBT), Polyeste
Features	Zero Insertion Force (ZIF)
Voltage Rating	200V
Operating Temperature	-20°C ~ 80°C
Material Flammability Rating	UL94 V-0
Current Rating	1A
Other Names	0039-53-2325003953-232539-53-232539532325

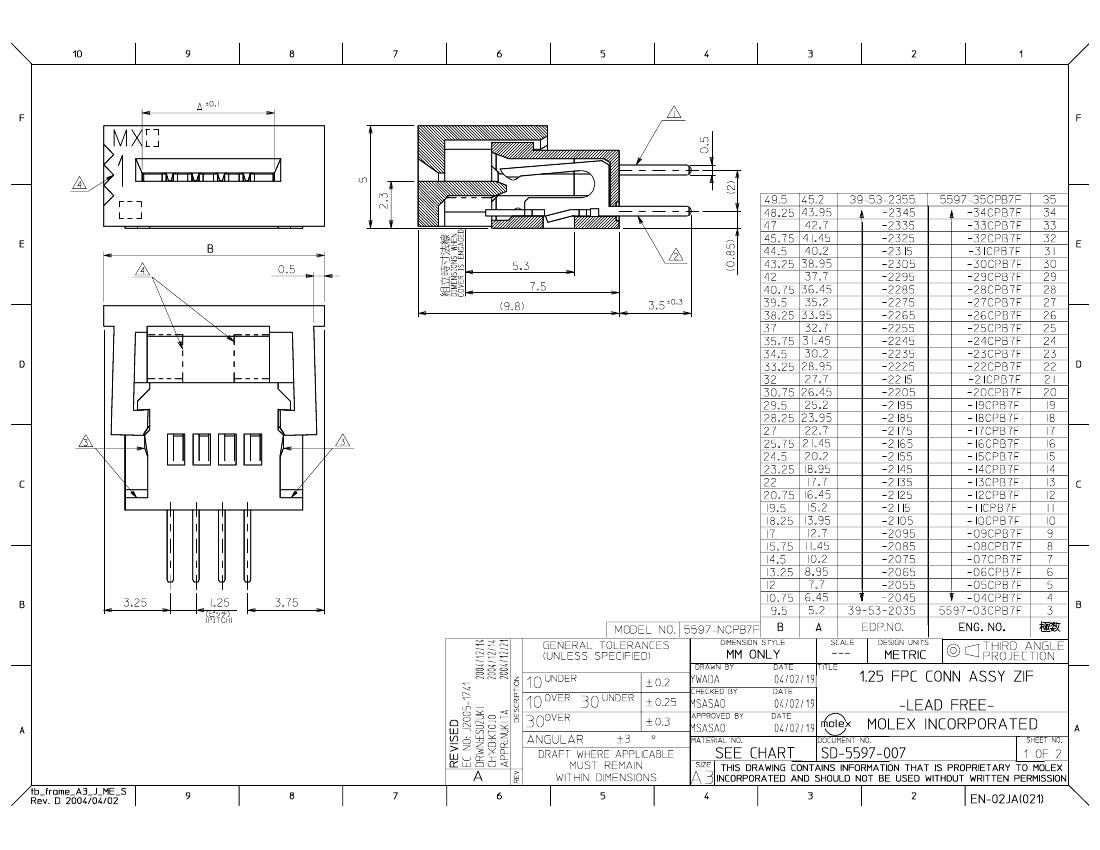

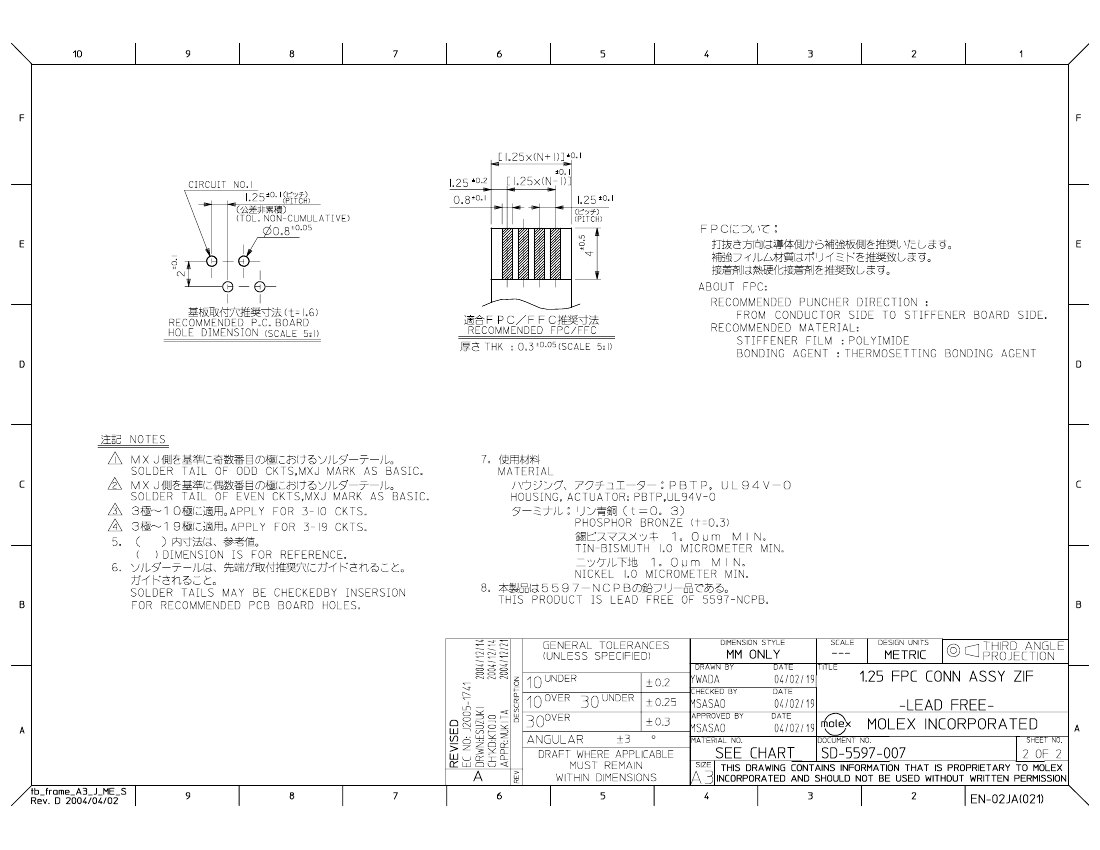

Preview

Download Datasheet

View All

0039532325 Related Products

	0039532325	0039532335	0039532355	0039532345
Description	conn ffc 32pos 1.25mm vert zif	conn ffc 33pos 1.25mm vert zif	conn ffc 35pos 1.25mm vert zif	conn ffc 34pos 1.25mm vert zif
Standard Package	400	400	1	-
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	-
Family	FFC, FPC (Flat Flexible) Connectors	FFC, FPC (Flat Flexible) Connectors	FFC, FPC (Flat Flexible) Connectors	-
Packaging	Tray	Tray	Tray	-
Flat Flex Type	FFC, FPC	FFC, FPC	FFC, FPC	-
Mounting Type	Through Hole	Through Hole	Through Hole	-
Connector/Contact Type	Contacts, Vertical, 1 Sided	Contacts, Vertical, 1 Sided	Contacts, Vertical, 1 Sided	-
Number of Positions	32	33	35	-
Pitch	0.049" (1.25mm)	0.049" (1.25mm)	0.049" (1.25mm)	-
Terminati	Solde	Solde	Solde	-
FFC, FCB Thickness	0.30mm	0.30mm	0.30mm	-
Height Above Board	0.295" (7.50mm)	0.295" (7.50mm)	0.295" (7.50mm)	-
Locking Feature	Slide Lock	Slide Lock	Slide Lock	-
Cable End Type	Straigh	Straigh	Straigh	-
Contact Material	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	-
Contact Finish	Tin Bismuth	Tin Bismuth	Tin Bismuth	-
Housing Material	Polybutylene Terephthalate (PBT), Polyeste	Polybutylene Terephthalate (PBT), Polyeste	Polybutylene Terephthalate (PBT), Polyeste	-
Actuator Material	Polybutylene Terephthalate (PBT), Polyeste	Polybutylene Terephthalate (PBT), Polyeste	Polybutylene Terephthalate (PBT), Polyeste	-
Features	Zero Insertion Force (ZIF)	Zero Insertion Force (ZIF)	Zero Insertion Force (ZIF)	-
Voltage Rating	200V	200V	200V	-
Operating Temperature	-20°C ~ 80°C	-20°C ~ 80°C	-20°C ~ 80°C	-
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	-
Current Rating	1A	1A	1A	-
Other Names	0039-53-2325003953-232539-53-232539532325	0039-53-2335003953-233539-53-233539532335	0039-53-2355003953-235539-53-235539532355	-
