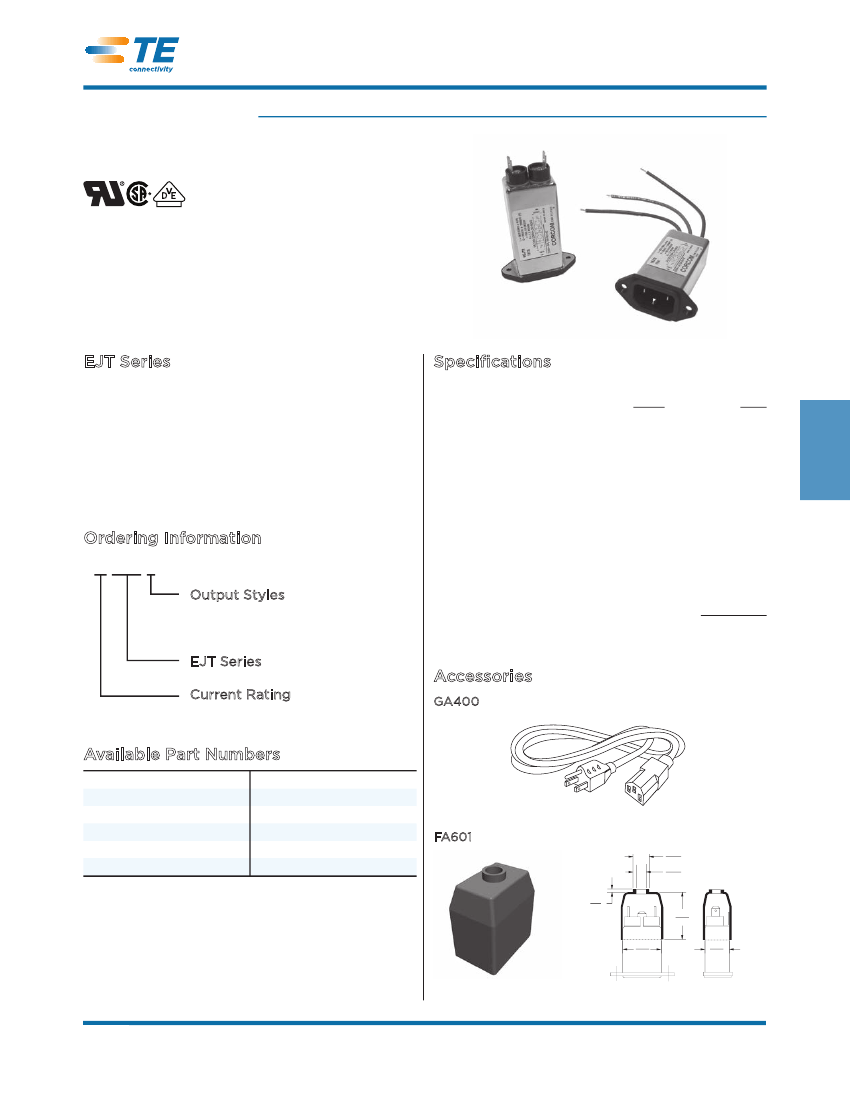

Corcom Product Guide
High Performance Power Inlet Filter
Catalog: 1654001
Issue Date: 06.2011
EJT Series
UL Recognized
CSA Certified
VDE Approved*
EJT1
EJT8
EJT Series
• Superior EMI filter with IEC 60320-1 inlet
• Double three element differential mode circuit
attenuates noise up to 1GHz
• Up to 15A with IEC 60320-1 C14 inlet
• 20A rating with IEC 60320-1 C20 inlet
• Spade terminals or wire leads
Specifications
Maximum leakage current each Line to Ground:
1-15A
20A
@ 120 VAC 60 Hz:
.25 mA
.22 mA
@250 VAC 50 Hz:
.43 mA
.40 mA
Hipot rating (one minute):
Line to Ground:
Line to Line:
Rated Voltage (max.):
Operating Frequency:
2250 VDC
1450 VDC
250 VAC
3
Power Inlet Filters & Power Entry Modules
50/60 Hz
1 to 20A*
Ordering Information
6 EJT 1
Output Styles
1 – .250 [6.3] spade terminals
8 – Wire leads
EJT Series
Rated Current:
Operating Ambient Temperature Range
(at rated current Ir):
-10°C to +40°C
In an ambient temperature (Ta) higher than +40°C
the maximum operating current (Io) is calculated as
follows: Io = Ir
(85-Ta)/45
Accessories
Current Rating
1, 3, 6, 10, 15 or 20A
GA400: NEMA 5-15P to IEC 60320-1 C-13 line cord
Available Part Numbers
1EJT1
3EJT1
6EJT1
10EJT1
15EJT1
20EJT1
1EJT8
3EJT8
6EJT8
10EJT8
15EJT8
20EJT8
FA601: Insulating Shroud
(fits 1-15A only)
.413 Dia.
10.5
.271 Dia.
6.9
.118
3.0
*15A versions are tested by Underwriters Laboratories
to US and Canadian requirements and are
VDE approved at 10A, 250VAC.
20A versions are tested by Underwriters Laboratories
to US and Canadian requirements and are
VDE approved at 16A, 250VAC.
1.39
35.4
1.17
29.7
.767
19.5
163
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
te.com/help
corcom.com
Corcom Product Guide
High Performance Power Inlet Filter
(continued)
Catalog: 1654001
Issue Date: 06.2011
EJT Series

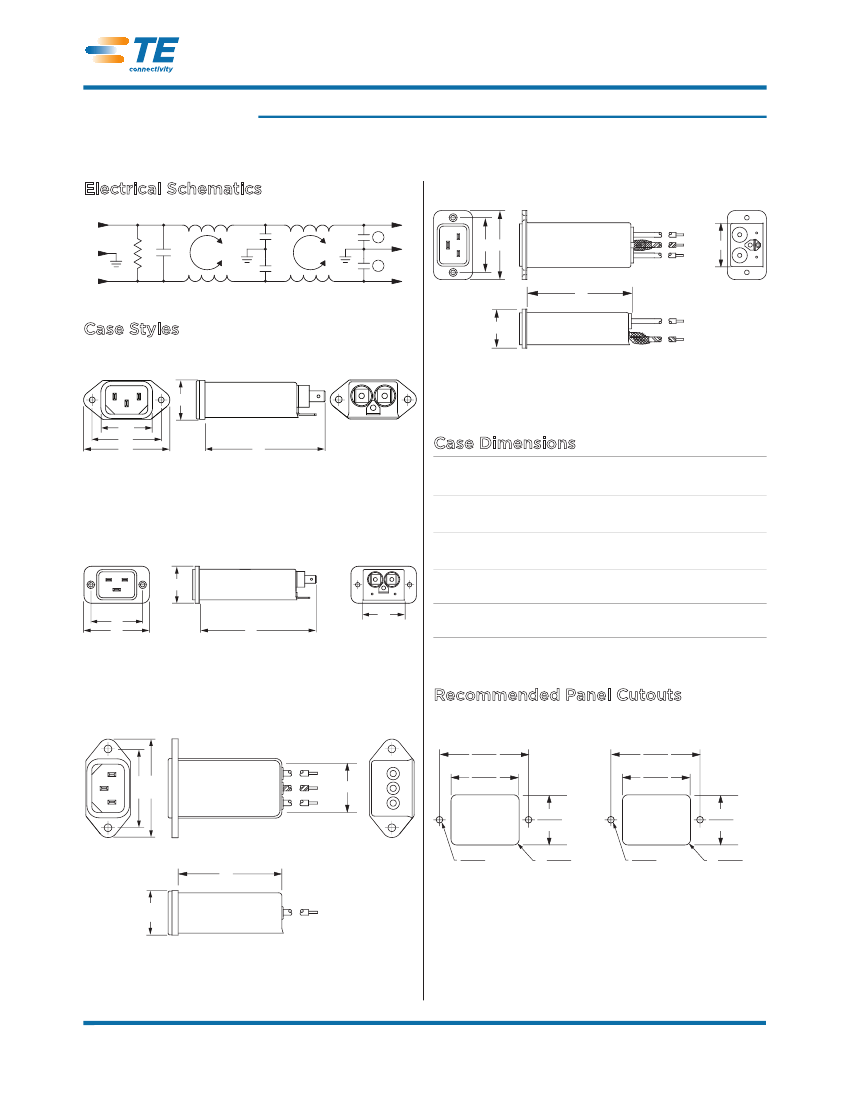

Electrical Schematics
LINE
LOAD
Blue
20EJT8
1
D E
Green/Yellow
Brown
B
1
A
Note 1: 20A Versions only
C
Case Styles
EJT1
C
B
D
E
½
A
Case Dimensions
Part No.
EJT1
EJT8
A
½
½
½
½
B
½
C
½
D
½
E
½
20EJT1
C
B
A
20EJT1
20EJT8
D
E
½
½
½
Recommended Panel Cutouts
1 to 15A
1.575
40.00
EJT8
Blue
Green/Yellow
20A
1.654
42.01
1.370
34.80
D E
Brown
B
1.20
30.48
.820
20.83
0.140
Dia.
3.56
A
Front Mount Only
Tolerance ±.005
[.13]
1.055
26.80
0.138
Dia.
3.51
R
.062
Max.
1.57
R
.062
Max.
1.57
C
½
164
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
te.com/help
corcom.com
Corcom Product Guide
High Performance Power Inlet Filter
(continued)
Catalog: 1654001
Issue Date: 06.2011
EJT Series
Performance Data
Typical Insertion Loss
Measured in closed 50 Ohm system
1EJT
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
100
1000
Frequency in MHz
3EJT
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
100
1000
Frequency in MHz
6EJT
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
100
1000
Frequency in MHz
10EJT
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
100
1000
Frequency in MHz
15EJT
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
100
1000
Frequency in MHz
20EJT
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
100
1000
Frequency in MHz
3
Power Inlet Filters & Power Entry Modules
Common Mode / Asymmetrical (L-G)
Differential Mode / Symmetrical (L-L)
Minimum Insertion Loss
Measured in closed 50 Ohm system
Common Mode / Asymmetrical (Line to Ground)
Differential Mode / Symmetrical (Line to Line)
165
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
te.com/help
corcom.com
