1735042-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 1735042-5

1735042-5: Description1mm ffc smt V assy 5P emboss; CategoryThe connector; File Size69KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

1735042-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1735042-5	-	-	View	Buy Now

1735042-5 Overview

1mm ffc smt V assy 5P emboss

1735042-5 Parametric

Parameter Name	Attribute value
Datasheets

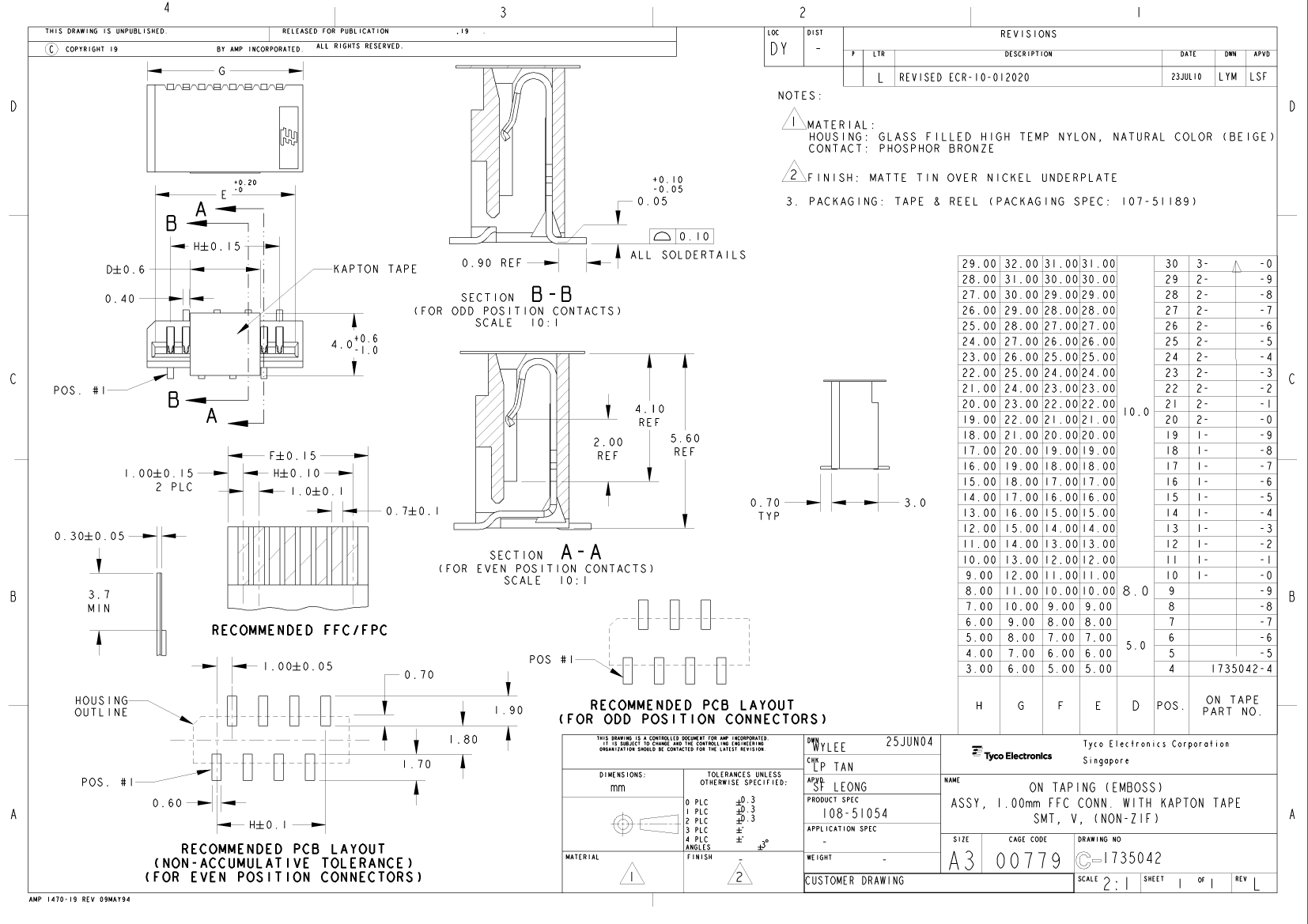

1735042 Drawing
Product Photos
AMP
Standard Package	12,000
Category	Connectors, Interconnects
Family	FFC, FPC (Flat Flexible) Connectors
Packaging	Tape & Reel (TR)
Flat Flex Type	FFC, FPC
Mounting Type	Surface Mou
Connector/Contact Type	Contacts, Vertical, 1 Sided
Number of Positions	5
Pitch	0.039" (1.00mm)
Terminati	Solde
FFC, FCB Thickness	0.30mm
Height Above Board	0.220" (5.59mm)
Locking Feature	-
Cable End Type	Straigh
Contact Material	Phosphor Bronze
Contact Finish	Ti
Housing Material	Polyamide (PA), Nylon, Glass Filled
Actuator Material	-
Features	-
Voltage Rating	125V
Operating Temperature	-20°C ~ 85°C
Material Flammability Rating	-
Current Rating	1A
Other Names	A118051TR

Preview

Download Datasheet

View All

1735042-5 Related Products

	1735042-5	1735042-6	2-1735042-0	2-1735042-3	2-1735042-6	3-1735042-0	1-1735042-0	1-1735042-1
Description	1mm ffc smt V assy 5P emboss	1mm ffc smt V assy 6P emboss	1mmffcsmtvassy20pemboss	1mmffcsmtvassy23pemboss	1mmffcsmtvassy26pemboss	1mmffcsmtvassy30pemboss	1mm ffc smt V assy 10p emboss	1mm ffc smt V assy 11p emboss
Standard Package	12,000	12,000	1	1	1	9,600	12,800	12,800
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	FFC, FPC (Flat Flexible) Connectors	FFC, FPC (Flat Flexible) Connectors	FFC, FPC (Flat Flexible) Connectors	FFC, FPC (Flat Flexible) Connectors	FFC, FPC (Flat Flexible) Connectors	FFC, FPC (Flat Flexible) Connectors	FFC, FPC (Flat Flexible) Connectors	FFC, FPC (Flat Flexible) Connectors
Packaging	Tape & Reel (TR)	Tape & Reel (TR)	Digi-Reel®	Cut Tape (CT)	Cut Tape (CT)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)
Flat Flex Type	FFC, FPC	FFC, FPC	FFC, FPC	FFC, FPC	FFC, FPC	FFC, FPC	FFC, FPC	FFC, FPC
Mounting Type	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou
Connector/Contact Type	Contacts, Vertical, 1 Sided	Contacts, Vertical, 1 Sided	Contacts, Vertical, 1 Sided	Contacts, Vertical, 1 Sided	Contacts, Vertical, 1 Sided	Contacts, Vertical, 1 Sided	Contacts, Vertical, 1 Sided	Contacts, Vertical, 1 Sided
Number of Positions	5	6	20	23	26	30	10	11
Pitch	0.039" (1.00mm)	0.039" (1.00mm)	0.039" (1.00mm)	0.039" (1.00mm)	0.039" (1.00mm)	0.039" (1.00mm)	0.039" (1.00mm)	0.039" (1.00mm)
Terminati	Solde	Solde	Solde	Solde	Solde	Solde	Solde	Solde
FFC, FCB Thickness	0.30mm	0.30mm	0.30mm	0.30mm	0.30mm	0.30mm	0.30mm	0.30mm
Height Above Board	0.220" (5.59mm)	0.220" (5.59mm)	0.220" (5.59mm)	0.220" (5.59mm)	0.220" (5.59mm)	0.220" (5.59mm)	0.220" (5.59mm)	0.220" (5.59mm)
Cable End Type	Straigh	Straigh	Straigh	Straigh	Straigh	Straigh	Straigh	Straigh
Contact Material	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze
Contact Finish	Ti	Ti	Ti	Ti	Ti	Ti	Ti	Ti
Housing Material	Polyamide (PA), Nylon, Glass Filled	Polyamide (PA), Nylon, Glass Filled	Polyamide (PA), Nylon, Glass Filled	Polyamide (PA), Nylon, Glass Filled	Polyamide (PA), Nylon, Glass Filled	Polyamide (PA), Nylon, Glass Filled	Polyamide (PA), Nylon, Glass Filled	Polyamide (PA), Nylon, Glass Filled
Voltage Rating	125V	125V	125V	125V	125V	125V	125V	125V
Operating Temperature	-20°C ~ 85°C	-20°C ~ 85°C	-20°C ~ 85°C	-20°C ~ 85°C	-20°C ~ 85°C	-20°C ~ 85°C	-20°C ~ 85°C	-20°C ~ 85°C
Current Rating	1A	1A	1A	1A	1A	1A	1A	1A
Other Names	A118051TR	A118052TR	A108272DKR	217350423A108273CT	217350426A108274CT	A108288TR	A117817TR	A117818TR
