5179029-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 5179029-1

5179029-1: Descriptionconn plug 40pos dual vert .8mm; CategoryThe connector; File Size172KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5179029-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5179029-1	-	-	View	Buy Now

5179029-1 Overview

conn plug 40pos dual vert .8mm

5179029-1 Parametric

Parameter Name	Attribute value
Datasheets

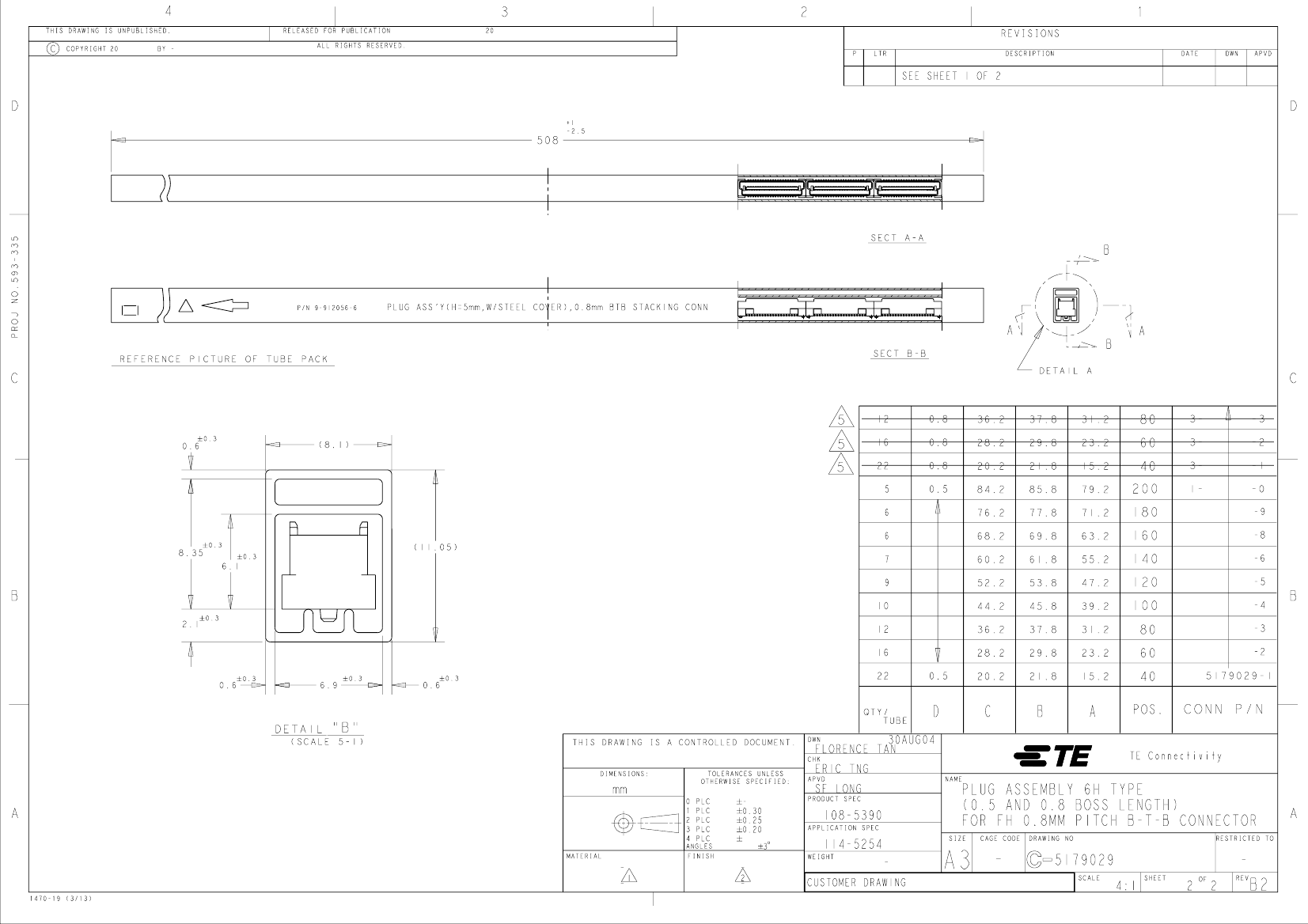

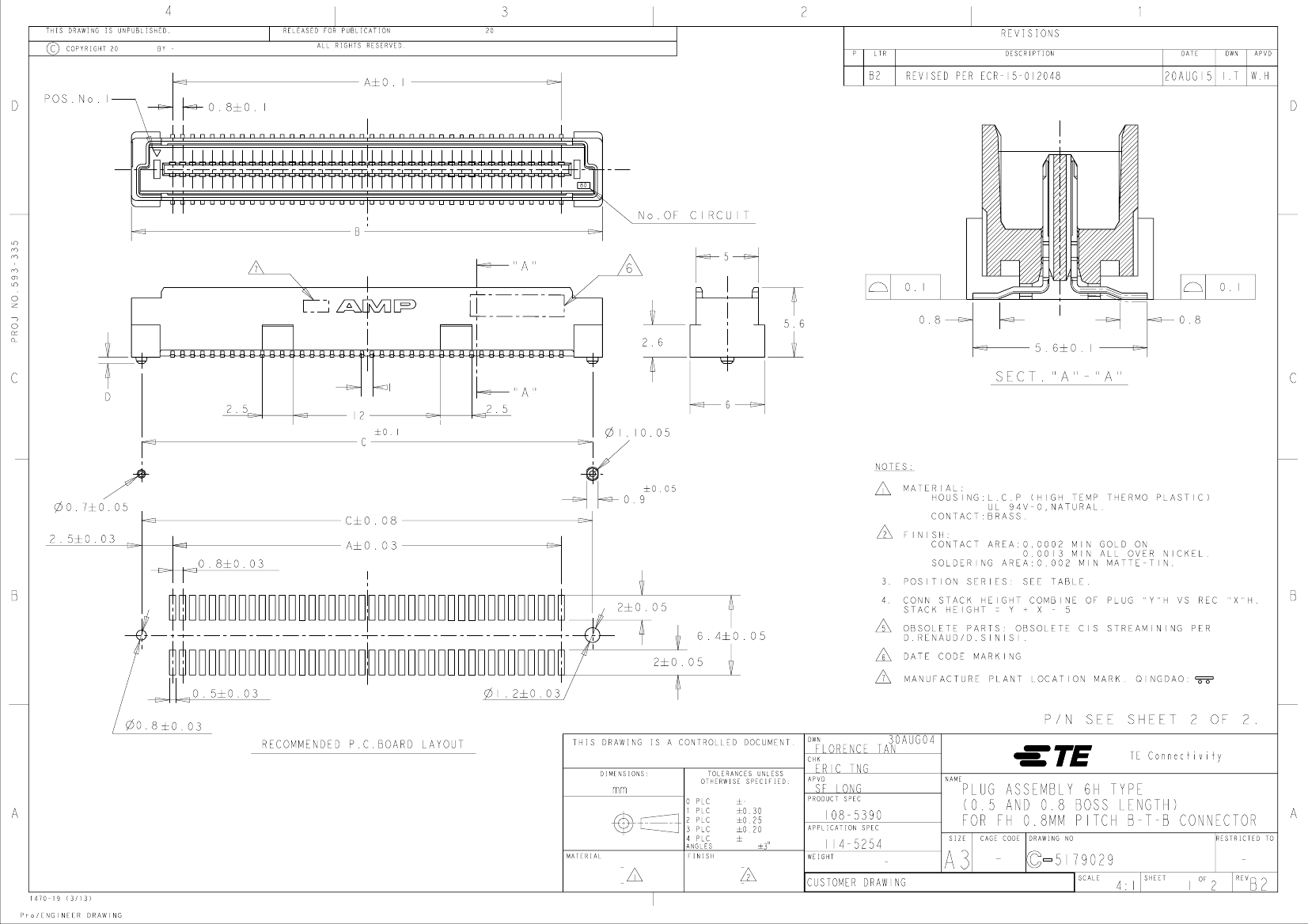

5179029 Drawing
RoHS Informati
5179029-1 Statement of Compliance
RoHS 2 Stateme
3D Model
5179029-1.pdf
Standard Package	1,100
Category	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Packaging	Tube
Connector Type	Plug, Center Strip Contacts
Number of Positions	40
Pitch	0.031" (0.80mm)
Number of Rows	2
Mounting Type	Surface Mou
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	8µin (0.20µm)
Mated Stacking Heights	6mm, 10mm, 14mm, 18mm
Height Above Board	0.220" (5.59mm)
Mating Products	A115556-ND - CONN RCPT 40POS .8MM DUAL SMTA111308TR-ND - CONN RECPT 40POS .8MM DUAL SMTA111610TR-ND - CONN RCPT 40POS .8MM FH 9H GOLDA111218TR-ND - CONN RECPT 40POS .8MM DL SMT5084613-1-ND - CONN RCPT 40POS 0.8MM SMT DUALA115623-ND - CONN RCPT 40POS .8MMFH 17H GOLD5-6123212-1-ND - CONN RCPT FH 40POS DUAL VERTA99234CT-ND - CONN RCPT 40POS .8MM FH 13H GOLDA99189CT-ND - CONN RCPT 40POS .8MM FH 5H 8AUA99234TR-ND - CONN RCPT 40POS .8MM FH 13H GOLDA99189TR-ND - CONN RCPT 40POS .8MM FH 5H 8AUA115319-ND - CONN RECEPT 40POS DUAL VERT GOLD177985-1-ND - CONN RECEPT 40 POS GOLD5-179009-1-ND - CONN RECEPT 40 POS .8MM AU SMD5-179010-1-ND - CONN RCPT 40POS VERT IN-LINE177983-1-ND - CONN RCPT 40POS VERT DL IN-LINE
Other Names	5179029-1-NDA115330

Preview

Download Datasheet

View All

5179029-1 Related Products

	5179029-1	5179029-2	5179029-4	5179029-5	5179029-6	5179029-9	5179029-8
Description	conn plug 40pos dual vert .8mm	conn plug 60pos dual vert .8mm	conn plug 100pos dual vert .8mm	conn plug 120pos dual vert .8mm	conn plug 140pos vert brd-brd	conn plug 180pos .8mm FH 6H gold	conn plug 160pos .8mm FH 6H gold
Standard Package	1,100	16	10	8	700	600	6
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Packaging	Tube	Tube	Tube	Tube	Tube	Tube	Tube
Connector Type	Plug, Center Strip Contacts	Plug, Center Strip Contacts	Plug, Center Strip Contacts	Plug, Center Strip Contacts	Plug, Center Strip Contacts	Plug, Center Strip Contacts	Plug, Center Strip Contacts
Number of Positions	40	60	100	120	140	180	160
Pitch	0.031" (0.80mm)	0.031" (0.80mm)	0.031" (0.80mm)	0.031" (0.80mm)	0.031" (0.80mm)	0.031" (0.80mm)	0.031" (0.80mm)
Number of Rows	2	2	2	2	2	2	2
Mounting Type	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou
Features	Board Guide	Board Guide	Board Guide	Board Guide	Board Guide	Board Guide	Board Guide
Contact Finish	Gold	Gold	Gold	Gold	Gold	Gold	Gold
Contact Finish Thickness	8µin (0.20µm)	8µin (0.20µm)	8µin (0.20µm)	8µin (0.20µm)	8µin (0.20µm)	8µin (0.20µm)	8µin (0.20µm)
Mated Stacking Heights	6mm, 10mm, 14mm, 18mm	6mm, 10mm, 14mm, 18mm	6mm, 10mm, 14mm, 18mm	6mm, 10mm, 14mm, 18mm	6mm, 10mm, 14mm, 18mm	6mm, 10mm, 14mm, 18mm	6mm, 10mm, 14mm, 18mm
Height Above Board	0.220" (5.59mm)	0.220" (5.59mm)	0.220" (5.59mm)	0.220" (5.59mm)	0.220" (5.59mm)	0.220" (5.59mm)	0.220" (5.59mm)
Mating Products	A115556-ND - CONN RCPT 40POS .8MM DUAL SMTA111308TR-ND - CONN RECPT 40POS .8MM DUAL SMTA111610TR-ND - CONN RCPT 40POS .8MM FH 9H GOLDA111218TR-ND - CONN RECPT 40POS .8MM DL SMT5084613-1-ND - CONN RCPT 40POS 0.8MM SMT DUALA115623-ND - CONN RCPT 40POS .8MMFH 17H GOLD5-6123212-1-ND - CONN RCPT FH 40POS DUAL VERTA99234CT-ND - CONN RCPT 40POS .8MM FH 13H GOLDA99189CT-ND - CONN RCPT 40POS .8MM FH 5H 8AUA99234TR-ND - CONN RCPT 40POS .8MM FH 13H GOLDA99189TR-ND - CONN RCPT 40POS .8MM FH 5H 8AUA115319-ND - CONN RECEPT 40POS DUAL VERT GOLD177985-1-ND - CONN RECEPT 40 POS GOLD5-179009-1-ND - CONN RECEPT 40 POS .8MM AU SMD5-179010-1-ND - CONN RCPT 40POS VERT IN-LINE177983-1-ND - CONN RCPT 40POS VERT DL IN-LINE	5-6123212-2-ND - CONN RCPT FH 60POS DUAL VERTA115557-ND - CONN RCPT 60POS .8MM DUAL SMT7-5179180-2-ND - CONN RCPT 60POS .8MM FH 9H GOLD5084618-2-ND - CONN RECPT 60POS .8MM DL SMT5084613-2-ND - CONN RCPT 60POS 0.8MM SMT DUALA115624-ND - CONN RCPT 60POS .8MMFH 17H GOLDA115415-ND - CONN RCPT 60POS DL .8MM FH GOLDA115320-ND - CONN RCPT 60POS VERT DUAL PCBA99235CT-ND - CONN RCPT 60POS .8MM FH 13H GOLDA99229CT-ND - CONN RCPT 60POS .8MM FH 9H GOLDA99190CT-ND - CONN RCPT 60POS .8MM FH 5H 8AUA99235TR-ND - CONN RCPT 60POS .8MM FH 13H GOLDA99229TR-ND - CONN RCPT 60POS .8MM FH 9H GOLDA99190TR-ND - CONN RCPT 60POS .8MM FH 5H 8AUA115411-ND - CONN RECEPT 60POS DUAL VERT .8MM5-179009-2-ND - CONN RECEPT VERT 60POS .8MM DUAL	6123000-4-ND - CONN RCPT 100POS .8MM DUAL SMTA111310TR-ND - CONN RECPT 100POS .8MM DUAL SMT5-5179233-4-ND - CONN RECPT 100POS .8MM DUAL SMT5-5179232-4-ND - CONN RECPT 100POS .8MM DUAL SMT5179229-4-ND - CONN RCPT 100POS 0.8MM SMT DUAL7-5179180-4-ND - CONN RCPT 100POS .8MM FH 9H GOLD5084618-4-ND - CONN RECPT 100POS .8MM DL SMT5084613-4-ND - CONN RCPT 100POS 0.8MM SMT DUALA115412-ND - CONN RCPT 100POS .8MM FH 9H GOLDA99237CT-ND - CONN RCPT 100POS .8MMFH 13H GOLDA99231CT-ND - CONN RCPT 100POS .8MM FH 9H GOLDA99192CT-ND - CONN RCPT 100POS .8MM FH 5H 8AUA99244-ND - CONN RCPT 100POS .8MMFH 17H GOLDA99237TR-ND - CONN RCPT 100POS .8MMFH 13H GOLDA99231TR-ND - CONN RCPT 100POS .8MM FH 9H GOLDA99192TR-ND - CONN RCPT 100POS .8MM FH 5H 8AUA115417-ND - CONN RECEPT 100 POS .8MM AU SMDA115322-ND - CONN RECEPT 100POS VERT DUAL PCB177983-4-ND - CONN RECEPT 100POS VERT DUAL PCB5-179010-4-ND - CONN RECEPT 100 POS .8MM AU SMD	5-6123212-5-ND - CONN RCPT FH 120POS DUAL VERTA115558-ND - CONN RCPT 120POS .8MM DUAL SMTA116280TR-ND - CONN RECPT 120POS .8MM DUAL SMT5-5179232-5-ND - CONN RECPT 120POS .8MM DUAL SMT5179229-5-ND - CONN RCPT 120POS 0.8MM SMT DUAL7-5179180-5-ND - CONN RCPT 120POS .8MM FH 9H GOLD5084618-5-ND - CONN RECPT 120POS .8MM DL SMT5084613-5-ND - CONN RCPT 120POS 0.8MM SMT DUALA115418-ND - CONN RCPT 120POS DL .8MM FH GOLDA99238CT-ND - CONN RCPT 120POS .8MMFH 13H GOLDA99193CT-ND - CONN RCPT 120POS .8MM FH 5H 8AUA99238TR-ND - CONN RCPT 120POS .8MMFH 13H GOLDA99193TR-ND - CONN RCPT 120POS .8MM FH 5H 8AUA115323-ND - CONN RECEPT 120POS VERT DUAL PCB177985-5-ND - CONN RECEPT 120 POS GOLD	5-6123212-6-ND - CONN RCPT FH 140POS DUAL VERT6123000-6-ND - CONN RCPT 140POS .8MM DUAL SMTA111311TR-ND - CONN RECPT 140POS .8MM DUAL SMT5-5179233-6-ND - CONN RECPT 140POS .8MM DUAL SMT7-5179180-6-ND - CONN RCPT 140POS .8MM FH 9H GOLDA115413-ND - CONN RECEPT 140POS .8MM AU SMD5084618-6-ND - CONN RECPT 140POS .8MM DL SMT5084613-6-ND - CONN RCPT 140POS 0.8MM SMT DUALA115419-ND - CONN RCPT 140POS DL .8MM FH GOLDA115324-ND - CONN RCPT 140POS VERT DUAL PCBA99239CT-ND - CONN RCPT 140POS .8MMFH 13H GOLDA99233CT-ND - CONN RCPT 140POS .8MM FH 9H GOLDA99194CT-ND - CONN RCPT 140POS .8MM FH 5H 8AUA99246-ND - CONN RCPT 140POS .8MMFH 17H GOLDA99239TR-ND - CONN RCPT 140POS .8MMFH 13H GOLDA99233TR-ND - CONN RCPT 140POS .8MM FH 9H GOLDA99194TR-ND - CONN RCPT 140POS .8MM FH 5H 8AU	5-6123212-9-ND - CONN RCPT FH 180POS DUAL VERT5-5179233-9-ND - CONN RECPT 180POS .8MM DUAL SMT5-5179232-9-ND - CONN RECPT 180POS .8MM DUAL SMT5-5179010-9-ND - CONN RCPT 180POS DL .8MM FH GOLD5-5179009-9-ND - CONN RECEPT 180POS .8MM AU SMD5084618-9-ND - CONN RECPT 180POS .8MM DL SMT5084616-9-ND - CONN RCPT 180POS .8MMFH 13H GOLD5084613-9-ND - CONN RCPT 180POS 0.8MM SMT DUAL5-1735480-9-ND - CONN RCPT 180POS .8MMFH 17H GOLD	A118913CT-ND - CONN RECPT 160POS .8MM DL SMT5-6123212-8-ND - CONN RCPT FH 160POS DUAL VERT6123000-8-ND - CONN RCPT 160POS .8MM DUAL SMT5179229-8-ND - CONN RCPT 160POS 0.8MM SMT DUAL5-5179010-8-ND - CONN RCPT 160POS DL .8MM FH GOLDA118913TR-ND - CONN RECPT 160POS .8MM DL SMT5084613-8-ND - CONN RCPT 160POS 0.8MM SMT DUALA115325-ND - CONN RCPT 160POS .8MM FH 5H GOLDA99240CT-ND - CONN RCPT 160POS .8MMFH 13H GOLDA99213CT-ND - CONN PLUG 160POS .8MM FH 7H GOLDA99195CT-ND - CONN RCPT 160POS .8MM FH 5H 8AUA99247-ND - CONN RCPT 160POS .8MMFH 17H GOLDA99240TR-ND - CONN RCPT 160POS .8MMFH 13H GOLDA99213TR-ND - CONN PLUG 160POS .8MM FH 7H GOLDA99195TR-ND - CONN RCPT 160POS .8MM FH 5H 8AU
Other Names	5179029-1-NDA115330	5179029-2-NDA115331	5179029-4-NDA115332	13764605179029-5-NDA115333	-	-	51790298A99224
