7499611421 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 7499611421

7499611421: Descriptionconn magjack 1port 10g base-T; CategoryThe connector; File Size314KB，3 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

7499611421 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	7499611421	-	-	View	Buy Now

7499611421 Overview

conn magjack 1port 10g base-T

7499611421 Parametric

Parameter Name	Attribute value
Datasheets
7499611421
Product Photos
7499611421
Featured Produc
WE-RJ45LAN RJ45 Jacks with Integrated Magnetics
3D Model
7499611421.igs
7499611421.s
7499611421.wrl
Standard Package	28
Category	Connectors, Interconnects
Family	Modular Connectors - Jacks With Magnetics

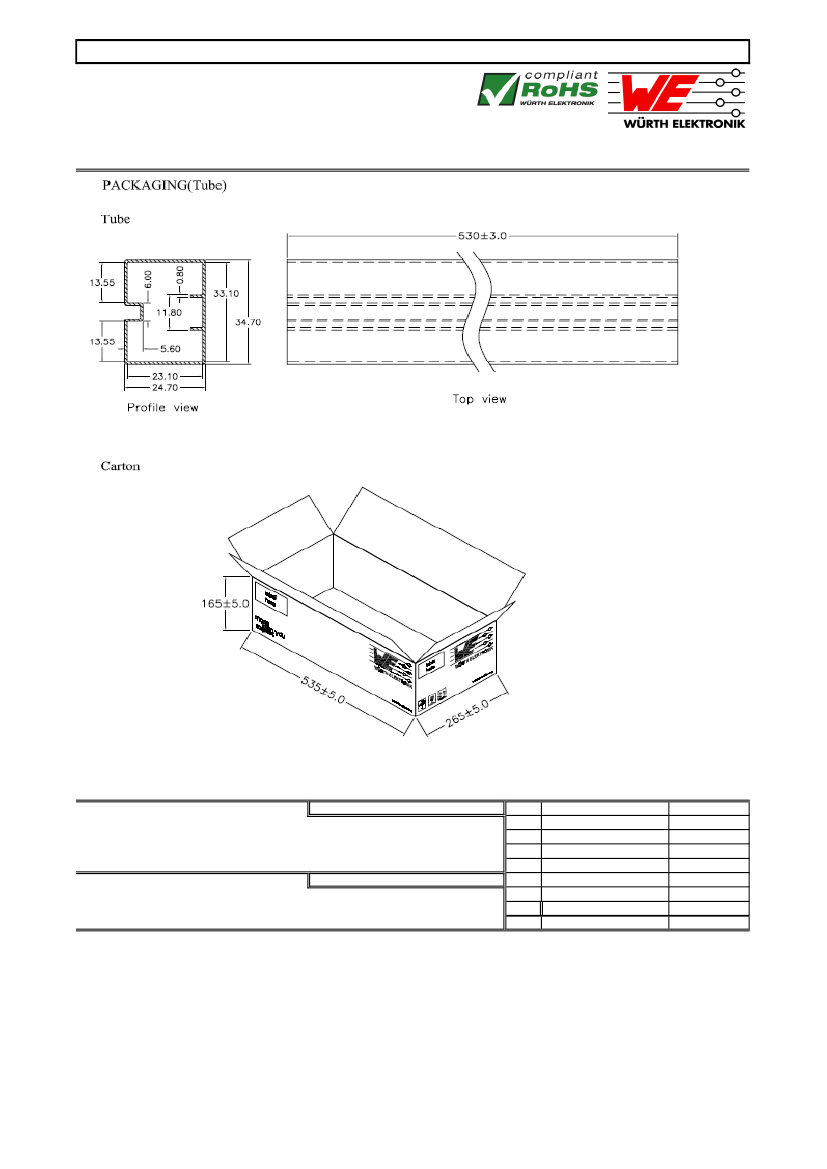

Packaging	Tube
Connector Type	RJ45
Number of Ports	1
Number of Rows	1
Applications	10G Base-T, AutoMDIX
Mounting Type	Through Hole
Orientati	90° Angle (Right)
Terminati	Solde
Height Above Board	0.546" (13.87mm)
LED Col	Yellow, Green - Gree
Number of Cores per Jack	8
Shielding	Shielded, EMI Finge
Features	Board Guide
Tab Directi	U
Contact Material	-
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Shield Material	Copper Alloy
Housing Material	Thermoplastic
Operating Temperature	0°C ~ 70°C
Dynamic Catalog	WE-RJ45 Series
Other Names	732-4059

Preview

Download Datasheet

View All

Spezifikation für Freigabe / specification for release

Kunde / customer

Artikelnummer / part number

Bezeichnung :

description :

7499611421

LAN-Übertrager WE-RJ45LAN 10/100/1000/10G BaseT

LAN-Transformer WE-RJ45LAN 10/100/1000/10G BaseT

DATUM / DATE : 2011-12-06

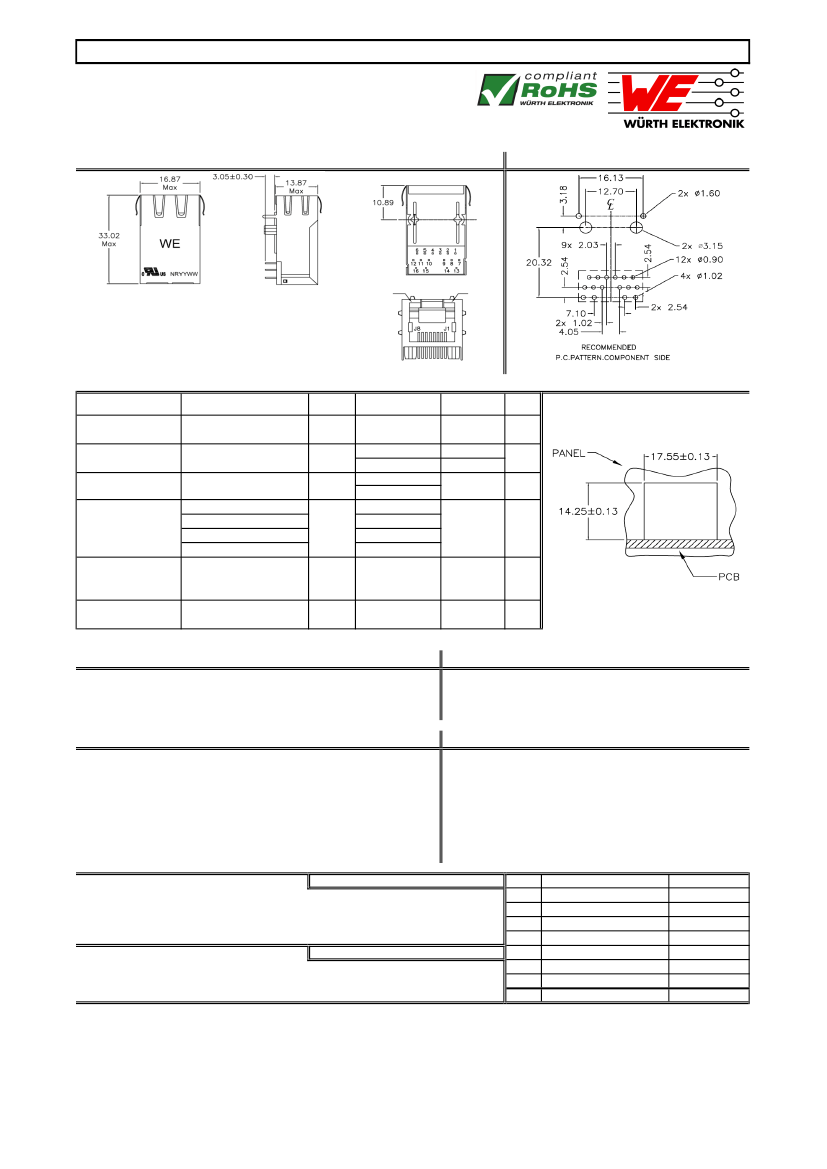

Mechanische Abmessungen / dimensions :

B Lötpad / soldering spec. :

7499611421

yellow/

green

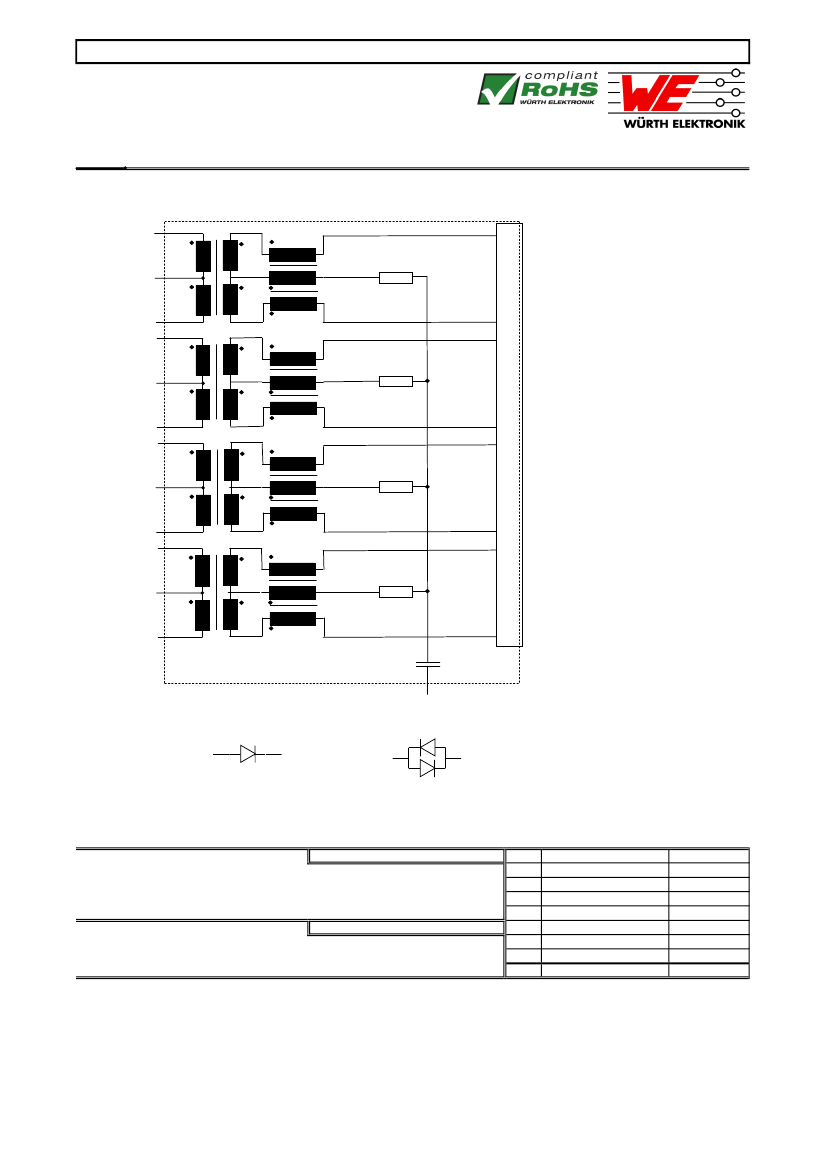

C Elektrische Eigenschaften / electrical properties :

Eigenschaften /

properties

Induktivität /

Inductance

Übersetzungsverhältnis

/ Turns ratio

Testbedingungen /

test conditions

100kHz / 100mV @ 8mA

DC-Bias

100kHz / 100mV

1-100MHz

Wert / value

Einheit / unit

tol.

min.

max.

OCL

120

1:1

µH

100-400MHz

1-100MHz @ 100Ω

100-200MHz @ 100Ω

Return Loss

200-400MHz @ 100Ω

400-500MHz @ 100Ω

1-250MHz

Differential to Common

250-500MHz

Mode Rejection

Crosstalk

1-100MHz

100-500MHz

Insertion Loss

DCMR

-2

-3

-13

-10

-7

-6

-30

-22

-28

-19

min.

Prüfgeräte / test equipment :

HP4395A

Testbedingungen / test conditions :

Luftfeuchtigkeit / humidity:

Umgebungstemperatur / temperature:

33%

+25°C

Werkstoffe & Zulassungen / material & approvals :

Basismaterial / base material:

Draht / wire:

Kontaktmaterial/ contact plating:

Gehäuse / housing

LED

Shield

Ferrit/ ferrite

UEW/ Y155

100% tin w. nickel underpalting

30µ"gold plating on contact area

Eigenschaften / general specifications :

Betriebstemp. / operating temperature: 0°C - + 70°C

Hochspannungsprüfung / Hipot test: 1500Vrms 1min.

Geeignet für 10G BaseT-Anwendungen gemäß IEEE 802.3an /

Compliant with IEEE 802.3an for 10G BaseT

Thermoplastic UL-94V0

1,8-2,8 V/ 12mA

50µ" nickel

over 0.01" cooper alloy

Freigabe erteilt / general release:

Kunde / customer

..................................................................................

Datum / date

Unterschrift / signature

Würth Elektronik

..................................................

Mle

Name

Revision 00

Änderung / modification

2011-12-06

...............................................

Geprüft / checked

Kontrolliert / approved

Datum / date

Würth Elektronik eiSos GmbH & Co.KG

D-74638 Waldenburg · Max-Eyth-Straße 1 - 3 · Germany · Telefon (+49) (0) 7942 - 945 - 0 · Telefax (+49) (0) 7942 - 945 - 400

http://www.we-online.com

SEITE 1 VON 3
