693010010601 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 693010010601

Preview

693010010601: Descriptionconn sim card 6 pos smd; CategoryThe connector; File Size416KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

693010010601 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	693010010601	-	-	View	Buy Now

693010010601 Overview

conn sim card 6 pos smd

693010010601 Parametric

Parameter Name	Attribute value
Datasheets

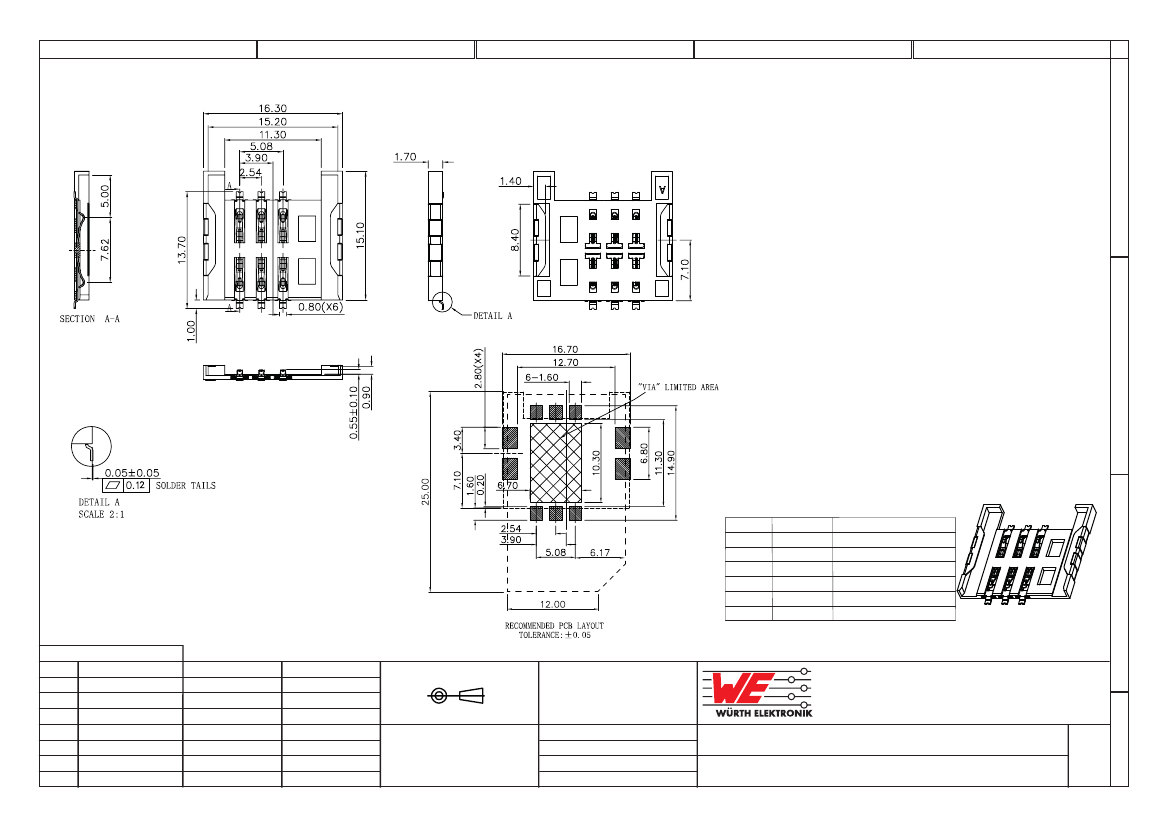

693010010601 Drawing
Product Photos
693010010601
3D Model
693010010601.igs
693010010601.s
693010010601.wrl
Standard Package	1,200
Category	Connectors, Interconnects
Family	Memory Connectors - PC Cards
Packaging	Tape & Reel (TR)
Card Type	SIM Card
Number of Positions	6
Connector Type	Connec
Insertion, Removal Method	Push In, Pull Ou
Ejector Side	-
Mounting Type	Surface Mount, Right Angle
Features	-
Height Above Board	0.067" (1.70mm)
Mounting Feature	Normal, Standard - T
Contact Finish	Gold
Contact Finish Thickness	-
Dynamic Catalog	SIM, Mini SIM
Other Names	732-3813-2

Preview

Download Datasheet

View All

1

2

3

4

5

TECHNICAL CHARACTERISTICS

MATERIAL

INSULATOR: LCP

FLAMABILITY RATING: UL94-V0

COLOR: BLACK

CONTACT MATERIAL: COPPER ALLOY

CONTACT TYPE: STAMPED

CONTACT PLATING: GOLD

LATCH: STAINLESS STEEL

QUALITY CLASS: 5000 MATING CYCLES

ENVIRONMENTAL

OPERATING TEMPERATURE: -25 UP TO 85°C

COMPLIANCE: LEAD FREE AND ROHS

4

5

6

ELECTRICAL

CURRENT RATING: 0.5A

WORKING VOLTAGE: 50VAC

INSULATOR RESISTANCE: >500 MΩ

DIELECTRIC WITHSTANDING VOLTAGE: 500V AC/MIN

CONTACT RESISTANCE: 50 mΩ MAX

SOLDERING

JEDEC LEAD FREE REFLOW SOLDERING PROCESS

PACKAGING

TAPE & REEL

A

1

2

3

B

PIN No

1

2

3

4

5

6

NAME

Vcc

RESET

CLOCK

GND

Vpp

1/0

DESCRIPTION

+5 VDC

RESET

Clocking or timing signal

Reference

Programming Voltage

Serial Data

C

RoHS Compliant

PROJECTION:

F

E

D

C

B

A

REV

22-AUG-14

26-NOV-12

16-AUG-12

27-MAR-12

10-JAN-12

31-AUG-11

DATE

LAYOUT DIM.

PINNING

LAYOUT

PINNING

DRAWING & TKP

PDF

FILE

AS

GG

QL

GG

BY

APPROVAL: RJ

SCALE:

SHEET: 1/2

DRAW:

WERI PART NO: 693 010 010 601

GENERAL TOLERANCE

.X = +/- 0.2

.XX = +/- 0.15

UNIT: MM

DESCRIPTION: SIM Card Connector - Header - 6 pins

SIZE

A4

D
