COPYRIGHT
18.42
[.725]
D
17.66
[ .695 ]

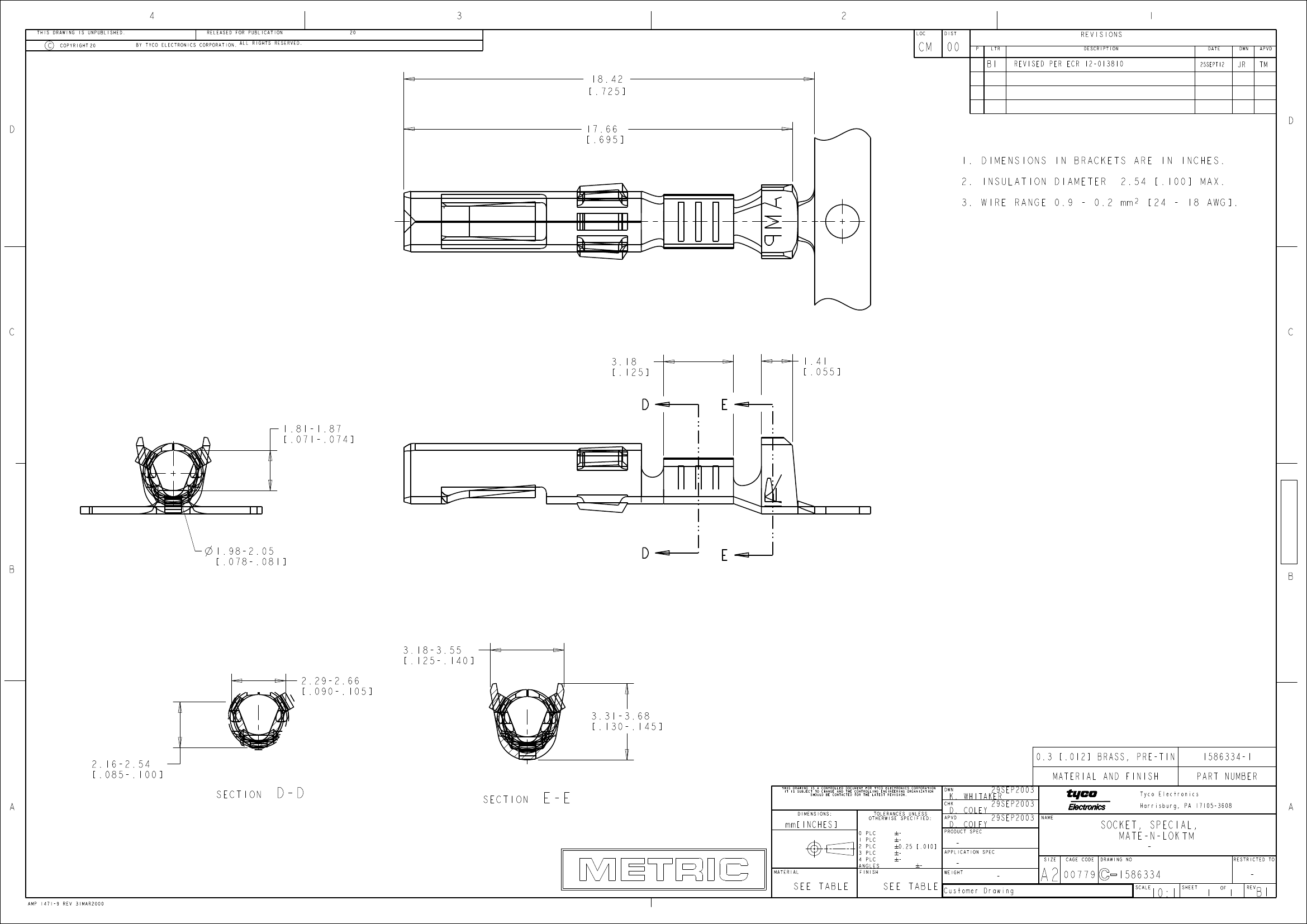

1. DIMENSIONS IN BRACKETS ARE IN INCHES.
2. INSULATION DIAMETER
2.54 [.100] MAX.
D
3. WIRE RANGE 0.9 - 0.2 mm² [24 - 18 AWG].
C
3.18
[ .125 ]
1.41
[ .055 ]
C
D
1.81 -1.87
[ .071 -.074 ]
E
B
1.98 -2.05
[ .078 -.081 ]
D
E
B
3.18 -3.55
[ .125 -.140 ]
2.29 -2.66
[ .090 -.105 ]
3.31 -3.68
[ .130 -.145 ]
2.16 -2.54
[ .085 -.100 ]
A
SECTION
0.3 [.012] BRASS, PRE-TIN
1586334-1
PART NUMBER
A
D-D
MATERIAL AND FINISH
SECTION
E-E
THIS DRAWING IS A CONTROLLED DOCUMENT FOR TYCO ELECTRONICS CORPORATION
IT IS SUBJECT TO CHANGE AND THE CONTROLLING ENGINEERING ORGANIZATION
SHOULD BE CONTACTED FOR THE LATEST REVISION.
DWN
CHK
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
APVD
PRODUCT SPEC
NAME
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
APPLICATION SPEC
WEIGHT
A2
00779
SIZE
CAGE CODE
DRAWING NO
RESTRICTED TO
SCALE
SHEET
OF
REV
AMP 1471-9 REV 31MAR2000
