A-HDF15PP-TAXL-B-R datasheet, PDF

Datasheet> All Categories > The connector> A-HDF15PP-TAXL-B-R

A-HDF15PP-TAXL-B-R: Descriptionconn D-sub fml 15pos sldr tail; CategoryThe connector; File Size75KB，1 Pages; ManufacturerASSMANN WSW components; Environmental Compliance

Download Datasheet Parametric View All

A-HDF15PP-TAXL-B-R Overview

conn D-sub fml 15pos sldr tail

A-HDF15PP-TAXL-B-R Parametric

Parameter Name	Attribute value
Datasheets

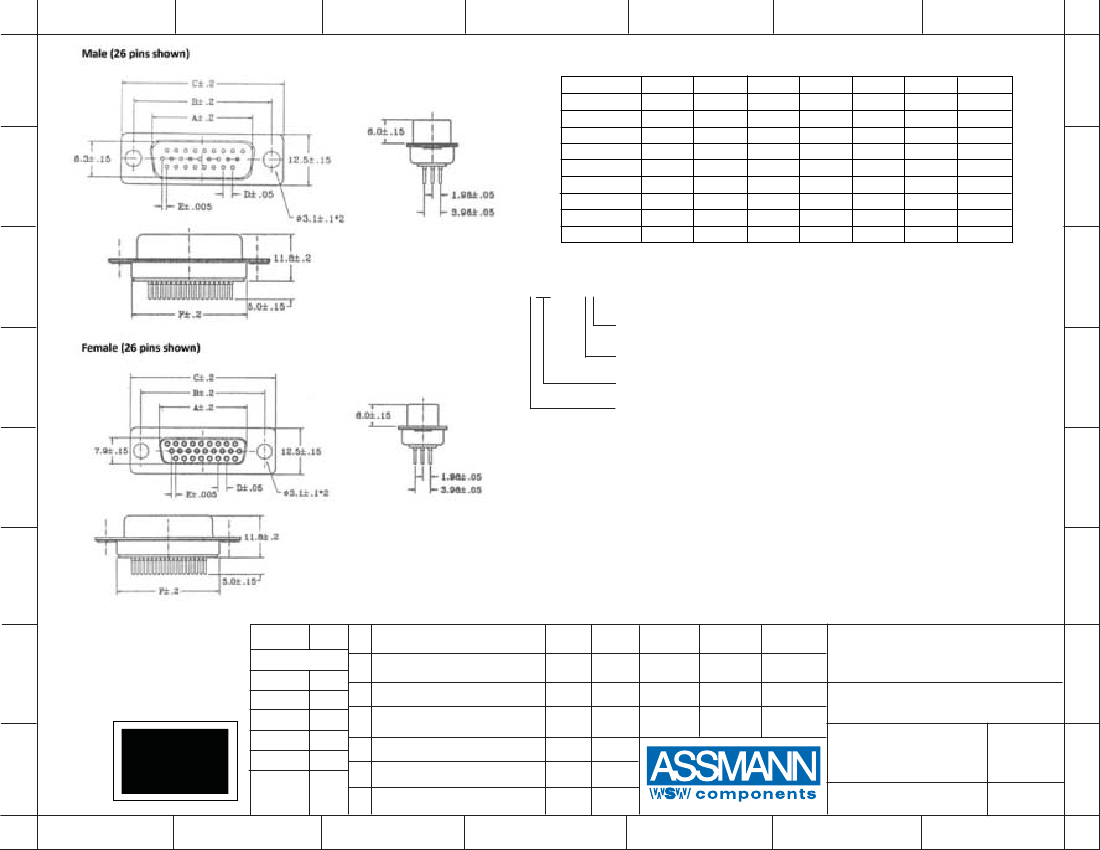

A-HDyyyPP-TyyL-B-R Drawing
Standard Package	50
Category	Connectors, Interconnects
Family	D-Sub Connectors
Packaging	Tray
Connector Style	D-Sub, High Density
Connector Type	Receptacle, Female Sockets
Number of Positions	15
Number of Rows	3
Shell Size, Connector Layou	1 (DE, E) High Density
Contact Type	Signal
Mounting Type	Through Hole
Flange Feature	-
Terminati	Solde
Features	-
Shell Material, Finish	Steel, Tin Plated
Contact Finish	Gold
Contact Finish Thickness	-
Ingress Protecti	-
Operating Temperature	-55°C ~ 125°C
Voltage Rating	-
Current Rating	5A
Housing Material	Polybutylene Terephthalate (PBT)
Col	-

Preview

Download Datasheet

View All

Pins

Female

16.3

0.642

24.6

0.968

38.3

1.51

54.8

2.16

Male

16.92

0.666

25.25

0.994

38.96

1.53

55.42

2.18

0.984

33.3

1.31

47.1

1.85

63.5

2.5

30.8

1.22

39.2

1.54

53.1

2.09

69.4

2.73

2.29

0.09

2.29

0.09

2.29

0.09

2.41

0.095

1.145

0.045

1.145

0.045

1.145

0.045

1.205

0.047

19.2

0.756

27.7

1.09

41.1

1.62

57.3

2.26

A-HDxxxPP-TxxL-B-R

S Hex stand-offs

X Omit if not required

A 4-40 threaded inserts

X Omit if not required

Number of pins

xx 09,15, 25, 37, 50

Gender

S Male

F Female

Material:

• Shell: Tin plated steel

• Insulator: PBT thermo plastic, black color, 30%

glass filled self extinguising, UL94V-0 rated

• Contact material Pin: Brass

Socket: Phosphor Bronze

• Contact plating: Gold over Nickel

Electrical:

• Current Rating : 5.0 Amps

• Dielectric strength: 1000Vac min.

• Insulation Resistance: 5000 Min.

• Operation Temperature: -55°C to +125°C

Scale

1:1

Drawn

Approved

11.17.11

Name

Chappell

Item No.

TOLERANCE

X.X

X.XX

X.XXX

±0.40

±0.25

±0.15

±3°

A-HDxxxPP-TxxL-B-R

Title

High Density D-Sub Connector - Straight Pin

RoHS

Complaint

Angle

Drawing No.

rev00

Sheet

Modification

Date

Name

Replace
