3-1871566-0 Overview

conn plug 30pos .4mm dual smt

3-1871566-0 Parametric

Parameter Name	Attribute value
Datasheets
1871566
3D Model
3-1871566-0.pdf
Standard Package	32,000
Category	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Packaging	Tape & Reel (TR)
Connector Type	Plug, Outer Shroud Contacts
Number of Positions	30
Pitch	0.016" (0.40mm)
Number of Rows	2
Mounting Type	Surface Mou
Features	Solder Retenti
Contact Finish	Gold
Contact Finish Thickness	12µin (0.30µm)
Mated Stacking Heights	1mm
Height Above Board	0.035" (0.88mm)

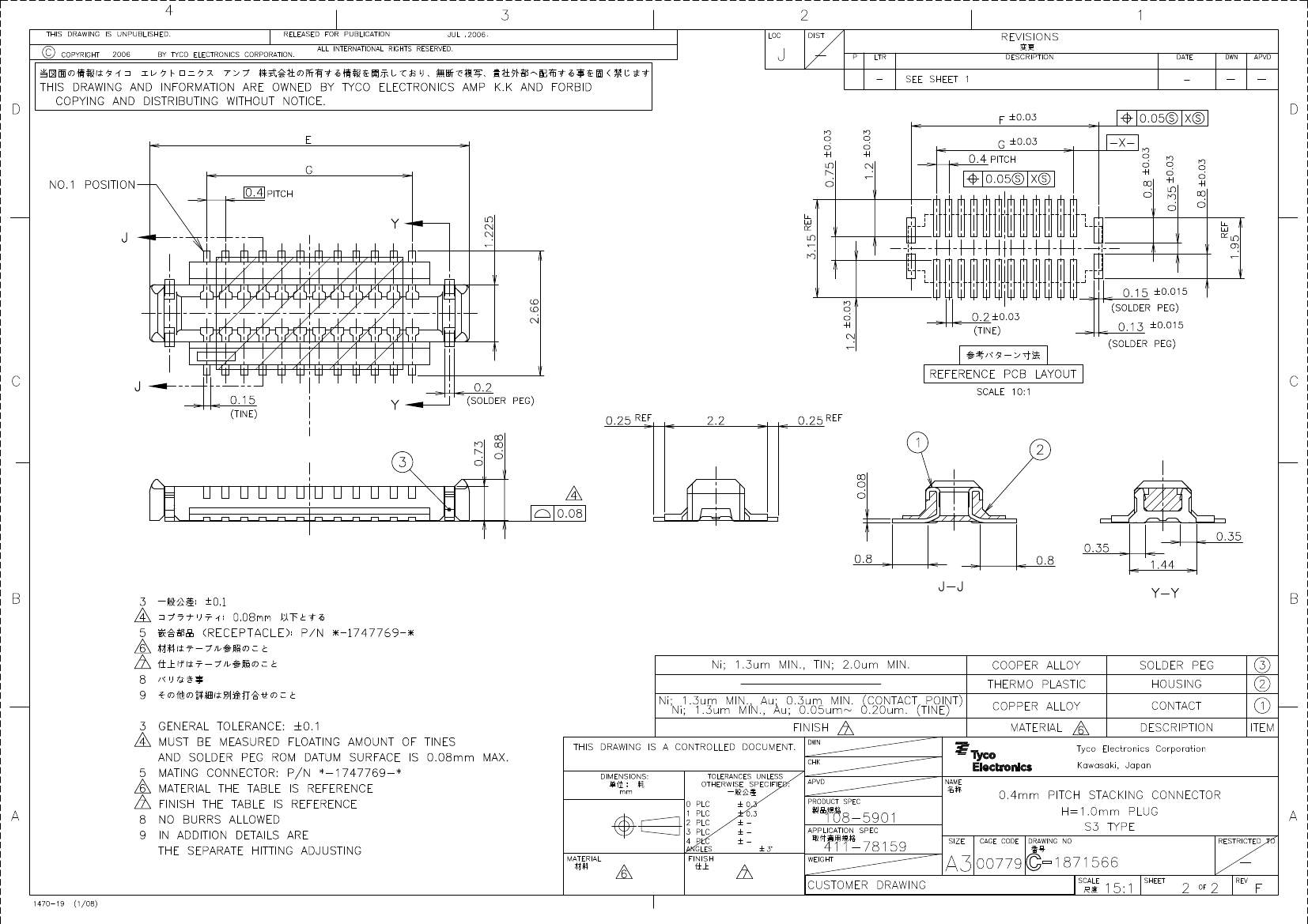

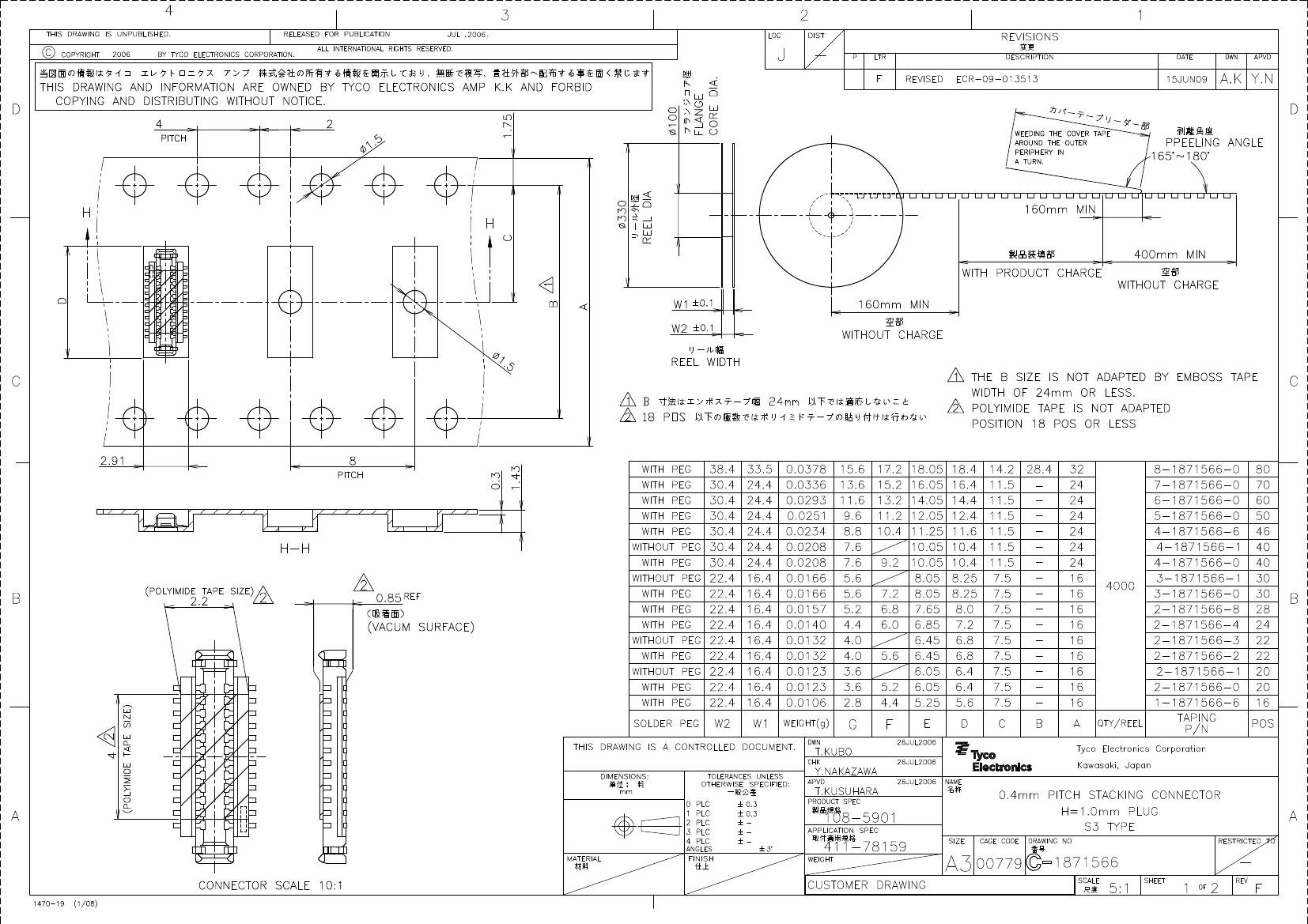

Preview

Download Datasheet

View All

3-1871566-0 Related Products

	3-1871566-0	2-1871566-0	6-1871566-0	7-1871566-0	8-1871566-0	4-1871566-0
Description	conn plug 30pos .4mm dual smt	conn plug 20pos .4mm dual smt	conn plug 60pos .4mm dual smt	conn plug 70pos .4mm dual smt	conn plug 80pos .4mm dual smt	conn plug 40pos .4mm dual smt
Standard Package	32,000	32,000	24,000	24,000	4,000	24,000
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Packaging	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)
Connector Type	Plug, Outer Shroud Contacts	Plug, Outer Shroud Contacts	Plug, Outer Shroud Contacts	Plug, Outer Shroud Contacts	Plug, Outer Shroud Contacts	Plug, Outer Shroud Contacts
Number of Positions	30	20	60	70	80	40
Pitch	0.016" (0.40mm)	0.016" (0.40mm)	0.016" (0.40mm)	0.016" (0.40mm)	0.016" (0.40mm)	0.016" (0.40mm)
Number of Rows	2	2	2	2	2	2
Mounting Type	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou
Features	Solder Retenti	Solder Retenti	Solder Retenti	Solder Retenti	Solder Retenti	Solder Retenti
Contact Finish	Gold	Gold	Gold	Gold	Gold	Gold
Contact Finish Thickness	12µin (0.30µm)	12µin (0.30µm)	12µin (0.30µm)	12µin (0.30µm)	12µin (0.30µm)	12µin (0.30µm)
Mated Stacking Heights	1mm	1mm	1mm	1mm	1mm	1mm
Height Above Board	0.035" (0.88mm)	0.035" (0.88mm)	0.035" (0.88mm)	0.035" (0.88mm)	0.035" (0.88mm)	0.035" (0.88mm)
