5176377-1: Descriptionconn rcpt FH 40pos .050 vert; CategoryThe connector; File Size87KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5176377-1 Overview

conn rcpt FH 40pos .050 vert

5176377-1 Parametric

Parameter Name	Attribute value
Datasheets

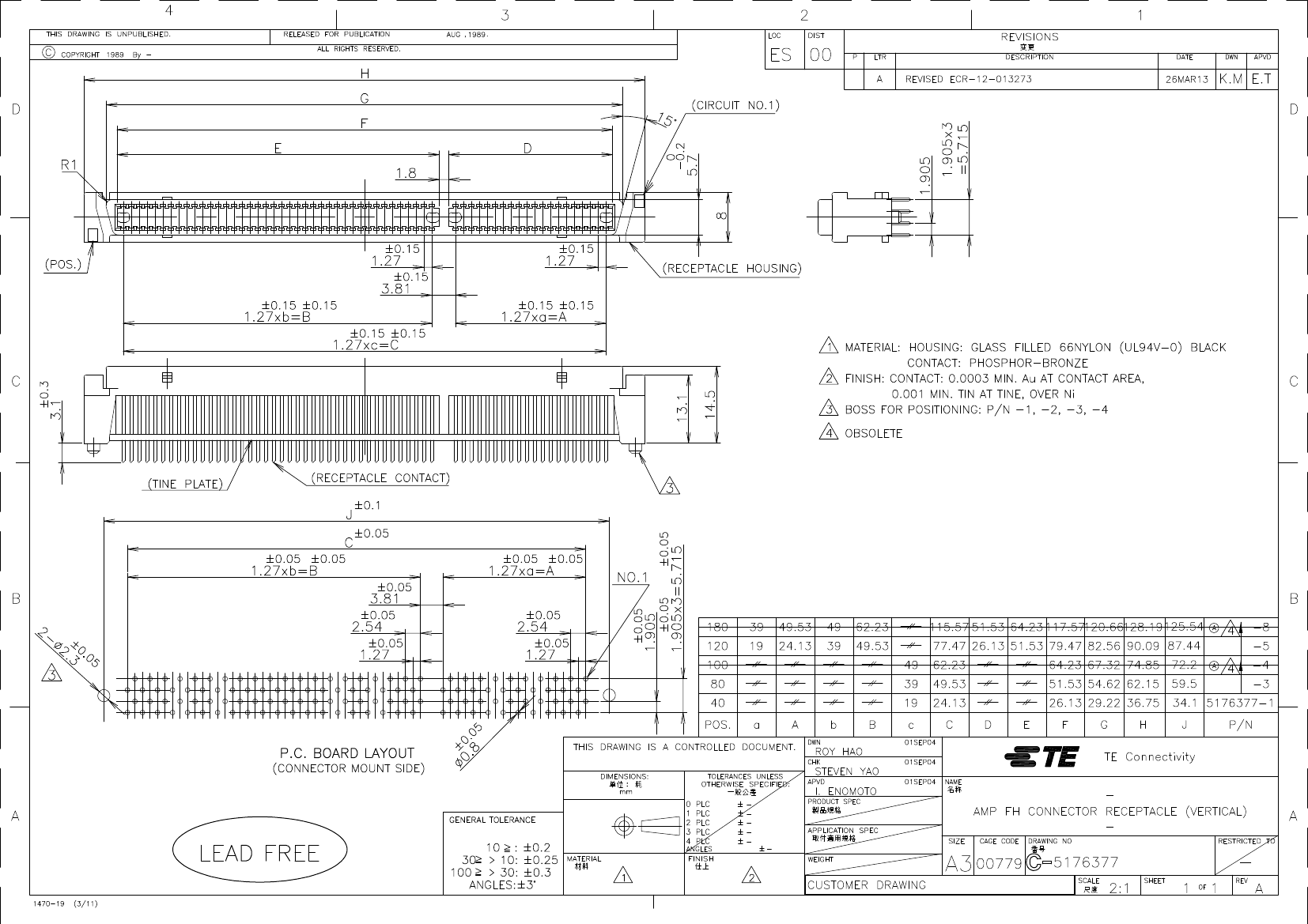

5176377 Drawing
Standard Package	1,820
Category	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Packaging	-
Connector Type	Receptacle, Outer Shroud Contacts
Number of Positions	40
Pitch	0.050" (1.27mm)
Number of Rows	2
Mounting Type	Through Hole
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	12µin (0.30µm)
Mated Stacking Heights	17mm
Height Above Board	0.571" (14.51mm)
Mating Products	A114070-ND - CONN PLUG FH 40POS .050 VERT2-5176381-1-ND - CONN PLUG FH 40POS 050 R/A5176381-1-ND - CONN PLUG FH 40POS .050 R/A176381-1-ND - CONN PLUG FH 40POS .050 R/A

Preview

Download Datasheet

View All

5176377-1 Related Products

	5176377-1	5176377-5	5176377-8	5176377-3
Description	conn rcpt FH 40pos .050 vert	conn rcpt FH 120pos 050 vert	conn rcpt FH 180pos 050 vert	conn rcpt FH 80pos .050 vert
Standard Package	1,820	700	30	980
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Connector Type	Receptacle, Outer Shroud Contacts	Receptacle, Outer Shroud Contacts	Receptacle, Outer Shroud Contacts	Receptacle, Outer Shroud Contacts
Number of Positions	40	120	180	80
Pitch	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)
Number of Rows	2	2	2	2
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole
Contact Finish	Gold	Gold	Gold	Gold
Contact Finish Thickness	12µin (0.30µm)	12µin (0.30µm)	12µin (0.30µm)	12µin (0.30µm)
Mated Stacking Heights	17mm	17mm	17mm	17mm
Height Above Board	0.571" (14.51mm)	0.571" (14.51mm)	0.571" (14.51mm)	0.571" (14.51mm)
Mating Products	A114070-ND - CONN PLUG FH 40POS .050 VERT2-5176381-1-ND - CONN PLUG FH 40POS 050 R/A5176381-1-ND - CONN PLUG FH 40POS .050 R/A176381-1-ND - CONN PLUG FH 40POS .050 R/A	2-5917631-5-ND - CONN PLUG FH 120POS .050 VERTA114073-ND - CONN PLUG FH 120POS .050 VERT2-5179540-5-ND - CONN PLUG FH 120POS 050 VERT2-179540-5-ND - CONN PLUG FH 120POS 050 VERT5176381-5-ND - CONN PLUG FH 120POS .050 R/A176381-5-ND - CONN PLUG FH 120POS .050 R/A	5917631-8-ND - CONN PLUG FH 180POS .050 VERT5176381-8-ND - CONN PLUG FH 180POS .050 R/A176381-8-ND - CONN PLUG FH 180POS .050 R/A	5917631-3-ND - CONN PLUG FH 80POS .050 VERT5176381-3-ND - CONN PLUG FH 80POS .050 R/A176381-3-ND - CONN PLUG FH 80POS .050 R/A
