Datasheet> All Categories > The connector> 4-644662-1
PDF

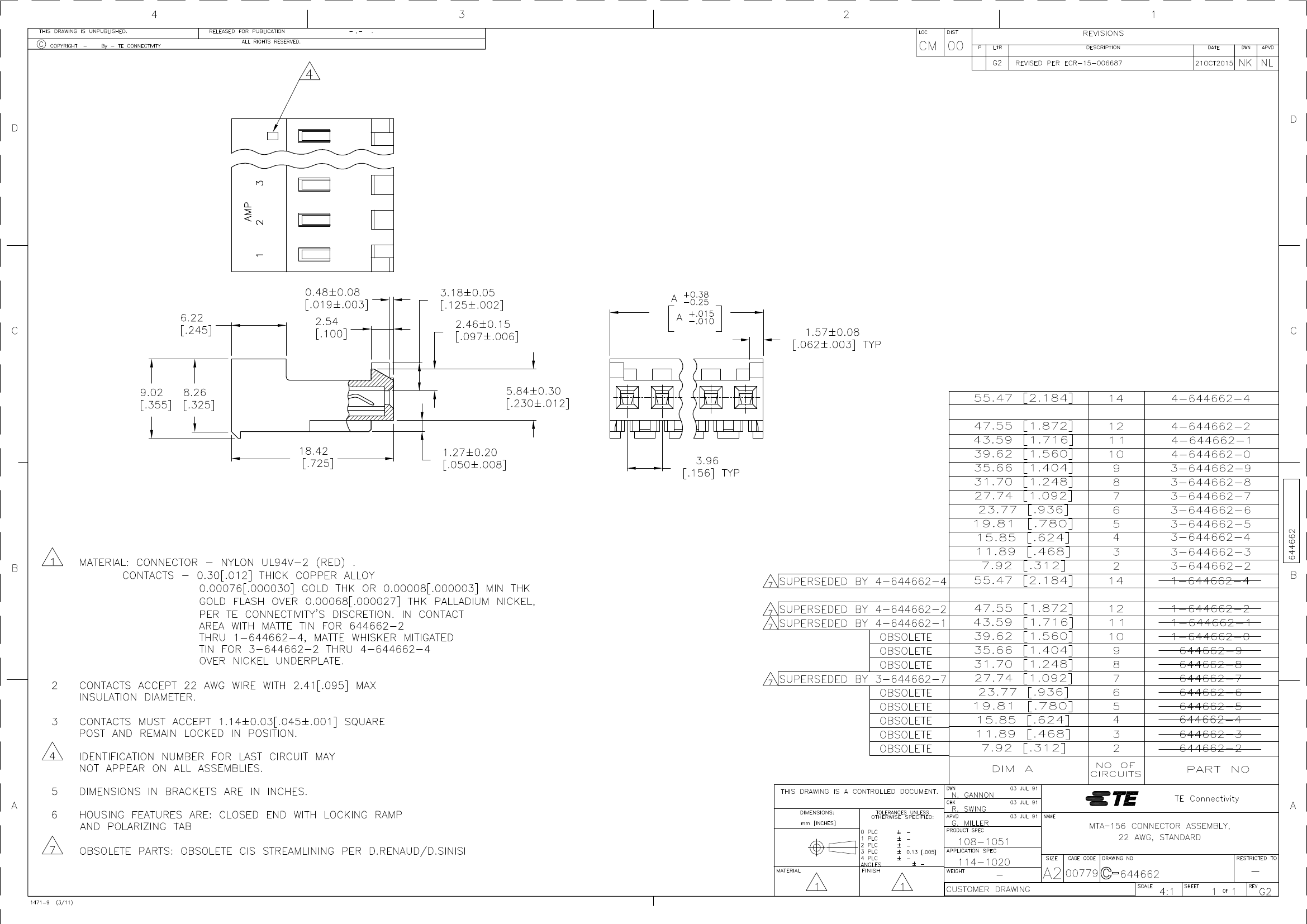

Preview

4-644662-1

Description
11p mta156 conn assy 22awg LF
CategoryThe connector
File Size111KB，1 Pages
ManufacturerAll Sensors
Environmental Compliance
Download Datasheet Parametric Compare View All

4-644662-1 Online Shopping

Suppliers Part Number Price MOQ In stock
4-644662-1 - - View Buy Now

4-644662-1 Overview

11p mta156 conn assy 22awg LF

4-644662-1 Parametric

Parameter NameAttribute value
Datasheets
644662
RoHS Informati
4-644662-1 Statement of Compliance
RoHS 2 Stateme
3D Model
4-644662-1.pdf
Standard Package500
CategoryConnectors, Interconnects
FamilyRectangular Connectors - Free Hanging, Panel Mou
PackagingBulk
Connector TypeReceptacle
Contact TypeFemale Socke
Number of Positions11
Pitch0.156" (3.96mm)
Number of Rows1
Row Spacing-
Mounting TypeFree Hanging (In-Line)
Fastening TypeLocking Ram
Cable TerminatiIDC
Wire TypeDiscrete or Ribbon Cable
Wire Gauge22 AWG
FeaturesClosed End, Polarizing Key
Contact FinishGold
Contact Finish Thickness30µin (0.76µm)
ColRed
Associated Produc58247-3-ND - TOOL HEAD MTA .156 26-18AWG58247-2-ND - TOOL HEAD TERM 26-18AWG MTA 156A1999-ND - HEAD ASSEM TOOL FOR MTA-156 RECP

Preview

Download Datasheet

4-644662-1 Related Products

4-644662-1 4-644662-2 644662-8 644662-6 1-644662-0 644662-4 644662-5
Description 11p mta156 conn assy 22awg LF 12p mta156 conn assy 22awg LF conn rcpt 8pos 22awg red .156 conn rcpt 6pos 22awg mta-156 conn rcpt 10pos .156 polar gold conn rcpt 4pos 22awg red .156 conn rcpt 5pos 22awg mta-156
Standard Package 500 500 500 500 500 2,000 500
Category Connectors, Interconnects Connectors, Interconnects Connectors, Interconnects Connectors, Interconnects Connectors, Interconnects Connectors, Interconnects Connectors, Interconnects
Family Rectangular Connectors - Free Hanging, Panel Mou Rectangular Connectors - Free Hanging, Panel Mou Rectangular Connectors - Free Hanging, Panel Mou Rectangular Connectors - Free Hanging, Panel Mou Rectangular Connectors - Free Hanging, Panel Mou Rectangular Connectors - Free Hanging, Panel Mou Rectangular Connectors - Free Hanging, Panel Mou
Packaging Bulk Bulk Bulk Bulk Bulk Bulk Bulk
Connector Type Receptacle Receptacle Receptacle Receptacle Receptacle Receptacle Receptacle
Contact Type Female Socke Female Socke Female Socke Female Socke Female Socke Female Socke Female Socke
Number of Positions 11 12 8 6 10 4 5
Pitch 0.156" (3.96mm) 0.156" (3.96mm) 0.156" (3.96mm) 0.156" (3.96mm) 0.156" (3.96mm) 0.156" (3.96mm) 0.156" (3.96mm)
Number of Rows 1 1 1 1 1 1 1
Mounting Type Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line)
Fastening Type Locking Ram Locking Ram Locking Ram Locking Ram Locking Ram Locking Ram Locking Ram
Cable Terminati IDC IDC IDC IDC IDC IDC IDC
Wire Type Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable
Wire Gauge 22 AWG 22 AWG 22 AWG 22 AWG 22 AWG 22 AWG 22 AWG
Features Closed End, Polarizing Key Closed End, Polarizing Key Closed End, Polarizing Key Closed End, Polarizing Key Closed End, Polarizing Key Closed End, Polarizing Key Closed End, Polarizing Key
Contact Finish Gold Gold Gold Gold Gold Gold Gold
Contact Finish Thickness 30µin (0.76µm) 30µin (0.76µm) 30µin (0.76µm) 30µin (0.76µm) 30µin (0.76µm) 30µin (0.76µm) 30µin (0.76µm)
Col Red Red Red Red Red Red Red
Associated Produc 58247-3-ND - TOOL HEAD MTA .156 26-18AWG58247-2-ND - TOOL HEAD TERM 26-18AWG MTA 156A1999-ND - HEAD ASSEM TOOL FOR MTA-156 RECP 58247-3-ND - TOOL HEAD MTA .156 26-18AWG58247-2-ND - TOOL HEAD TERM 26-18AWG MTA 156A1999-ND - HEAD ASSEM TOOL FOR MTA-156 RECP A19766-ND - CONN DUST COVER 8POS CLOSEDA19746-ND - CONN STRAIN RELIEF COVER 8POS A19764-ND - CONN DUST COVER 6POS CLOSEDA19744-ND - CONN STRAIN RELIEF COVER 6POS A19768-ND - CONN DUST COVER 10POS CLOSEDA19748-ND - CONN STRAIN RELIEF COVER 10POS 58247-3-ND - TOOL HEAD MTA .156 26-18AWG58247-2-ND - TOOL HEAD TERM 26-18AWG MTA 156A19762-ND - CONN DUST COVER 4POS CLOSEDA19742-ND - CONN STRAIN RELIEF COVER 4POSA1999-ND - HEAD ASSEM TOOL FOR MTA-156 RECP 58247-3-ND - TOOL HEAD MTA .156 26-18AWG58247-2-ND - TOOL HEAD TERM 26-18AWG MTA 156A19763-ND - CONN DUST COVER 5POS CLOSEDA19743-ND - CONN STRAIN RELIEF COVER 5POSA1999-ND - HEAD ASSEM TOOL FOR MTA-156 RECP
Mating Products - - 644617-8-ND - CONN HEADER 8POS R/A .156 TIN647648-8-ND - CONN HEADER 8POS VERT .156 TIN644766-8-ND - CONN HEADER 8POS VERT .156 GOLD644760-8-ND - CONN HEADER 8POS VERT .156 GOLD641204-8-ND - CONN HEADER 8POS R/A .156 30GOLD644759-8-ND - CONN HEADER 8POS VERT .156 GOLD644754-8-ND - CONN HEADER 8POS R/A .156 TIN641120-8-ND - CONN HEADER 8POS STR .156 15GOLDA31693-ND - CONN HEADER RT/A .156 8POS 30AUA31682-ND - CONN HEADER 8POS .156 30 GOLDA26190-ND - CONN HEADER RT/A .156 8POS 30AUA26181-ND - CONN HEADER VERT .156 8POS 30AUA24153-ND - CONN HEADER VERT 8POS .156 TINA24182-ND - CONN HEADER VERT 8POS .156 TINA24170-ND - CONN HEADER VERT 8POS .156 TINA24161-ND - CONN HEADER RTANG 8POS .156 TINA19906-ND - CONN HEADER VERT 8POS .156 TINA1979-ND - CONN HEADER RTANG 8POS .156 TINA1969-ND - CONN HEADER RTANG 8POS .156 TINA1964-ND - CONN HEADER VERT 8POS .156 TINA1974-ND - CONN HEADER VERT 8POS .156 TIN 644767-6-ND - CONN HEADER 6POS VERT .156 GOLD644759-6-ND - CONN HEADER 6POS VERT .156 GOLD644756-6-ND - CONN HEADER 6POS VERT .156 GOLD644617-6-ND - CONN HEADER 6POS R/A .156 TIN3-641120-6-ND - CONN HEADER 6POS VERT .156 GOLD647143-6-ND - CONN HEADER 6POS VERT .156 GOLD647123-6-ND - CONN HEADER 6POS VERT .156 TIN641121-6-ND - CONN HEADER 6POS R/A .156 15GOLD644611-6-ND - CONN HEADER VERT 6POS .156 TINA31692-ND - CONN HEADER RT/A .156 6POS 30AUA31680-ND - CONN HEADER 6POS .156 30 GOLDA26171-ND - CONN HEADER VERT 6POS .156 TINA26189-ND - CONN HEADER RT/A .156 6POS 30AUA26179-ND - CONN HEADER VERT .156 6POS 30AUA24180-ND - CONN HEADER VERT 6POS .156 TINA24168-ND - CONN HEADER VERT 6POS .156 TINA24159-ND - CONN HEADER RTANG 6POS .156 TINA19904-ND - CONN HEADER VERT 6POS .156 TINA1978-ND - CONN HEADER RTANG 6POS .156 TINA1973-ND - CONN HEADER VERT 6POS .156 TINA1968-ND - CONN HEADER RTANG 6POS .156 TINA1963-ND - CONN HEADER VERT 6POS .156 TIN 1-644767-0-ND - CONN HEADER 10POS .156 STR 15AU1-644759-0-ND - CONN HEADER 10POS .156 STR 30AU1-647124-0-ND - CONN HEADER 10POS VERT TIN1-644750-0-ND - CONN HEADER 10POS VERT TIN1-644749-0-ND - CONN HEADER 10POS VERT TIN1-644633-0-ND - CONN HEADER 10POS R/A .156 GOLD1-644627-0-ND - CONN HEADER 10POS VERT GOLD1-644615-0-ND - CONN HEADER 10POS VERT TIN .156A112577-ND - CONN HEADER 10POS VERT .156 TIN1-644613-0-ND - CONN HEADER 10POS R/A .156 TIN1-641119-0-ND - CONN HEADER 10POS VERT .156 GOLD1-641120-0-ND - CONN HEADER 10POS VERT .156 GOLD1-641209-0-ND - CONN HEADER 10POS VERT .156 GOLDA31695-ND - CONN HEADER RT/A .156 10POS 30AUA31684-ND - CONN HEADER 10POS .156 30 GOLDA26183-ND - CONN HEADER VERT 10POS .156 30AUA24186-ND - CONN HEADER RT/A 10POS .156 30AUA24154-ND - CONN HEADER VERT 10POS .156 TINA24162-ND - CONN HEADER RT/A 10POS .156 TINA24171-ND - CONN HEADER VERT 10POS .156 TINA24183-ND - CONN HEADER VERT 10POS .156 TINA19908-ND - CONN HEADER VERT 10POS .156 TINA1980-ND - CONN HEADER RT/A 10POS .156 TINA1975-ND - CONN HEADER VERT 10POS .156 TINA1970-ND - CONN HEADER RT/A 10POS .156 TINA1965-ND - CONN HEADER VERT 10POS .156 TIN 647648-4-ND - CONN HEADER 4POS VERT .156 TIN647141-4-ND - CONN HEADER 4POS R/A .156 GOLD647125-4-ND - CONN HEADER 4POS R/A .156 TIN644767-4-ND - CONN HEADER 4POS VERT .156 GOLD644759-4-ND - CONN HEADER 4POS VERT .156 GOLD644617-4-ND - CONN HEADER 4POS R/A .156 TIN641202-4-ND - CONN HEADER 4POS STR .156 30GOLD644760-4-ND - CONN HEADER 4POS VERT .156 GOLD644754-4-ND - CONN HEADER 4POS R/A .156 TIN647143-4-ND - CONN HEADER 4POS VERT .156 GOLD641120-4-ND - CONN HEADER 4POS VERT .156 GOLDA31690-ND - CONN HEADER RT/A .156 4POS 30AUA31678-ND - CONN HEADER 4POS .156 30 GOLDA26187-ND - CONN HEADER RT/A .156 4POS 30AUA26177-ND - CONN HEADER VERT .156 4POS 30AUA24152-ND - CONN HEADER VERT 4POS .156 TINA24178-ND - CONN HEADER VERT 4POS .156 TINA24157-ND - CONN HEADER RTANG 4POS .156 TINA24166-ND - CONN HEADER VERT 4POS .156 TINA19902-ND - CONN HEADER VERT 4POS .156 TINA1977-ND - CONN HEADER RTANG 4POS .156 TINA1972-ND - CONN HEADER VERT 4POS .156 TINA1967-ND - CONN HEADER RTANG 4POS .156 TINA1962-ND - CONN HEADER VERT 4POS .156 TIN 647124-5-ND - CONN HEADER 5POS VERT .156 TINA114271-ND - CONN HEADER 5POS VERT .156 TIN644759-5-ND - CONN HEADER 5POS VERT .156 GOLD641120-5-ND - CONN HEADER 5POS VERT .156 GOLD647126-5-ND - CONN HEADER 5POS R/A .156 TIN644766-5-ND - CONN HEADER 5POS VERT .156 GOLD644613-5-ND - CONN HEADER 5POS R/A .156 TIN641202-5-ND - CONN HEADER 5POS STR .156 30GOLD641121-5-ND - CONN HEADER 5POS R/A .156 15GOLDA114274-ND - CONN HEADER 5POS VERT .156 TINA114205-ND - CONN HEADER VERT 5POS .156 TIN647143-5-ND - CONN HEADER 5POS VERT .156 GOLD641209-5-ND - CONN HEADER VERT 5POS .156 GOLDA31691-ND - CONN HEADER RT/A .156 5POS 30AUA31679-ND - CONN HEADER 5POS .156 30 GOLDA26170-ND - CONN HEADER VERT 5POS .156 TINA26188-ND - CONN HEADER RT/A .156 5POS 30AUA26178-ND - CONN HEADER VERT .156 5POS 30AUA24179-ND - CONN HEADER VERT 5POS .156 TINA24158-ND - CONN HEADER RTANG 5POS .156 TINA24167-ND - CONN HEADER VERT 5POS .156 TINA19921-ND - CONN HEADER RTANG 5POS .156 TINA19903-ND - CONN HEADER VERT 5POS .156 TINA19891-ND - CONN HEADER VERT 5POS .156 TINA19877-ND - CONN HEADER RTANG 5POS .156 TINA19871-ND - CONN HEADER VERT 5POS .156 TIN
