1-5316560-1 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 1-5316560-1

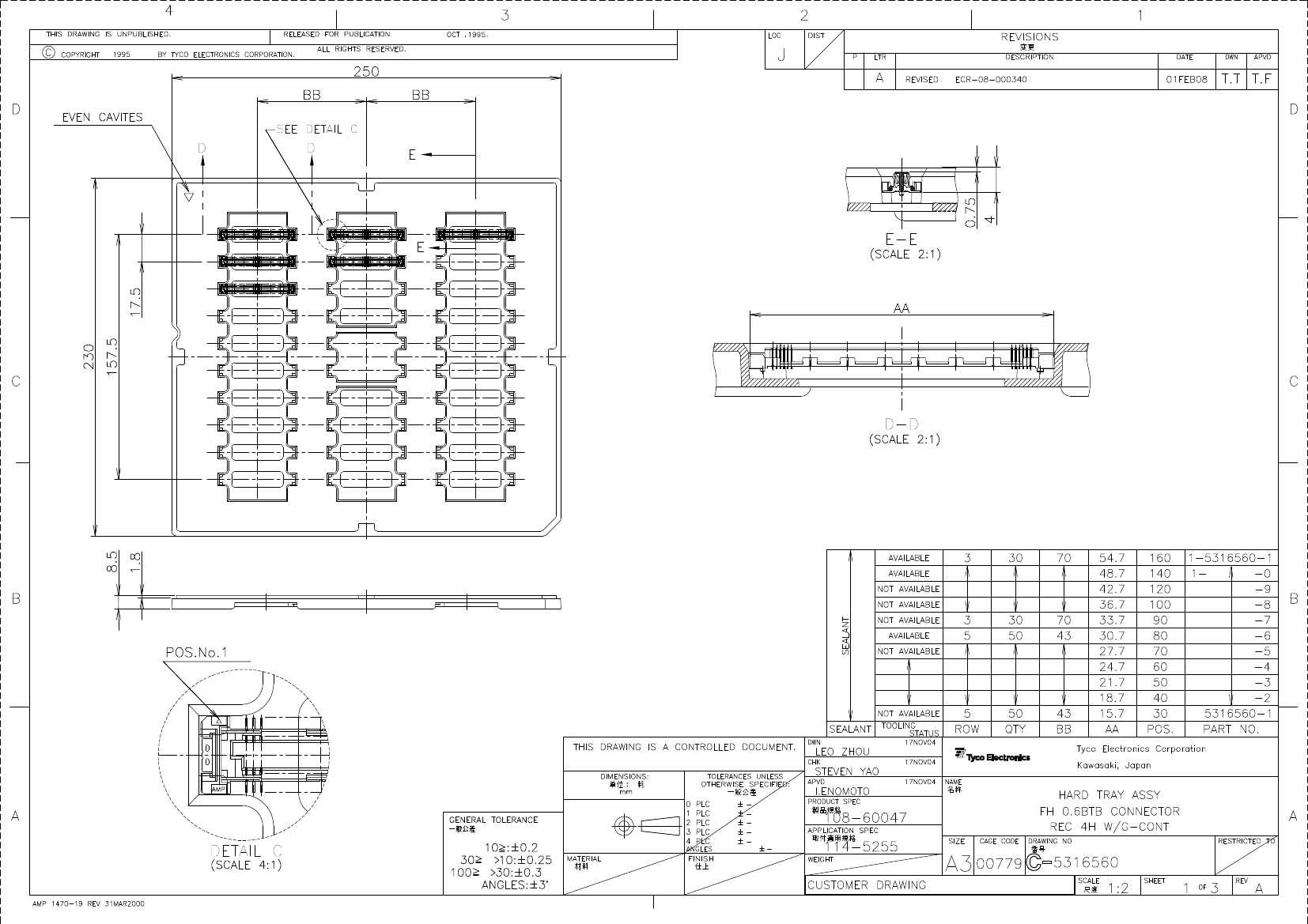

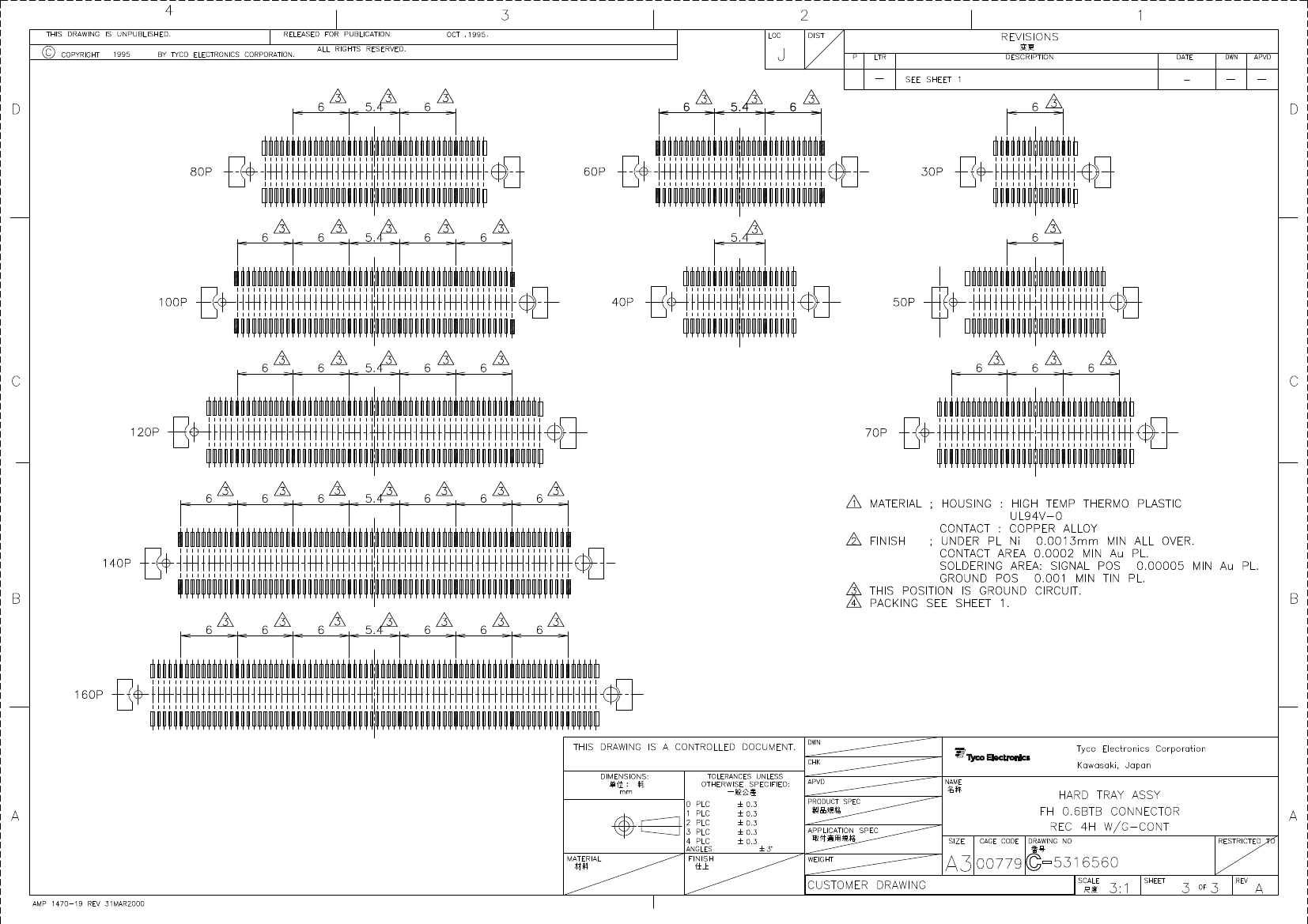

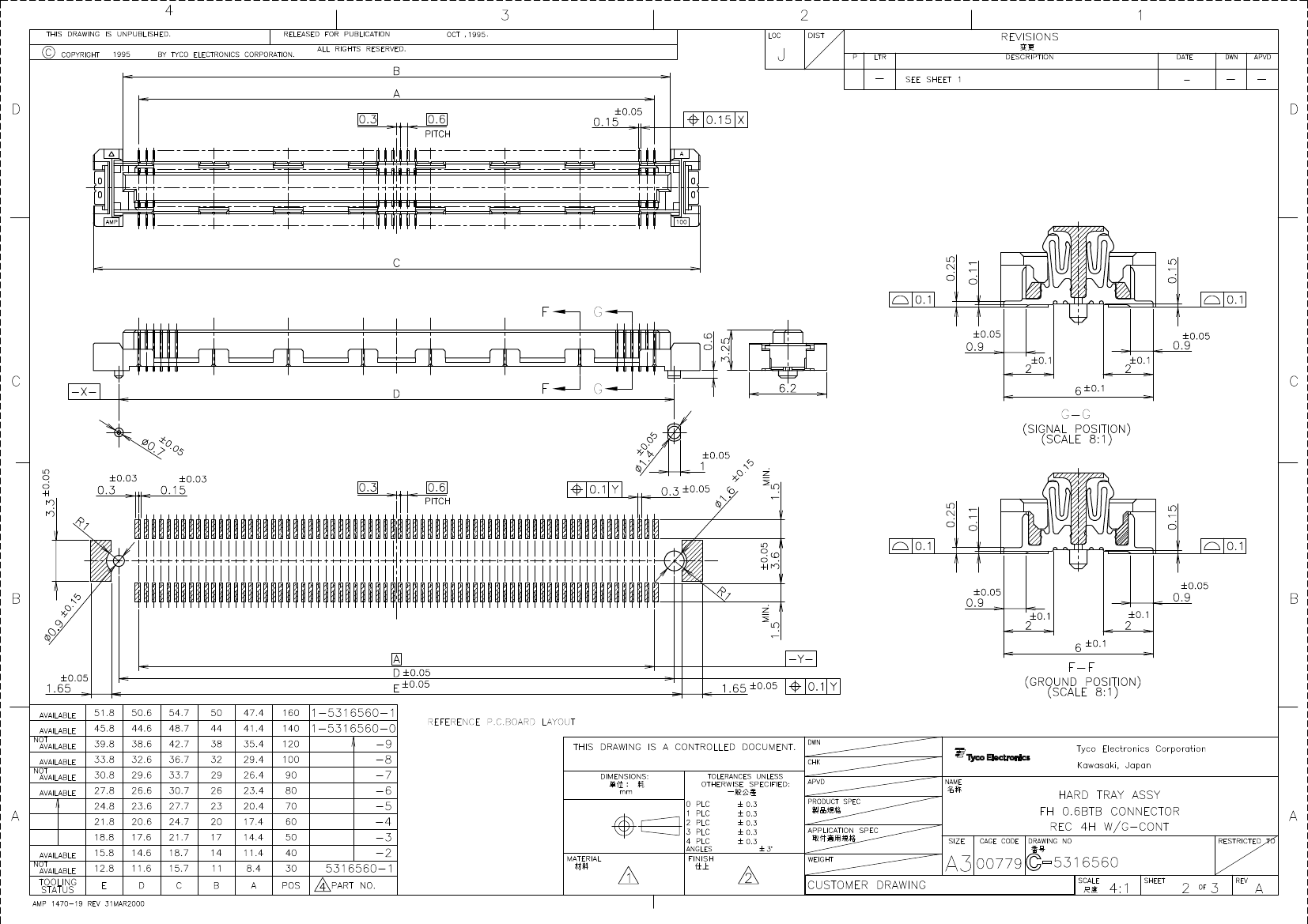

Preview

1-5316560-1: Descriptionconn rcpt 160pos .6mm FH 4H smd; CategoryThe connector; File Size318KB，3 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

1-5316560-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-5316560-1	-	-	View	Buy Now

1-5316560-1 Overview

conn rcpt 160pos .6mm FH 4H smd

1-5316560-1 Parametric

Parameter Name	Attribute value
Datasheets
5316560
RoHS Informati
1-5316560-1 Statement of Compliance
RoHS 2 Stateme
3D Model
1-5316560-1.pdf
Standard Package	30
Category	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Packaging	Tray
Connector Type	Receptacle, Center Strip Contacts
Number of Positions	160
Pitch	0.023" (0.60mm)
Number of Rows	2
Mounting Type	Surface Mou
Features	Board Guide, Solder Retenti
Contact Finish	Gold
Contact Finish Thickness	8µin (0.20µm)
Mated Stacking Heights	4mm
Height Above Board	0.128" (3.25mm)
Mating Products	1-5353471-1-ND - CONN PLUG 160POS .6MM FH 5H SMDA116198TR-ND - CONN PLUG 160POS .6MM FH 8H SMDA116359TR-ND - CONN PLUG 160POS .6MM FH 8H SMDA116195TR-ND - CONN PLUG 160POS .6MM FH 6H SMDA114865-ND - CONN PLUG 160POS .6MM FH 8H SMD1-5316559-1-ND - CONN PLUG 160POS .6MM FH 4H SMD1-5316135-1-ND - CONN PLUG 160POS .6MM FH 4H SMD
Other Names	1-5316560-1-NDA114864

Preview

Download Datasheet

View All

1-5316560-1 Related Products

	1-5316560-1	1-5316560-0
Description	conn rcpt 160pos .6mm FH 4H smd	conn rcpt 140pos .6mm FH 4H smd
Standard Package	30	720
Category	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Packaging	Tray	Tray
Connector Type	Receptacle, Center Strip Contacts	Receptacle, Center Strip Contacts
Number of Positions	160	140
Pitch	0.023" (0.60mm)	0.023" (0.60mm)
Number of Rows	2	2
Mounting Type	Surface Mou	Surface Mou
Features	Board Guide, Solder Retenti	Board Guide, Solder Retenti
Contact Finish	Gold	Gold
Contact Finish Thickness	8µin (0.20µm)	8µin (0.20µm)
Mated Stacking Heights	4mm	4mm
Height Above Board	0.128" (3.25mm)	0.128" (3.25mm)
Mating Products	1-5353471-1-ND - CONN PLUG 160POS .6MM FH 5H SMDA116198TR-ND - CONN PLUG 160POS .6MM FH 8H SMDA116359TR-ND - CONN PLUG 160POS .6MM FH 8H SMDA116195TR-ND - CONN PLUG 160POS .6MM FH 6H SMDA114865-ND - CONN PLUG 160POS .6MM FH 8H SMD1-5316559-1-ND - CONN PLUG 160POS .6MM FH 4H SMD1-5316135-1-ND - CONN PLUG 160POS .6MM FH 4H SMD	6-5316076-0-ND - CONN PLUG 140POS .6MM FH 4H SMDA116197TR-ND - CONN PLUG 140POS .6MM FH 8H SMDA116196TR-ND - CONN PLUG 140POS .6MM FH 8H SMDA116194TR-ND - CONN PLUG 140POS .6MM FH 6H SMDA116193TR-ND - CONN PLUG 140POS .6MM FH 6H SMDA110993TR-ND - CONN PLUG 140POS .6MM FH 4H SMDA116192TR-ND - CONN PLUG 140POS .6MM FH 4H SMD1-5316076-0-ND - CONN PLUG 140POS .6MM FH 4H SMD1-353188-0-ND - CONN PLUG 140POS DL VERT 0.6MM
