305025000321000+ datasheet, PDF

Datasheet> All Categories > The connector> 305025000321000+

305025000321000+: Descriptionconn memory card eject rev dip; CategoryThe connector; File Size310KB，9 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric Compare View All

305025000321000+ Overview

conn memory card eject rev dip

305025000321000+ Parametric

Parameter Name	Attribute value
Datasheets
5025 Series
Product Photos
305025000321000
Standard Package	168
Category	Connectors, Interconnects
Family	Memory Connectors - PC Cards
Packaging	Tray
Card Type	PCMCIA - Type I, II, III
Number of Positions	-
Connector Type	Ejec
Insertion, Removal Method	Push In, Push Ou
Ejector Side	Lef
Mounting Type	Snap-I
Features	-
Height Above Board	-
Mounting Feature	-
Contact Finish	-
Contact Finish Thickness	-
For Use With	315025068355871+-ND - CONN MEMORY CARD HEADER REV SMD315025068305871+-ND - CONN MEMORY CARD HDR NORMAL SMD

Preview

Download Datasheet

View All

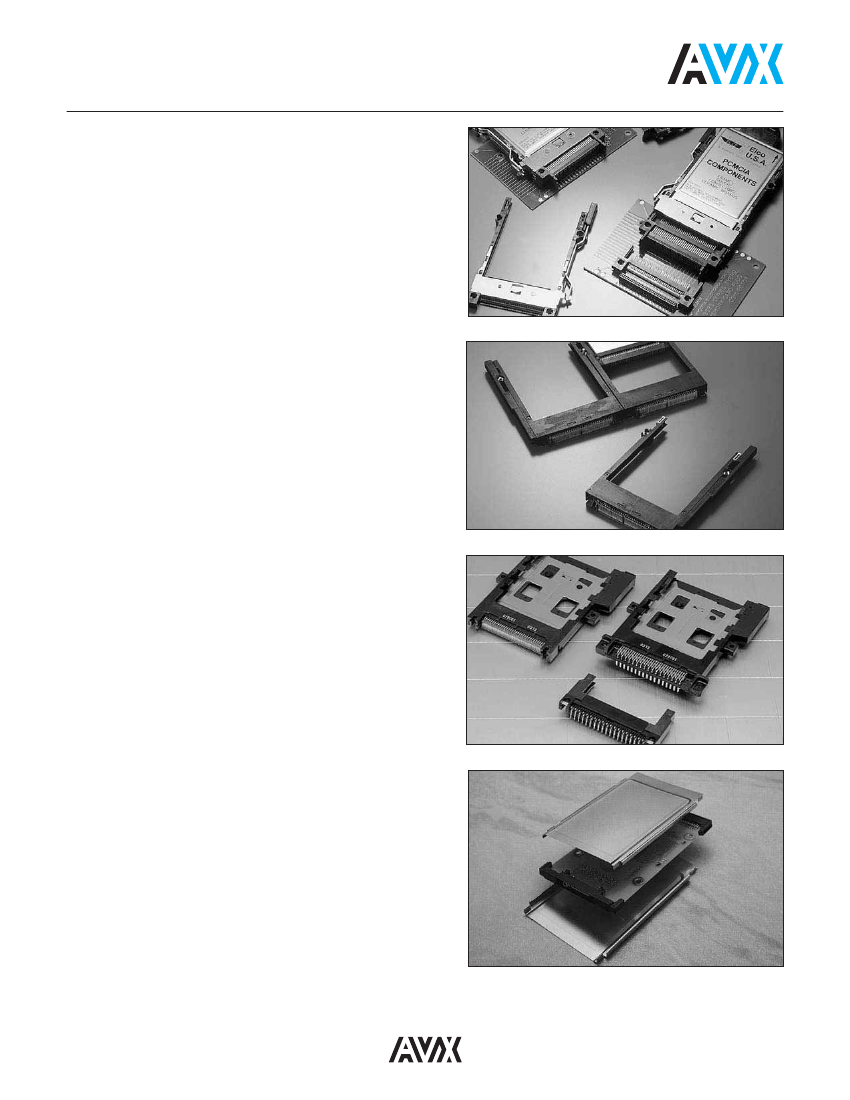

PCMCIA PC Memory Card Connectors

Features/Benefits

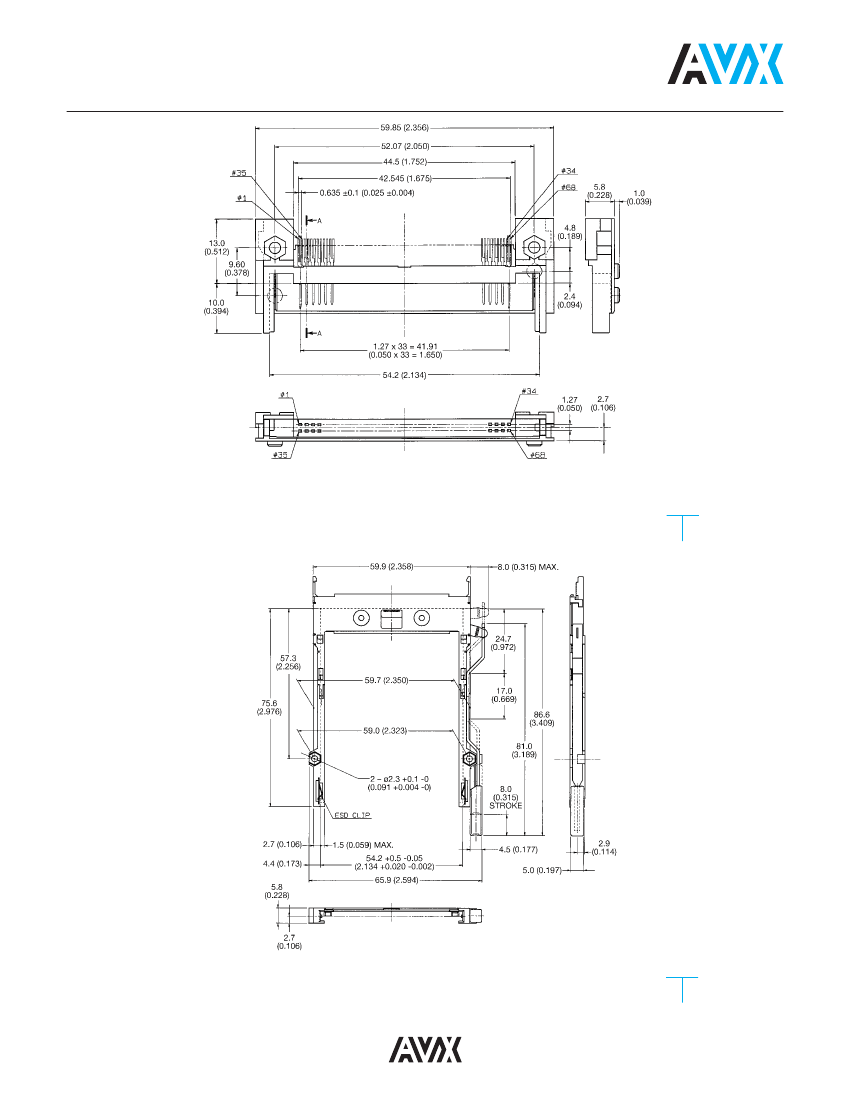

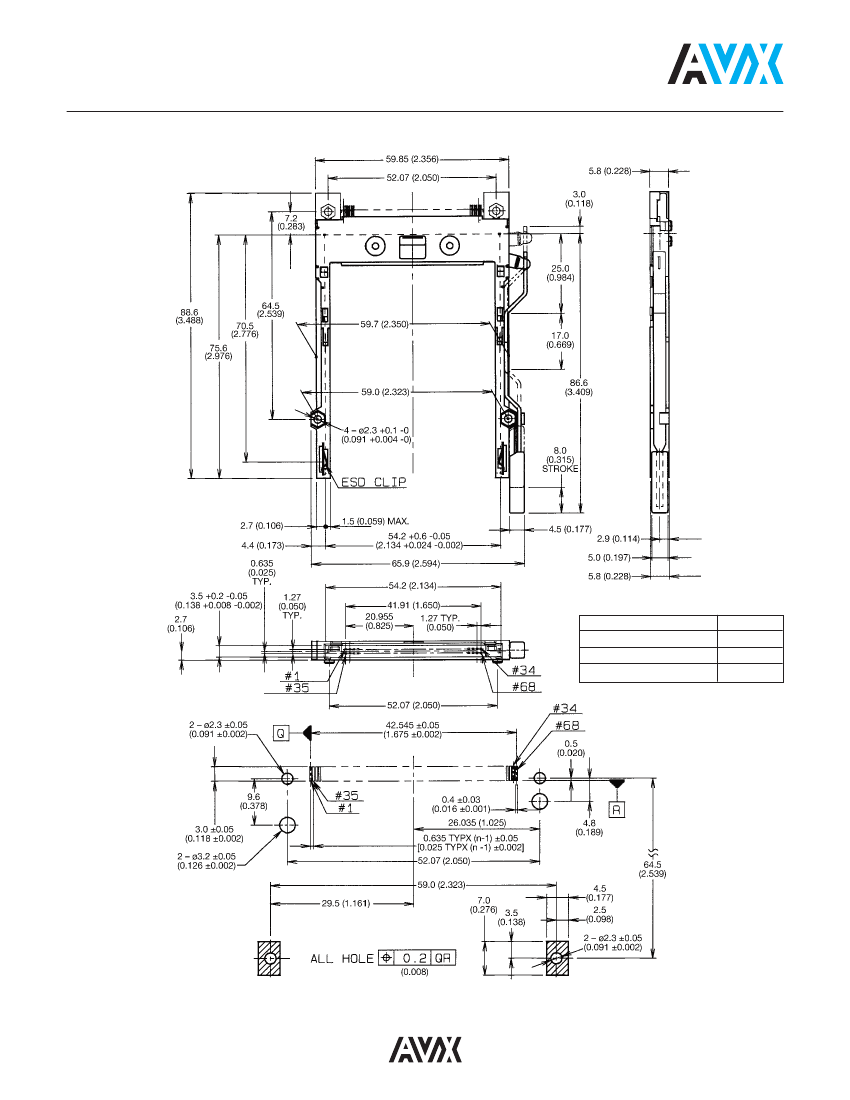

SERIES 5025

Series 5025 offers single or double stacked header combinations in SMT

or Through Hole.

Also, this series meets the requirements of Ver. 4.2/PCMCIA Type I, II and

III equipment.

Upper and lower stage of header offers the combination of DIP/SMT and

DIP/DIP.

This product meets or exceeds the minimum requirements outlined in the

PC Card specification for technical and performance criteria.

SERIES 5027

his is an SMT lightweight connector for 3.3v or 5v cards.

Height is 5.0mm (0.197), weight is under 10 grams (with single ejector

mechanism) which is one of the lightest available in this industry.

Dual type is 2 pcs, side-by-side configuration and you can choose

“With Ejector type” or “Without Ejector type”.

This meets the requirements of PCMCIA, Type I, II and III.

This product meets or exceeds the minimum requirements outlined in the

PC Card specification for technical and performance criteria.

SERIES 5069

1.27mm (0.05) pitch 68 positions plug connector designed for PC card.

Contacts on the card side is arranged in two rows and the substrate

side has DIP type and SMT type.

Receptacle (card side) connector is also available.

This product meets or exceeds the minimum requirements outlined in the

PC Card specification for technical and performance criteria.

SERIES 9180

The 9180 series PC Card kits offers the broadest range of standard

options in the industry. This includes; SMT connectors with multiple off-

sets, I/O connectors, label recesses, cover insulating films and wireless

extensions. Assembly is accomplished by a simple snap together

process with a low cost production tool.

This product meets or exceeds the minimum requirements outlined in the

PC Card specification for technical and performance criteria.

305025000321000+ Related Products

	305025000321000+	305025000322000+	315025068355871+	315025068305871+
Description	conn memory card eject rev dip	conn memory card eject norml dip	conn memory card header rev smd	conn memory card hdr normal smd
Standard Package	168	168	180	180
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Memory Connectors - PC Cards	Memory Connectors - PC Cards	Memory Connectors - PC Cards	Memory Connectors - PC Cards
Packaging	Tray	Tray	Tray	Tray
Card Type	PCMCIA - Type I, II, III	PCMCIA - Type I, II, III	PCMCIA - Type I, II, III	PCMCIA - Type I, II, III
Connector Type	Ejec	Ejec	Connec	Connec
Insertion, Removal Method	Push In, Push Ou	Push In, Push Ou	Push In, Pull Ou	Push In, Pull Ou
Mounting Type	Snap-I	Snap-I	Surface Mount, Right Angle	Surface Mount, Right Angle
