conn plug 9pos idc 18awg .156
| Parameter Name | Attribute value |
| Datasheets | |
| 647476 | |
| RoHS Informati | |
| 3-647476-9 Statement of Compliance | |
| RoHS 2 Stateme | |
| 3D Model | |

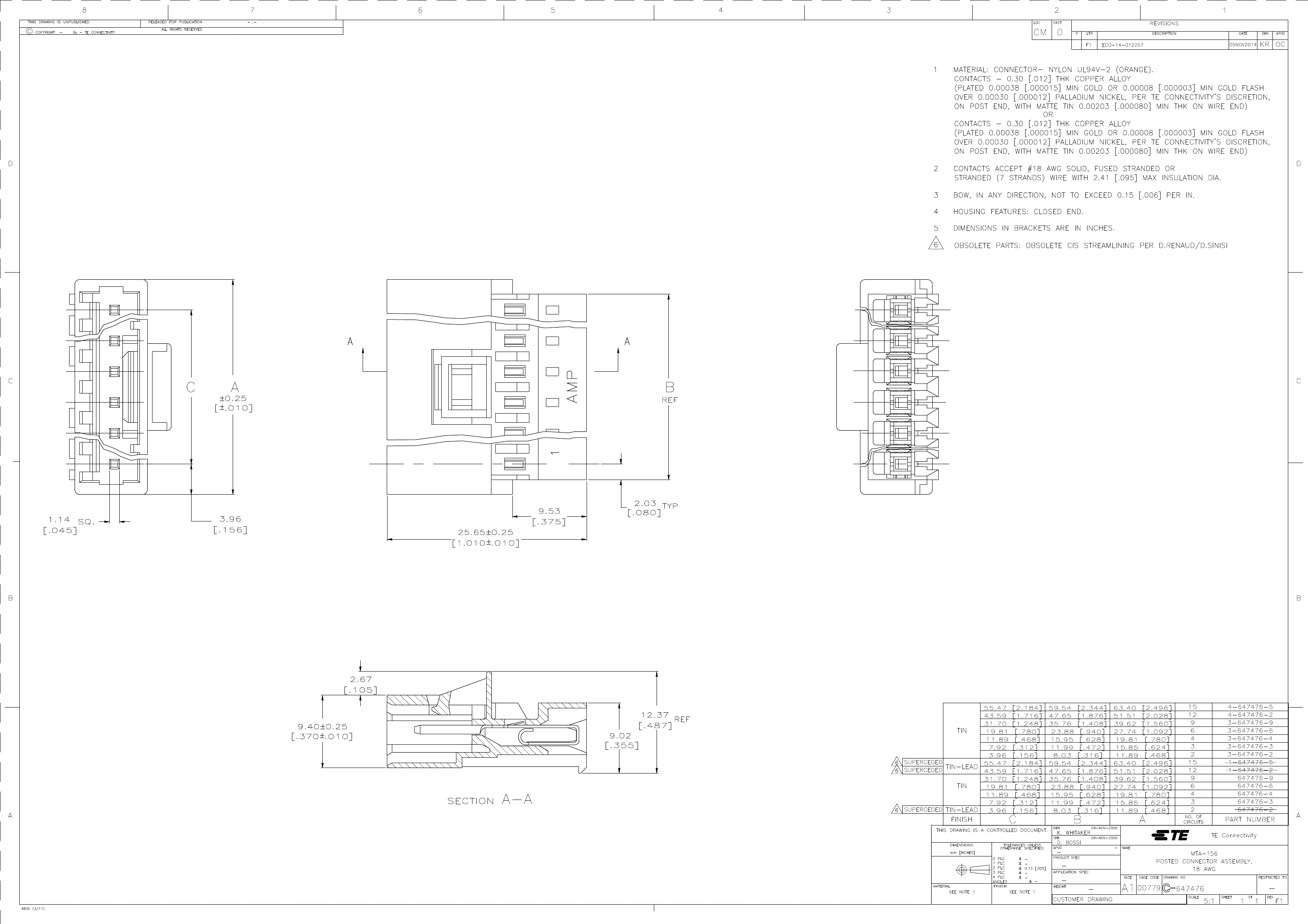

| 3-647476-9.pdf | |
| Standard Package | 900 |
| Category | Connectors, Interconnects |
| Family | Rectangular Connectors - Free Hanging, Panel Mou |
| Packaging | Bulk |
| Connector Type | Plug |
| Contact Type | Male Pi |
| Number of Positions | 9 |
| Pitch | 0.156" (3.96mm) |
| Number of Rows | 1 |
| Row Spacing | - |
| Mounting Type | Free Hanging (In-Line) |
| Fastening Type | - |
| Cable Terminati | IDC |
| Wire Type | Discrete or Ribbon Cable |
| Wire Gauge | 18 AWG |
| Features | Closed End |
| Contact Finish | Gold |
| Contact Finish Thickness | 15µin (0.38µm) |
| Col | Orange |
| Mating Products | 641168-9-ND - CONN RCPT 9POS MTA156 18AWG ORA641219-9-ND - CONN RCPT 9POS 22AWG MTA-156641148-9-ND - CONN RCPT 9POS 18AWG MTA-156641217-9-ND - CONN RCPT 9POS 18AWG ORANGE .156A31662-ND - CONN RECEPT 9POS 20AWG MTA156A31635-ND - CONN RECEPT 9POS 24AWG MTA156A31623-ND - CONN RECEPT 9POS 22AWG MTA156A31599-ND - CONN RECEPT 9POS 26AWG MTA156A31351-ND - CONN RECEPT 9POS 18AWG MTA156A31303-ND - CONN RECEPT 9POS 18AWG MTA156A31315-ND - CONN RECEPT 9POS 20AWG MTA156A31235-ND - CONN RECEPT 9POS 22AWG MTA156A31247-ND - CONN RECEPT 9POS 24AWG MTA156A31223-ND - CONN RECEPT 9POS 26AWG MTA156A24132-ND - CONN RECEPT 9POS 26AWG MTA156A24102-ND - CONN RECEPT 9POS 26AWG MTA156A19727-ND - CONN RECEPT 9POS 24AWG MTA156A19707-ND - CONN RECEPT 9POS 22AWG MTA156A19687-ND - CONN RECEPT 9POS 20AWG MTA156A19667-ND - CONN RECEPT 9POS 18AWG MTA156A19637-ND - CONN RECEPT 9POS 24AWG MTA156A19617-ND - CONN RECEPT 9POS 22AWG MTA156A19597-ND - CONN RECEPT 9POS 20AWG MTA156A19583-ND - CONN RECEPT 9POS 18AWG MTA156 |
| Associated Produc | A19767-ND - CONN DUST COVER 9POS CLOSEDA19747-ND - CONN STRAIN RELIEF COVER 9POS |
| 3-647476-9 | 4-647476-2 | 4-647476-5 | 3-647476-3 | |
|---|---|---|---|---|
| Description | conn plug 9pos idc 18awg .156 | 12p mta156 pstd conn 18awg LF | 15p mta156 pstd conn 18awg LF | conn plug 3pos idc 18awg .156 |
| Standard Package | 900 | 900 | 900 | 2,000 |
| Category | Connectors, Interconnects | Connectors, Interconnects | Connectors, Interconnects | Connectors, Interconnects |
| Family | Rectangular Connectors - Free Hanging, Panel Mou | Rectangular Connectors - Free Hanging, Panel Mou | Rectangular Connectors - Free Hanging, Panel Mou | Rectangular Connectors - Free Hanging, Panel Mou |
| Packaging | Bulk | Bulk | Bulk | Bulk |
| Connector Type | Plug | Plug | Plug | Plug |
| Contact Type | Male Pi | Male Pi | Male Pi | Male Pi |
| Number of Positions | 9 | 12 | 15 | 3 |
| Pitch | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) |
| Number of Rows | 1 | 1 | 1 | 1 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Cable Terminati | IDC | IDC | IDC | IDC |
| Wire Type | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable |
| Wire Gauge | 18 AWG | 18 AWG | 18 AWG | 18 AWG |
| Features | Closed End | Closed End | Closed End | Closed End |
| Contact Finish | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 15µin (0.38µm) | 15µin (0.38µm) | 15µin (0.38µm) | 15µin (0.38µm) |
| Col | Orange | Orange | Orange | Orange |
