3-644570-8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 3-644570-8

3-644570-8: Descriptionconn rcpt 8pos 18awg mta-156; CategoryThe connector; File Size96KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

3-644570-8 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-644570-8	-	-	View	Buy Now

3-644570-8 Overview

conn rcpt 8pos 18awg mta-156

3-644570-8 Parametric

Parameter Name	Attribute value
Datasheets
644570
RoHS Informati
3-644570-8 Statement of Compliance
RoHS 2 Stateme
3D Model
3-644570-8.pdf
Standard Package	500
Category	Connectors, Interconnects
Family	Rectangular Connectors - Free Hanging, Panel Mou
Packaging	Bulk
Connector Type	Receptacle
Contact Type	Female Socke
Number of Positions	8
Pitch	0.156" (3.96mm)
Number of Rows	1
Row Spacing	-
Mounting Type	Free Hanging (In-Line)
Fastening Type	-
Cable Terminati	IDC
Wire Type	Discrete or Ribbon Cable
Wire Gauge	18 AWG
Features	Feed Through, Polarizing Key
Contact Finish	Ti
Contact Finish Thickness	80µin (2.03µm)
Col	Black
Mating Products	644617-8-ND - CONN HEADER 8POS R/A .156 TIN647648-8-ND - CONN HEADER 8POS VERT .156 TIN644766-8-ND - CONN HEADER 8POS VERT .156 GOLD644760-8-ND - CONN HEADER 8POS VERT .156 GOLD641207-8-ND - CONN HEADER 8POS R/A .156 30GOLD641204-8-ND - CONN HEADER 8POS R/A .156 30GOLD644759-8-ND - CONN HEADER 8POS VERT .156 GOLD644754-8-ND - CONN HEADER 8POS R/A .156 TIN641120-8-ND - CONN HEADER 8POS STR .156 15GOLDA31693-ND - CONN HEADER RT/A .156 8POS 30AUA31682-ND - CONN HEADER 8POS .156 30 GOLDA26190-ND - CONN HEADER RT/A .156 8POS 30AUA26181-ND - CONN HEADER VERT .156 8POS 30AUA24153-ND - CONN HEADER VERT 8POS .156 TINA24182-ND - CONN HEADER VERT 8POS .156 TINA24170-ND - CONN HEADER VERT 8POS .156 TINA24161-ND - CONN HEADER RTANG 8POS .156 TINA19936-ND - CONN HEADER RTANG 8POS .156 TINA19906-ND - CONN HEADER VERT 8POS .156 TINA1979-ND - CONN HEADER RTANG 8POS .156 TINA1969-ND - CONN HEADER RTANG 8POS .156 TINA1964-ND - CONN HEADER VERT 8POS .156 TINA1974-ND - CONN HEADER VERT 8POS .156 TIN
Associated Produc	A19806-ND - CONN DUST COVER 8POS FEED THRUA19786-ND - CONN STRAIN RELIEF COVER 8POS

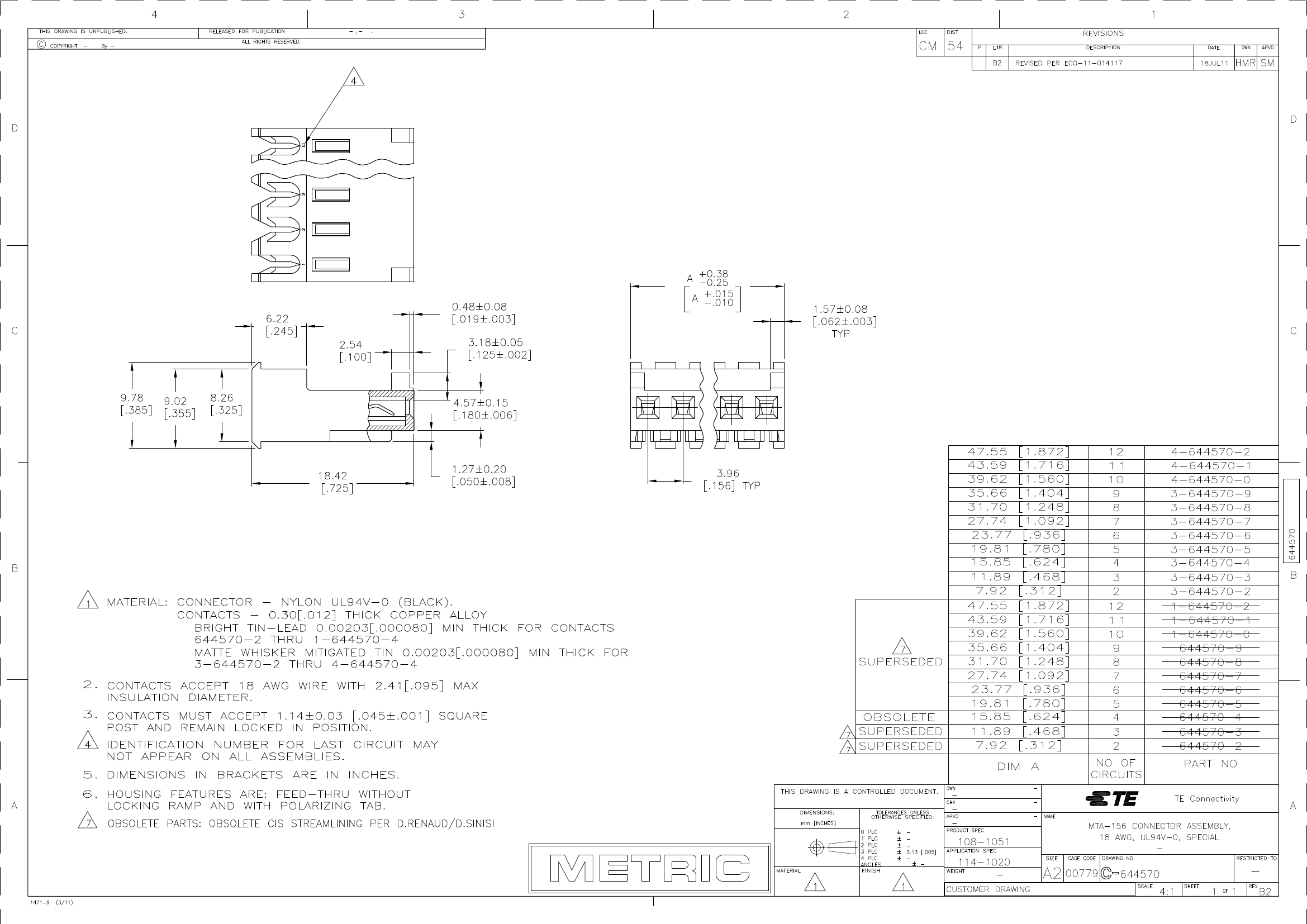

Preview

Download Datasheet

View All

3-644570-8 Related Products

	3-644570-8	3-644570-6	3-644570-7	4-644570-0	4-644570-1	4-644570-2
Description	conn rcpt 8pos 18awg mta-156	conn rcpt 6pos 18awg mta-156	conn rcpt 7pos 18awg mta-156	10p mta156 conn assy 18awg LF	11p mta156 conn assy 18awg LF	12p mta156 conn assy 18awg LF
Standard Package	500	500	500	500	500	500
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular Connectors - Free Hanging, Panel Mou	Rectangular Connectors - Free Hanging, Panel Mou	Rectangular Connectors - Free Hanging, Panel Mou	Rectangular Connectors - Free Hanging, Panel Mou	Rectangular Connectors - Free Hanging, Panel Mou	Rectangular Connectors - Free Hanging, Panel Mou
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Connector Type	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle
Contact Type	Female Socke	Female Socke	Female Socke	Female Socke	Female Socke	Female Socke
Number of Positions	8	6	7	10	11	12
Pitch	0.156" (3.96mm)	0.156" (3.96mm)	0.156" (3.96mm)	0.156" (3.96mm)	0.156" (3.96mm)	0.156" (3.96mm)
Number of Rows	1	1	1	1	1	1
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Cable Terminati	IDC	IDC	IDC	IDC	IDC	IDC
Wire Type	Discrete or Ribbon Cable	Discrete or Ribbon Cable	Discrete or Ribbon Cable	Discrete or Ribbon Cable	Discrete or Ribbon Cable	Discrete or Ribbon Cable
Wire Gauge	18 AWG	18 AWG	18 AWG	18 AWG	18 AWG	18 AWG
Features	Feed Through, Polarizing Key	Feed Through, Polarizing Key	Feed Through, Polarizing Key	Feed Through, Polarizing Key	Feed Through, Polarizing Key	Feed Through, Polarizing Key
Contact Finish	Ti	Ti	Ti	Ti	Ti	Ti
Contact Finish Thickness	80µin (2.03µm)	80µin (2.03µm)	80µin (2.03µm)	80µin (2.03µm)	80µin (2.03µm)	80µin (2.03µm)
Col	Black	Black	Black	Black	Black	Black
