ADIP10-G-LC-R datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> ADIP10-G-LC-R

Preview

ADIP10-G-LC-R: Descriptionconn dip idc 10pos gold gray; CategoryThe connector; File Size343KB，1 Pages; ManufacturerASSMANN WSW components; Environmental Compliance

Download Datasheet Parametric View All

ADIP10-G-LC-R Overview

conn dip idc 10pos gold gray

ADIP10-G-LC-R Parametric

Parameter Name	Attribute value
Datasheets
ADIP10-G-LC-R
Product Photos
ADIP10-G-LC-R
Catalog Drawings
ADIP Series
Featured Produc
IDC Connectors and Cables
Cable Assemblies
Standard Package	180
Category	Connectors, Interconnects
Family	Rectangular Connectors - Board In, Direct Wire to Board
Packaging	Tray
Connector Type	Ribbon Cable
Number of Positions	10
Cable Pitch	0.050" (1.27mm)
Board-Side Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.300" (7.62mm)
Mounting Type	Through Hole
Cable Terminati	IDC
Wire Gauge	-
Features	Feed Through
Contact Finish	Gold
Contact Finish Thickness	Flash
Col	Gray
Number of Positions Loaded	All
Dynamic Catalog	ADIP Series
Other Names	ADIP10GLCRHDP10H

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

A

B

17.95MM

C

17.95MM

D

E

F

10.16MM

F

Scale

1:1

Drawn

Approved

10.28.11

Name

Chappell

Item No.

G

TOLERANCE

X.X

X.XX

X.XXX

±0.40

±0.25

±0.15

±3°

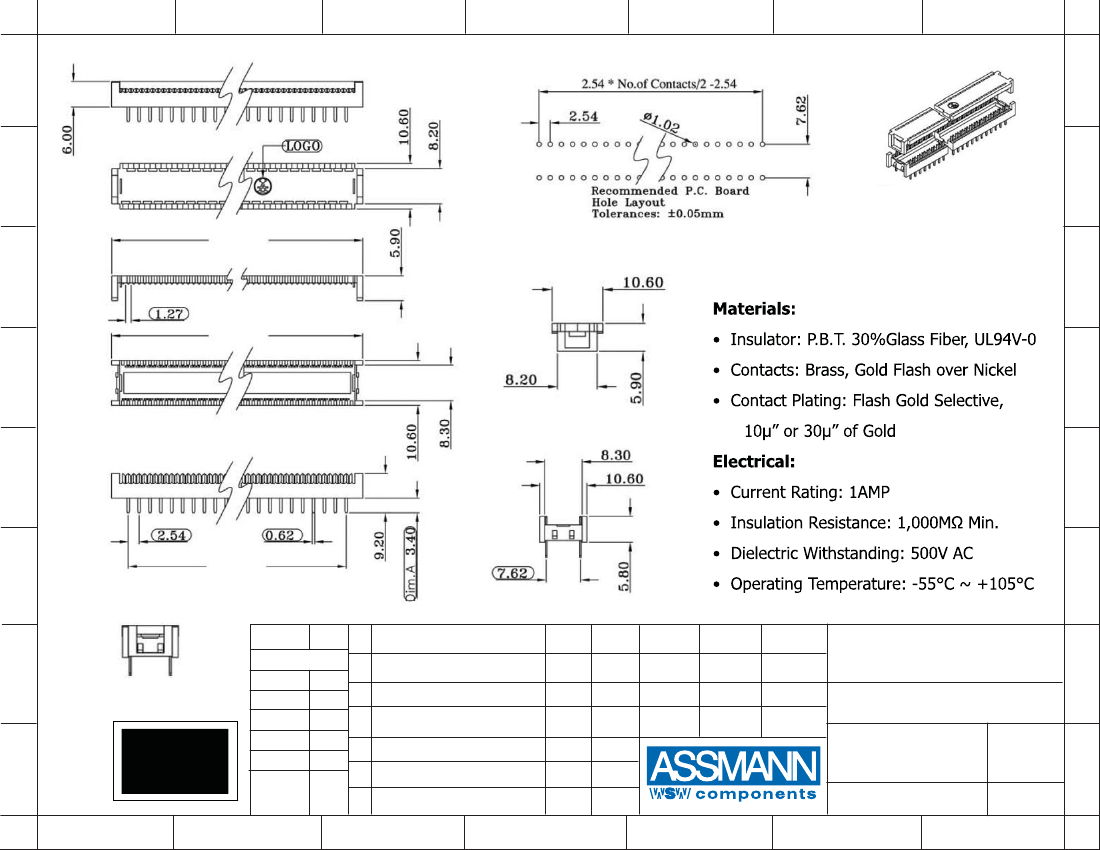

ADIP10-G-LC-R

Title

G

DIP Connector, 2.54 x 7.62MM,

10 Contacts, Gold Plated

H

RoHS

Complaint

1

2

Angle

Drawing No.

rev00

Sheet

H

Modification

Date

Name

Replace

3

4

5

6

7
