1-292231-0 datasheet, PDF - EEWORLD Datasheet

1-292231-0: Description1.5 mini CT sgl V smt W/O boss; CategoryThe connector; File Size253KB，4 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

1-292231-0 Overview

1.5 mini CT sgl V smt W/O boss

Parameter Name	Attribute value
Datasheets

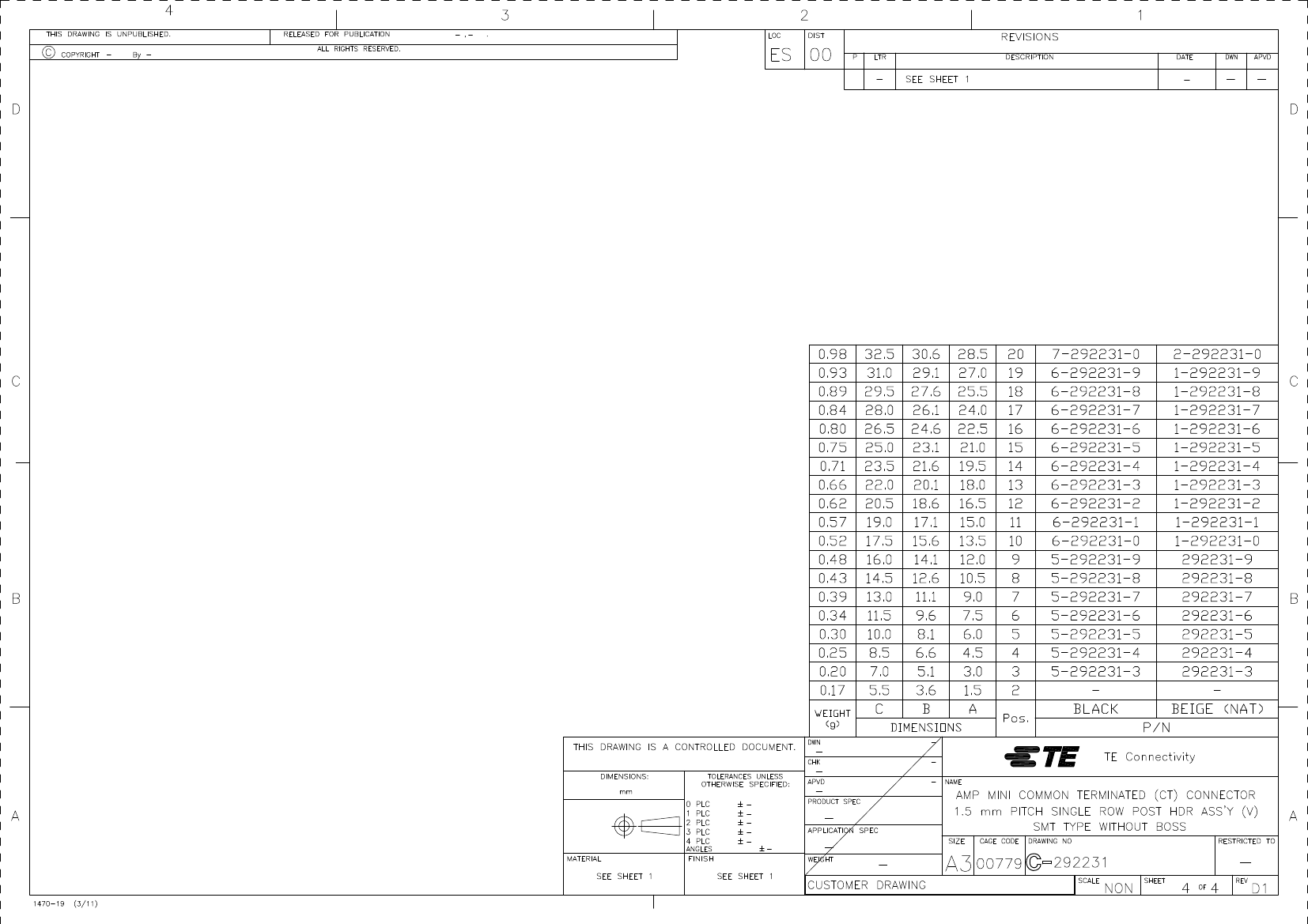

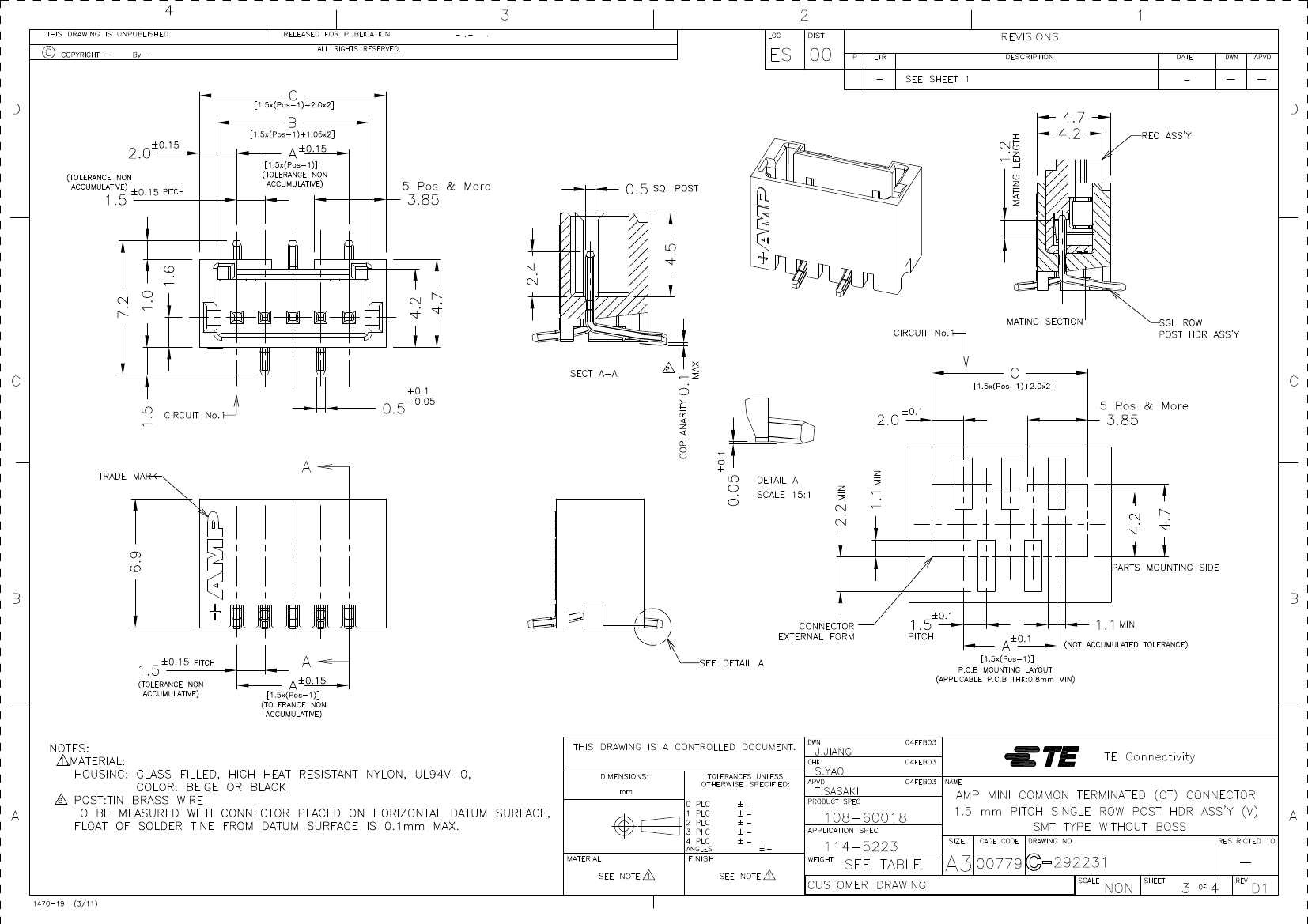

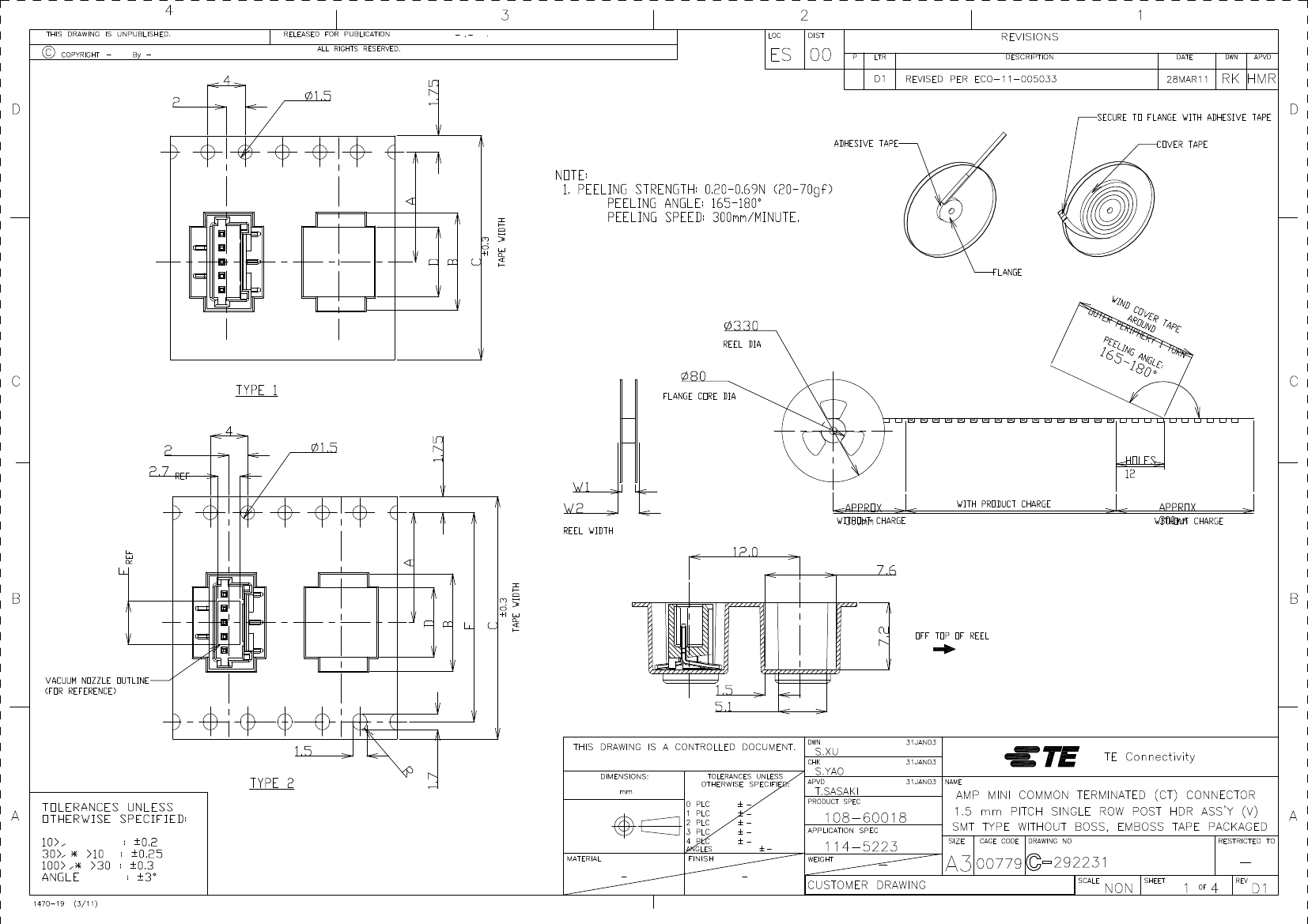

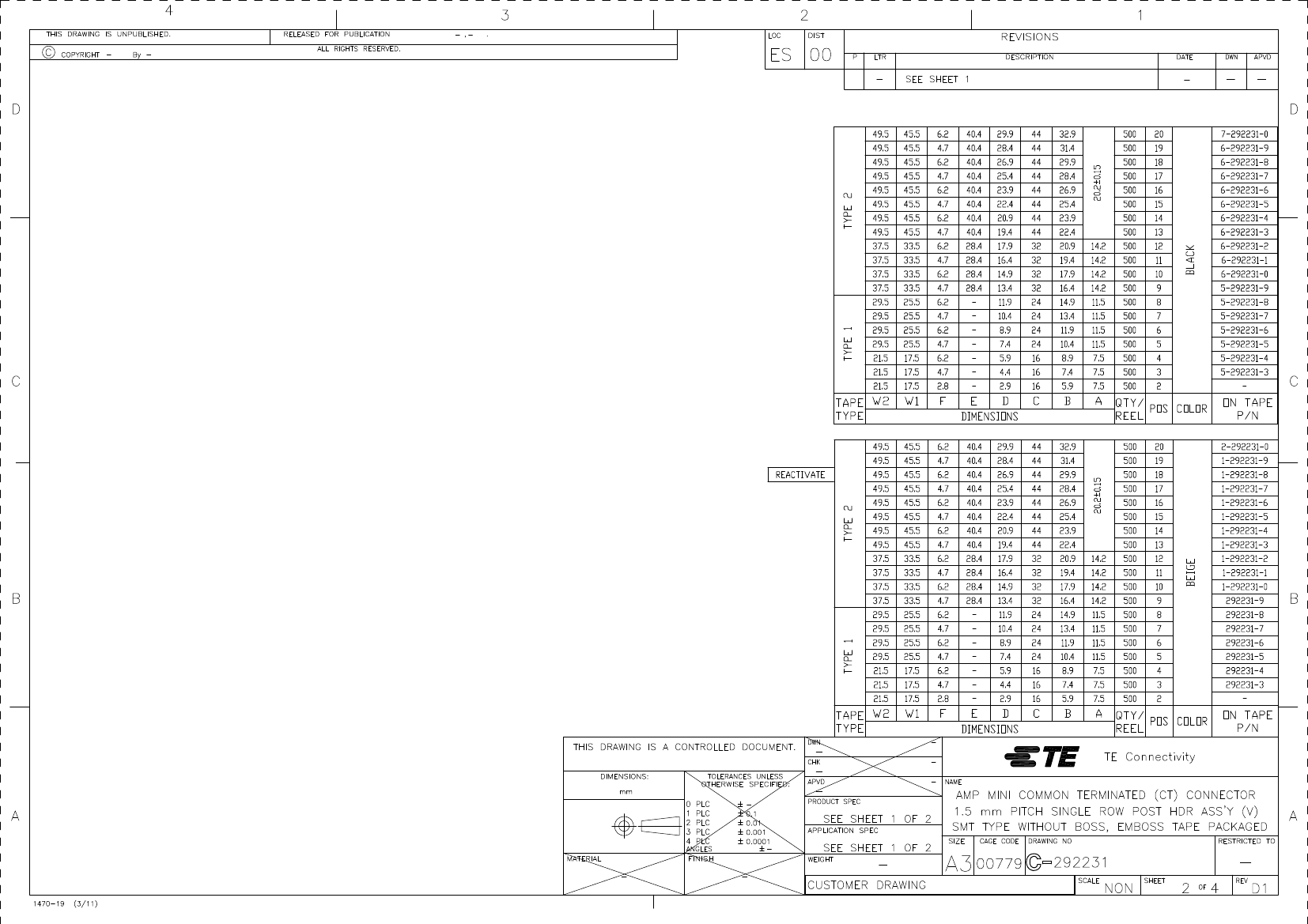

292231 Drawing
Product Photos
1-292231-0
Standard Package	40,500
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Tape & Reel (TR)
Contact Type	Male Pi
Connector Type	Header, Shrouded
Number of Positions	10
Number of Positions Loaded	All
Pitch	0.059" (1.50mm)
Number of Rows	1
Row Spacing	-
Contact Mating Length	0.094" (2.40mm)
Mounting Type	Surface Mou
Terminati	Solde
Fastening Type	Latch Holde
Features	-
Contact Finish	Ti
Contact Finish Thickness	-
Col	Beige
Other Names	A119324TR

	1-292231-0	292231-3	292231-5	292231-6	292231-9
Description	1.5 mini CT sgl V smt W/O boss	1.5 mini CT sgl V smt W/O boss	1.5 mini CT sgl V smt W/O boss	1.5 mini CT sgl V smt W/O boss	1.5 mini CT sgl V smt W/O boss
Standard Package	40,500	25,000	20,000	20,000	1
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins
Packaging	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Cut Tape (CT)
Contact Type	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi
Connector Type	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded
Number of Positions	10	3	5	6	9
Number of Positions Loaded	All	All	All	All	All
Pitch	0.059" (1.50mm)	0.059" (1.50mm)	0.059" (1.50mm)	0.059" (1.50mm)	0.059" (1.50mm)
Number of Rows	1	1	1	1	1
Contact Mating Length	0.094" (2.40mm)	0.094" (2.40mm)	0.094" (2.40mm)	0.094" (2.40mm)	0.094" (2.40mm)
Mounting Type	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou
Terminati	Solde	Solde	Solde	Solde	Solde
Fastening Type	Latch Holde	Latch Holde	Latch Holde	Latch Holde	Latch Holde
Contact Finish	Ti	Ti	Ti	Ti	Ti
Col	Beige	Beige	Beige	Beige	Beige
Other Names	A119324TR	A119737TR	A119738TR	A118134TR	A119739CT
