ZF5-15-01-T-WT-TR: Descriptionconn ffc 0.5mm 15pos R/A smd; CategoryThe connector The connector; File Size355KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

ZF5-15-01-T-WT-TR Overview

conn ffc 0.5mm 15pos R/A smd

ZF5-15-01-T-WT-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	2 weeks
Other features	STAGGERED CONFIGURATION
Board mount options	SOLDER HOLDING FLANGE
body width	0.08 inch
subject depth	0.173 inch
body length	0.51 inch
Body/casing type	SOCKET
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	MATTE TIN OVER NICKEL (50)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrie
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	5000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.02 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LATCH
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	15
Evacuation force-minimum value	ZIF N

Preview

Download Datasheet

View All

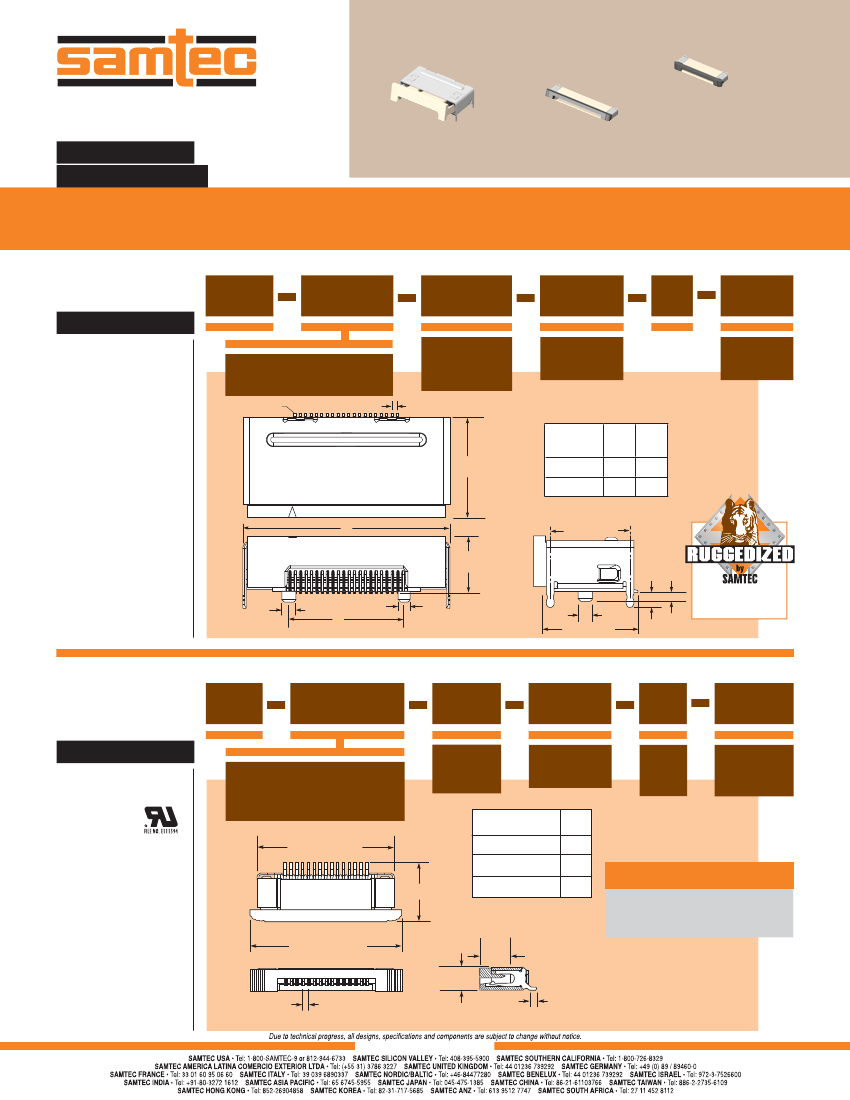

CSF-210

ZLR5–30–01–T–RA

ZF5–20–01–T–WT

ZF5–30–01–T–WT

(0,50mm) .0197"

ZLR5, ZF5 SERIES

FLAT FLEXIBLE CABLE (FFC) SOCKET

Mates with:

FJH

ZLR5

NO. OF

POSITIONS

LEAD

STYLE

PLATING

OPTION

RA

OTHER

OPTION

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts

see www.samtec.com?ZLR5

Insulator Material:

Liquid Crystal Polymer

Contact Material:

Phosphor Bronze

Plating:

Sn over 50µ" (1,27µm) Ni

Weld Tab:

Phosphor Bronze

Operating Temp Range:

-55°C to +105°C

RoHS Compliant:

Yes

–20, –30

(Call Samtec for other sizes.)

01

– 01

= Contacts on

Top only

–T

= Matte Tin

–TR

= Tape & Reel

(0,50) .0197

NO. OF

POSITIONS

(9,90)

.390

–20

–30

A

B

Processing:

(19,20) (10,70)

.756

.421

(24,20) (15,70)

.953

.618

Lead-Free Solderable:

Yes

SMT Lead Coplanarity:

(0,10mm) .004" max

A

(5,25)

.207

(1,32)

.052

DIA

(1,10)

.043

(7,90) .311

(1,40)

.055

(1,32)

.052

(8,90) .350

• Positive retention

notch

(0,85)

.033

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

B

Mates with:

FJH, ZFHF and ﬂex cable

with stiffener thickness of

(0,30mm) .012"

ZF5

NO. OF

POSITIONS

LEAD

STYLE

PLATING

OPTION

WT

– WT

= Weld

Tab

OPTION

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts

see www.samtec.com?ZF5

Insulator Material:

High Temperature

Nylon

Contact Material:

Phosphor Bronze

Plating:

Sn over 50µ" (1,27µm) Ni

Weld Tab:

Phosphor Bronze

Operating Temp Range:

-55°C to +105°C

RoHS Compliant:

Yes

–01

–10, –15, –20, –25,

–30, –40, –43, –50

(Call Samtec for other sizes.)

= Contact

Bottom

NO. OF

POSITIONS

–T

= Matte Tin

–TR

= Tape & Reel

Packaging

A

(5,59)

.220

(5,69)

.224

No. of pins x (0,50) .0197

+ (4,35) .171

01

–10, –15, –20, –25

(5,49)

.216

–30

A

–40, –43, –50

ALSO AVAILABLE

Vertical, Contact Top and

other positions available.

Call Samtec.

Processing:

Lead-Free Solderable:

Yes

SMT Lead Coplanarity:

(0,10mm) .004" max

No. of pins x (0,50) .0197

+ (5,64) .222

(2,00)

.079

(0,50)

.0197

(2,67)

.105

(0,56)

.022

–01

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

WWW.SAMTEC.COM

ZF5-15-01-T-WT-TR Related Products

	ZF5-15-01-T-WT-TR	ZF5-30-01-T-WT	ZF5-20-01-T-WT-TR	ZF5-36-01-T-WT	ZLR5-20-01-T-RA	ZLR5-30-01-T-RA
Description	conn ffc 0.5mm 15pos R/A smd	conn ffc 0.5mm 30pos R/A smd	conn ffc 0.5mm 20pos R/A smd	conn ffc 0.5mm 36pos R/A smd	Card Edge Connector, 20 Contact(s), 1 Row(s), Female, Socket, ROHS COMPLIANT	Card Edge Connector, 30 Contact(s), 1 Row(s), Female, Socket, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	-	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	incompatible	-	conform to	conform to
Maker	SAMTEC	SAMTEC	SAMTEC	-	SAMTEC	SAMTEC
Reach Compliance Code	compli	compli	compli	-	compli	compli
ECCN code	EAR99	EAR99	EAR99	-	EAR99	EAR99
Body/casing type	SOCKET	SOCKET	SOCKET	-	SOCKET	SOCKET
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	-	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	MATTE TIN OVER NICKEL (50)	MATTE TIN OVER NICKEL (50)	MATTE TIN OVER NICKEL (50)	-	MATTE TIN OVER NICKEL (50)	MATTE TIN OVER NICKEL (50)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrie	-	MATTE TIN OVER NICKEL (50)	MATTE TIN OVER NICKEL (50)
Contact point gender	FEMALE	FEMALE	FEMALE	-	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	-	PHOSPHOR BRONZE	PHOSPHOR BRONZE
DIN compliance	NO	NO	NO	-	NO	NO
Filter function	NO	NO	NO	-	NO	NO
IEC compliance	NO	NO	NO	-	NO	NO
JESD-609 code	e3	e3	e3	-	e3	e3
MIL compliance	NO	NO	NO	-	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	-	NO	NO
Installation type	BOARD	CABLE	BOARD	-	CABLE	CABLE
Number of rows loaded	1	1	1	-	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE
Total number of contacts	15	30	20	-	20	30
