3-643193-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 3-643193-5

3-643193-5: Descriptionconn rcpt 5pos 22awg mta-156; CategoryThe connector; File Size64KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

3-643193-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-643193-5	-	-	View	Buy Now

3-643193-5 Overview

conn rcpt 5pos 22awg mta-156

3-643193-5 Parametric

Parameter Name	Attribute value
Datasheets
643193
RoHS Informati
3-643193-5 Statement of Compliance
RoHS 2 Stateme
3D Model
3-643193-5.pdf
Standard Package	250
Category	Connectors, Interconnects
Family	Rectangular Connectors - Free Hanging, Panel Mou
Packaging	Bulk
Connector Type	Receptacle
Contact Type	Female Socke
Number of Positions	5
Pitch	0.156" (3.96mm)
Number of Rows	1
Row Spacing	-
Mounting Type	Free Hanging (In-Line)
Fastening Type	Locking Ram
Cable Terminati	IDC
Wire Type	Discrete or Ribbon Cable
Wire Gauge	22 AWG
Features	Closed End
Contact Finish	Ti
Contact Finish Thickness	80µin (2.03µm)
Col	Red
Associated Produc	58247-3-ND - TOOL HEAD MTA .156 26-18AWGA19763-ND - CONN DUST COVER 5POS CLOSEDA19743-ND - CONN STRAIN RELIEF COVER 5POSA1999-ND - HEAD ASSEM TOOL FOR MTA-156 RECP

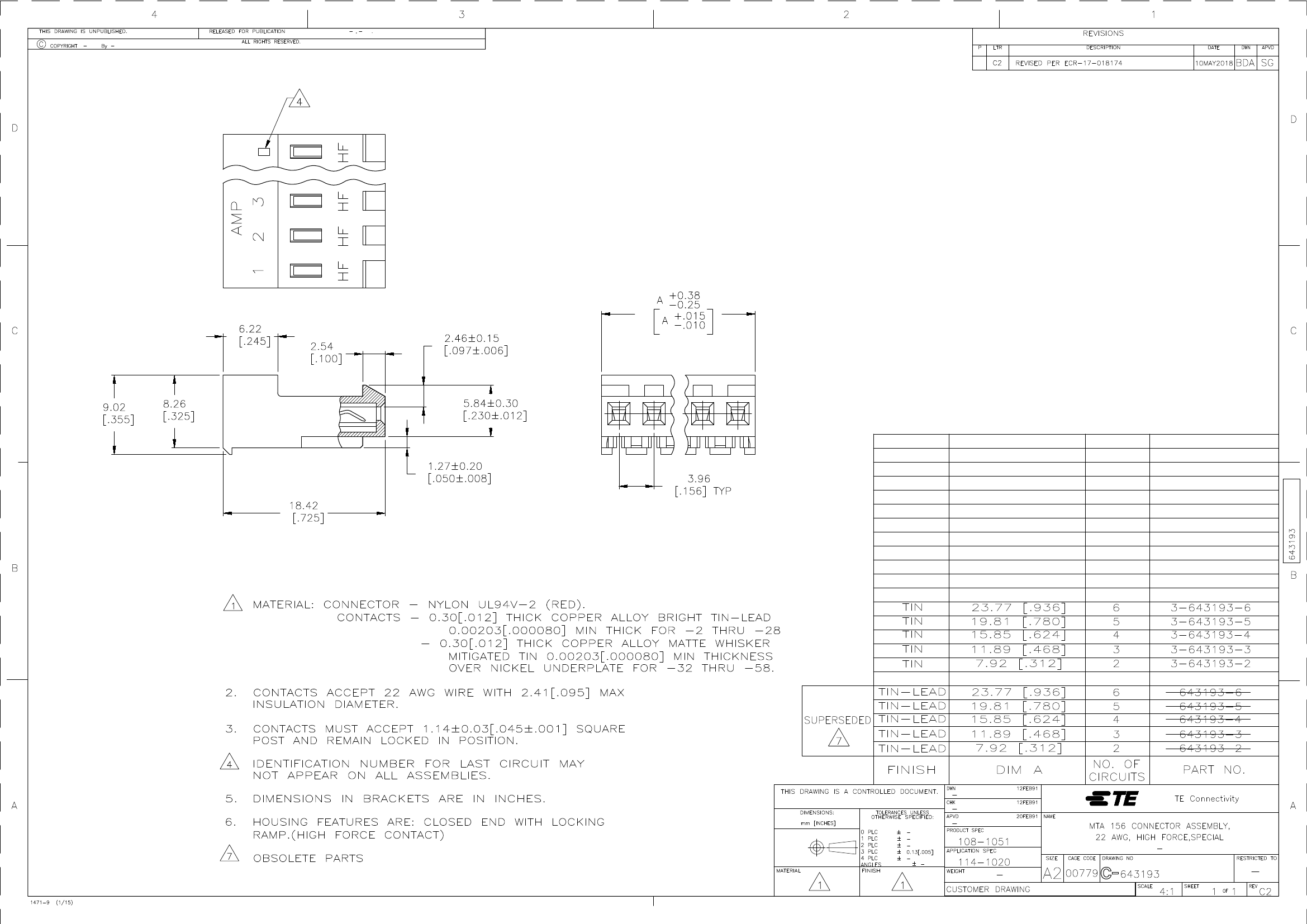

Preview

Download Datasheet

View All

3-643193-5 Related Products

	3-643193-5	3-643193-4	3-643193-3	3-643193-6	643193-6
Description	conn rcpt 5pos 22awg mta-156	conn rcpt 4pos 22awg mta-156	conn rcpt 3pos 22awg mta-156	conn rcpt 6pos 22awg mta-156	conn rcpt 6pos 22awg mta-156
Standard Package	250	2,000	500	1,000	1,000
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular Connectors - Free Hanging, Panel Mou	Rectangular Connectors - Free Hanging, Panel Mou	Rectangular Connectors - Free Hanging, Panel Mou	Rectangular Connectors - Free Hanging, Panel Mou	Rectangular Connectors - Free Hanging, Panel Mou
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk
Connector Type	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle
Contact Type	Female Socke	Female Socke	Female Socke	Female Socke	Female Socke
Number of Positions	5	4	3	6	6
Pitch	0.156" (3.96mm)	0.156" (3.96mm)	0.156" (3.96mm)	0.156" (3.96mm)	0.156" (3.96mm)
Number of Rows	1	1	1	1	1
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Fastening Type	Locking Ram	Locking Ram	Locking Ram	Locking Ram	Locking Ram
Cable Terminati	IDC	IDC	IDC	IDC	IDC
Wire Type	Discrete or Ribbon Cable	Discrete or Ribbon Cable	Discrete or Ribbon Cable	Discrete or Ribbon Cable	Discrete or Ribbon Cable
Wire Gauge	22 AWG	22 AWG	22 AWG	22 AWG	22 AWG
Features	Closed End	Closed End	Closed End	Closed End	Closed End
Contact Finish	Ti	Ti	Ti	Ti	Tin-Lead
Contact Finish Thickness	80µin (2.03µm)	80µin (2.03µm)	80µin (2.03µm)	80µin (2.03µm)	80µin (2.03µm)
Col	Red	Red	Red	Red	Red
Associated Produc	58247-3-ND - TOOL HEAD MTA .156 26-18AWGA19763-ND - CONN DUST COVER 5POS CLOSEDA19743-ND - CONN STRAIN RELIEF COVER 5POSA1999-ND - HEAD ASSEM TOOL FOR MTA-156 RECP	58247-3-ND - TOOL HEAD MTA .156 26-18AWGA19762-ND - CONN DUST COVER 4POS CLOSEDA19742-ND - CONN STRAIN RELIEF COVER 4POSA1999-ND - HEAD ASSEM TOOL FOR MTA-156 RECP	58247-3-ND - TOOL HEAD MTA .156 26-18AWGA19761-ND - CONN DUST COVER 3POS CLOSEDA19741-ND - CONN STRAIN RELIEF COVER 3POSA1999-ND - HEAD ASSEM TOOL FOR MTA-156 RECP	58247-3-ND - TOOL HEAD MTA .156 26-18AWGA19764-ND - CONN DUST COVER 6POS CLOSEDA19744-ND - CONN STRAIN RELIEF COVER 6POSA1999-ND - HEAD ASSEM TOOL FOR MTA-156 RECP	58247-3-ND - TOOL HEAD MTA .156 26-18AWGA19764-ND - CONN DUST COVER 6POS CLOSEDA19744-ND - CONN STRAIN RELIEF COVER 6POSA1999-ND - HEAD ASSEM TOOL FOR MTA-156 RECP
