BW-S15W5

Description
Fixed Attenuator, 0MHz Min, 18000MHz Max, CASE DC737
CategoryWireless rf/communication    Radio frequency and microwave
File Size31KB，1 Pages
ManufacturerMini-Circuits
Websitehttps://www.minicircuits.com
Download Datasheet Parametric Compare View All

BW-S15W5 Overview

Fixed Attenuator, 0MHz Min, 18000MHz Max, CASE DC737

BW-S15W5 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerMini-Circuits
Reach Compliance Codeunknown
Other featuresSMA
Nominal attenuation15 dB
Characteristic impedance50 Ω
structureCOAXIAL
Maximum input power (CW)36.99 dBm
JESD-609 codee0
Maximum operating frequency18000 MHz
Minimum operating frequency
Maximum operating temperature100 °C
Minimum operating temperature-55 °C
RF/Microwave Device TypesFIXED ATTENUATOR
Terminal surfaceTin/Lead (Sn/Pb)
Maximum voltage standing wave ratio1.3
Base Number Matches1

Preview

Download Datasheet

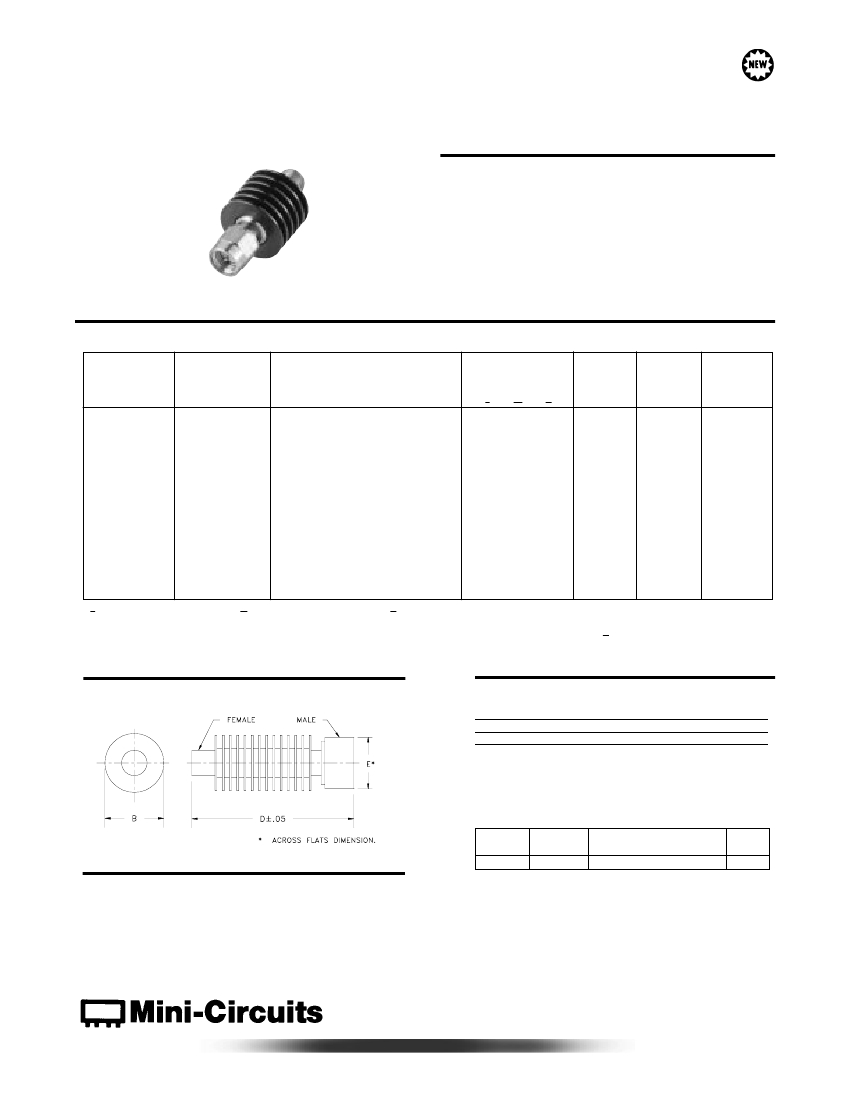

Precision Fixed Attenuators,
5W
1 to 40 dB, DC to 18 GHz
Features
• DC to 18 GHz
• precise attenuation
• excellent VSWR, 1.20:1 typ.
• stainless steel SMA male and female connectors
BW-SXW5
Applications
DC737
• matching
• instrumentation
• test set-ups
50Ω
Electrical Specifications 50
Ω
MODEL
NO.
FREQUENCY
RANGE
(GHz)
f
L
-f
U
DC-18
DC-18
DC-18
DC-18
DC-18
DC-18
DC-18
DC-18
DC-18
DC-18
DC-18
DC-18
DC-18
DC-18
DC-18
M= 4-8 GHz
ATTENUATION
(dB)
Nom.
1
2
3
4
5
6
7
8
9
10
12
15
20
30
40
ACCURACY*
±0.40
±0.40
±0.40
±0.40
±0.40
±0.40
±0.60
±0.60
±0.60
±0.60
±0.60
±0.60
±0.60
±0.85
±0.85
U= 8-12.4 GHz
VSWR*
max.
L
1.20
1.20
1.20
1.20
1.20
1.20
1.20
1.20
1.20
1.20
1.20
1.20
1.20
1.20
1.20
M
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
U
1.30
1.30
1.30
1.30
1.30
1.30
1.30
1.30
1.30
1.30
1.30
1.30
1.30
1.30
1.30
POWER**
(W)
CASE
STYLE
PRICE
$
Qty.
(1-49)
BW-S1W5
BW-S2W5
BW-S3W5
BW-S4W5
BW-S5W5
BW-S6W5
BW-S7W5
BW-S8W5
BW-S9W5
BW-S10W5
BW-S12W5
BW-S15W5
BW-S20W5
BW-S30W5
BW-S40W5
L = DC - 4 GHz
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
DC737
DC737
DC737
DC737
DC737
DC737
DC737
DC737
DC737
DC737
DC737
DC737
DC737
DC737
DC737
44.95
44.95
44.95
44.95
44.95
44.95
44.95
44.95
44.95
44.95
44.95
44.95
44.95
44.95
44.95
Notes:
* At 25°C includes power & frequency variations up to 12.4 GHz. Above 12.4 GHz add 0.5 dB typ. to accuracy and 0.3 typ. to VSWR in the U range.
Temperature coefficient for attenuation .0004 dB/dB/°C typ.
** Average power at 25°C ambient, derate linearly to 2W at 100°C. Peak Power 125W max., 5
µ
sec pulse width, 100 Hz PRF.
Outline Drawing
Maximum Ratings
Operating Temperature
Storage Temperature
Connectors:
-55°C to 100°C
-55°C to 100°C***
SMA Female-SMA Male
*** With mated connectors. Unmated, 85°C max.
designers kits available
KIT
No.
K5-BW1
No. of
Units in KIT
8
Description
1 of each: 1,2,3,4,5,6,8,10
Price $
per KIT
299.00
Outline Dimensions (
inch
)
mm
A
B
—
.61
— 15.49
C
D
—
1.20
— 30.48
E
.312
7.94
wt.
grams
9.1
®
INTERNET
http://www.minicircuits.com
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661
REV. A
M74226
EA-8723
BW-SXW5
RS/TD/CP
001101
Distribution Centers
NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010
ISO 9001
CERTIFIED

BW-S15W5 Related Products

BW-S15W5 BW-S12W5 BW-S10W5 BW-S1W5 BW-S5W5 BW-S2W5 BW-S40W5
Description Fixed Attenuator, 0MHz Min, 18000MHz Max, CASE DC737 Fixed Attenuator, 0MHz Min, 18000MHz Max, CASE DC737 Fixed Attenuator, 0MHz Min, 18000MHz Max, CASE DC737 Fixed Attenuator, 0MHz Min, 18000MHz Max, CASE DC737 Fixed Attenuator, 0MHz Min, 18000MHz Max, CASE DC737 Fixed Attenuator, 0MHz Min, 18000MHz Max, CASE DC737 Fixed Attenuator, 0MHz Min, 18000MHz Max, CASE DC737
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible incompatible
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknow
Other features SMA SMA SMA SMA SMA SMA SMA
Nominal attenuation 15 dB 12 dB 10 dB 1 dB 5 dB 2 dB 40 dB
Characteristic impedance 50 Ω 50 Ω 50 Ω 50 Ω 50 Ω 50 Ω 50 Ω
structure COAXIAL COAXIAL COAXIAL COAXIAL COAXIAL COAXIAL COAXIAL
Maximum input power (CW) 36.99 dBm 36.99 dBm 36.99 dBm 36.99 dBm 36.99 dBm 36.99 dBm 36.99 dBm
JESD-609 code e0 e0 e0 e0 e0 e0 e0
Maximum operating frequency 18000 MHz 18000 MHz 18000 MHz 18000 MHz 18000 MHz 18000 MHz 18000 MHz
Maximum operating temperature 100 °C 100 °C 100 °C 100 °C 100 °C 100 °C 100 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C
RF/Microwave Device Types FIXED ATTENUATOR FIXED ATTENUATOR FIXED ATTENUATOR FIXED ATTENUATOR FIXED ATTENUATOR FIXED ATTENUATOR FIXED ATTENUATOR
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio 1.3 1.3 1.3 1.3 1.3 1.3 1.3
Maker Mini-Circuits Mini-Circuits Mini-Circuits Mini-Circuits - - Mini-Circuits
Base Number Matches 1 1 1 1 1 1 -
