8-215570-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 8-215570-4

8-215570-4: Descriptionconn paddlebrd 14pos vert 28awg; CategoryThe connector; File Size303KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

8-215570-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8-215570-4	-	-	View	Buy Now

8-215570-4 Overview

conn paddlebrd 14pos vert 28awg

8-215570-4 Parametric

Parameter Name	Attribute value
Datasheets
215570 Drawing
Product Photos
8-215570-4
RoHS Informati
8-215570-4 Statement of Compliance
RoHS 2 Stateme
Featured Produc
Micro-MaTch Connector Series
3D Model
8-215570-4.pdf
Standard Package	1
Category	Connectors, Interconnects
Family	Rectangular Connectors - Board In, Direct Wire to Board
Packaging	Cut Tape (CT)
Connector Type	Ribbon Cable
Number of Positions	14
Cable Pitch	0.050" (1.27mm)
Board-Side Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Mounting Type	Through Hole, Press-Fi
Cable Terminati	IDC
Wire Gauge	28 AWG, Stranded or Solid
Features	Feed Through
Contact Finish	Ti
Contact Finish Thickness	-
Col	Red
Number of Positions Loaded	All
Dynamic Catalog	Micro-MaTch Series
Other Names	A99421CT

Preview

Download Datasheet

View All

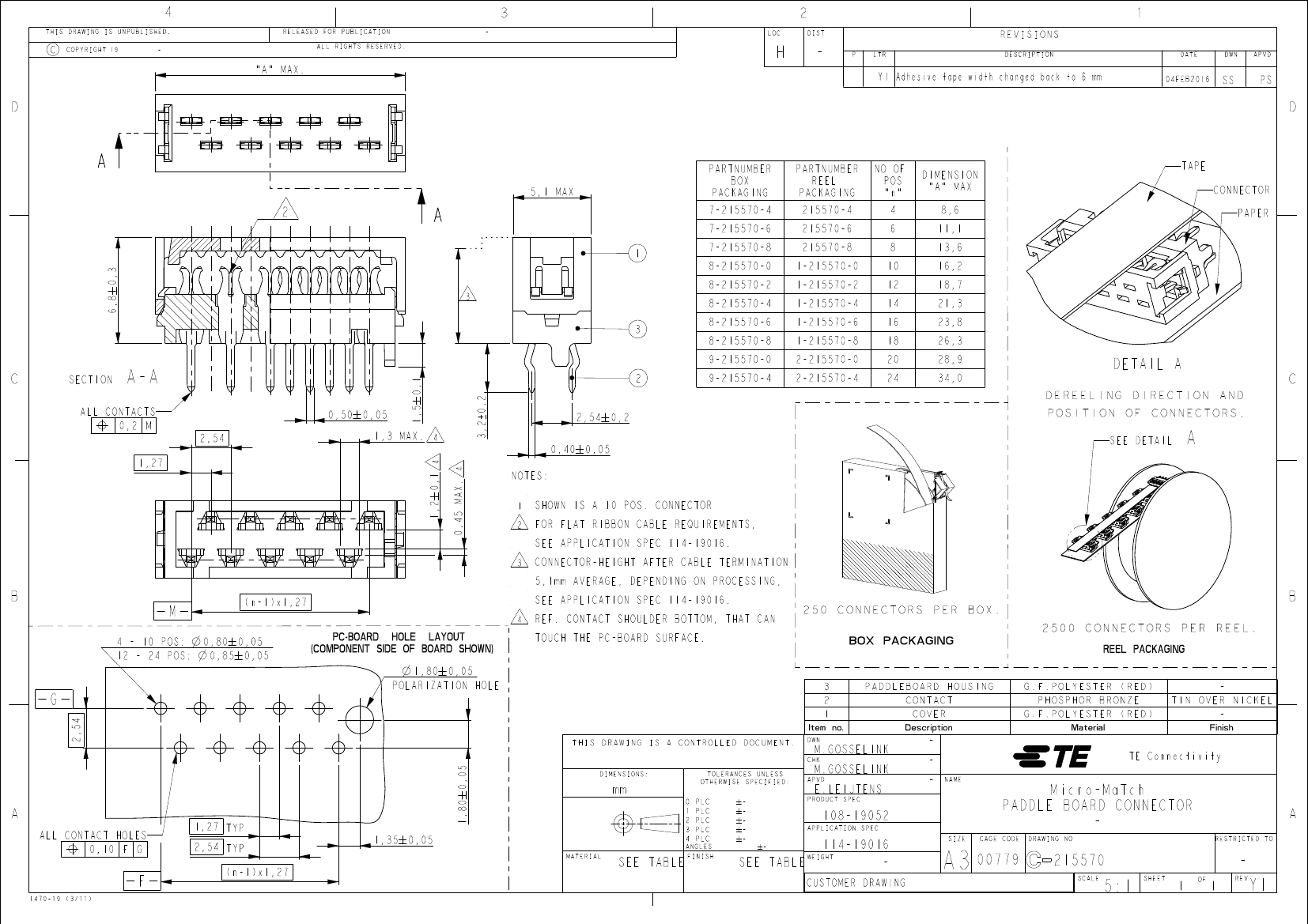

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

LOC

DIST

"A" MAX.

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

Y1 Adhesive tape width changed back to 6 mm

04FEB2016

5,1 MAX

PARTNUMBER

BOX

PACKAGING

7-215570-4

7-215570-6

7-215570-8

8-215570-0

8-215570-2

8-215570-4

8-215570-6

8-215570-8

9-215570-0

9-215570-4

PARTNUMBER

REEL

PACKAGING

215570-4

215570-6

215570-8

1-215570-0

1-215570-2

1-215570-4

1-215570-6

1-215570-8

2-215570-0

2-215570-4

NO OF

POS

"n"

DIMENSION

"A" MAX

8,6

11,1

13,6

16,2

18,7

21,3

23,8

26,3

28,9

34,0

TAPE

CONNECTOR

PAPER

6,8 0,3

1,5 0,1

SECTION

A-A

0,50 # 0,05

2,54

3,2±0,2

2,54 # 0,2

0,40 0,05

0,45 MAX.

NOTES:

DETAIL A

DEREELING DIRECTION AND

POSITION OF CONNECTORS.

ALL CONTACTS

0,2 M

1,27

1,3 MAX.

1,2 # 0,1

SEE DETAIL

SHOWN IS A 10 POS. CONNECTOR

FOR FLAT RIBBON CABLE REQUIREMENTS,

SEE APPLICATION SPEC 114-19016.

CONNECTOR-HEIGHT AFTER CABLE TERMINATION

5,1mm AVERAGE, DEPENDING ON PROCESSING,

SEE APPLICATION SPEC 114-19016.

4 - 10 POS:

12 - 24 POS:

(n-1)x1,27

REF. CONTACT SHOULDER BOTTOM, THAT CAN

TOUCH THE PC-BOARD SURFACE.

250 CONNECTORS PER BOX.

BOX PACKAGING

2500 CONNECTORS PER REEL.

0,80

n 0,85 # 0,05

PC-BOARD HOLE LAYOUT

(COMPONENT SIDE OF BOARD SHOWN)

1,80 0,05

POLARIZATION HOLE

REEL PACKAGING

G.F.POLYESTER (RED)

Material

2,54

Item no.

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

DIMENSIONS:

PADDLEBOARD HOUSING

CONTACT

COVER

PHOSPHOR BRONZE

TIN OVER NICKEL

Finish

Description

M.GOSSELINK

1,80 0,05

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

NAME

TE Connectivity

APVD

ALL CONTACT HOLES

0,10 F G

1,27 TYP

2,54 TYP

(n-1)x1,27

1,35 0,05

MATERIAL

ANGLES

PLC

1470-19 (3/11)

SEE TABLE

FINISH

114-19016

WEIGHT

SEE TABLE

PRODUCT SPEC

E.LEIJTENS

APPLICATION SPEC

108-19052

SIZE

CUSTOMER DRAWING

00779

CAGE CODE

Micro-MaTch

PADDLE BOARD CONNECTOR

DRAWING NO

RESTRICTED TO

215570

SCALE

5:1

SHEET

REV
