3-176976-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 3-176976-9

3-176976-9: Descriptionconn heade T/H tin; CategoryThe connector; File Size133KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

3-176976-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-176976-9	-	-	View	Buy Now

3-176976-9 Overview

conn heade T/H tin

3-176976-9 Parametric

Parameter Name	Attribute value
Datasheets

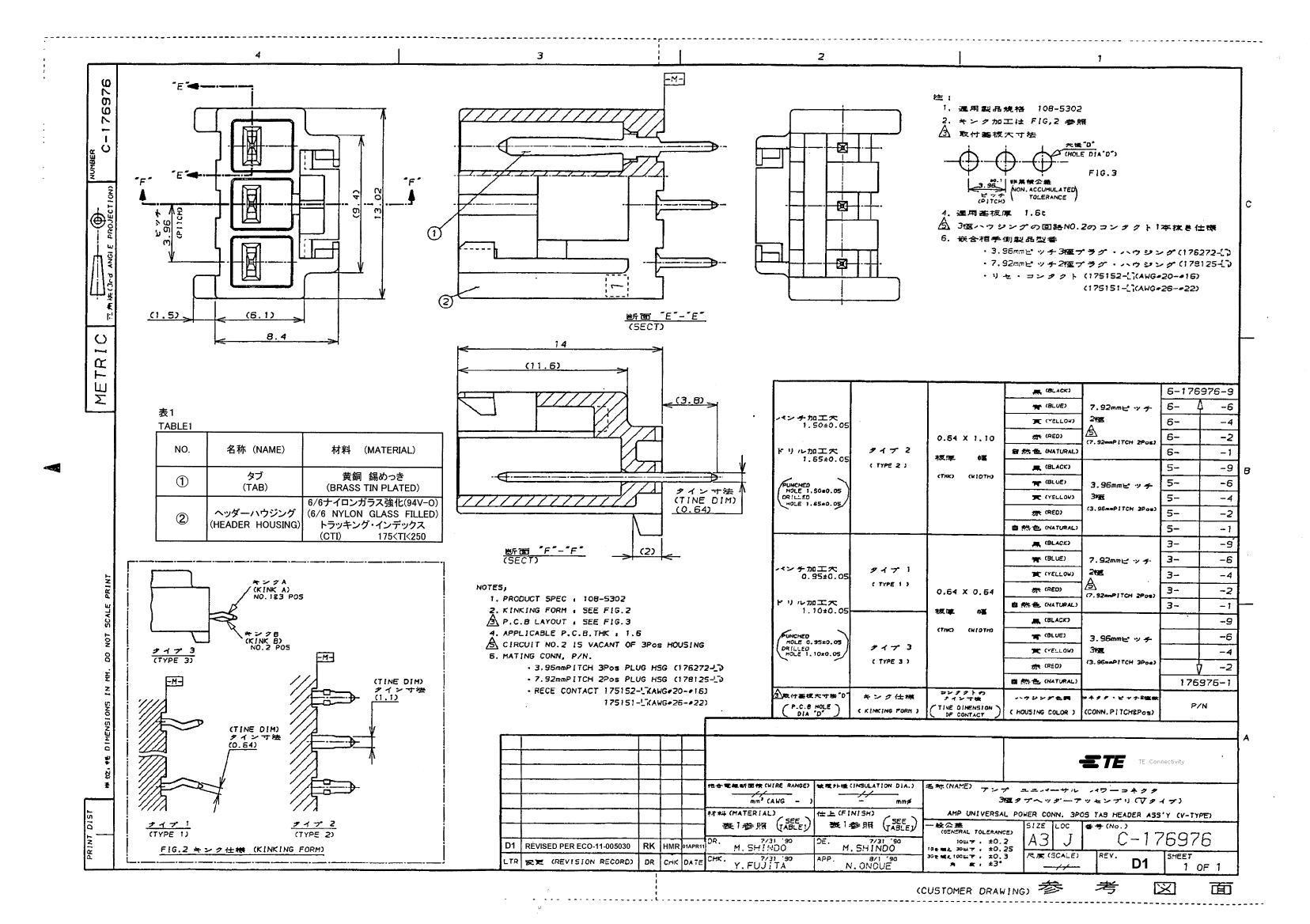

176976 Drawing
Product Photos
3-176976-9
Standard Package	1
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Bulk
Contact Type	Tab
Connector Type	Header, Shrouded
Number of Positions	3
Number of Positions Loaded	2
Pitch	0.312" (7.92mm)
Number of Rows	1
Row Spacing	-
Contact Mating Length	-
Mounting Type	Through Hole
Terminati	Kinked Pin, Solde
Fastening Type	Latch Lock
Features	-
Contact Finish	Ti
Contact Finish Thickness	-
Col	Black
Other Names	A119557

Preview

Download Datasheet

View All

3-176976-9 Related Products

	3-176976-9	3-176976-1	6-176976-4	176976-4	6-176976-1	3-176976-6	5-176976-1
Description	conn heade T/H tin	amp universal power plg 2C pcb	amp universal power plg 2C pcb	amp universal power plg 2C pcb	amp universal power plg 2C pcb	conn heade T/H tin	conn header 3pos T/H tin nat
Standard Package	1	400	1	6,400	400	1	25,600
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Contact Type	Tab	Tab	Tab	Tab	Tab	Tab	Tab
Connector Type	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded
Number of Positions	3	3	3	3	3	3	3
Number of Positions Loaded	2	2	2	All	2	2	All
Pitch	0.312" (7.92mm)	0.312" (7.92mm)	0.312" (7.92mm)	0.150" (3.81mm)	0.312" (7.92mm)	0.312" (7.92mm)	0.156" (3.96mm)
Number of Rows	1	1	1	1	1	1	1
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Terminati	Kinked Pin, Solde	Kinked Pin, Solde	Solde	Kinked Pin, Solde	Solde	Kinked Pin, Solde	Solde
Fastening Type	Latch Lock	Latch Lock	Latch Lock	Latch Lock	Latch Lock	Latch Lock	Latch Lock
Contact Finish	Ti	Ti	Ti	Ti	Ti	Ti	Ti
Col	Black	Natural	Yellow	Yellow	Natural	Blue	Natural
Other Names	A119557	A117582	A119548	A119032	A116714	A119556	-
