5176375-2: Descriptionconn rcpt FH 60pos .050 vert; CategoryThe connector; File Size89KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5176375-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5176375-2	-	-	View	Buy Now

5176375-2 Overview

conn rcpt FH 60pos .050 vert

5176375-2 Parametric

Parameter Name	Attribute value
Datasheets

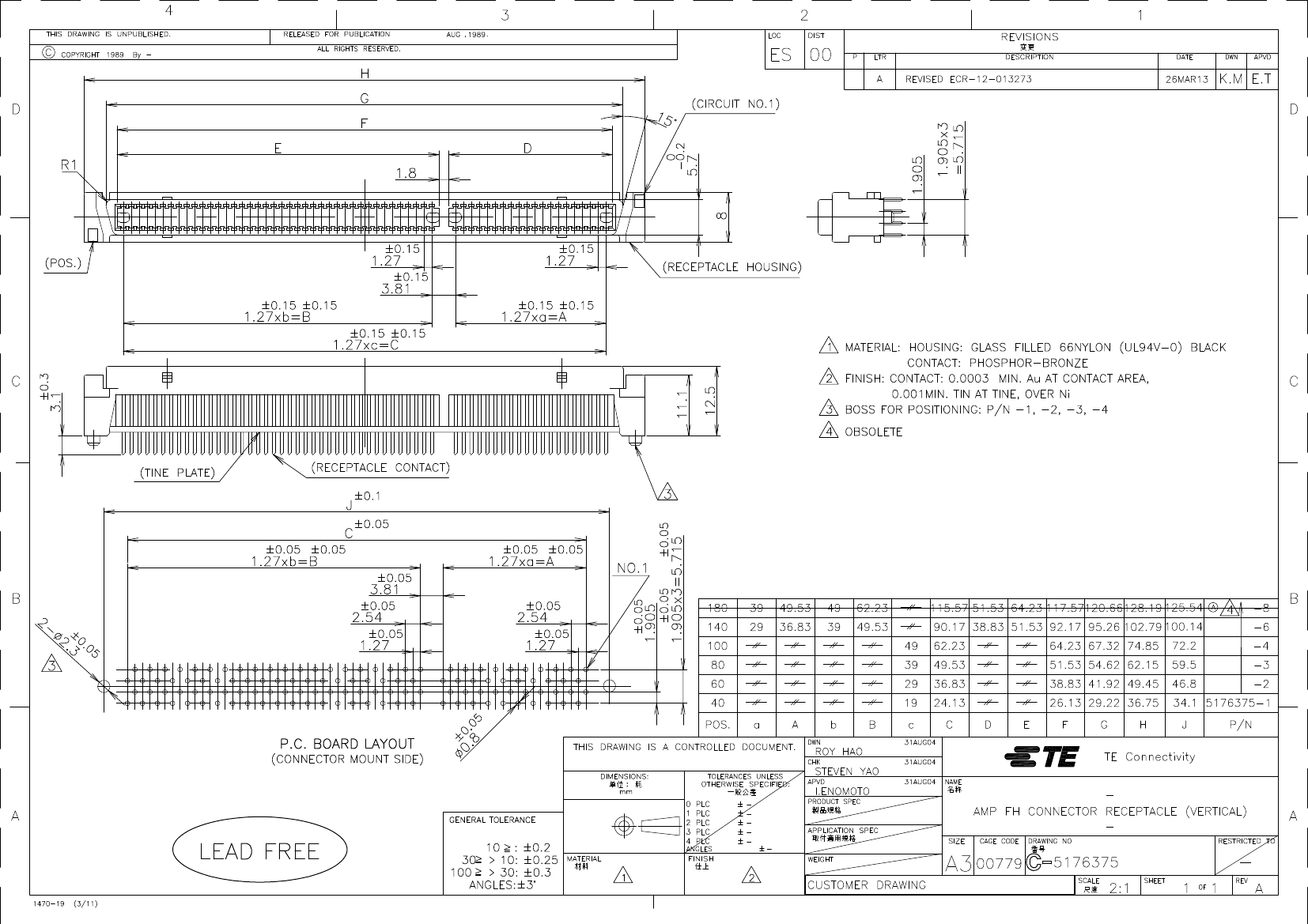

5176375 Drawing
RoHS Informati
5176375-2 Statement of Compliance
RoHS 2 Stateme
Standard Package	1,080
Category	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Packaging	-
Connector Type	Receptacle, Outer Shroud Contacts
Number of Positions	60
Pitch	0.050" (1.27mm)
Number of Rows	2
Mounting Type	Through Hole
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	12µin (0.30µm)
Mated Stacking Heights	15mm
Height Above Board	0.492" (12.50mm)
Mating Products	5177980-2-ND - CONN PLUG FH 60POS .050 VERTA114071-ND - CONN PLUG FH 60POS .050 VERTA113811-ND - CONN PLUG FREEHGT 60POS .050 VRT179656-2-ND - CONN PLUG FREEHGT 60POS .050 VRT5176381-2-ND - CONN PLUG FH 60POS .050 R/A176381-2-ND - CONN PLUG FH 60POS .050 R/A

Preview

Download Datasheet

View All

5176375-2 Related Products

	5176375-2	5176375-6	5176375-8	5176375-4	5176375-3
Description	conn rcpt FH 60pos .050 vert	conn rcpt FH 140pos 050 vert	conn rcpt FH 180pos 050 vert	conn rcpt FH 100pos 050 vert	conn rcpt FH 80pos .050 vert
Standard Package	1,080	560	30	840	980
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Connector Type	Receptacle, Outer Shroud Contacts	Receptacle, Outer Shroud Contacts	Receptacle, Outer Shroud Contacts	Receptacle, Outer Shroud Contacts	Receptacle, Outer Shroud Contacts
Number of Positions	60	140	180	100	80
Pitch	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)
Number of Rows	2	2	2	2	2
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Features	Board Guide	-	-	Board Guide	Board Guide
Contact Finish	Gold	Gold	Gold	Gold	Gold
Contact Finish Thickness	12µin (0.30µm)	12µin (0.30µm)	12µin (0.30µm)	12µin (0.30µm)	12µin (0.30µm)
Mated Stacking Heights	15mm	15mm	15mm	15mm	15mm
Height Above Board	0.492" (12.50mm)	0.492" (12.50mm)	0.492" (12.50mm)	0.492" (12.50mm)	0.492" (12.50mm)
Mating Products	5177980-2-ND - CONN PLUG FH 60POS .050 VERTA114071-ND - CONN PLUG FH 60POS .050 VERTA113811-ND - CONN PLUG FREEHGT 60POS .050 VRT179656-2-ND - CONN PLUG FREEHGT 60POS .050 VRT5176381-2-ND - CONN PLUG FH 60POS .050 R/A176381-2-ND - CONN PLUG FH 60POS .050 R/A	5917631-6-ND - CONN PLUG FH 140POS .050 VERT5176381-6-ND - CONN PLUG FH 140POS .050 R/A176381-6-ND - CONN PLUG FH 140POS .050 R/A	5917631-8-ND - CONN PLUG FH 180POS .050 VERT5176381-8-ND - CONN PLUG FH 180POS .050 R/A176381-8-ND - CONN PLUG FH 180POS .050 R/A	2-5917631-4-ND - CONN PLUG FH 100POS .050 VERTA114072-ND - CONN PLUG FH 100POS .050 VERT2-5179540-4-ND - CONN PLUG FH 100POS 050 VERT2-179540-4-ND - CONN PLUG FH 100POS 050 VERT5176381-4-ND - CONN PLUG FH 100POS .050 R/A176381-4-ND - CONN PLUG FH 100POS .050 R/A	5917631-3-ND - CONN PLUG FH 80POS .050 VERT5176381-3-ND - CONN PLUG FH 80POS .050 R/A176381-3-ND - CONN PLUG FH 80POS .050 R/A
