2.54mm Pitch Low Profile Connector
HIF3FB and HIF3FC Series
■Features
1. Flux Prevention
HIF3FC series straight type takes complete flux
tight measures.
2. Low Profile
The pin header is a low profile of height 9.2mm.
The board to board clearance is 12.2mm for
stacking connection.
■Applications

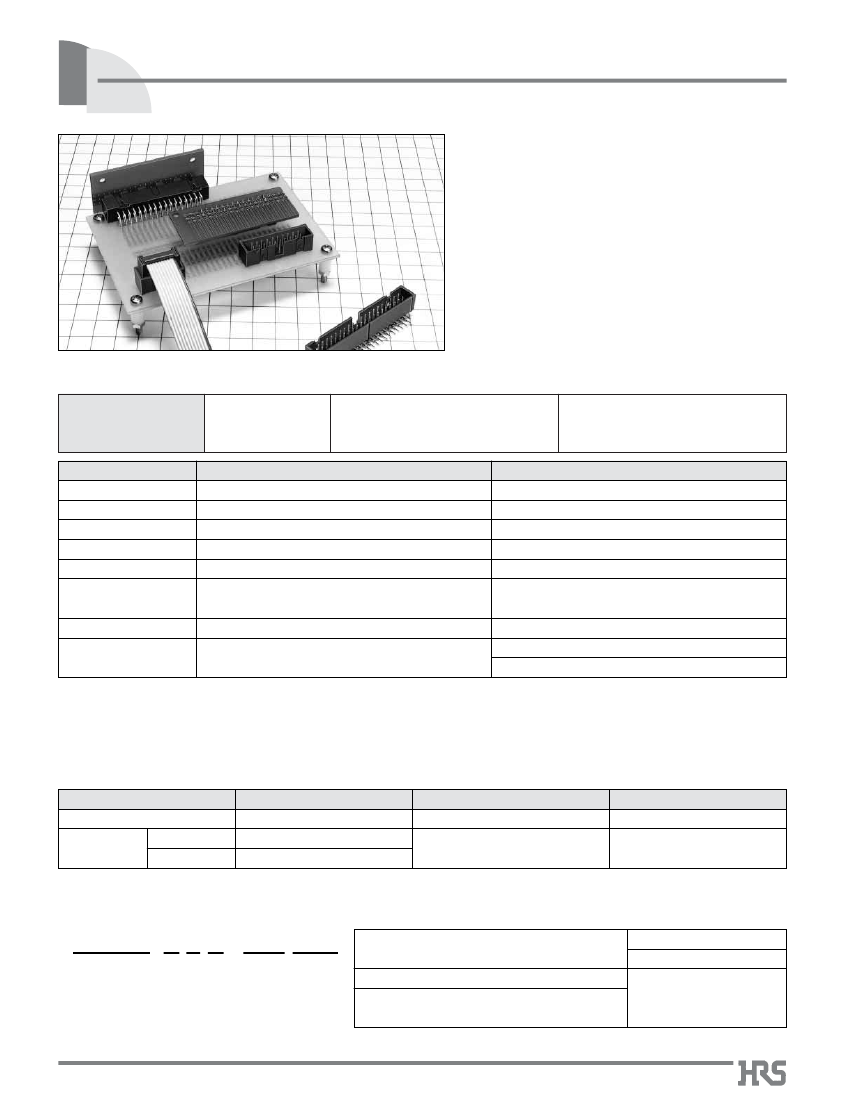

Photo: HIF3FC Series
Computers, termination equipment, various kinds
of electronic equipment, Office Automation
machines and so on
■Product
Specifications
Rating
Current rating: 1A
Voltage rating: 200V AC
Operating Temperature Range:
-55 to +85ç (Note 1)
Storage Temperature Range:
-10 to +60ç (Note 2)
Operating Humidity Range: 40 to 80%
Operating Humidity Range: 40
to
70% (Note 2)
Item
1. Insulation Resistance 1000M
ohms
Specification
500V DC
650V AC/1 minute.
0.1A
Condition
2. Withstanding Voltage
No flashover or insulation breakdown.
3. Contact Resistance
4. Vibration
15m ohms max.
No electrical discontinuity of 1μs or more
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
(-55ç: 30 minutes→15 to 35ç: 5 minutes max.→
85ç: 30 minutes→15 to 35ç: 5 minutes max.) 5 cycles
500 cycles
Solder bath: 260ç for 10 seconds
Manual soldering: 350ç for 3 seconds
5.
Humidity (Steady state)
Insulation resistance: 1000M
ohms
min
6. Temperature Cycle
No damage, cracks, or parts looseness.
7. Durability (Mating/un-mating) Contact resistance: 15 m
ohms
max.
8. Resistance to Soldering heat
No deformation of components affecting performance.
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 3. Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and specifications for
a specific part number shown.
■Material
Parts
Insulator
Contact
Pin header
Receptacle
Material
PBT
Brass
Copper alloy
Contact area
Finish
Black
: Gold plated
Termination area : Pure tin plated
Remarks
UL94V-0
________
■Ordering
Information
HIF3FC-
*
P A - 2.54 DSA
q
w e
r
t
y
q
Series Name
: HIF3FB (60, 64 contacts)
: HIF
3FC (10~50 contacts)
r
A: Selective gold plating
t
Contact pitch: 2.54mm
w
Number of contacts: 10, 14, 16, 20, 26, 30, 34, 40, 50, 60, 64
y
Contact type
e
P
D
: Pin header
: Socket
DSA : Straight type
DS : Right angle type
B47
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products
and
been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
HIF3FB
have
HIF3FC Series●2.54mm Pitch Low Profile Connector

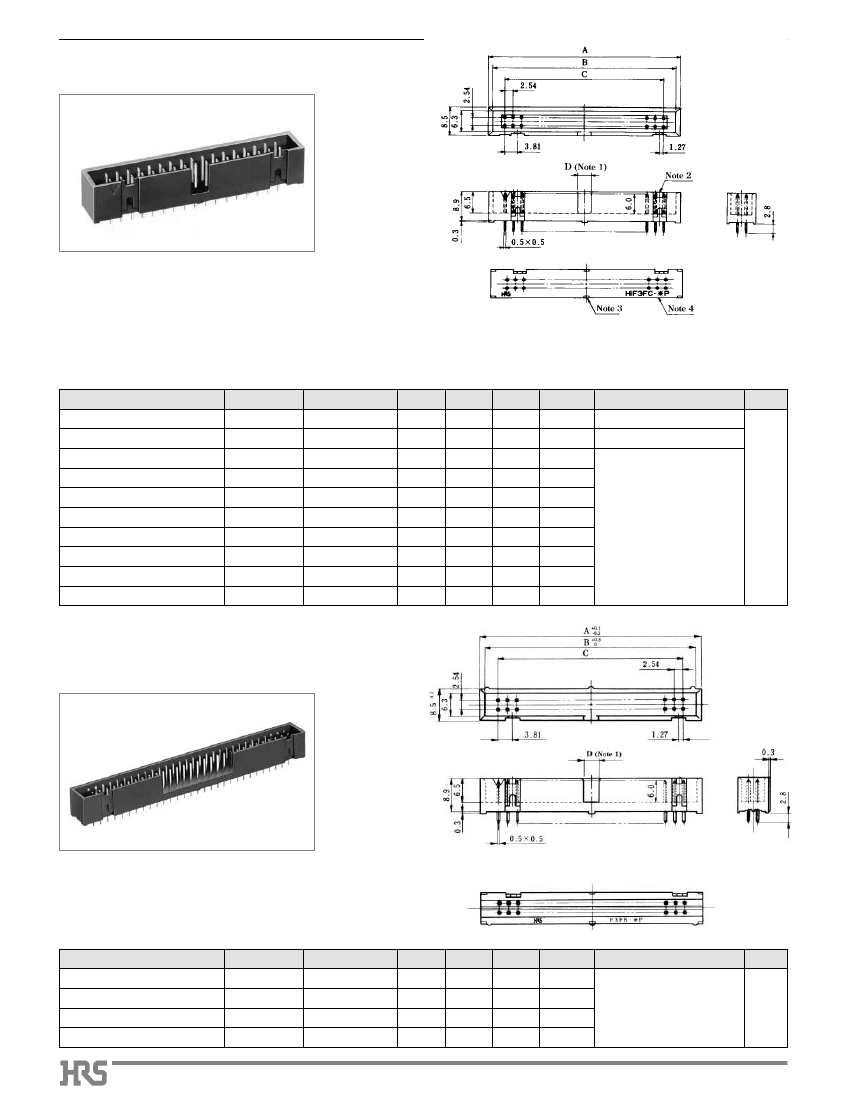

■Straight
Type Pin Header
Note 1: Two types of 50 contacts are available. Please use
products according to the table as shown below.
Note 2: The number of polarizing key mounted positions differs
according to products. Please refer to the table as shown below.
Note 3: The 10 contact type has no standoff at the center.
Note 4:
*
indicates the number of contacts.
Unit: mm
Part Number
CL No.
Number of Contacts
10
14
16
20
26
30
34
40
50
50
A
20.2
25.28
27.82
32.9
40.52
45.6
50.68
58.30
71.0
71.0
B
17.5
22.58
25.12
30.2
37.82
42.9
47.98
55.60
68.3
68.3
C
10.16
15.24
17.78
22.86
30.48
35.56
40.64
48.26
60.96
60.96
D (Note 1) Polarizing Key Mounted Position(Note 2)
4.1
4.1
4.1
4.1
4.1
4.1
4.1
4.1
4.1
26.96
1 point on the right and left
sides, respectively
YES
None
1 point on the left side
RoHS
HIF3FC -10PA-2.54DSA(71)
616-0161-4-71
HIF3FC -14PA-2.54DSA(71)
616-0162-7-71
HIF3FC -16PA-2.54DSA(71)
616-0163-0-71
HIF3FC -20PA-2.54DSA(71)
616-0164-2-71
HIF3FC -26PA-2.54DSA(71)
616-0165-5-71
HIF3FC -30PA-2.54DSA(71)
616-0166-8-71
HIF3FC -34PA-2.54DSA(71)
616-0167-0-71
HIF3FC -40PA-2.54DSA(71)
616-0168-3-71
HIF3FC -50PA-2.54DSA(71)
616-0169-6-71
HIF3FCA-50PA-2.54DSA(71)
616-0170-5-71
Note 1: Two types are available. Please use them according to
the table as shown below.
Unit: mm
Part Number
CL No.
Number of Contacts
60
60
64
64
A
83.7
83.7
88.78
88.78
B
81.0
81.0
86.1
86.1
C
73.66
73.66
78.74
78.74
D (Note 1) Polarizing Key Mounted Position
4.1
26.96
4.1
26.96
1 point on the right and left
sides, respectively
YES
RoHS
HIF3FB -60PA-2.54DSA(71)
616-0130-0-71
HIF3FBA -60PA-2.54DSA(71)
616-0142-0-71
HIF3FB -64PA-2.54DSA(71)
616-0131-3-71
HIF3FBA -64PA-2.54DSA(71)
616-0143-2-71
B48
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website
and
search at www.hirose-connectors.com, or contact your Hirose
Connector
HIF3FB
RoHS
HIF3FC Series●2.54mm Pitch Low Profile
sales representative.

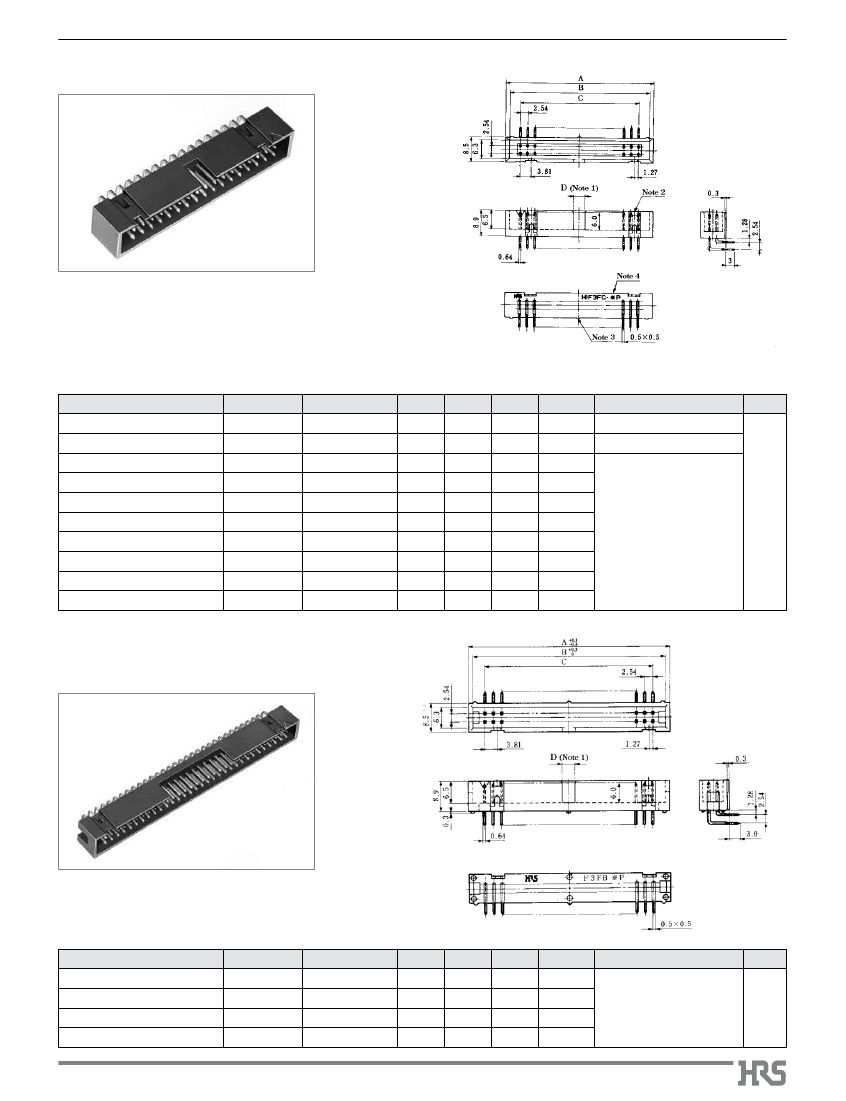

■Right
Angle Type Pin Header
Note 1: Two types of 50 contacts are available. Please use
products according to the table as shown below.
Note 2: The number of polarizing key mounted positions differs
according to products. Please refer to the table as shown below.
Note 3: The 10 contact type has no standoff at the center.
Note 4:
*
indicates the number of contacts.
Unit: mm
Part Number
HIF3FC -10PA-2.54DS(71)
HIF3FC -14PA-2.54DS(71)
HIF3FC -16PA-2.54DS(71)
HIF3FC -20PA-2.54DS(71)
HIF3FC -26PA-2.54DS(71)
HIF3FC -30PA-2.54DS(71)
HIF3FC -34PA-2.54DS(71)
HIF3FC -40PA-2.54DS(71)
HIF3FC -50PA-2.54DS(71)
HIF3FCA-50PA-2.54DS(71)
CL No.
616-0061-0-71
616-0062-2-71
616-0063-5-71
616-0064-8-71
616-0065-0-71
616-0066-3-71
616-0067-6-71
616-0068-9-71
616-0069-1-71
616-0070-0-71
Number of Contacts
10
14
16
20
26
30
34
40
50
50
A
20.2
25.28
27.82
32.9
40.52
45.6
50.68
58.30
71.0
71.0
B
17.5
22.58
25.12
30.2
37.82
42.9
47.98
55.60
68.3
68.3
C
10.16
15.24
17.78
22.86
30.48
35.56
40.64
48.26
60.96
60.96
D (Note 1) Polarizing Key Mounted Position(Note 2)
4.1
4.1
4.1
4.1
4.1
4.1
4.1
4.1
4.1
26.96
1 point on the right and left
sides, respectively
None
1 point on the left side
RoHS
YES
Note 1: Two types are available. Please use them according to
the table as shown below.
Unit: mm
Part Number
HIF3FB -60PA-2.54DS(71)
HIF3FBA -60PA-2.54DS(71)
HIF3FB -64PA-2.54DS(71)
HIF3FBA -64PA-2.54DS(71)
CL No.
616-0030-6-71
616-0042-5-71
616-0031-9-71
616-0043-8-71
Number of Contacts
60
60
64
64
A
83.7
83.7
88.78
88.78
B
81.0
81.0
86.1
86.1
C
73.66
73.66
78.74
78.74
D (Note 1) Polarizing Key Mounted Position RoHS
4.1
26.96
4.1
26.96
1 point on the right and left
sides, respectively
YES
B49
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products
and
been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
HIF3FB
have
HIF3FC Series●2.54mm Pitch Low Profile Connector

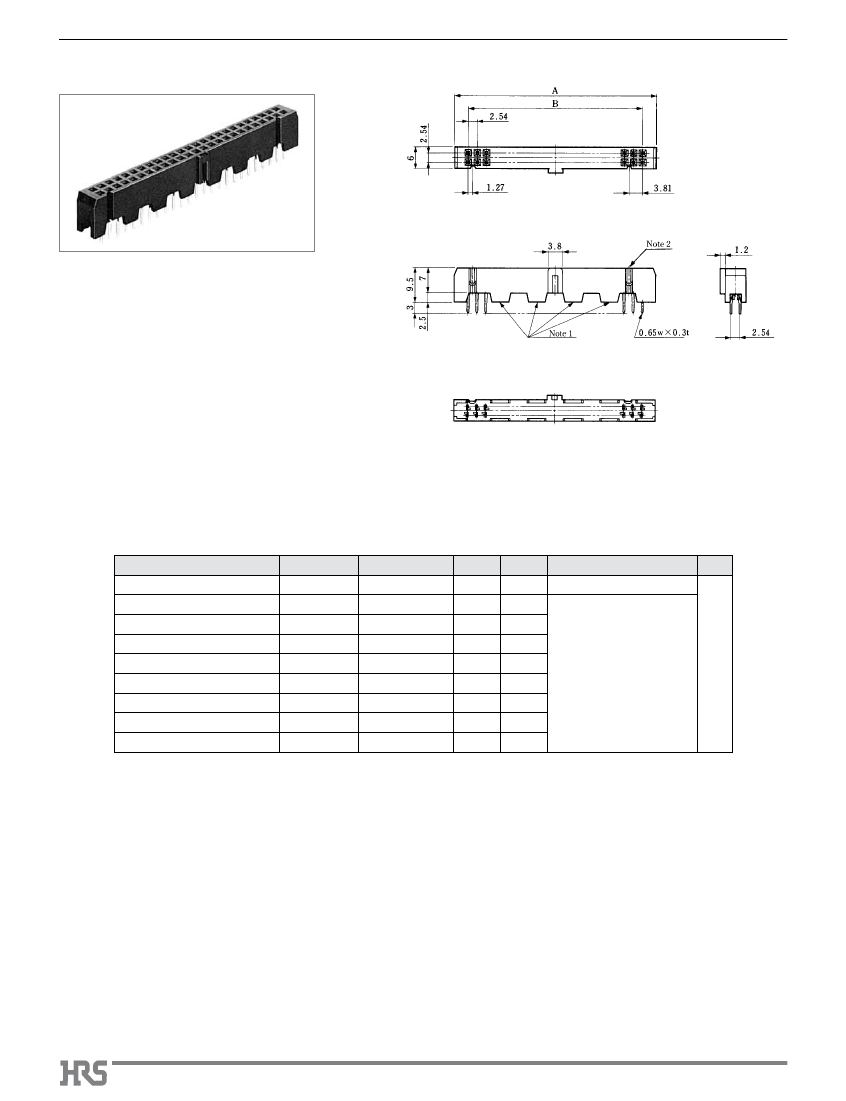

■Straight
Type Receptacle
Unit: mm
Part Number
HIF3FB-10DA-2.54DSA(71)
HIF3FB-16DA-2.54DSA(71)
HIF3FB-20DA-2.54DSA(71)
HIF3FB-26DA-2.54DSA(71)
HIF3FB-30DA-2.54DSA(71)
HIF3FB-34DA-2.54DSA(71)
HIF3FB-40DA-2.54DSA(71)
HIF3FB-50DA-2.54DSA(71)
HIF3FB-60DA-2.54DSA(71)
CL No.
616-0201-7-71
616-0203-2-71
616-0204-5-71
616-0205-8-71
616-0206-0-71
616-0207-3-71
616-0208-6-71
616-0209-9-71
616-0210-8-71
Number of Contacts
10
16
20
26
30
34
40
50
60
A
17.27
24.89
29.97
37.59
42.67
47.75
55.37
68.07
80.77
B
10.16
17.78
22.86
30.48
35.56
40.64
48.26
60.96
73.66
Polarizing Key Mounted Position RoHS
None
1 point on the right and left
sides, respectively
YES
Note 1: Standoff number differs according to products.
Note 2: The polarizing key number differs according to products.
