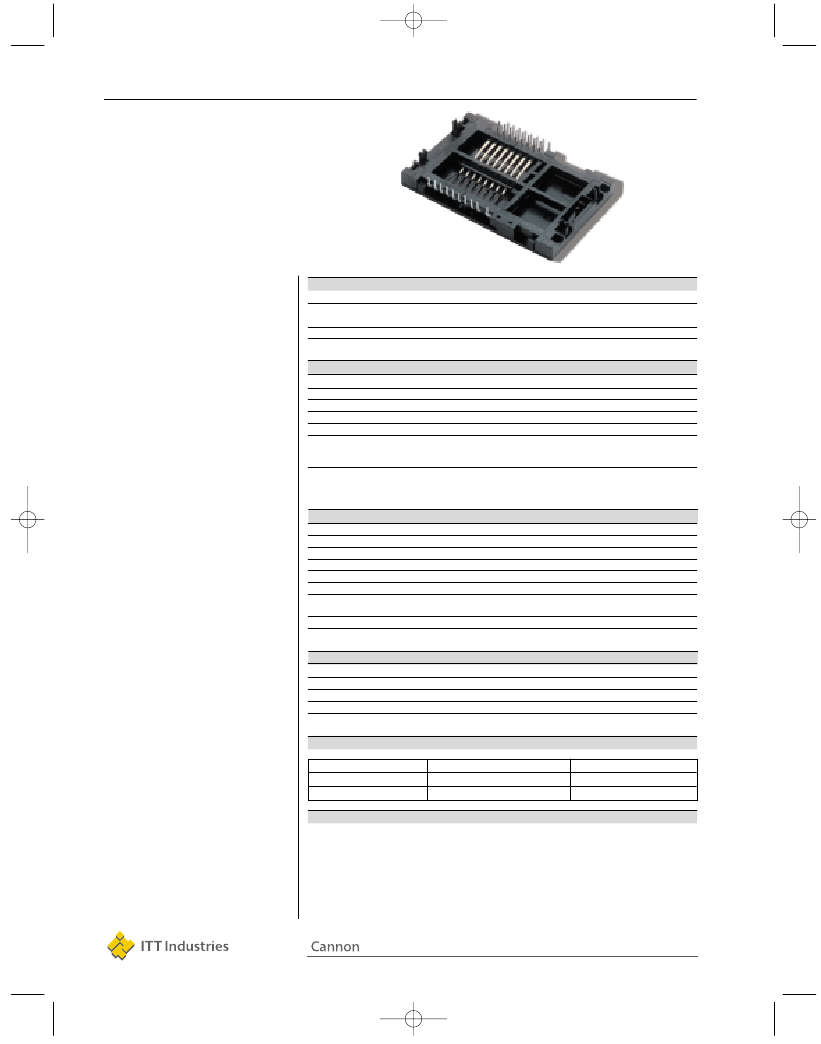

CCM01 MK I
CCM01 MK I connectors have fixed
contacts and a blade card detection
switch (not sealed).
These connectors are intended for
applications where the card usage is
relatively low and the environment is
benign.
Features
• Available with 8 or 16 through hole
contacts.
• A normally closed blade switch
detects when the card is fully inserted.
• Snap in boardlocks hold the
connector in place prior to soldering.
Construction
Contacts
Plating
Moldings
Card detection switch
Mechanical data
Number of Contacts
Mechanical life
Card insertion force
Card extraction force
Contact force
Vibration
Shock
Copper alloy
Contact area : Gold over nickel
Terminals : Tin lead (2µ min)
Thermoplastic UL 94V-0 rated
Copper alloy
8 or 16
10,000 cycles min
10 N max
1 N min / 10N max
0.20 N min / 0.60 N max
Frequency 10 to 500 Hz. Acceleration 50m/s
2
Duration 6 hours - amplitude 0.35 mm
(0.014) Max electrical discontinuity 1µs
Peak value 500 m/s
2
– Duration 11 ms
3 shocks in each direction of each axis
Max electrical discontinuity 1 µs
Electrical data
Insulation resistance
Contact resistance max
Switching current
Dielectric strength
Card detection switch
Rc card detection switch
Dielectric strength
card detection switch
Switch current rating
Maximum switch power
Environmental data
Operating temperature
Soldering temperature
Damp heat
Salt mist
Card detection switch
Ordering code
Part Number
CCM01-1NF
CCM01-2NF
Packaging
20 per tray, 10 trays per box.
Order multiple 200
1,000 MΩ min
100 mΩ max
10 µA min / 1 A max
750 Vrms min
Normally closed
100 mΩ max
250 Vrms min
1 mA min / 10 mA max
0.2 VA
-40°C to +85°C
Wave : 260°C / 5 sec
IEC 512 test number 11c (10 days)
IEC 512 test number 11f (96 hours)
Not sealed blade switch
N° of Contacts
8
16
Packaging Multiple
200
200

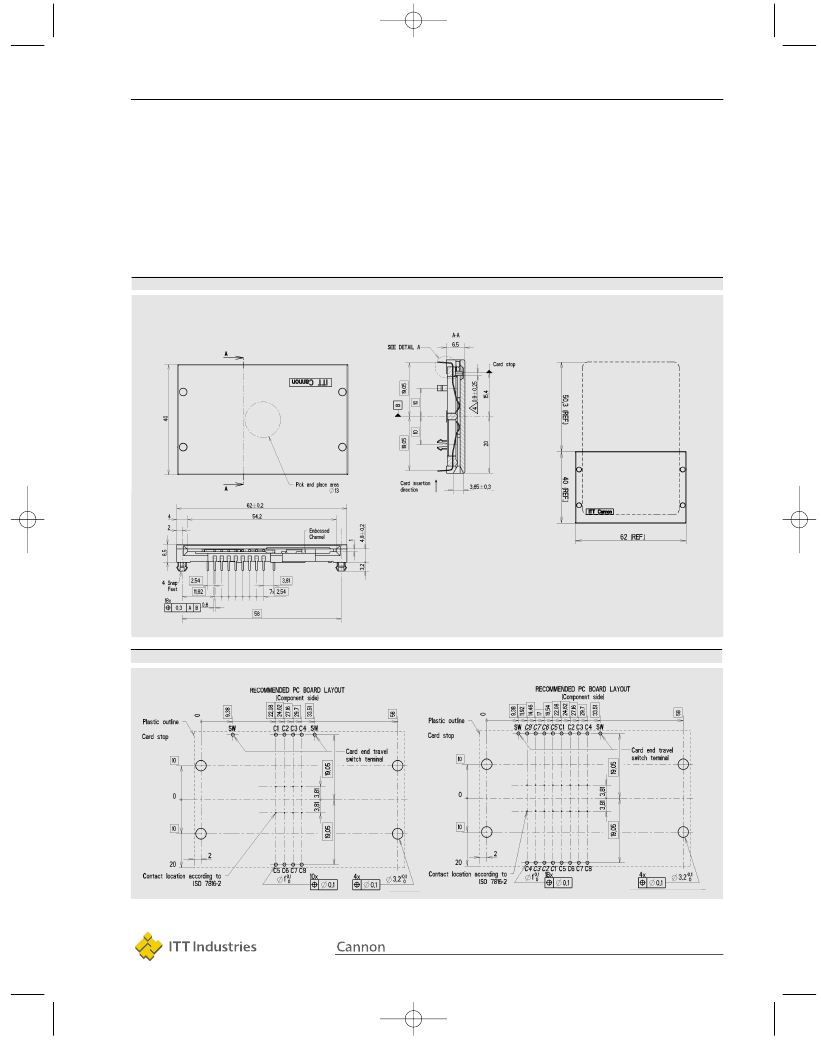

Dimensions are shown in mm
Dimensions subject to change
www.ittcannon.com/ccm
6
1136 ITT - CCM Catalog 11/20/00 12:27 PM Page 10

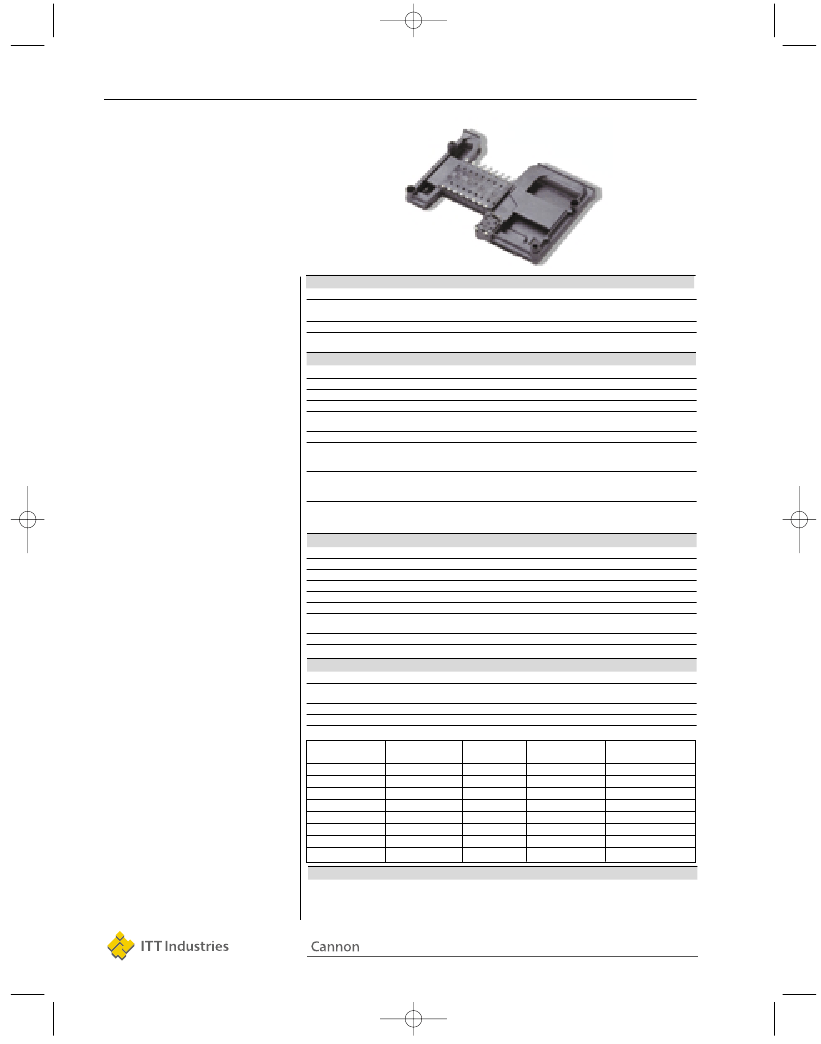

CCM01 MK II
The CCM01 MK II connectors with fixed
contacts have been developed for
applications where a landing contact
mechanism is not required but
performance and reliability are still key
considerations.
Features
• Available with 8 or 16 contacts which
are designed to give a consistently
reliable normal force over the life of the
connector.
• For added reliability, the card detection
switch (which is normally open) is
sealed against dust and debris.
• Available with through-hole or surface
mount contact termination and its
lightweight design means that the
connector can be automatically pick-
and-placed.
• The moldings are made from high
temperature thermoplastics suited
for infrared and convection soldering
processes.
• Plastic springs in the cover give a
positive feel as the card is fully inserted.
In case of special version with low card
insertions and withdrawal, then the
CCM connector is supplied without this
spring effect.
• The reduced size of the contact base
saves PCB space, makes the
connector more stable during soldering
and creates an air gap between the
contacts and card entry slot, so
reducing the risk of an electrostatic
transfer to the PCB.
• By using an inlay finish in the contact
area, the life of the precious metal is
extended by more than 10 times that
of standard gold plating.
• A chamfered opening to the card entry
slot improves the card guidance into
the connector.
• The contact area is spooned to reduce
the risk of accidental (or deliberate)
damage and to optimize the electrical
connection with the card.
• Robustly formed printed circuit tails
allow a coplanarity of ±0.05 mm to be
maintained.
Construction
Contacts
Plating
Moldings
Card detection switch
Mechanical data
Number of Contacts
Mechanical life
Durability of inlay
Card insertion force
Card extraction force
Contact force
Card detection switch
actuation force
Vibration
Shock
Copper alloy
Contact area : Gold alloy inlay
Terminals : Tin lead (2µ min)
High temp. thermoplastic UL 94V-0 rated
Stainless steel and copper alloy
8 or 16
100,000 cycles min
5,000 cycles min (see note 1)
10 N max
1 N min / 10N max (4N max for
CCM01-2253, 2254, 2255, 2256)
0.25 N min / 0.50 N max
0.8 N max for actuation (end travel switch
actuates when card is 0.9 mm from card stop)
1.8 N max for complete depression
Frequency 10 to 500 Hz. Acceleration 50m/s
2
Duration 6 hours - amplitude 0.35 mm
Max electrical discontinuity 1µs
Peak value 500 m/s
2
– Duration 11 ms
3 shocks in each direction of each axis
Max electrical discontinuity 1 µs
1,000 MΩ min
100 mΩ max
10 µA min / 1 A max
750 Vrms min
Normally open
100 mΩ max
250 Vrms min
1 mA min / 10 mA max
0.2 VA
-40°C to +85°C
Temperature/time profile acc. to CECC00802
para. 6.1, Fig. 3 with peak temperature 250°C
IEC 512 test number 11c (10 days)
IEC 512 test number 11f (96 hours)
Sealed against dust
Termination
Tail Design
SMT
w/board lock
SMT
w/board lock
SMT
SMT
SMT
SMT
Through hole
Through hole
Retention
Force
<10N
<10N
<10N
<10N
<4N
<4N
<4N
<4N
Packaging
Multiple
300
300
300
300
300
300
300
300
Electrical data
Insulation resistance
Contact resistance max
Switching current
Dielectric strength
Card detection switch
Rc card detection switch
Dielectric strength
card detection switch
Switch current rating
Maximum switch power
Environmental data
Operating temperature
Soldering temperature
Damp heat
Salt mist
Card detection switch
Part Number
CCM01-2065
CCM01-2067
CCM01-2251
CCM01-2252
CCM01-2253
CCM01-2254
CCM01-2255
CCM01-2256
N° of Contacts
8
16
8
16
8
16
8
16
Packaging
30 per tray, 10 trays per box.
Order multiple 300
Note 1: Inlay (precious metal) rating is based on a very abrasive card being used and is
intended to represent worst case.

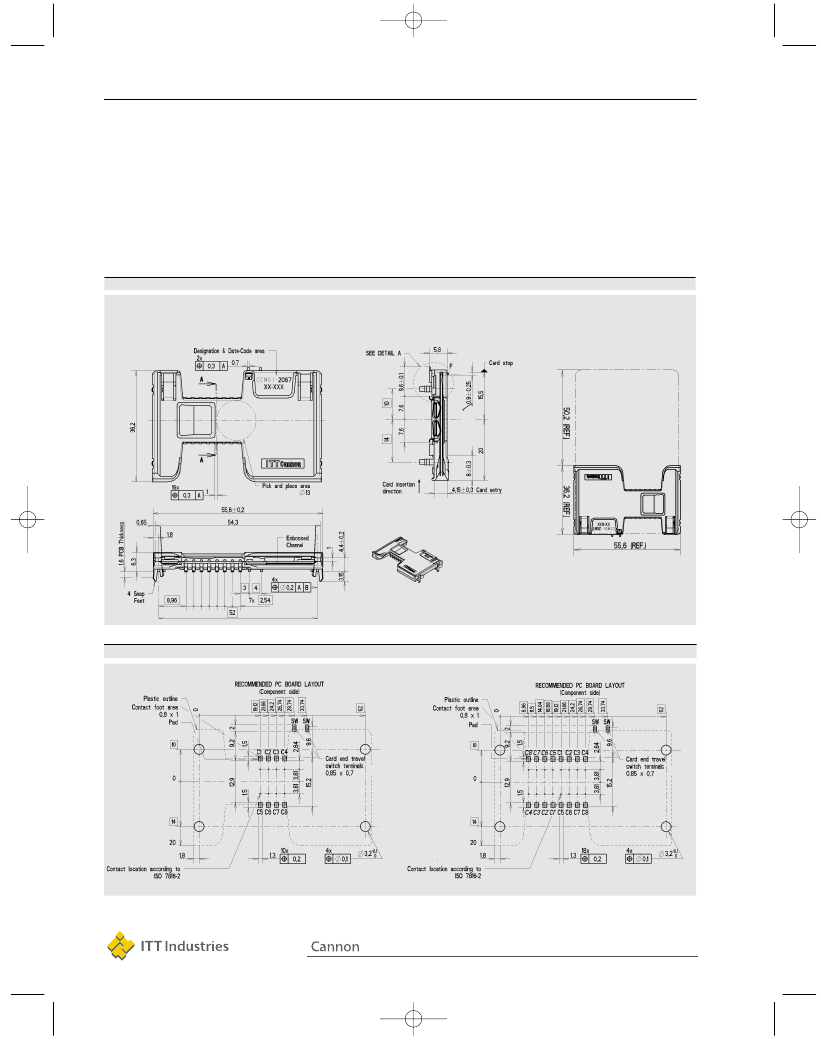

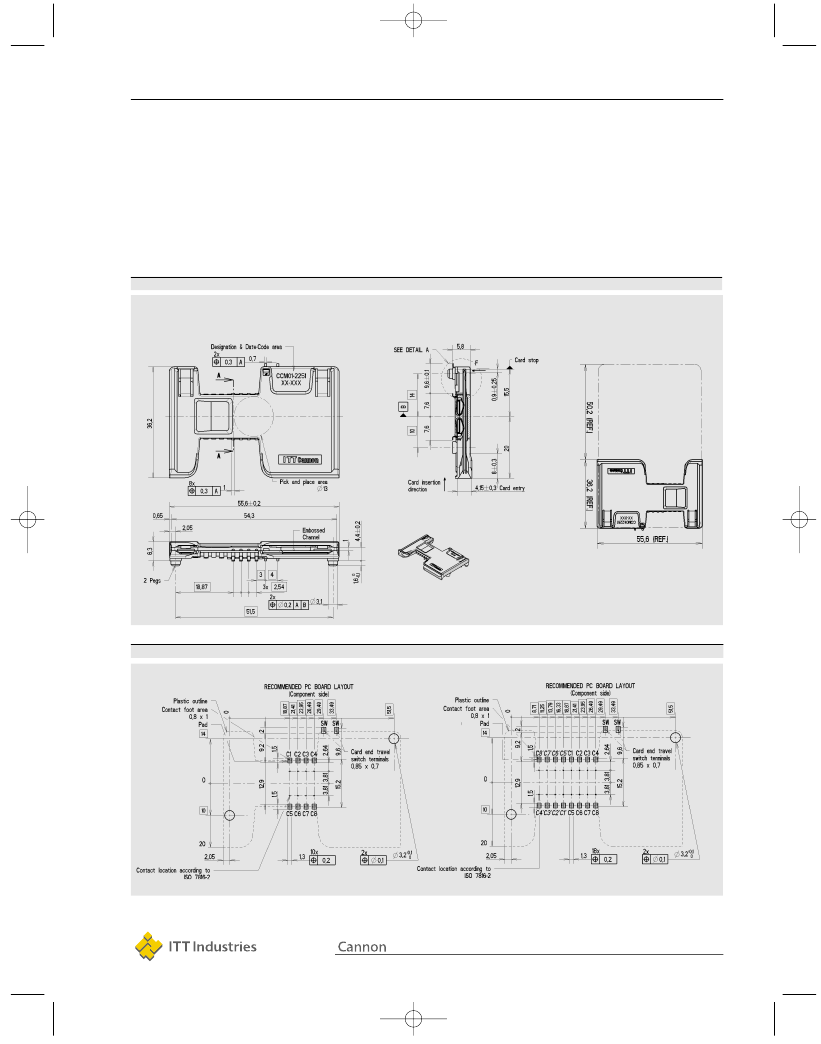

Dimensions are shown in mm
Dimensions subject to change
www.ittcannon.com/ccm
8
