5176376-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 5176376-3

5176376-3: Descriptionconn rcpt FH 80pos .050 vert; CategoryThe connector; File Size91KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5176376-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5176376-3	-	-	View	Buy Now

5176376-3 Overview

conn rcpt FH 80pos .050 vert

5176376-3 Parametric

Parameter Name	Attribute value
Datasheets
5176376
RoHS Informati
5176376-3 Statement of Compliance
RoHS 2 Stateme
3D Model
5176376-3.pdf
Standard Package	840
Category	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Packaging	-
Connector Type	Receptacle, Outer Shroud Contacts
Number of Positions	80
Pitch	0.050" (1.27mm)
Number of Rows	2
Mounting Type	Through Hole
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	12µin (0.30µm)
Mated Stacking Heights	16mm
Height Above Board	0.531" (13.50mm)
Mating Products	5917631-3-ND - CONN PLUG FH 80POS .050 VERT5176381-3-ND - CONN PLUG FH 80POS .050 R/A176381-3-ND - CONN PLUG FH 80POS .050 R/A

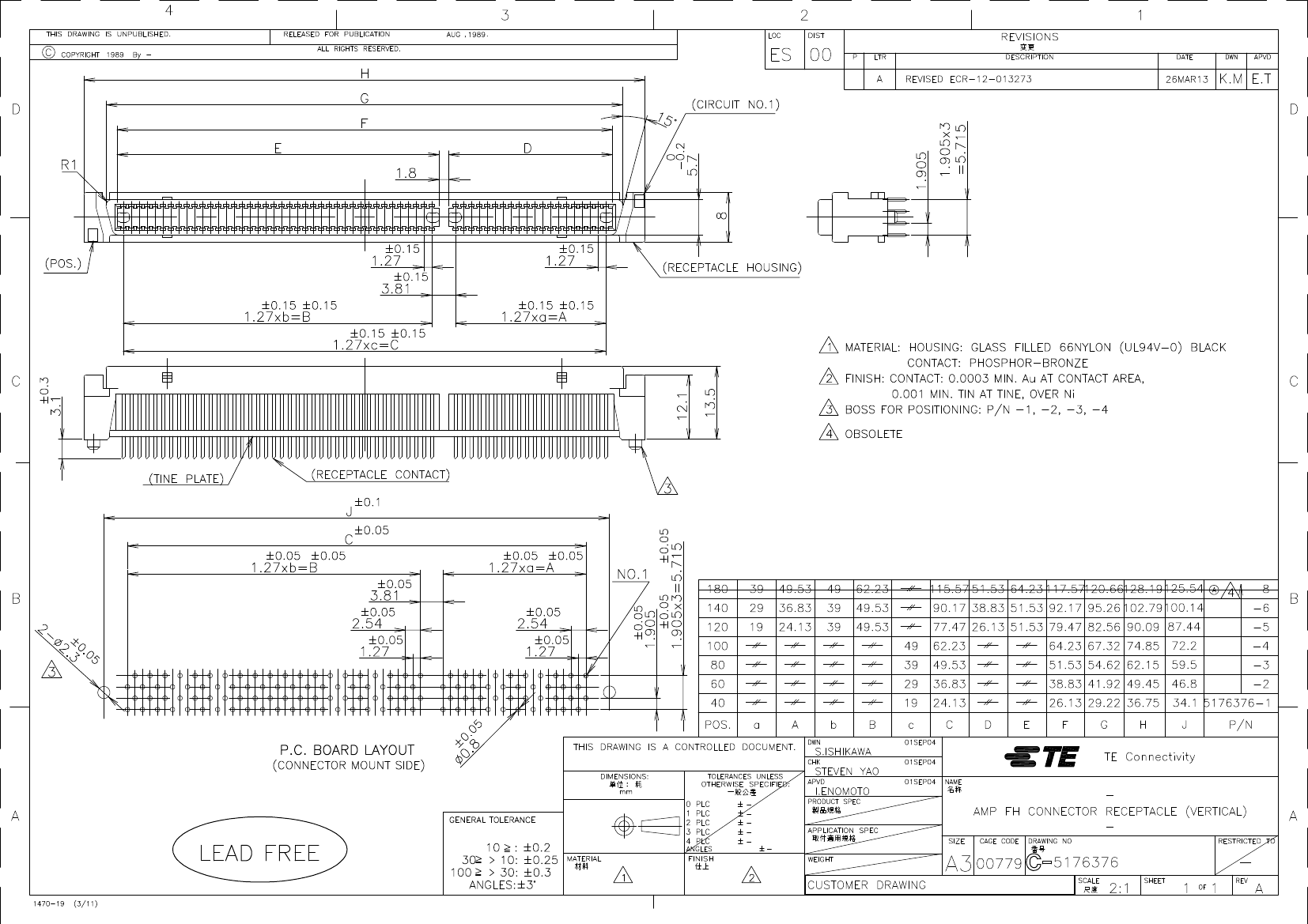

Preview

Download Datasheet

View All

5176376-3 Related Products

	5176376-3	5176376-1	5176376-8	5176376-5	5176376-4
Description	conn rcpt FH 80pos .050 vert	conn rcpt FH 40pos .050 vert	conn rcpt FH 180pos 050 vert	conn rcpt FH 120pos 050 vert	conn rcpt FH 100pos .050 vert
Standard Package	840	1,820	30	1,200	1,440
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Connector Type	Receptacle, Outer Shroud Contacts	Receptacle, Outer Shroud Contacts	Receptacle, Outer Shroud Contacts	Receptacle, Outer Shroud Contacts	Receptacle, Outer Shroud Contacts
Number of Positions	80	40	180	120	100
Pitch	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)
Number of Rows	2	2	2	2	2
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Features	Board Guide	Board Guide	-	-	Board Guide
Contact Finish	Gold	Gold	Gold	Gold	Gold
Contact Finish Thickness	12µin (0.30µm)	12µin (0.30µm)	12µin (0.30µm)	12µin (0.30µm)	12µin (0.30µm)
Mated Stacking Heights	16mm	16mm	16mm	16mm	16mm
Height Above Board	0.531" (13.50mm)	0.531" (13.50mm)	0.531" (13.50mm)	0.531" (13.50mm)	0.531" (13.50mm)
Mating Products	5917631-3-ND - CONN PLUG FH 80POS .050 VERT5176381-3-ND - CONN PLUG FH 80POS .050 R/A176381-3-ND - CONN PLUG FH 80POS .050 R/A	A114070-ND - CONN PLUG FH 40POS .050 VERT2-5176381-1-ND - CONN PLUG FH 40POS 050 R/A5176381-1-ND - CONN PLUG FH 40POS .050 R/A176381-1-ND - CONN PLUG FH 40POS .050 R/A	5917631-8-ND - CONN PLUG FH 180POS .050 VERT5176381-8-ND - CONN PLUG FH 180POS .050 R/A176381-8-ND - CONN PLUG FH 180POS .050 R/A	2-5917631-5-ND - CONN PLUG FH 120POS .050 VERTA114073-ND - CONN PLUG FH 120POS .050 VERT2-5179540-5-ND - CONN PLUG FH 120POS 050 VERT2-179540-5-ND - CONN PLUG FH 120POS 050 VERT5176381-5-ND - CONN PLUG FH 120POS .050 R/A176381-5-ND - CONN PLUG FH 120POS .050 R/A	2-5917631-4-ND - CONN PLUG FH 100POS .050 VERTA114072-ND - CONN PLUG FH 100POS .050 VERT2-5179540-4-ND - CONN PLUG FH 100POS 050 VERT2-179540-4-ND - CONN PLUG FH 100POS 050 VERT5176381-4-ND - CONN PLUG FH 100POS .050 R/A176381-4-ND - CONN PLUG FH 100POS .050 R/A
