3-647649-5 datasheet, PDF - EEWORLD Datasheet

3-647649-5: Descriptionconn header 5pos vert .156 gold; CategoryThe connector; File Size183KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

3-647649-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-647649-5	-	-	View	Buy Now

conn header 5pos vert .156 gold

Parameter Name	Attribute value
Datasheets
647649
RoHS Informati
3-647649-5 Statement of Compliance
RoHS 2 Stateme
3D Model

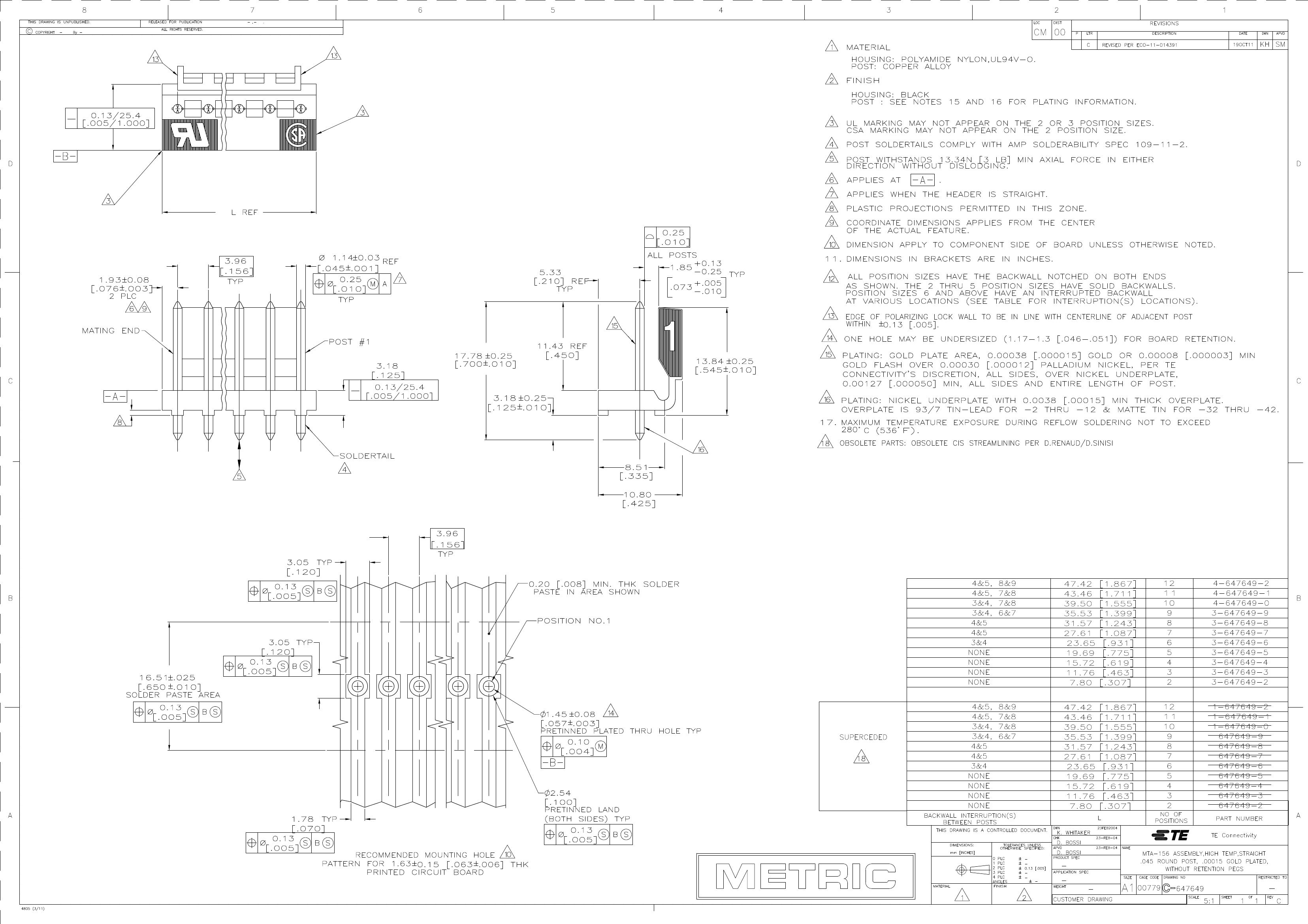

3-647649-5.pdf
Standard Package	500
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Bulk
Contact Type	Male Pi
Connector Type	Header, Unshrouded
Number of Positions	5
Number of Positions Loaded	All
Pitch	0.156" (3.96mm)
Number of Rows	1
Row Spacing	-
Contact Mating Length	0.450" (11.43mm)
Mounting Type	Through Hole
Terminati	Solde
Fastening Type	Friction Lock
Features	Polarizing Key
Contact Finish	Gold
Contact Finish Thickness	15µin (0.38µm)
Col	Black

	3-647649-5	3-647649-6
Description	conn header 5pos vert .156 gold	conn header 6pos vert .156 gold
Standard Package	500	500
Category	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins
Packaging	Bulk	Bulk
Contact Type	Male Pi	Male Pi
Connector Type	Header, Unshrouded	Header, Unshrouded
Number of Positions	5	6
Number of Positions Loaded	All	All
Pitch	0.156" (3.96mm)	0.156" (3.96mm)
Number of Rows	1	1
Contact Mating Length	0.450" (11.43mm)	0.450" (11.43mm)
Mounting Type	Through Hole	Through Hole
Terminati	Solde	Solde
Fastening Type	Friction Lock	Friction Lock
Features	Polarizing Key	Polarizing Key
Contact Finish	Gold	Gold
Contact Finish Thickness	15µin (0.38µm)	15µin (0.38µm)
Col	Black	Black
