3M
™
CF Card Header

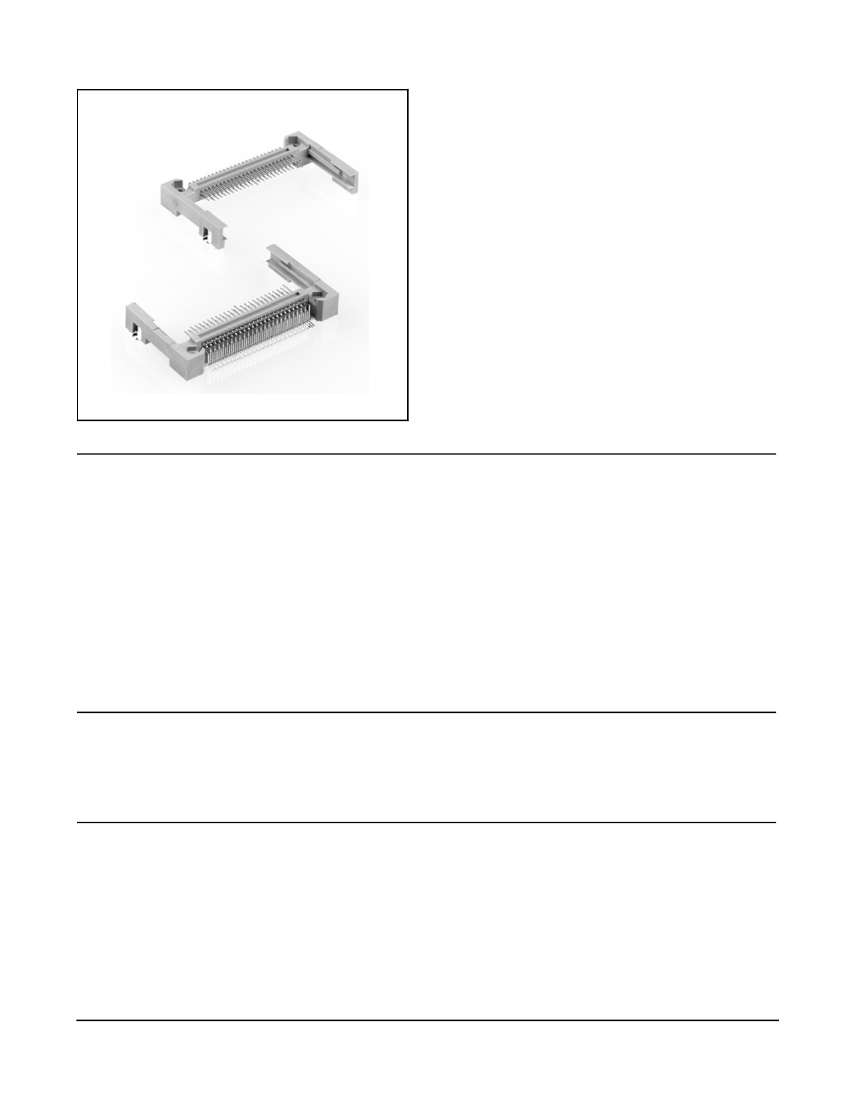

CompactFlash™ Type II, Surface Mount
7E50 Series
• Headers mate with both CompactFlash™ Type I and
Type II cards
• Polarization options for top or bottom boardmount
• Extended guide rails enable accurate and easy card
insertion
• Single row surface mount solder tails facilitate auto
placement and IR soldering
• Optional 2 mm board standoff enables board
population
• Meets CFA standards for known compatibility and
reliability

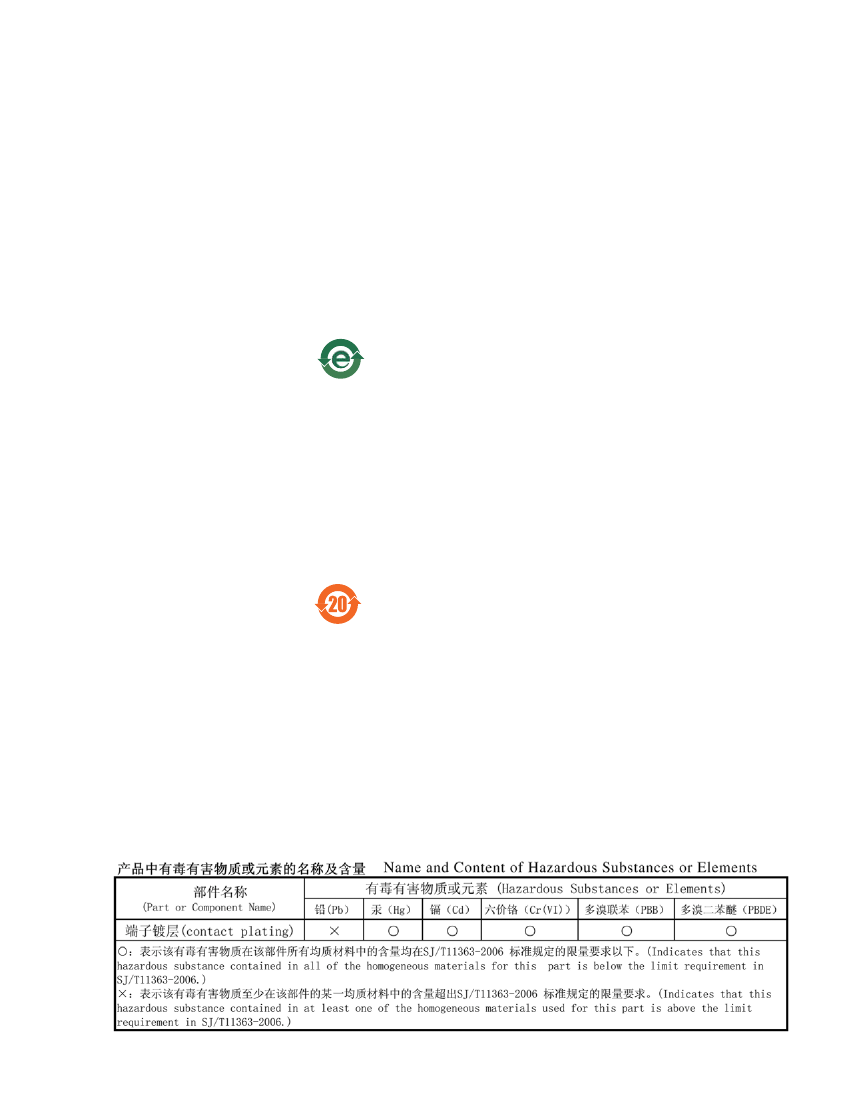

• See regulatory information appendix (RIA) for
chemical compliance information
Date Modified: November 5, 2007
TS-2082-C
Sheet 1 of 3
Physical
Insulation
Material: High Temperature Thermoplastic
Flammability: UL 94V-0
Color: Beige
Contact
Material: Copper Alloy
Plating
Underplating: 2.03
μm
[ 80
μ″]
Nickel
Wiping Area: 0.38
μm
[ 15
μ″
] or 0.76
μm
[ 30
μ″
] Gold
Solder Tails: 3.81μm [150μ″] Matte Tin or Gold Flash
Marking
3M Logo
Electrical
Current Rating:
0.5 A
Insulation Resistance:
10
3
MΩ at 500 V
DC
Withstanding Voltage:
500 V
AC
for 1 minute
Environmental
Temperature Rating:
-40°C to +85°C
Process Rating:
Maximum 260 C (per J-STD-020C)
Moisture Sensitivity Level:
1 (per J-STD-020C)
CompactFlash is a registered trademark of Sandisk Corporation.
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
CF Card Header
CompactFlash™ Type II, Surface Mount

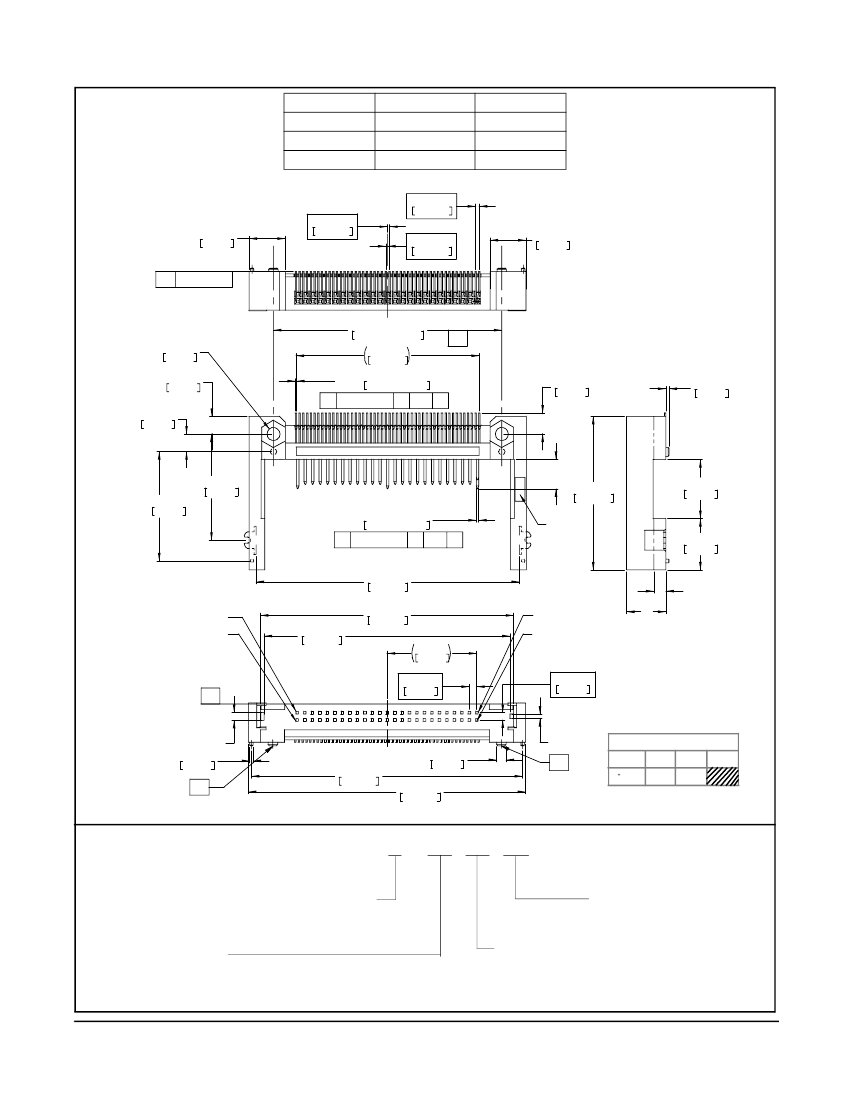

Pin Function
Detect
General Use
Power
L, Pin length Dim
3.50 [ .138 ]
4.25 [ .167 ]
5.00 [ .197 ]
Pin Position
25, 26
All other pins
1, 13, 38, 50
7E50 Series
0.635
.0250
6.13
.241
0.3175
.0125
0.3175
.0125
6.13
.241
r
0.01 [.004]
2X
O
2X
2X
3.00
.118
2.20
.087
3.00
.118
38.74 ±.05
1.525 ±.002
-D-
31.12
1.225
50X 0.23 ±.05
.009 ±.002
l
0.20 [.008] A B-C D
3.30
.130
0.60
.024
2X
2X
18.50
.728
18.00
.709
0.40 ±.02
.016 ±.001
l
0.20 [.008] A B-C D
50X
44.70
1.760
L
26.00
1.024
LOGO
10.00
.394
3M
8.70
.343
E
PIN X
PIN Z
15.24
.600
1.27
.050
1.27
.050
mm
[Inch]
PIN W
PIN Y
43.00
1.693
41.70
1.642
F
-A-
G
2X
O
0.60
.024
-C-
2X
46.00
1.811
47.00
1.850
1.60
.063
H
-B-
Tolerance Unless Noted
.0
mm
±
.3
.00
±
.15
.000
[ ] Dimensions for
Reference only
Ordering Information
N7E50 - X516XX - XX - WF
(RIA E1 & C1 apply)
Q = CF I & II, 18.70 mm, Normal Type, Ejector not acceptable
R = CF I & II, 18.70 mm, Inverse Type, Ejector not acceptable
Packaging Options:
Blank = Trays
WF = Tape and Reel
Board Standoff:
40 = None (Normal Type Only)
50 = 2.00 mm [ .079″ ]
TS-2082-C
Sheet 2 of 3
Plating Options:
EA = 0.38
μm
[ 15
μ″
] Gold with Gold Flash tail
EB = 0.76
μm
[ 30
μ″
] Gold with Gold Flash tail
RA = 0.38
μm
[15μ"] Gold with matte tin tail (RIA E1 & C1 apply)
RB = 0.76μm [30μ"] Gold with matte tin tail (RIA E1 & C1 apply)
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
CF Card Header
CompactFlash™ Type II, Surface Mount
Part Number
E
mm
[ inch ]
0.00
[ .000 ]
2.00
[ .079 ]
2.00
[ .079 ]
F
mm
[ inch ]
4.65
[ .183 ]
6.65
[ .262 ]
6.65
[ .262 ]
G
mm
[ inch ]
1.40
[ .055 ]
1.40
[ .055 ]
0.80
[ .031 ]
H
mm
[ inch ]
0.80
[ .031 ]
0.80
[ .031 ]
1.40
[ .055 ]
Pin W
Pin 1
Pin 1
Pin 50
Pin X
Pin 25
Pin 25
Pin 26
Pin Y
Pin 26
Pin 26
Pin 25
7E50 Series
Pin Z
Pin 50
Pin 50
Pin 1
N7E50-Q516XX-40
N7E50-Q516XX-50
N7E50-R516XX-50
38.74 ±.05
1.525 ±.002
PIN Y
PIN W
2X
O
30
2.20 ±.05
91
.087 ±.002
31.12
1.225
0.635
.0250
PIN X
PIN Z
2X
7.50
.295
2X
O
1.75 ±.03
.069 ±.001
-A-
2X
3.00
.118
50X
0.40 ±.05
.016 ±.002
l
0.08 [.003] A-B A
3.50
.138
2X
-B-
3.00 ±.05
.118 ±.002
2X
18.00 ±.10
.709 ±.004
2X
18.50 ±.05
.728 ±.002
2X
4.50
.177
44.50 ±.05
1.752 ±.002
46.00 ±.05
1.811 ±.002
2X
O
0.90 ±.03
.035 ±.001
PCB LAYOUT
Compact Flash Card
Type 1 and 2
43.70
1.720
CARD INSERTION
TS-2082-C
Sheet 3 of 3
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
