Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> 5962-9169701MUX

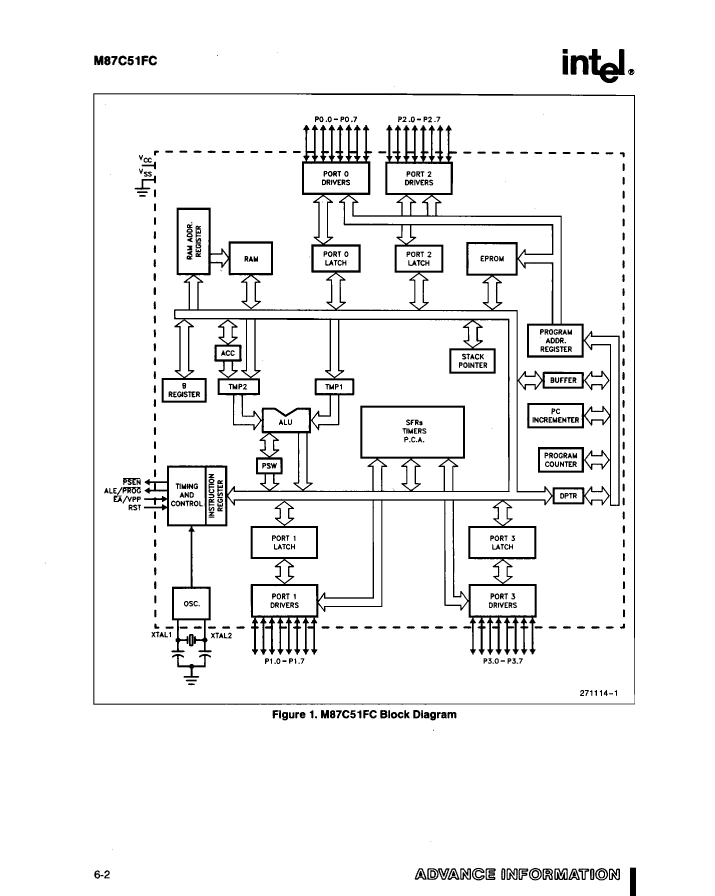

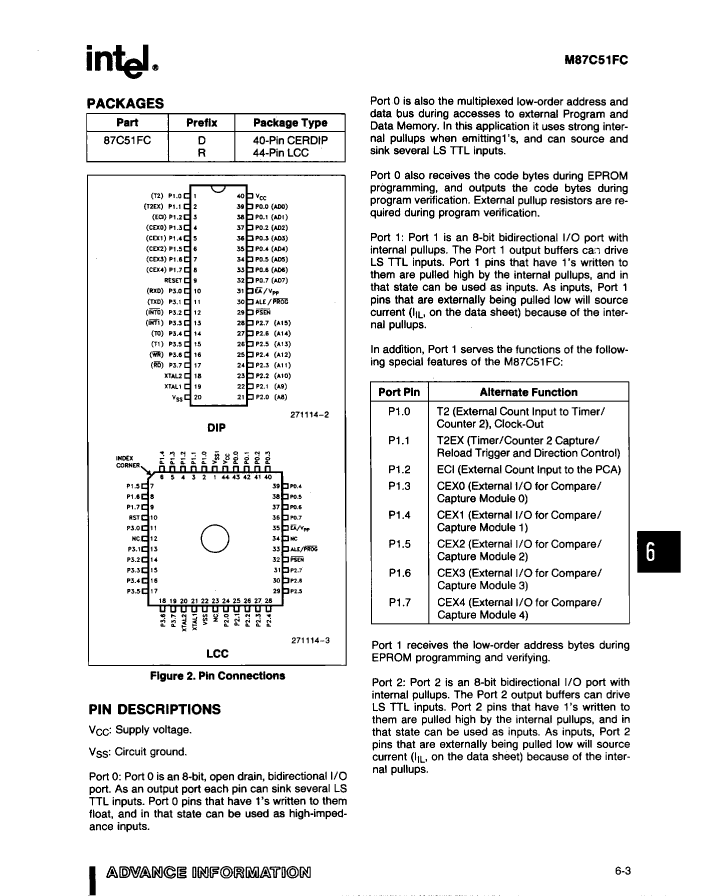

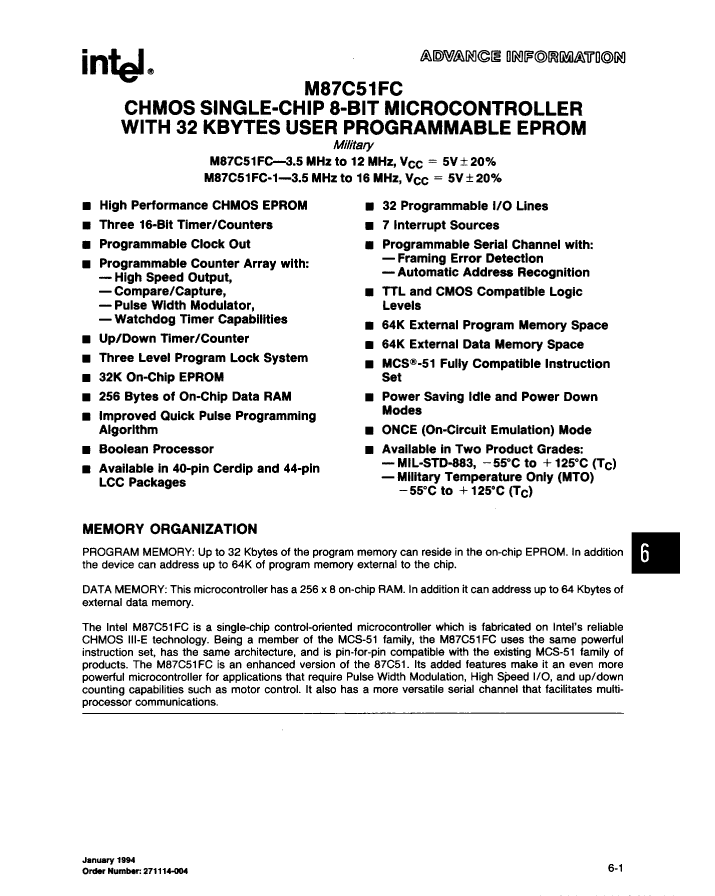

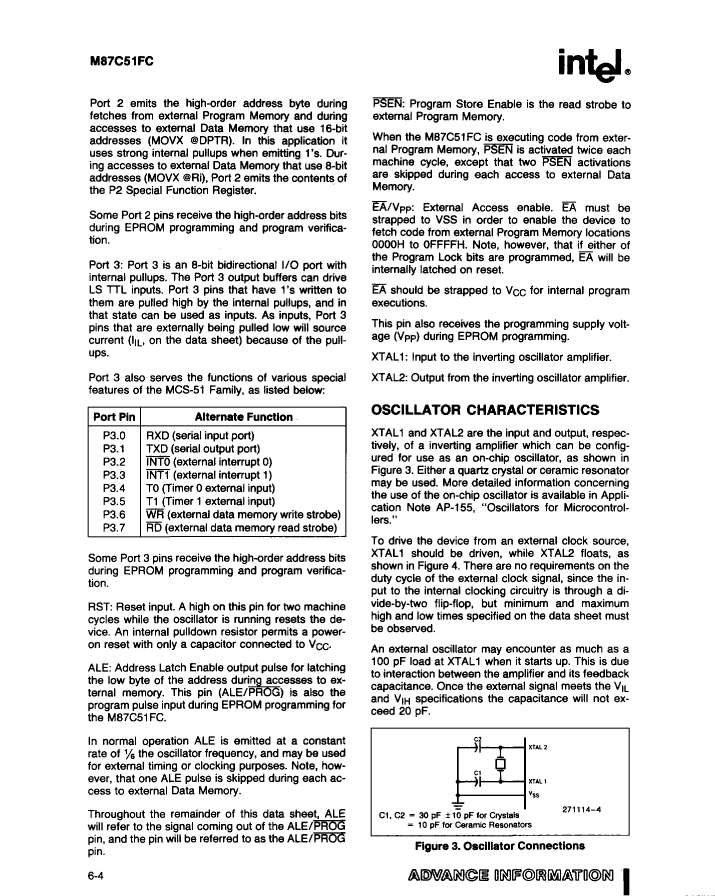

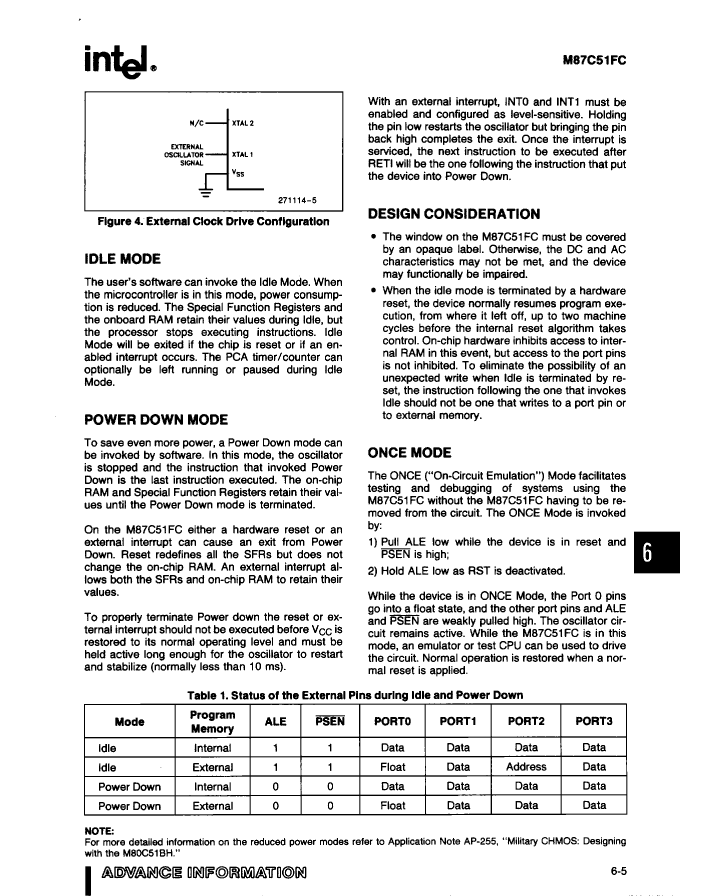

PDF
Preview

5962-9169701MUX

Description
Microcontroller, 8-Bit, UVPROM, CMOS, CERAMIC, LCC-44
CategoryThe embedded processor and controller    Microcontrollers and processors
File Size536KB，15 Pages
ManufacturerIntel
Websitehttp://www.intel.com/
Download Datasheet Parametric Compare View All

5962-9169701MUX Overview

Microcontroller, 8-Bit, UVPROM, CMOS, CERAMIC, LCC-44

5962-9169701MUX Parametric

Parameter NameAttribute value
Parts packaging codeLCC
package instructionWQCCN,
Contacts44
Reach Compliance Codeunknow
ECCN code3A001.A.2.C
Has ADCNO
Address bus width16
bit size8
maximum clock frequency12 MHz
DAC channelNO
DMA channelNO
External data bus width8
JESD-609 codee0
length16.535 mm
Number of I/O lines32
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
PWM channelYES
Package body materialCERAMIC, METAL-SEALED COFIRED
encapsulated codeWQCCN
Package formCHIP CARRIER, WINDOW
Certification statusNot Qualified
ROM programmabilityUVPROM
Filter levelMIL-STD-883
Maximum seat height3.63 mm
Maximum supply voltage6 V
Minimum supply voltage4 V
surface mountYES
technologyCMOS
Temperature levelMILITARY
Terminal surfaceTIN LEAD
Terminal formNO LEAD
Terminal pitch1.27 mm
Terminal locationQUAD
width16.535 mm
uPs/uCs/peripheral integrated circuit typeMICROCONTROLLER
Base Number Matches1

Preview

Download Datasheet

5962-9169701MUX Related Products

5962-9169701MUX 5962-9169702MUA 5962-9169701MXX 5962-9169701MXA 5962-9169702MXX 5962-9169701MUA 5962-9169702MXA 5962-9169702MUX RCWP1206208KDNED1C MR87C51FC-16
Description Microcontroller, 8-Bit, UVPROM, CMOS, CERAMIC, LCC-44 Microcontroller, 8-Bit, UVPROM, 8051 CPU, 16MHz, CMOS, CQCC44, CERAMIC, LCC-44 Microcontroller, 8-Bit, UVPROM, 16MHz, CMOS, CDIP40, CERDIP-40 Microcontroller, 8-Bit, UVPROM, 8051 CPU, 12MHz, CMOS, CDIP40, CERDIP-40 Microcontroller, 8-Bit, OTPROM, 16MHz, CMOS, CDIP40, CERAMIC, DIP-40 Microcontroller, 8-Bit, UVPROM, 8051 CPU, 12MHz, CMOS, CQCC44, CERAMIC, LCC-44 Microcontroller, 8-Bit, UVPROM, 8051 CPU, 16MHz, CMOS, CDIP40, CERDIP-40 Microcontroller, 8-Bit, UVPROM, CMOS, CERAMIC, LCC-44 Fixed Resistor, Thick Film, 0.25W, 208000ohm, 100V, 0.5% +/-Tol, -200,200ppm/Cel, Surface Mount, 1206, CHIP Microcontroller, 8-Bit, UVPROM, 8051 CPU, 16MHz, CMOS, CQCC44, CERAMIC, LCC-44
package instruction WQCCN, WQCCN, LCC44,.65SQ WDIP, WDIP, DIP40,.6 DIP, WQCCN, LCC44,.65SQ WDIP, DIP40,.6 WQCCN, CHIP WQCCN, LCC44,.65SQ
Reach Compliance Code unknow unknown unknown unknown unknown unknown compliant unknown unknown unknown
ECCN code 3A001.A.2.C 3A001.A.2.C 3A001.A.2.C 3A001.A.2.C 3A001.A.2.C 3A001.A.2.C 3A001.A.2.C 3A001.A.2.C EAR99 3A001.A.2.C
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 155 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -65 °C -55 °C
Package form CHIP CARRIER, WINDOW CHIP CARRIER, WINDOW IN-LINE, WINDOW IN-LINE, WINDOW IN-LINE CHIP CARRIER, WINDOW IN-LINE, WINDOW CHIP CARRIER, WINDOW SMT CHIP CARRIER, WINDOW
surface mount YES YES NO NO NO YES NO YES YES YES
technology CMOS CMOS CMOS CMOS CMOS CMOS CMOS CMOS THICK FILM CMOS
Parts packaging code LCC LCC DIP DIP DIP LCC DIP LCC - LCC
Contacts 44 44 40 40 40 44 40 44 - 44
Has ADC NO NO NO NO NO NO NO NO - NO
Address bus width 16 16 16 16 16 16 16 16 - 16
bit size 8 8 8 8 8 8 8 8 - 8
maximum clock frequency 12 MHz 16 MHz 12 MHz 12 MHz 16 MHz 12 MHz 16 MHz 16 MHz - 16 MHz
DAC channel NO NO NO NO NO NO NO NO - NO
DMA channel NO NO NO NO NO NO NO NO - NO
External data bus width 8 8 8 8 8 8 8 8 - 8
JESD-609 code e0 e0 e0 e0 - e0 e0 e0 - e0
length 16.535 mm 16.535 mm 52.325 mm 52.325 mm - 16.535 mm 52.325 mm 16.535 mm - 16.535 mm
Number of I/O lines 32 32 32 32 32 32 32 32 - 32
PWM channel YES YES YES YES NO YES YES YES - YES
Package body material CERAMIC, METAL-SEALED COFIRED CERAMIC, METAL-SEALED COFIRED CERAMIC, GLASS-SEALED CERAMIC, GLASS-SEALED CERAMIC, METAL-SEALED COFIRED CERAMIC, METAL-SEALED COFIRED CERAMIC, GLASS-SEALED CERAMIC, METAL-SEALED COFIRED - CERAMIC, METAL-SEALED COFIRED
encapsulated code WQCCN WQCCN WDIP WDIP DIP WQCCN WDIP WQCCN - WQCCN
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified - Not Qualified
ROM programmability UVPROM UVPROM UVPROM UVPROM OTPROM UVPROM UVPROM UVPROM - UVPROM
Filter level MIL-STD-883 MIL-STD-883 MIL-STD-883 MIL-STD-883 MIL-STD-883 MIL-STD-883 MIL-STD-883 MIL-STD-883 - 38535Q/M;38534H;883B
Maximum seat height 3.63 mm 3.63 mm 5.72 mm 5.72 mm - 3.63 mm 5.72 mm 3.63 mm - 3.63 mm
Maximum supply voltage 6 V 6 V 6 V 6 V 6 V 6 V 6 V 6 V - 6 V
Minimum supply voltage 4 V 4 V 4 V 4 V 4 V 4 V 4 V 4 V - 4 V
Temperature level MILITARY MILITARY MILITARY MILITARY MILITARY MILITARY MILITARY MILITARY - MILITARY
Terminal surface TIN LEAD Tin/Lead (Sn/Pb) - hot dipped TIN LEAD Tin/Lead (Sn/Pb) - hot dipped - Tin/Lead (Sn/Pb) - hot dipped Tin/Lead (Sn/Pb) - hot dipped TIN LEAD MATTE TIN OVER NICKEL Tin/Lead (Sn/Pb)
Terminal form NO LEAD NO LEAD THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE NO LEAD THROUGH-HOLE NO LEAD - NO LEAD
Terminal pitch 1.27 mm 1.27 mm 2.54 mm 2.54 mm - 1.27 mm 2.54 mm 1.27 mm - 1.27 mm
Terminal location QUAD QUAD DUAL DUAL DUAL QUAD DUAL QUAD - QUAD
width 16.535 mm 16.535 mm 15.24 mm 15.24 mm - 16.535 mm 15.24 mm 16.535 mm - 16.535 mm
uPs/uCs/peripheral integrated circuit type MICROCONTROLLER MICROCONTROLLER MICROCONTROLLER MICROCONTROLLER MICROCONTROLLER MICROCONTROLLER MICROCONTROLLER MICROCONTROLLER - MICROCONTROLLER
Base Number Matches 1 1 1 1 1 1 1 1 - 1
Is it Rohs certified? - incompatible - incompatible - incompatible incompatible - conform to incompatible
JESD-30 code - S-CQCC-N44 R-GDIP-T40 R-GDIP-T40 R-CDIP-T40 S-CQCC-N44 R-GDIP-T40 - - S-CQCC-N44
Number of terminals - 44 40 40 40 44 40 - 2 44
Package shape - SQUARE RECTANGULAR RECTANGULAR RECTANGULAR SQUARE RECTANGULAR - - SQUARE
speed - 16 MHz 16 MHz 12 MHz 16 MHz 12 MHz 16 MHz - - 16 MHz
Nominal supply voltage - 5 V 5 V 5 V 5 V 5 V 5 V - - 5 V
