RoHS Compliant in Accordance with EU Directive 2011/65/EU
- Lead-Free Termination Finish
- Exemption 7(c)-I, Electrical and electronic components containing
lead [Pb] in glass
Part Weight:
14 Pin
•
242.10mg
16 Pin
•
276.70mg
20 Pin
•
345.90mg
Applications
Telecom Infrastructure
Optical Networking
Wireless Networks
Edge Routers
Internet/Network Security
Storage Area Networks
Network Attached Storage
Switches
RAID Controllers

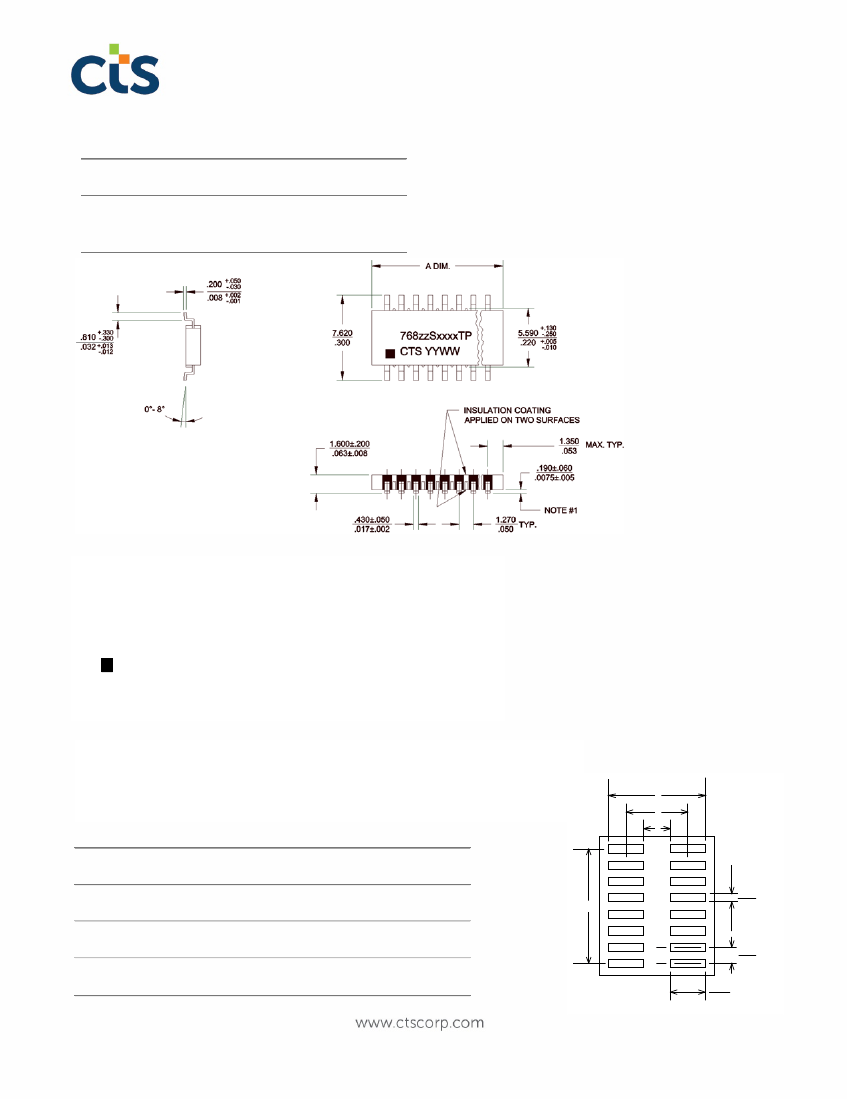

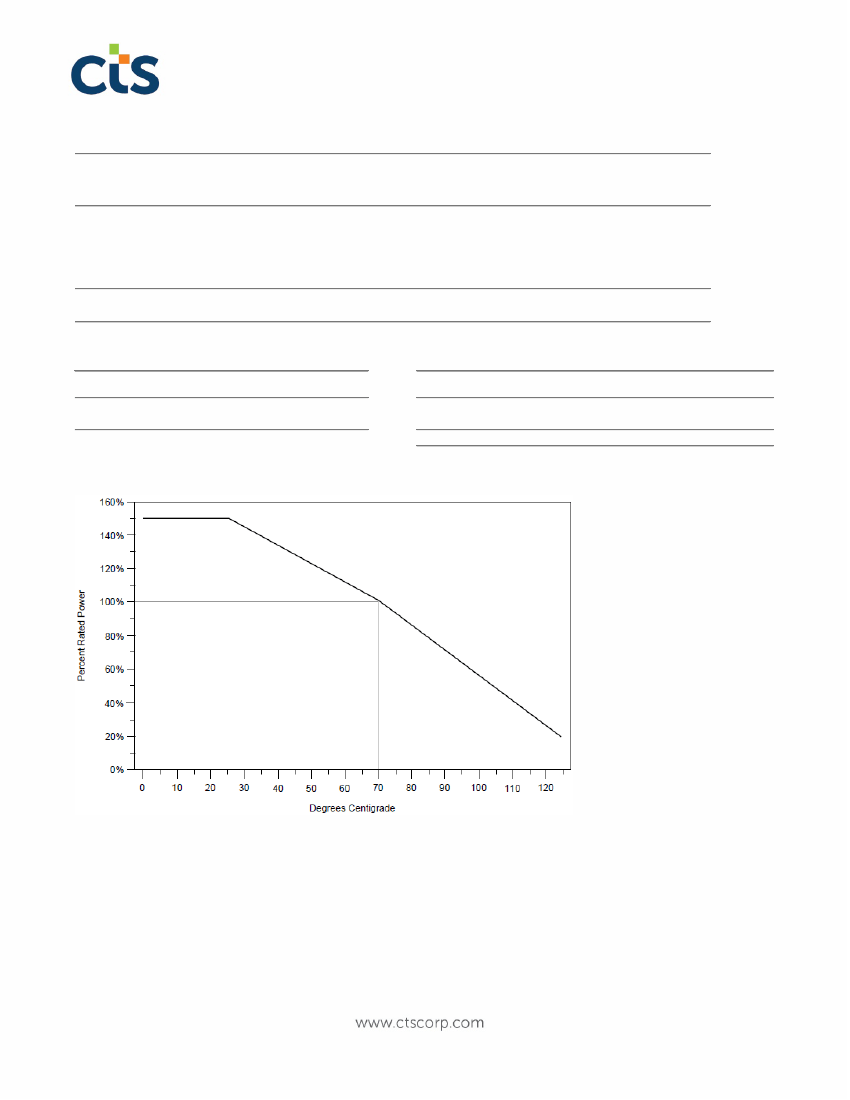

Description
768 Series Resistor Networks are single packaged devices containing an array of homogeneous resistor elements.
CTS network designs provide a smaller circuit footprint, excellent reliability, improved TCR tracking and resistor
tolerance matching; while helping to save placement costs by reducing application component count.

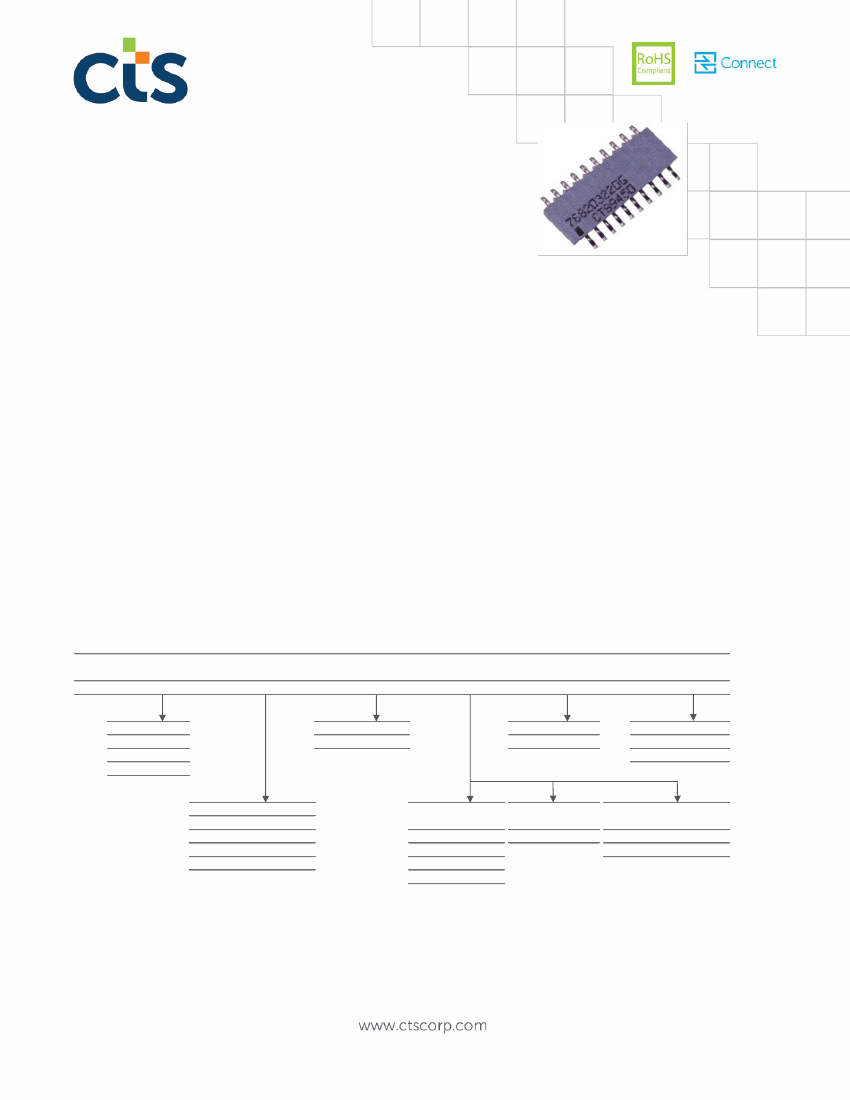

Ordering Information
Model
768
N um ber
of Pi ns
16
Schem a ti c
3
Res i s tor
Code
103
Res i s tor
T ol era nce
G
RoHS
Com pl i a nt
P
Pa cka g i ng
T R13
Code
14
16
20
Pin Count
14 Pins
16 Pins
20 Pins
Code Resistor Value *
10k ohm
103
* See Addendum for
Standard EIA Values
Code
P
Compliance
RoHS
Packing
Code
Slide Pack
Blank
TR13 Tape & Reel, 13"

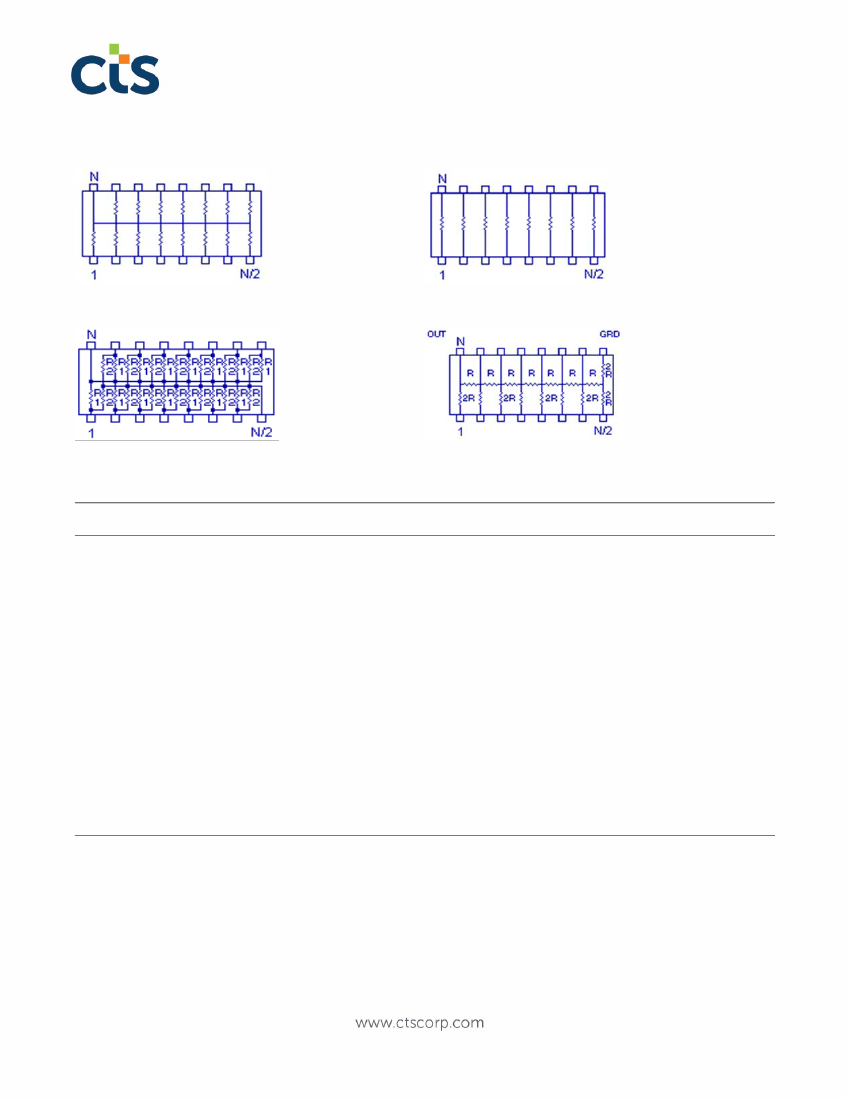

Schematic Type
Code
Bussed Circuit
1
Isolated Circuit
3
5 Dual Terminator Circuit
Ladder Circuit
7
Schematic Types 1 & 3 Schematic Type 5
Tolerance
Code
Code Tolerance
±2% [std]
±2%
G
Blank
±1%
F
±0.5%
D
2
J
±5%
Schematic Type 7
Tolerance
Code
±1 LSB
F
±0.5 LSB
D
[LSB = Least Significant Bit]
Notes:
1. No dashes or spaces to appear in part number.
2. Not supported per PCN ECP-3200029. Use code "G" as standard platform tolerance.
N ot a l l perf orm a nce com bi na ti ons a nd res i s tor va l ues m a y be a va i l a bl e.
Conta ct your l oca l CT S Repres enta ti ve or CT S Cus tom er Servi ce f or a va i l a bi l i ty.
This product is specified for use only in standard commercial applications. Supplier disclaims all express and implied warranties and liability in connection with any use of this
product in any non-commercial applications or in any application that may expose the product to conditions that are outside of the tolerances provided in its specification.
