2-5146895-1 datasheet, PDF - EEWORLD Datasheet

2-5146895-1: Description1fhr,64,30a/S,R,C,s13; CategoryThe connector; File Size216KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

2-5146895-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-5146895-1	-	-	View	Buy Now

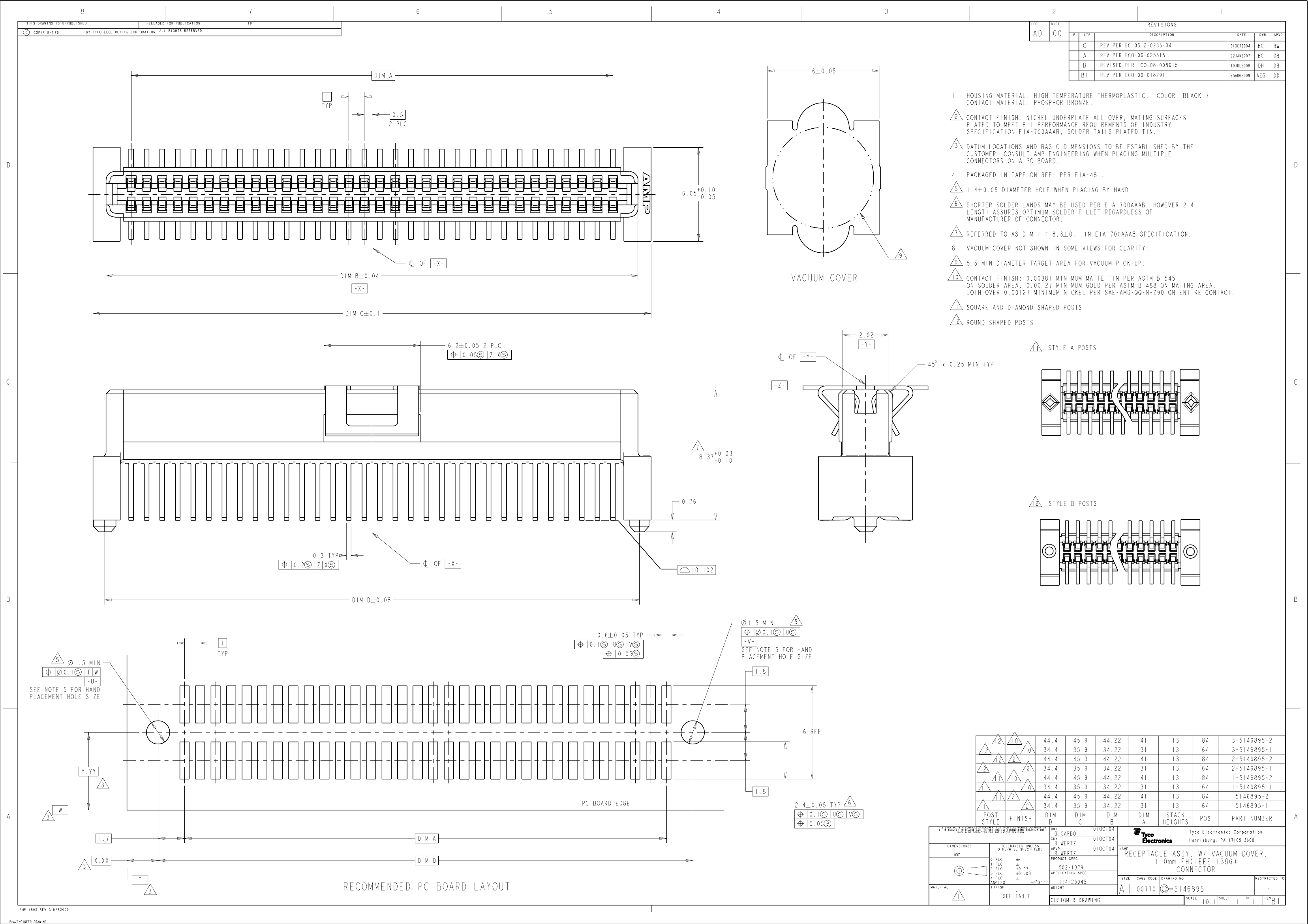

1fhr,64,30a/S,R,C,s13

Parameter Name	Attribute value
Datasheets
5146895
Standard Package	1
Category	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Packaging	Cut Tape (CT)
Connector Type	Receptacle, Outer Shroud Contacts
Number of Positions	64
Pitch	0.039" (1.00mm)
Number of Rows	2
Mounting Type	Surface Mou
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Mated Stacking Heights	13mm
Height Above Board	0.330" (8.38mm)
Other Names	A118127CT

	2-5146895-1	5146895-2	1-5146895-1
Description	1fhr,64,30a/S,R,C,s13	conn rcpt 84pos 1mm FH vert	conn rcpt 64pos 1mm FH vert
Standard Package	1	800	1
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Packaging	Cut Tape (CT)	Tape & Reel (TR)	Tape & Reel (TR)
Connector Type	Receptacle, Outer Shroud Contacts	Receptacle, Outer Shroud Contacts	Receptacle, Outer Shroud Contacts
Number of Positions	64	84	64
Pitch	0.039" (1.00mm)	0.039" (1.00mm)	0.039" (1.00mm)
Number of Rows	2	2	2
Mounting Type	Surface Mou	Surface Mou	Surface Mou
Features	Board Guide	Board Guide	Board Guide
Contact Finish	Gold	Gold	Gold
Contact Finish Thickness	30µin (0.76µm)	30µin (0.76µm)	50µin (1.27µm)
Mated Stacking Heights	13mm	13mm	13mm
Height Above Board	0.330" (8.38mm)	0.330" (8.38mm)	0.330" (8.38mm)
Mating Products	-	A111225TR-ND - CONN PLUG 84POS 1MM FH VERT5146888-2-ND - CONN PLUG 84POS 1MM FH VERTA111233TR-ND - CONN PLUG 84POS 1MM FH VERT	A116370TR-ND - CONN PLUG 64POS 1MM FH VERT1-5146888-1-ND - CONN PLUG 64POS 1MM FH VERT1-5120534-1-ND - CONN PLUG 64POS 1MM FH VERT1-5120527-1-ND - CONN PLUG 64POS 1MM FH VERT
