5-1840450-7: Descriptionconn magjack 1port 100 base-T; CategoryThe connector; File Size198KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5-1840450-7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-1840450-7	-	-	View	Buy Now

5-1840450-7 Overview

conn magjack 1port 100 base-T

5-1840450-7 Parametric

Parameter Name	Attribute value
Datasheets
1840450 Drawing
PCN Manufacturer Informati
TRP Connector Acquistion 22/Mar/2013
Standard Package	63
Category	Connectors, Interconnects
Family	Modular Connectors - Jacks With Magnetics
Packaging	Tray
Connector Type	RJ45
Number of Ports	1
Number of Rows	1
Applications	10/100 Base-T, AutoMDIX
Mounting Type	Through Hole
Orientati	90° Angle (Right)
Terminati	Solde
Height Above Board	0.555" (14.10mm)
LED Col	Green - Gree
Number of Cores per Jack	4
Shielding	Shielded, EMI Finge
Features	Board Lock, Decoupling Capacitance
Tab Directi	Dow
Contact Material	Phosphor Bronze
Contact Finish	Gold
Contact Finish Thickness	50µin (1.27µm)
Shield Material	Brass
Housing Material	Polyethylene Terephthalate (PET), Polyeste
Operating Temperature	-40°C ~ 85°C
Other Names	5-1840450-7-ND5-1840450-7TRP518404507

Preview

Download Datasheet

View All

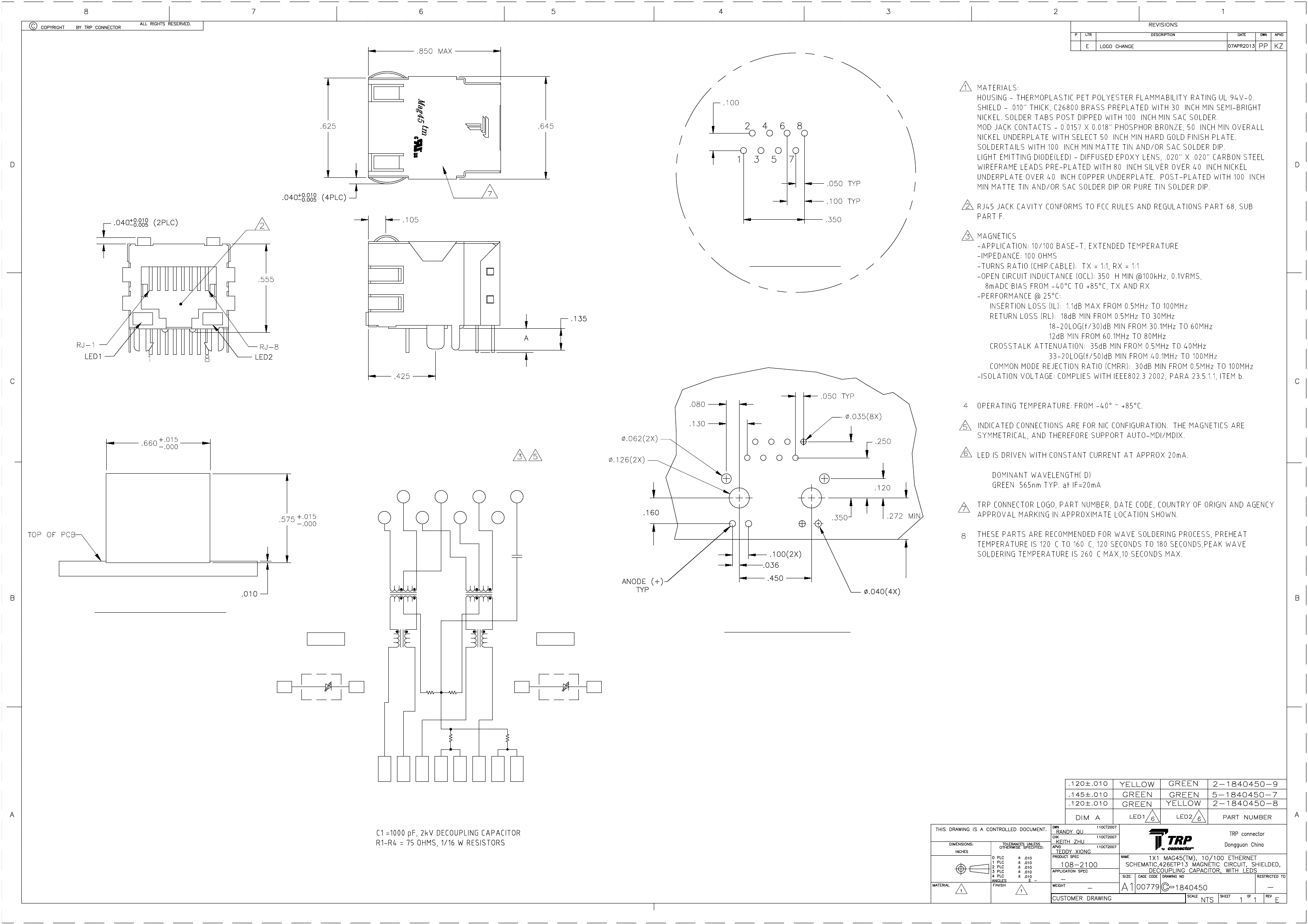

MECHANICAL:

1840450-X

YYWW

CHINA

Pin Designations

ELECTRICAL:

426ETP13 MAGNETIC CIRCUIT

RDN

RCT

6

7

TDN

TCT

RDP

4

TDP

2

8

1

3

5

D1

D2

D3

D4

C1

1CT:1CT

T1

T2

Suggested Panel Cutout

SHIELD

CMC1

Suggested PCB Layout

CMC2

SHIELD

(Component Side)

D1

LED1

D2

R1

R2

D3

LED2

D4

R3

R4

TXP RJ-1

TXN RJ-2

RXP RJ-3

RJ-4

RJ-5

RXN RJ-6

RJ-7

RJ-8

5-1840450-7 Related Products

	5-1840450-7	2-1840450-8
Description	conn magjack 1port 100 base-T	conn magjack 1port 100 base-T
Standard Package	63	63
Category	Connectors, Interconnects	Connectors, Interconnects
Family	Modular Connectors - Jacks With Magnetics	Modular Connectors - Jacks With Magnetics
Packaging	Tray	Tray
Connector Type	RJ45	RJ45
Number of Ports	1	1
Number of Rows	1	1
Applications	10/100 Base-T, AutoMDIX	10/100 Base-T, AutoMDIX
Mounting Type	Through Hole	Through Hole
Orientati	90° Angle (Right)	90° Angle (Right)
Terminati	Solde	Solde
Height Above Board	0.555" (14.10mm)	0.555" (14.10mm)
LED Col	Green - Gree	Green - Yellow
Number of Cores per Jack	4	4
Shielding	Shielded, EMI Finge	Shielded, EMI Finge
Features	Board Lock, Decoupling Capacitance	Board Lock, Decoupling Capacitance
Tab Directi	Dow	Dow
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Finish	Gold	Gold
Contact Finish Thickness	50µin (1.27µm)	50µin (1.27µm)
Shield Material	Brass	Brass
Housing Material	Polyethylene Terephthalate (PET), Polyeste	Polyethylene Terephthalate (PET), Polyeste
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C
Other Names	5-1840450-7-ND5-1840450-7TRP518404507	2-1840450-8-ND2-1840450-8TRP218404508
