1-5120533-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 1-5120533-2

1-5120533-2: Descriptionconn plug 84pos 1mm FH vert; CategoryThe connector; File Size146KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

1-5120533-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-5120533-2	-	-	View	Buy Now

1-5120533-2 Overview

conn plug 84pos 1mm FH vert

1-5120533-2 Parametric

Parameter Name	Attribute value
Datasheets
5120533
Product Photos
51205xx-2
RoHS Informati
1-5120533-2 Statement of Compliance
RoHS 2 Stateme
3D Model
1-5120533-2.pdf
Standard Package	450
Category	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Packaging	Tape & Reel (TR)
Connector Type	Plug, Center Strip Contacts
Number of Positions	84
Pitch	0.039" (1.00mm)
Number of Rows	2
Mounting Type	Surface Mou
Features	-
Contact Finish	Gold
Contact Finish Thickness	50µin (1.27µm)
Mated Stacking Heights	9mm, 11mm, 14mm
Height Above Board	0.289" (7.35mm)
Mating Products	1-5120524-2-ND - CONN RCPT 84POS 1MM FH SERIES1-5146896-2-ND - CONN RCPT 84POS 1MM FH VERT1-5146893-2-ND - CONN RCPT 84POS 1MM FH VERT1-5120529-2-ND - CONN RCPT 84POS 1MM FH VERT1-5120528-2-ND - CONN RCPT 84POS 1MM FH VERT1-5120521-2-ND - CONN RCPT 84POS 1MM FH SERIES

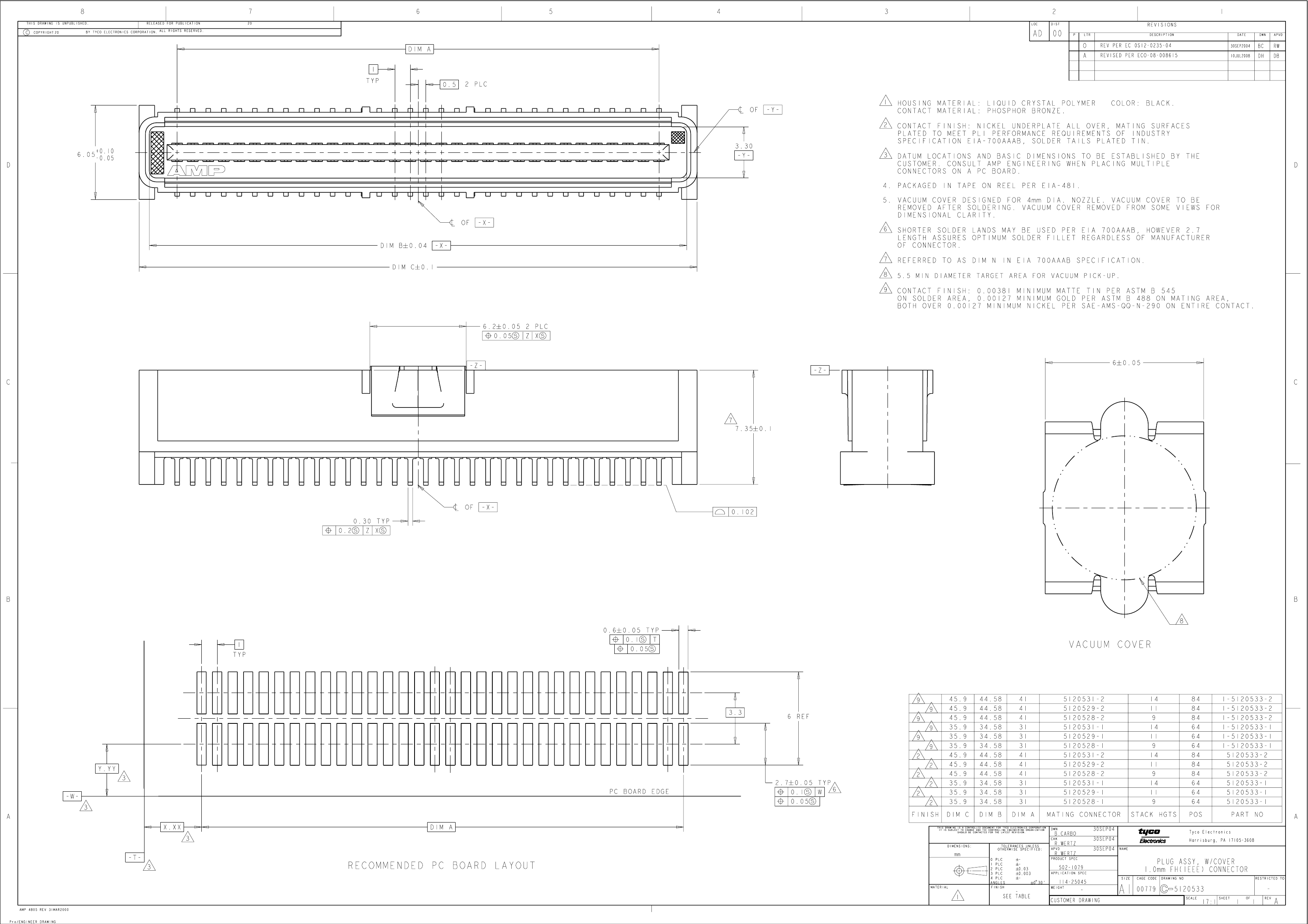

Preview

Download Datasheet

View All

1-5120533-2 Related Products

	1-5120533-2	5120533-1	5120533-2	1-5120533-1
Description	conn plug 84pos 1mm FH vert	conn plug 64pos 1mm FH vert	conn plug 84pos 1mm FH vert	conn plug 64pos 1mm FH vert
Standard Package	450	450	450	450
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Packaging	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)
Connector Type	Plug, Center Strip Contacts	Plug, Center Strip Contacts	Plug, Center Strip Contacts	Plug, Center Strip Contacts
Number of Positions	84	64	84	64
Pitch	0.039" (1.00mm)	0.039" (1.00mm)	0.039" (1.00mm)	0.039" (1.00mm)
Number of Rows	2	2	2	2
Mounting Type	Surface Mou	Surface Mou	Surface Mou	Surface Mou
Contact Finish	Gold	Gold	Gold	Gold
Contact Finish Thickness	50µin (1.27µm)	30µin (0.76µm)	30µin (0.76µm)	50µin (1.27µm)
Mated Stacking Heights	9mm, 11mm, 14mm	9mm, 11mm, 14mm	9mm, 11mm, 14mm	9mm, 11mm, 14mm
Height Above Board	0.289" (7.35mm)	0.289" (7.35mm)	0.289" (7.35mm)	0.289" (7.35mm)
Mating Products	1-5120524-2-ND - CONN RCPT 84POS 1MM FH SERIES1-5146896-2-ND - CONN RCPT 84POS 1MM FH VERT1-5146893-2-ND - CONN RCPT 84POS 1MM FH VERT1-5120529-2-ND - CONN RCPT 84POS 1MM FH VERT1-5120528-2-ND - CONN RCPT 84POS 1MM FH VERT1-5120521-2-ND - CONN RCPT 84POS 1MM FH SERIES	A104090CT-ND - CONN RCPT 64POS 1MM FH VERTA104089CT-ND - CONN RCPT 64POS DUAL 1.0MM VERTA100896DKR-ND - CONN RCPT 64POS 1MM FH VERTA97408DKR-ND - CONN RCPT 64POS DL BRD/BRD VERTA100447DKR-ND - CONN RCPT ASSY 1MM FH 64POSA101124DKR-ND - CONN RECEPT 64POS AU BRD/BRD 1MMA101124TR-ND - CONN RECEPT 64POS AU BRD/BRD 1MMA100896CT-ND - CONN RCPT 64POS 1MM FH VERTA100896TR-ND - CONN RCPT 64POS 1MM FH VERTA100447CT-ND - CONN RCPT ASSY 1MM FH 64POSA104089TR-ND - CONN RCPT 64POS DUAL 1.0MM VERTA100447TR-ND - CONN RCPT ASSY 1MM FH 64POSA104090TR-ND - CONN RCPT 64POS 1MM FH VERTA111228TR-ND - CONN RCPT 64POS 1MM FH VERTA111226TR-ND - CONN RCPT 64POS 1MM FH VERTA99323CT-ND - CONN RCPT 64POS 1MM FH VERTA99323TR-ND - CONN RCPT 64POS 1MM FH VERTA97408CT-ND - CONN RCPT 64POS DL BRD/BRD VERTA97408TR-ND - CONN RCPT 64POS DL BRD/BRD VERTA101124CT-ND - CONN RECEPT 64POS AU BRD/BRD 1MM	A116268TR-ND - CONN RCPT 84POS 1MM FH VERTA111222TR-ND - CONN RCPT 84POS DUAL 1.0MM VERTA111219TR-ND - CONN RCPT 84POS DL FH BRD-BRD5146896-2-ND - CONN RCPT 84POS 1MM FH VERT5146894-2-ND - CONN RCPT 84POS 1MM FH VERT5146893-2-ND - CONN RCPT 84POS 1MM FH VERTA111230TR-ND - CONN RCPT 84POS 1MM FH VERT5120529-2-ND - CONN RCPT 84POS 1MM FH VERTA111227TR-ND - CONN RCPT 84POS 1MM FH VERT	1-5146894-1-ND - CONN RCPT 64POS 1MM FH VERT1-5146896-1-ND - CONN RCPT 64POS 1MM FH VERT1-5146893-1-ND - CONN RCPT 64POS 1MM FH VERT1-5120603-1-ND - CONN RECEPT 64POS 1MM FH VERT1-5120531-1-ND - CONN RCPT 64POS 1MM FH VERT1-5120529-1-ND - CONN RCPT 64POS 1MM FH VERT1-5120528-1-ND - CONN RCPT 64POS 1MM FH VERT1-5120524-1-ND - CONN RCPT 64POS 1MM FH SERIES1-5120521-1-ND - CONN RCPT 64POS 1MM FH SERIES
