1761682-3 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 1761682-3

Preview

1761682-3: Descriptionconn header pin 10pos R/A .100; CategoryThe connector; File Size113KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

1761682-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1761682-3	-	-	View	Buy Now

1761682-3 Overview

conn header pin 10pos R/A .100

1761682-3 Parametric

Parameter Name	Attribute value
Datasheets

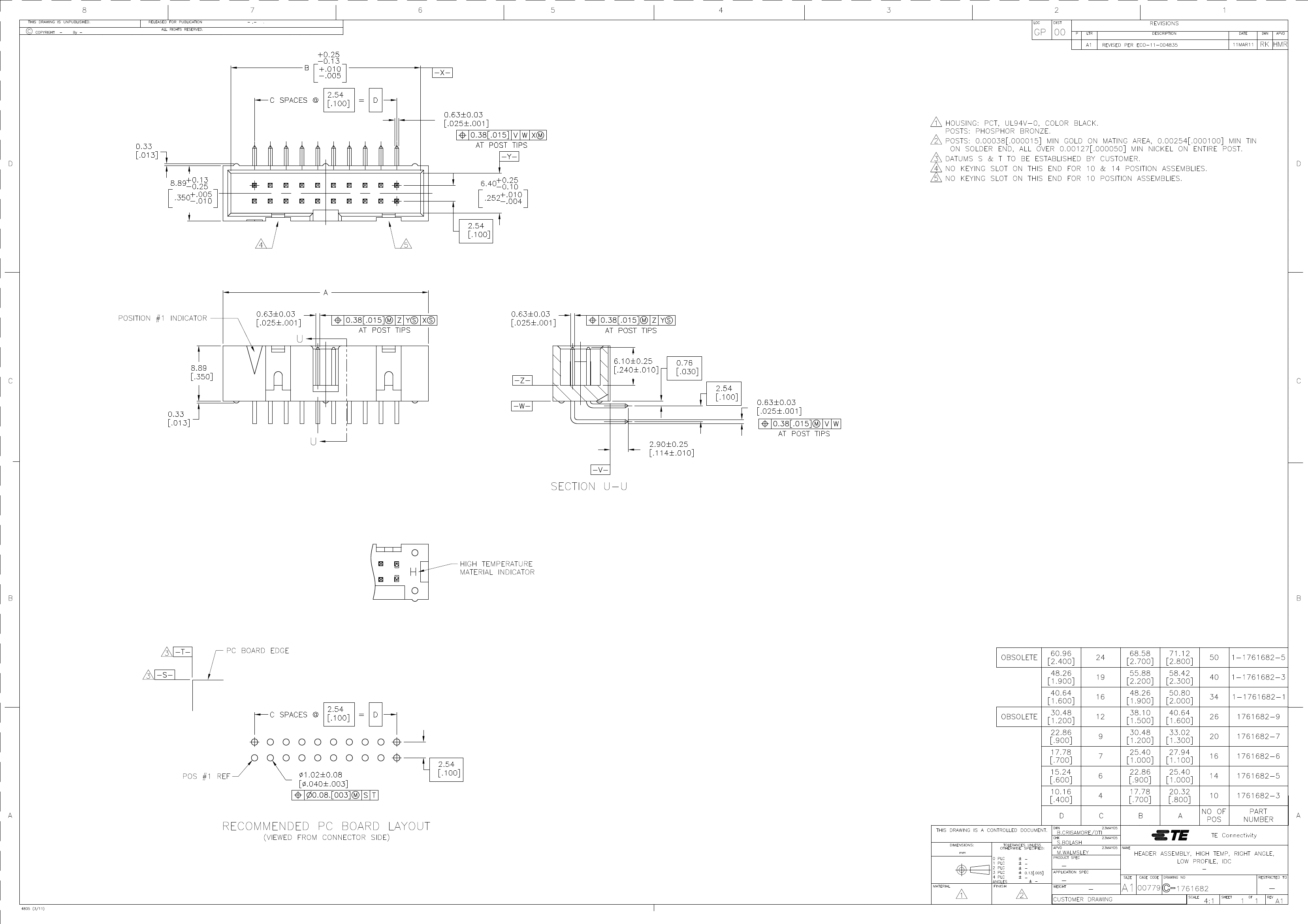

1761682 Drawing
RoHS Informati
1761682-3 Statement of Compliance
RoHS 2 Stateme
Standard Package	2,000
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Bulk
Contact Type	Male Pi
Connector Type	Header, Shrouded
Number of Positions	10
Number of Positions Loaded	All
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Contact Mating Length	0.240" (6.10mm)
Mounting Type	Through Hole, Right Angle
Terminati	Solde
Fastening Type	-
Features	-
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Col	Black
Mating Products	1658527-4-ND - CONN RCPT 10POS .100 W/STR RELF1658527-3-ND - CONN RCPT 10POS .100 622 SERIES1658526-3-ND - CONN RCPT 10POS VERT GOLD1658526-5-ND - 609-1041LF FEM SOCKT,LEAD FREE1658526-4-ND - 609-1030LF FEM SOCKT,LEAD FREE

Preview

Download Datasheet

View All

1761682-3 Related Products

	1761682-3	1-1761682-3	1761682-7	1761682-5	1761682-6	1-1761682-1
Description	conn header pin 10pos R/A .100	conn header 40pos R/A .100 gold	conn header 20pos R/A .100 gold	conn header idc 14pos R/A 15au	conn header 16pos R/A .100 gold	conn header 34pos R/A .100 gold
Standard Package	2,000	2,000	2,000	2,000	2,000	2,000
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Contact Type	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi
Connector Type	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded
Number of Positions	10	40	20	14	16	34
Number of Positions Loaded	All	All	All	All	All	All
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	2	2	2	2	2	2
Row Spacing	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Contact Mating Length	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Terminati	Solde	Solde	Solde	Solde	Solde	Solde
Contact Finish	Gold	Gold	Gold	Gold	Gold	Gold
Contact Finish Thickness	30µin (0.76µm)	15µin (0.38µm)	15µin (0.38µm)	15µin (0.38µm)	15µin (0.38µm)	15µin (0.38µm)
Col	Black	Black	Black	Black	Black	Black
