BK/EFF-630MA: DescriptionFAST BLOW ELECTRIC FUSE, 0.63A, 250VAC, THROUGH HOLE, ROHS COMPLIANT; CategoryCircuit protection Circuit protection; File Size138KB，2 Pages; ManufacturerEaton; Environmental Compliance

Download Datasheet Parametric Compare View All

BK/EFF-630MA Overview

FAST BLOW ELECTRIC FUSE, 0.63A, 250VAC, THROUGH HOLE, ROHS COMPLIANT

BK/EFF-630MA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Eaton
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Fusing characteristics	FAST
body height	8.2 mm
Body length or diameter	8.35 mm
Circuit protection type	ELECTRIC FUSE
Joule integral nominal
Manufacturer's serial number	EFF
Installation features	THROUGH HOLE
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
method of packing	BULK
physical size	8.35mm x 8.2mm
Rated current	0.63 A
Rated voltage (AC)	250 V
Guideline	CSA; SEMKO; UL; VDE
surface mount	NO
Terminal shape	PIN WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

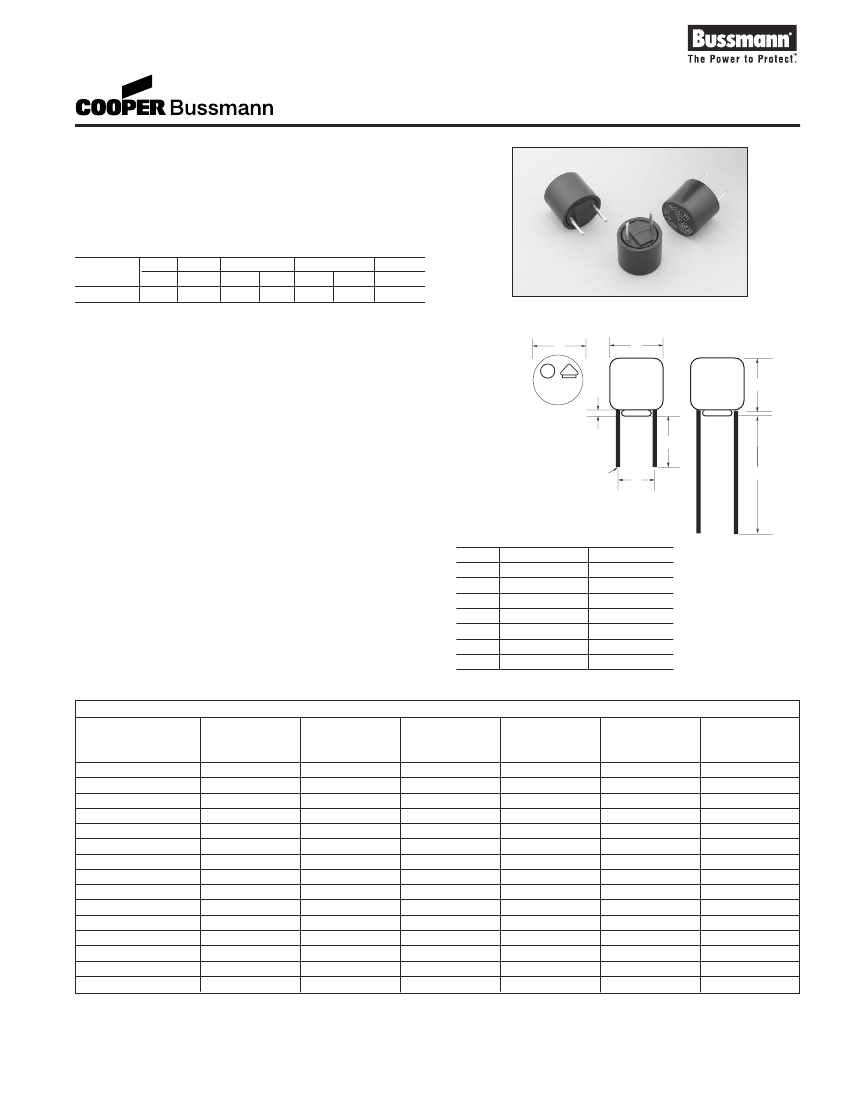

Radial Lead Micro Fuse

EFF Series, Fast Acting

Description

• Fast acting micro fuse

• Base and cap material is a thermoplastic, UL 94-V0

• Leads are tin-lead plated copper alloy

Electrical Characteristics

150%

Rated Current

250mA to 5A

All are 250V AC

Min.

1 hr.

210%

Max.

30 min.

275%

Min.

10 ms.

Max.

3 sec.

400%

Min.

3 ms.

Max.

300 ms.

1000%

Max.

20 ms.

Dimensional Data

A

V

DE

Agency Information

• Semco Certificate VDE License: 250mA to 5A / 35A or

10

In

whichever is greater @ 250VAC

• UL Recognized File No. E19180, CSA Acceptance File

No. LR701159; 250mA to 5A / 50A @ 250VAC

• RoHS Compliant

Environmental Data

• Soldering Heat Resistance: 260°, 10 sec. per IEC 68-2-20

• Vibration Resistance: MIL-STD-202, Method 201,

10-55Hz x 3 axis/ no load

• Shock Resistance: MIL-STD-202, Method 213,

Condition I (Sawtooth)

• Moisture Resistance: MIL-STD-202F, Method 106

• Salt Spray: MIL-STD-202, Method 101,

Condition B (48 hrs)

• Operating Temperature: -55°C to +125°C

Ordering

• Specify product code and packaging code

S

F500MA 250V

BU

SS

FUSE

B

E

LEAD

C

Ø

D

F

Short Lead

Dimensions

mm (inches)

Short Lead

A

B

C

D

E

F

∅

8.35 ± 0.1 (0.329)

7.7 ± 0.1 (0.303)

4.3 ± 0.3 (0.169)

—

0.5 min. (0.020)

0.6 ± 0.1 (0.024)

Long Lead

8.35 ± 0.1 (0.329)

7.7 ± 0.1 (0.303)

—

18.8 ± 0.3 (0.740)

0.5 min. (0.020)

0.6 ± 0.1 (0.024)

Long Lead

5.08 ± 0.1 (0.200) 5.08 ± 0.1 (0.200)

SPECIFICATIONS

Product

Code

EFF-250mA

EFF-315mA

EFF-400mA

EFF-500mA

EFF-630mA

EFF-800mA

EFF-1

EFF-1.25

EFF-1.6

EFF-2

EFF-2.5

EFF-3.15

EFF-4

EFF-5

EFF-6.3

Ampere

Rating

250mA

315mA

400mA

500mA

630mA

800mA

1A

1.25A

1.6A

2A

2.5A

3.15A

4A

5A

6.3A

Typical Cold

Resistance

(ohm)

0.45

0.34

0.25

0.19

0.091

0.071

0.055

0.043

0.034

0.026

0.02

0.016

0.012

0.01

0.008

Volt-drop

@ 100%

In

(Volt) max.

0.254

0.246

0.239

0.232

0.106

0.103

0.1

0.097

0.094

0.091

0.088

0.086

0.083

0.081

0.078

Melting I

2

T

< 10 mSec

(A

2

Sec)

0.029

0.05

0.08

0.15

0.12

0.21

0.36

0.61

1.1

1.8

3.1

5.3

9

16

27

Melting I

2

T

@ 10

In

(A

2

Sec)

0.027

0.05

0.08

0.13

0.22

0.36

0.59

1

1.7

2.7

4.5

8

13

21

Maximum

Power

Dissipation (W)

0.15

0.18

0.22

0.27

0.15

0.19

0.23

0.28

0.35

0.42

0.51

0.62

0.77

0.93

1.14

Voltage Drop measured at 100% of rated current.

Melting I

2

t measured at 10X current rating

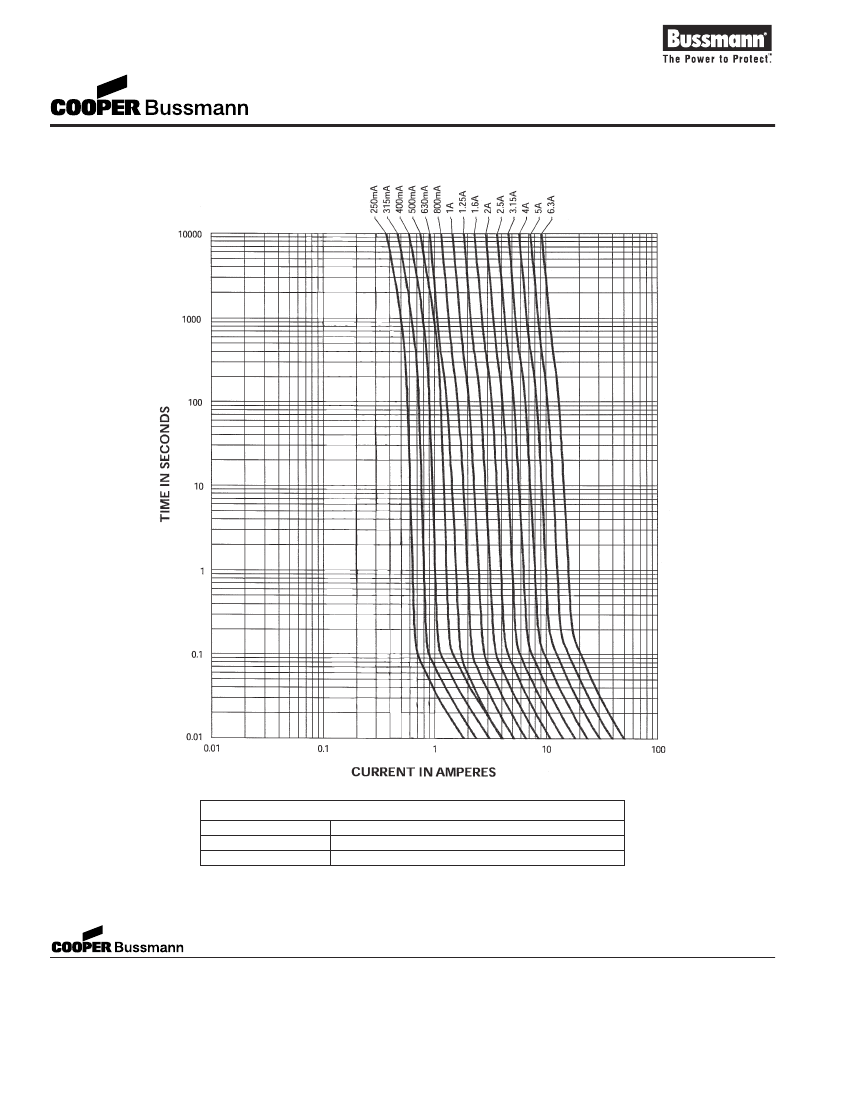

BK/EFF-630MA Related Products

	BK/EFF-630MA	BK/EFF-400MA	BK/EFF-4	BK/EFF-800MA	BK/EFF-5	BK/EFF-500MA
Description	FAST BLOW ELECTRIC FUSE, 0.63A, 250VAC, THROUGH HOLE, ROHS COMPLIANT	FAST BLOW ELECTRIC FUSE, 0.4A, 250VAC, THROUGH HOLE, ROHS COMPLIANT	FAST BLOW ELECTRIC FUSE, 4A, 250VAC, THROUGH HOLE, ROHS COMPLIANT	FAST BLOW ELECTRIC FUSE, 0.8A, 250VAC, THROUGH HOLE, ROHS COMPLIANT	FAST BLOW ELECTRIC FUSE, 5A, 250VAC, THROUGH HOLE, ROHS COMPLIANT	FAST BLOW ELECTRIC FUSE, 0.5A, 250VAC, THROUGH HOLE, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Fusing characteristics	FAST	FAST	FAST	FAST	FAST	FAST
body height	8.2 mm	8.2 mm	8.2 mm	8.2 mm	8.2 mm	8.2 mm
Body length or diameter	8.35 mm	8.35 mm	8.35 mm	8.35 mm	8.35 mm	8.35 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE
Manufacturer's serial number	EFF	EFF	EFF	EFF	EFF	EFF
Installation features	THROUGH HOLE	THROUGH HOLE	THROUGH HOLE	THROUGH HOLE	THROUGH HOLE	THROUGH HOLE
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
method of packing	BULK	BULK	BULK	BULK	BULK	BULK
physical size	8.35mm x 8.2mm	8.35mm x 8.2mm	8.35mm x 8.2mm	8.35mm x 8.2mm	8.35mm x 8.2mm	8.35mm x 8.2mm
Rated current	0.63 A	0.4 A	4 A	0.8 A	5 A	0.5 A
Rated voltage (AC)	250 V	250 V	250 V	250 V	250 V	250 V
Guideline	CSA; SEMKO; UL; VDE	CSA; SEMKO; UL; VDE	CSA; SEMKO; UL; VDE	CSA; SEMKO; UL; VDE	CSA; SEMKO; UL; VDE	CSA; SEMKO; UL; VDE
surface mount	NO	NO	NO	NO	NO	NO
Terminal shape	PIN WIRE	PIN WIRE	PIN WIRE	PIN WIRE	PIN WIRE	PIN WIRE
Base Number Matches	1	1	1	1	-	-
