5-6605766-9 datasheet, PDF - EEWORLD Datasheet

5-6605766-9: Descriptionconn magjack 1port 100 base-T; CategoryThe connector; File Size185KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

5-6605766-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-6605766-9	-	-	View	Buy Now

conn magjack 1port 100 base-T

Parameter Name	Attribute value
Datasheets

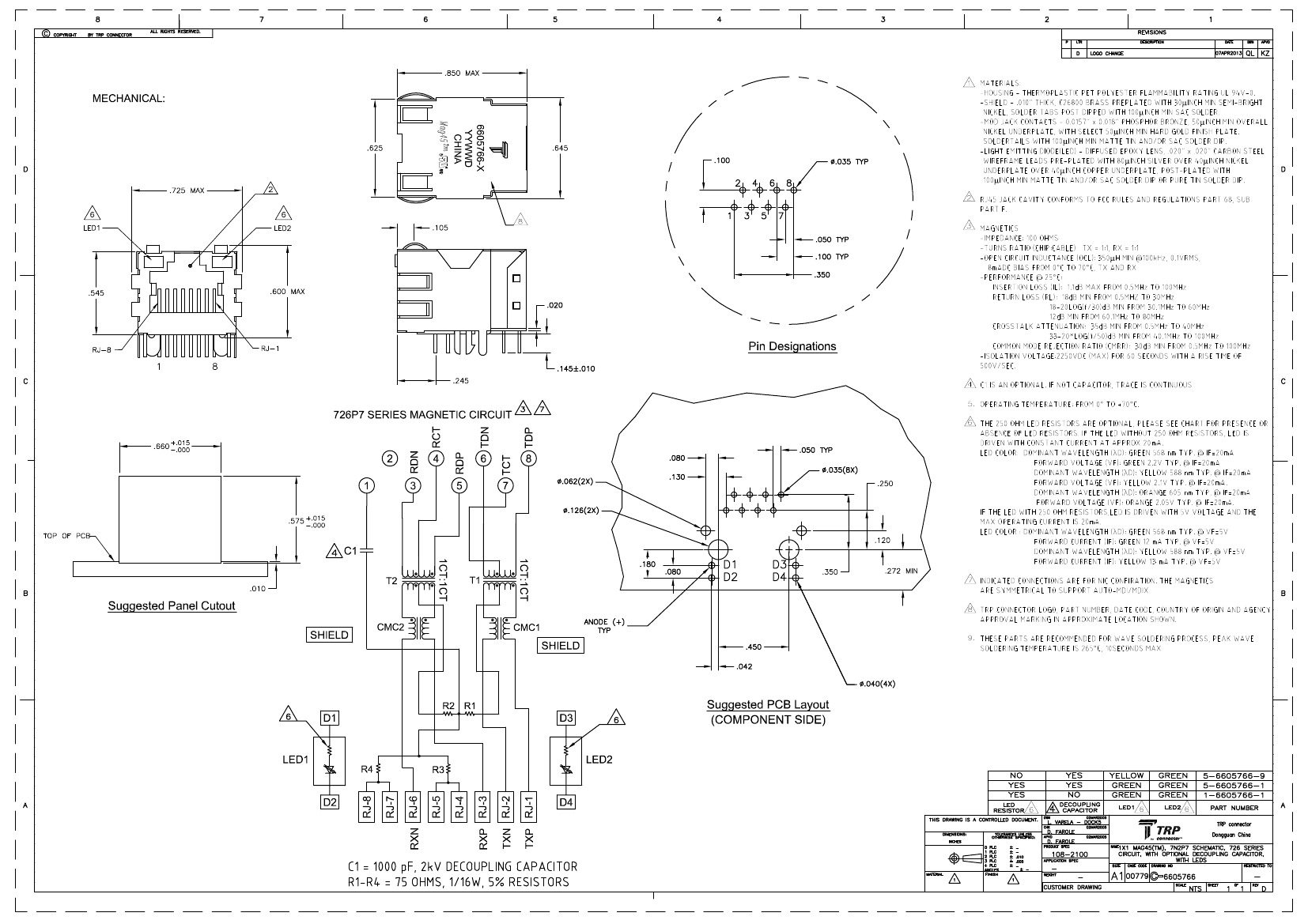

6605766 Drawing
PCN Manufacturer Informati
TRP Connector Acquistion 22/Mar/2013
Standard Package	63
Category	Connectors, Interconnects
Family	Modular Connectors - Jacks With Magnetics
Packaging	Tray
Connector Type	RJ45
Number of Ports	1
Number of Rows	1
Applications	10/100 Base-T, AutoMDIX
Mounting Type	Through Hole
Orientati	90° Angle (Right)
Terminati	Solde
Height Above Board	0.545" (13.84mm)
LED Col	Yellow - Gree
Number of Cores per Jack	4
Shielding	Shielded, EMI Finge
Features	Board Lock, Decoupling Capacitance
Tab Directi	U
Contact Material	Phosphor Bronze
Contact Finish	Gold
Contact Finish Thickness	50µin (1.27µm)
Shield Material	Brass
Housing Material	Polyethylene Terephthalate (PET), Polyeste
Operating Temperature	0°C ~ 70°C
Other Names	5-6605766-9-ND5-6605766-9TRP566057669
