Automotive & Industrial Grade Ceramic Base SMD Crystal
ABM10AIG
Features
•
•
•
•
•
•
•
AEC-Q200 Qualified
Automotive Grade 1: -40°C to +125°C
Automotive Grade 0: -40°C to +150°C (Available Upon Request)
TS16949 Production Line Certified
PPAP Available Upon Request
Hermetically Seam-sealed Ceramic Package
RoHS/RoHS II Compliant and Pb free
2.5 x 2.0 x 0.55 mm
R
o
HS/RoHS
II
Compliant
MSL = N/A: Not Applicable
Pb
Applications
•
•
•
•
•
•
•
•
•
•
•
Infotainment Systems
Keyless Entry & Startup
GPS & Navigation
Comfort control
ADAS (Advanced Driver Assistance Systems)
Vehicle to Vehicle Communication
LiDAR (Light Detection and Ranging)
In-vehicle Networking
Powertrain & Drive Control
Power Control & Conversion
Industrial Control & Automation
Electrical Specifications
Parameters
Frequency Range
Operation Mode
Operating Temperature
[Note 1]
Storage Temperature
[Note 1]
Frequency Tolerance @ +25°C
Frequency Stability over the Operating
Temperature ( ref. to +25°C)
Min.
12.000
Fundamental
-40
-40
-40
-40
-50
-100
-150
+125
+150
+125
+150
+50
+100
+150
150
80
60
50
40
2.0
10
10
-2
500
100
+2
°C
°C
ppm
ppm
Option “blank”; See options
Option “V”; See options
Option “blank, J, D, N”
Option “V”
Option “blank”; See options
Option “blank”; See options
Option “R”; See options
12.000-15.999 MHz
16.000-19.999 MHz
20.000-29.999 MHz
30.000-34.999 MHz
35.000-62.500 MHz
Option “blank”; See options
@25°C± 3°C First year
@100 Vdc ± 15V
Typ.
Max.
62.500
Units
MHz
Notes
Equivalent series resistance (R1)
Ω
Shunt capacitance (C0)
Load capacitance (CL)
Drive Level
Aging
Insulation Resistance
pF
pF
μW
ppm
MΩ
Note 1: Operating temperature range option -40°C to +150°C only available in select frequencies and electrical performance options. Please contact
Abracon for availability.
5101 Hidden Creek Ln Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sales, please visit:
www.abracon.com
ABRACON IS
LLC
REVISED: 06-14-19
ISO9001-2015
CERTIFIED
Automotive & Industrial Grade Ceramic Base SMD Crystal
ABM10AIG
Options and Part Identification (left blank if standard)
2.5 x 2.0 x 0.55 mm
R
o
HS/RoHS
II
Compliant
MSL = N/A: Not Applicable
Pb
ABM10AIG-
Frequency in MHz
Please specify the
frequency in MHz.
(e.g. 14.31818MHz)
Load
Capacitance (pF)
Blank: 10pF
If not standard, please
specify CL in pF or S
for series
MHz -
-
-
-
Packaging
Blank: Bulk
T: 1k pcs / reel
T3: 3k pcs / reel
Freq. Tolerance
Blank: ± 50 ppm
4: ± 30 ppm
3: ± 25 ppm
2: ± 20 ppm
7: ± 15 ppm
1: ± 10 ppm
Freq. Stability
Blank: ± 100 ppm
R: ± 150 ppm
Z: ± 50 ppm
P: ± 45 ppm
(*)
F: ± 40 ppm
(*)
H: ± 35 ppm
(*)
Y: ± 30 ppm
(*)
W: ± 25 ppm
(*)
X: ± 20 ppm
(*)
G: ± 15 ppm
(*)
(*) Contact Abracon for
Availability
Custom ESR
if other than standard
R □: Specify a value
in Ω (e.g.: R80)
Operating Temp.
Blank: -40°C to +125°C
N: -30°C to +85°C
D: -40°C to +85°C
J: -40°C to +105°C
V: -40°C to +150°C
(*)
(*) Contact Abracon for
Availability
LLC
5101 Hidden Creek Ln Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sales, please visit:
www.abracon.com
ABRACON IS
REVISED: 06-14-19
ISO9001-2015
CERTIFIED
Automotive & Industrial Grade Ceramic Base SMD Crystal
ABM10AIG

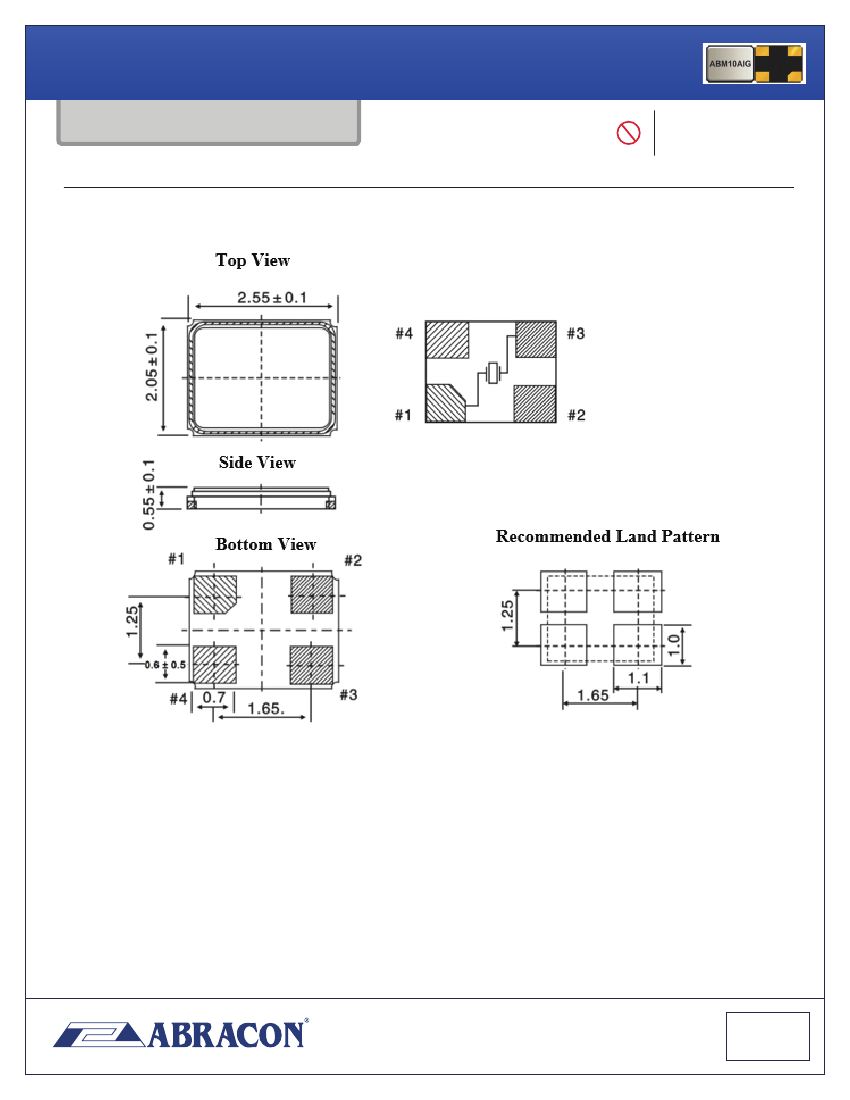

Mechanical Dimensions
2.5 x 2.0 x 0.55 mm
R
o
HS/RoHS
II
Compliant
MSL = N/A: Not Applicable
Pb
Pin #1: Crystal
Pin #3: Crystal
Pin #2: GND
(*)
Pin #4: GND
(*)
(*) Electrically connected to lid
Note:
Due to availability of raw materials, this part may be manufactured with the chamfer on pin 1 or pin 4. Be advised that this
does not affect the electrical characteristics of the crystal in any way.
Dimensions: mm
LLC
5101 Hidden Creek Ln Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sales, please visit:
www.abracon.com
ABRACON IS
REVISED: 06-14-19
ISO9001-2015
CERTIFIED
Automotive & Industrial Grade Ceramic Base SMD Crystal
ABM10AIG

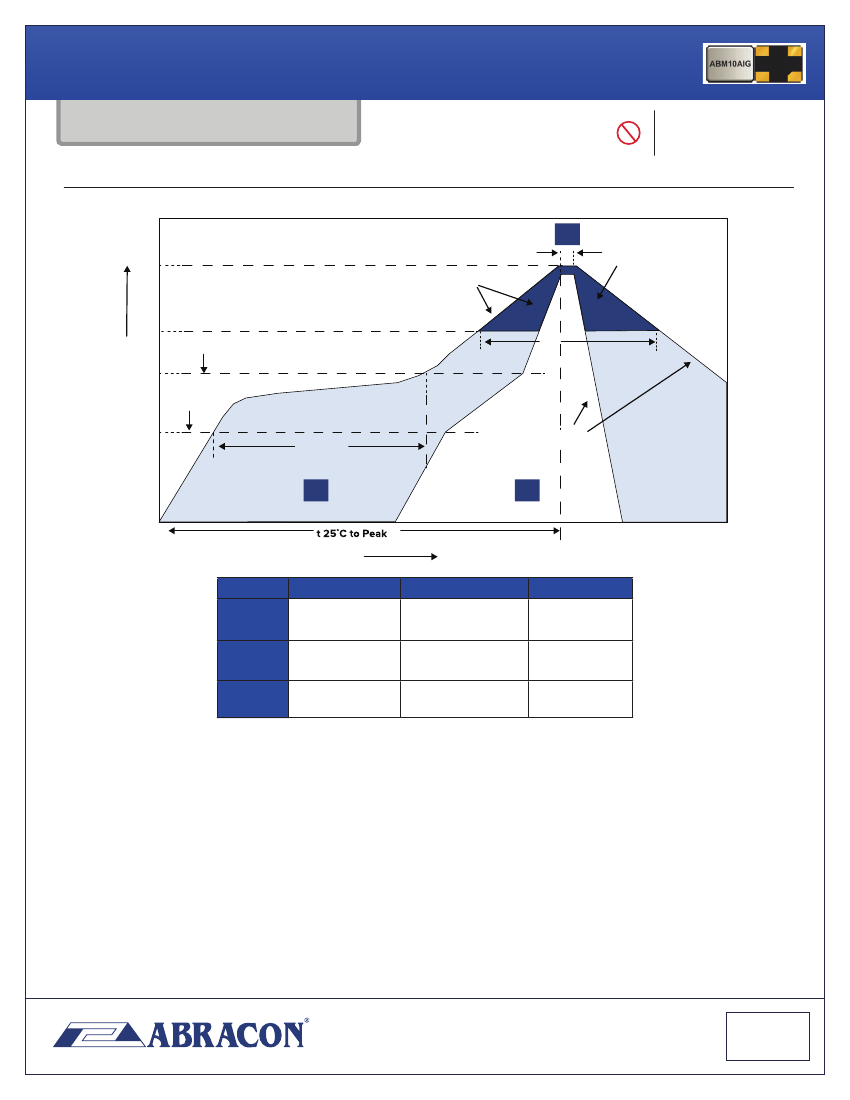

Reflow Profile
2.5 x 2.0 x 0.55 mm
R
o
HS/RoHS
II
Compliant
MSL = N/A: Not Applicable
Pb
T
p
Ra mp U p
T
p
3
Critical Zone
T
L
to T
p
T
L
Temperatur e
T
SMAX
T
SMIN
Preheat
T
L
Ra mp Down
1
25
Time
2
Zone
1
2
3
Description
Preheat / Soak
Reflow
Peak heat
Temperature
T
SMIN
~ T
SMAX
150°C ~ 180°C
T
L
230°C
T
P
260°C±5°C
Time
60 ~ 120 sec.
30 ~ 40 sec.
10 sec. MAX
LLC
5101 Hidden Creek Ln Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sales, please visit:
www.abracon.com
ABRACON IS
REVISED: 06-14-19
ISO9001-2015
CERTIFIED
Automotive & Industrial Grade Ceramic Base SMD Crystal
ABM10AIG

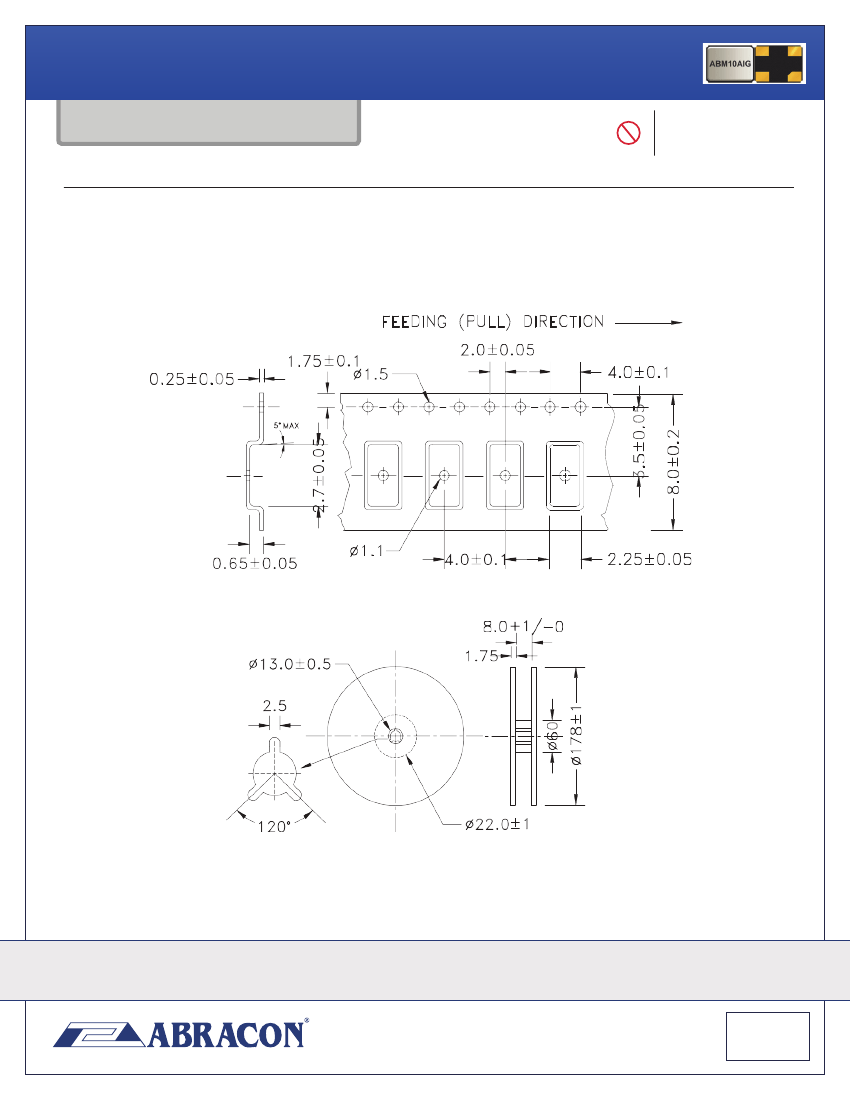

Packaging
Tape and Reel:
T: 1,000pcs/reel
T3: 3,000pcs/reel
2.5 x 2.0 x 0.55 mm
R
o
HS/RoHS
II
Compliant
MSL = N/A: Not Applicable
Pb
Dimensions: mm
ATTENTION:
Abracon LLC’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applica-
tions. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependent Medical applications or any application requiring high reliability
where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment,
written consent and authorization from Abracon LLC is required. Please contact Abracon LLC for more information.
