5-146457-1 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 5-146457-1

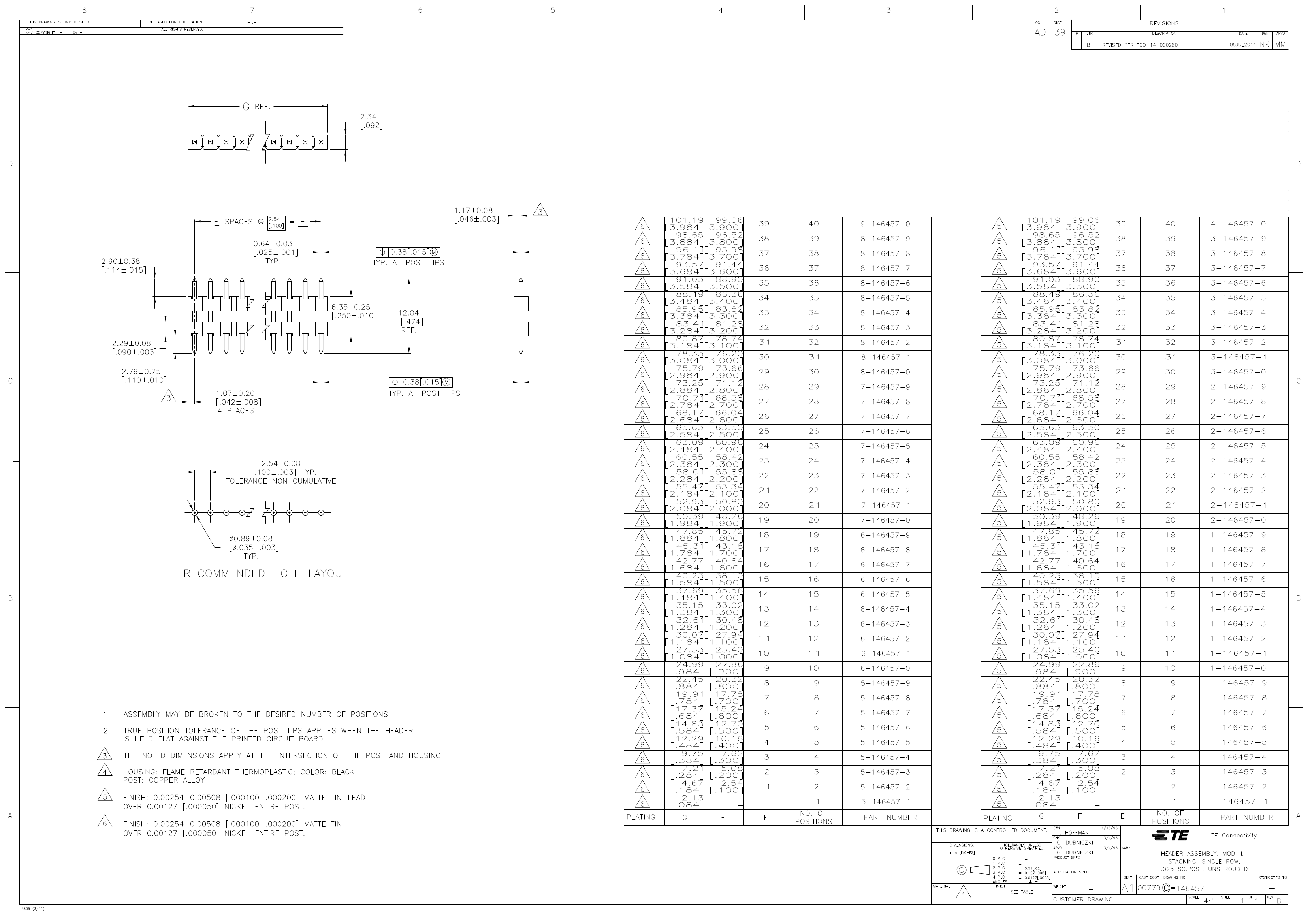

Preview

5-146457-1: Descriptionconn header 1pos .100" stacking; CategoryThe connector; File Size227KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5-146457-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-146457-1	-	-	View	Buy Now

5-146457-1 Overview

conn header 1pos .100" stacking

5-146457-1 Parametric

Parameter Name	Attribute value
Datasheets
146457
RoHS Informati
5-146457-1 Statement of Compliance
RoHS 2 Stateme
Standard Package	2,500
Category	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Board Spacers, Stackers
Packaging	Bulk
Number of Positions	1
Pitch	0.100" (2.54mm)
Number of Rows	1
Row Spacing	-
Length - Overall	0.474" (12.04mm)
Length - Post (Mating)	0.114" (2.90mm)
Length - Stack Heigh	0.250" (6.35mm)
Length - Tail	0.110" (2.79mm)
Mounting Type	Through Hole
Terminati	Solde
Contact Finish - Post (Mating)	Ti
Contact Finish Thickness - Post (Mating)	-
Col	Black

Preview

Download Datasheet

View All

5-146457-1 Related Products

	5-146457-1	5-146457-5	6-146457-0	7-146457-0	6-146457-3	6-146457-4
Description	conn header 1pos .100" stacking	conn header 5pos .100" stacking	conn header 10pos .100" stacking	conn header 20pos .100" stacking	conn header 13pos .100" stacking	conn header 14pos .100" stacking
Standard Package	2,500	2,400	200	100	1	1
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Board Spacers, Stackers	Rectangular - Board to Board Connectors - Board Spacers, Stackers	Rectangular - Board to Board Connectors - Board Spacers, Stackers	Rectangular - Board to Board Connectors - Board Spacers, Stackers	Rectangular - Board to Board Connectors - Board Spacers, Stackers	Rectangular - Board to Board Connectors - Board Spacers, Stackers
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Number of Positions	1	5	10	20	13	14
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	1	1	1	1	1	1
Length - Overall	0.474" (12.04mm)	0.474" (12.04mm)	0.474" (12.04mm)	0.474" (12.04mm)	0.474" (12.04mm)	0.474" (12.04mm)
Length - Post (Mating)	0.114" (2.90mm)	0.114" (2.90mm)	0.114" (2.90mm)	0.114" (2.90mm)	0.114" (2.90mm)	0.114" (2.90mm)
Length - Stack Heigh	0.250" (6.35mm)	0.250" (6.35mm)	0.250" (6.35mm)	0.250" (6.35mm)	0.250" (6.35mm)	0.250" (6.35mm)
Length - Tail	0.110" (2.79mm)	0.110" (2.79mm)	0.110" (2.79mm)	0.110" (2.79mm)	0.110" (2.79mm)	0.110" (2.79mm)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Terminati	Solde	Solde	Solde	Solde	Solde	Solde
Contact Finish - Post (Mating)	Ti	Ti	Ti	Ti	Ti	Ti
Col	Black	Black	Black	Black	Black	Black
