292175-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 292175-9

292175-9: Descriptionconn header 9pos smd tin nat; CategoryThe connector; File Size251KB，3 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

292175-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	292175-9	-	-	View	Buy Now

292175-9 Overview

conn header 9pos smd tin nat

292175-9 Parametric

Parameter Name	Attribute value
Datasheets

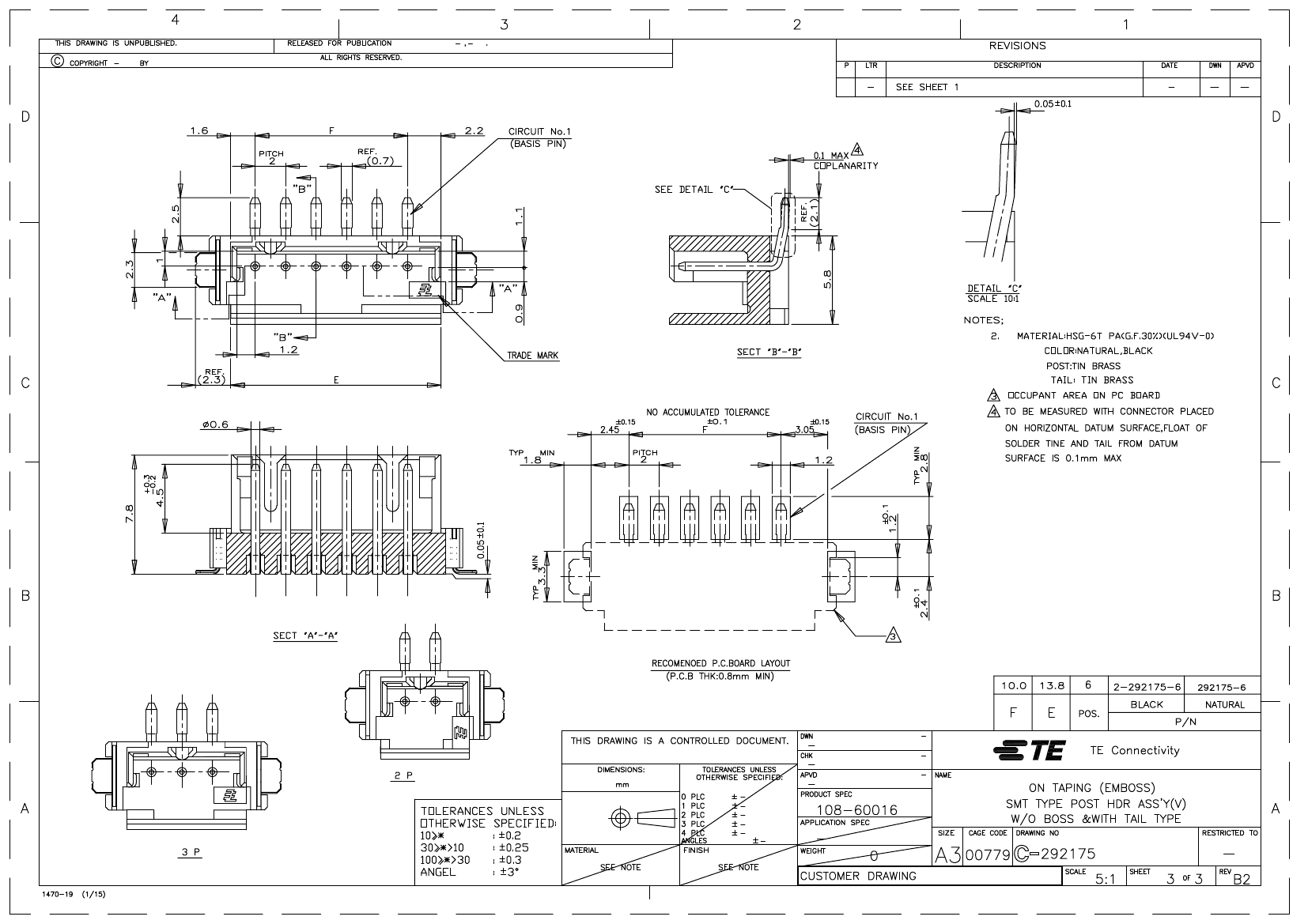

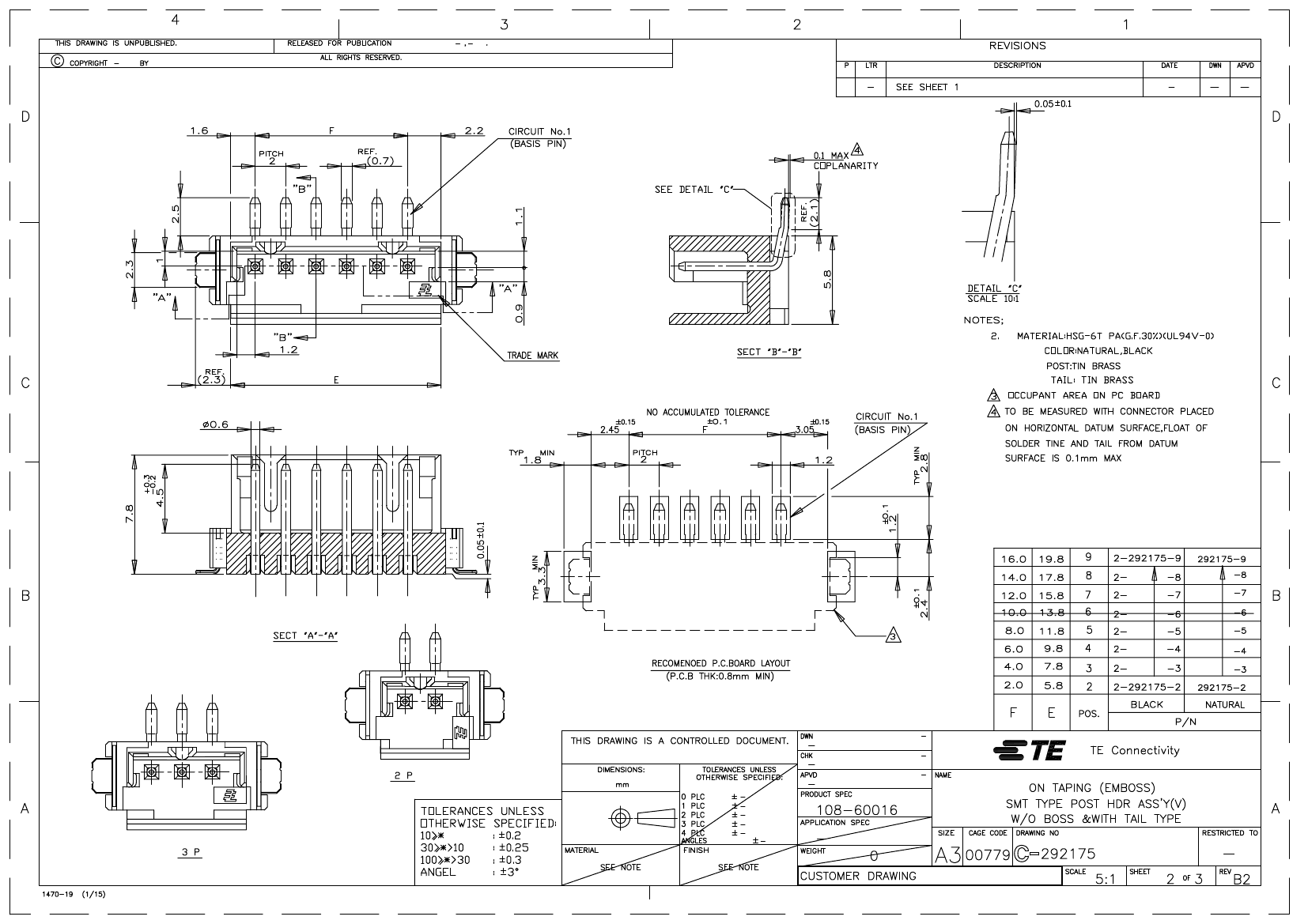

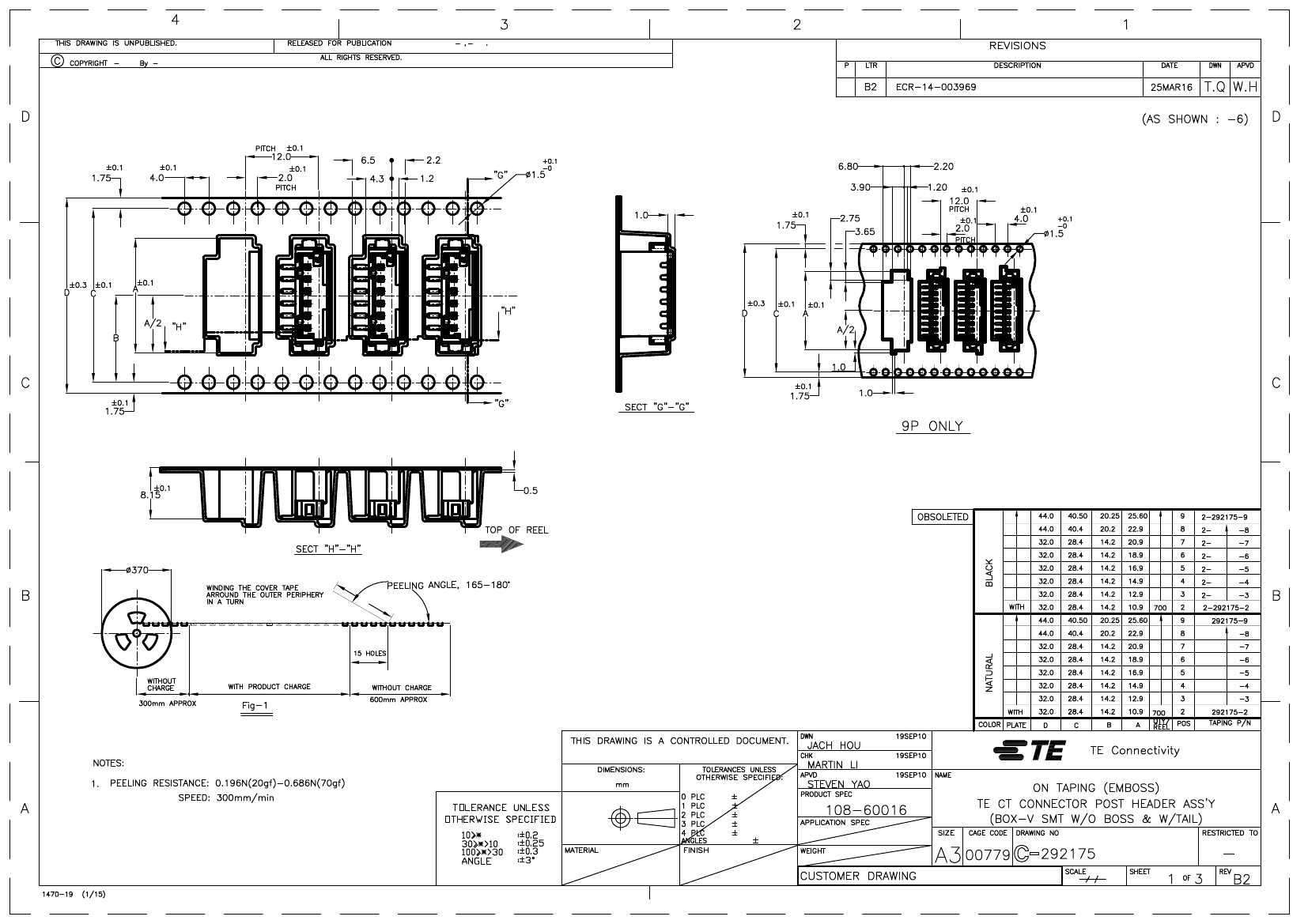

292175 Drawing
RoHS Informati
292175-9 Statement of Compliance
RoHS 2 Stateme
3D Model
292175-9.pdf
Standard Package	2,800
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Tape & Reel (TR)
Contact Type	Male Pi
Connector Type	Header, Shrouded
Number of Positions	9
Number of Positions Loaded	All
Pitch	0.079" (2.00mm)
Number of Rows	1
Row Spacing	-
Contact Mating Length	0.177" (4.50mm)
Mounting Type	Surface Mou
Terminati	Solde
Fastening Type	-
Features	Solder Retenti
Contact Finish	Ti
Contact Finish Thickness	-
Col	Natural

Preview

Download Datasheet

View All

292175-9 Related Products

	292175-9	292175-4	292175-5	292175-6	2-292175-2	292175-8	292175-7	292175-2	2-292175-4
Description	conn header 9pos smd tin nat	conn header 4pos smd tin nat	conn header 5pos smd tin nat	conn header 6pos smd tin nat	conn header 2pos smd tin blk	conn header 8pos smd tin nat	conn header 7pos smd tin nat	conn header 2pos smd tin nat	conn header 4pos smd tin blk
Standard Package	2,800	3,500	1	3,500	1	2,800	3,500	3,500	3,500
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins
Packaging	Tape & Reel (TR)	Tape & Reel (TR)	Cut Tape (CT)	Tape & Reel (TR)	Digi-Reel®	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)
Contact Type	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi
Connector Type	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded
Number of Positions	9	4	5	6	2	8	7	2	4
Number of Positions Loaded	All	All	All	All	All	All	All	All	All
Pitch	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Number of Rows	1	1	1	1	1	1	1	1	1
Contact Mating Length	0.177" (4.50mm)	0.177" (4.50mm)	0.177" (4.50mm)	0.177" (4.50mm)	0.177" (4.50mm)	0.177" (4.50mm)	0.177" (4.50mm)	0.177" (4.50mm)	0.177" (4.50mm)
Mounting Type	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou
Terminati	Solde	Solde	Solde	Solde	Solde	Solde	Solde	Solde	Solde
Features	Solder Retenti	Solder Retenti	Solder Retenti	Solder Retenti	Solder Retenti	Solder Retenti	Solder Retenti	Solder Retenti	Solder Retenti
Contact Finish	Ti	Ti	Ti	Ti	Ti	Ti	Ti	Ti	Ti
Col	Natural	Natural	Natural	Natural	Black	Natural	Natural	Natural	Black
Other Names	-	292175-4-NDA111142TR	A111143CT	292175-6-ND2921756A104085TR	A100988DKR	292175-8-NDA116248TR	292175-7-NDA116247TR	292175-2-NDA116246TR	2-292175-4-NDA100989TR
