5176379-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 5176379-5

5176379-5: Descriptionconn rcpt FH 120pos .050 R/A; CategoryThe connector; File Size54KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5176379-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5176379-5	-	-	View	Buy Now

5176379-5 Overview

conn rcpt FH 120pos .050 R/A

5176379-5 Parametric

Parameter Name	Attribute value
Datasheets

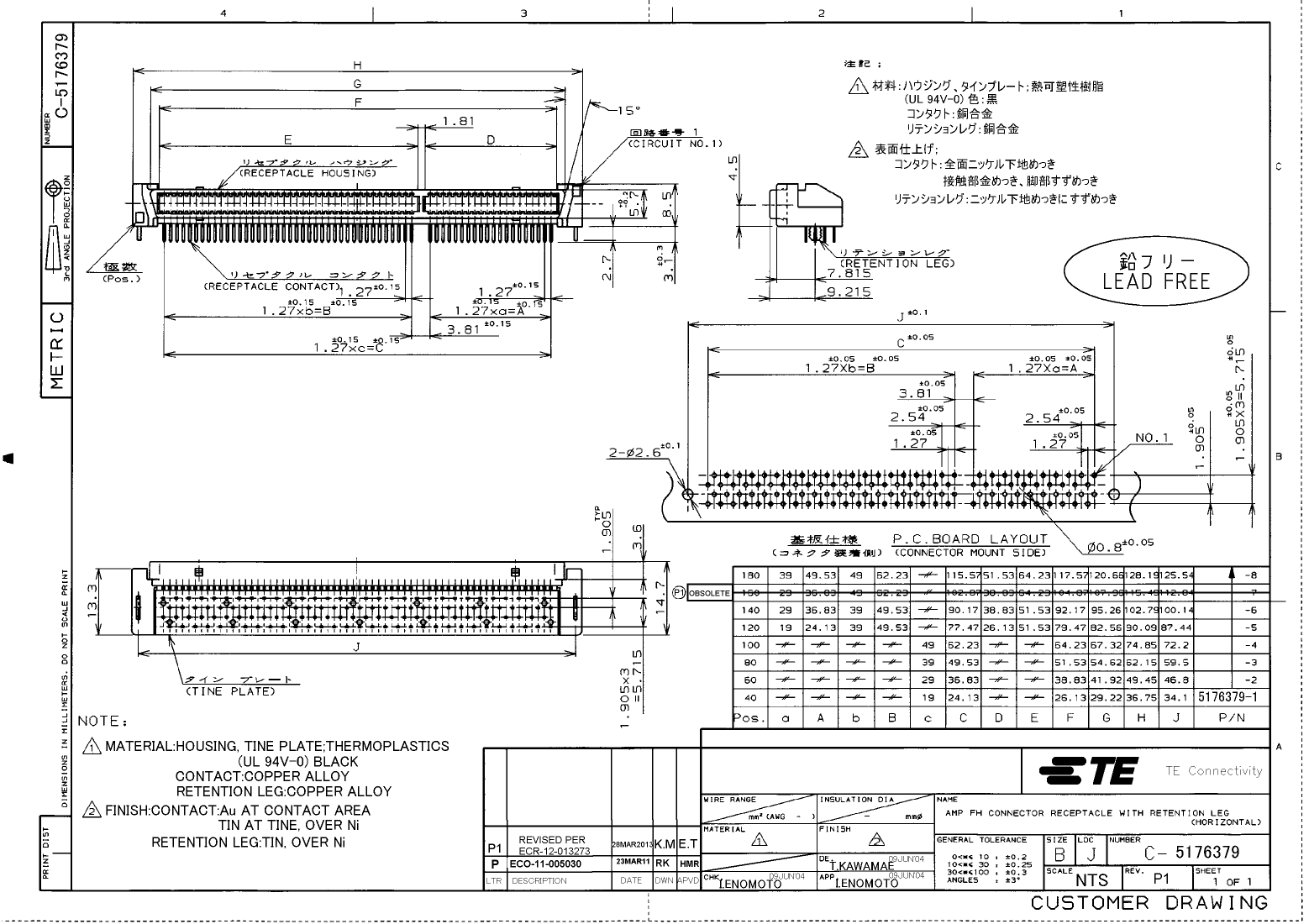

5176379 Drawing
RoHS Informati
5176379-5 Statement of Compliance
RoHS 2 Stateme
3D Model
5176379-5.pdf
Standard Package	500
Category	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Packaging	Tube
Connector Type	Receptacle, Outer Shroud Contacts
Number of Positions	120
Pitch	0.050" (1.27mm)
Number of Rows	2
Mounting Type	Through Hole, Right Angle
Features	Board Lock
Contact Finish	Gold
Contact Finish Thickness	12µin (0.30µm)
Mated Stacking Heights	-
Height Above Board	0.335" (8.50mm)
Mating Products	2-5917631-5-ND - CONN PLUG FH 120POS .050 VERTA114073-ND - CONN PLUG FH 120POS .050 VERT2-5179540-5-ND - CONN PLUG FH 120POS 050 VERT2-179540-5-ND - CONN PLUG FH 120POS 050 VERT5176381-5-ND - CONN PLUG FH 120POS .050 R/A176381-5-ND - CONN PLUG FH 120POS .050 R/A

Preview

Download Datasheet

View All

5176379-5 Related Products

	5176379-5	5176379-7	5176379-8	5176379-1	5176379-4	5176379-6
Description	conn rcpt FH 120pos .050 R/A	conn rcpt FH 160pos .050 R/A	conn rcpt FH 180pos .050 R/A	conn rcpt FH 40pos .050 R/A	conn rcpt FH 100pos .050 R/A	conn rcpt FH 140pos .050 R/A
Standard Package	500	300	60	1,200	600	400
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Packaging	Tube	Tube	Tube	Tube	Tube	Tube
Connector Type	Receptacle, Outer Shroud Contacts	Receptacle, Outer Shroud Contacts	Receptacle, Outer Shroud Contacts	Receptacle, Outer Shroud Contacts	Receptacle, Outer Shroud Contacts	Receptacle, Outer Shroud Contacts
Number of Positions	120	160	180	40	100	140
Pitch	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)
Number of Rows	2	2	2	2	2	2
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Features	Board Lock	Board Lock	Board Lock	Board Lock	Board Lock	Board Lock
Contact Finish	Gold	Gold	Gold	Gold	Gold	Gold
Contact Finish Thickness	12µin (0.30µm)	12µin (0.30µm)	12µin (0.30µm)	12µin (0.30µm)	12µin (0.30µm)	12µin (0.30µm)
Height Above Board	0.335" (8.50mm)	0.335" (8.50mm)	0.335" (8.50mm)	0.335" (8.50mm)	0.335" (8.50mm)	0.335" (8.50mm)
Mating Products	2-5917631-5-ND - CONN PLUG FH 120POS .050 VERTA114073-ND - CONN PLUG FH 120POS .050 VERT2-5179540-5-ND - CONN PLUG FH 120POS 050 VERT2-179540-5-ND - CONN PLUG FH 120POS 050 VERT5176381-5-ND - CONN PLUG FH 120POS .050 R/A176381-5-ND - CONN PLUG FH 120POS .050 R/A	5917631-7-ND - CONN PLUG FH 160POS .050 VERT5176381-7-ND - CONN PLUG FH 160POS .050 R/A176381-7-ND - CONN PLUG FH 160POS .050 R/A	5917631-8-ND - CONN PLUG FH 180POS .050 VERT5176381-8-ND - CONN PLUG FH 180POS .050 R/A176381-8-ND - CONN PLUG FH 180POS .050 R/A	A114070-ND - CONN PLUG FH 40POS .050 VERT2-5176381-1-ND - CONN PLUG FH 40POS 050 R/A5176381-1-ND - CONN PLUG FH 40POS .050 R/A176381-1-ND - CONN PLUG FH 40POS .050 R/A	2-5917631-4-ND - CONN PLUG FH 100POS .050 VERTA114072-ND - CONN PLUG FH 100POS .050 VERT2-5179540-4-ND - CONN PLUG FH 100POS 050 VERT2-179540-4-ND - CONN PLUG FH 100POS 050 VERT5176381-4-ND - CONN PLUG FH 100POS .050 R/A176381-4-ND - CONN PLUG FH 100POS .050 R/A	5917631-6-ND - CONN PLUG FH 140POS .050 VERT5176381-6-ND - CONN PLUG FH 140POS .050 R/A176381-6-ND - CONN PLUG FH 140POS .050 R/A
