5-87587-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 5-87587-9

5-87587-9: Descriptionconn header 26pos dual .100 tin; CategoryThe connector; File Size187KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5-87587-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-87587-9	-	-	View	Buy Now

5-87587-9 Overview

conn header 26pos dual .100 tin

5-87587-9 Parametric

Parameter Name	Attribute value
Datasheets
87587
RoHS Informati
5-87587-9 Statement of Compliance
RoHS 2 Stateme
3D Model
5-87587-9.pdf
Standard Package	784
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Tray
Contact Type	Male Pi
Connector Type	Header, Shrouded
Number of Positions	26
Number of Positions Loaded	All
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Contact Mating Length	0.318" (8.08mm)
Mounting Type	Through Hole
Terminati	Solde
Fastening Type	Detent Lock
Features	-
Contact Finish	Ti
Contact Finish Thickness	100µin (2.54µm)
Col	Black

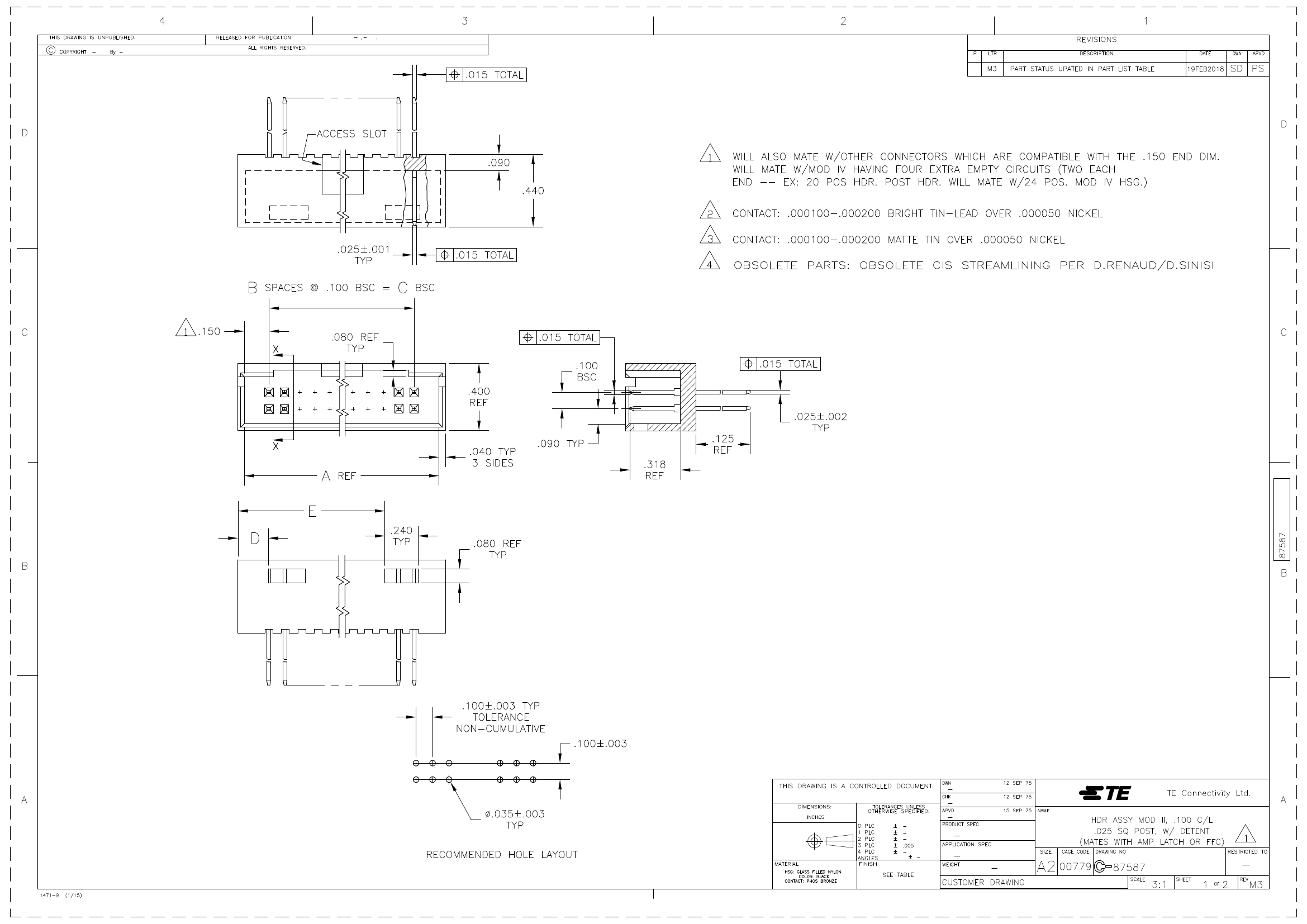

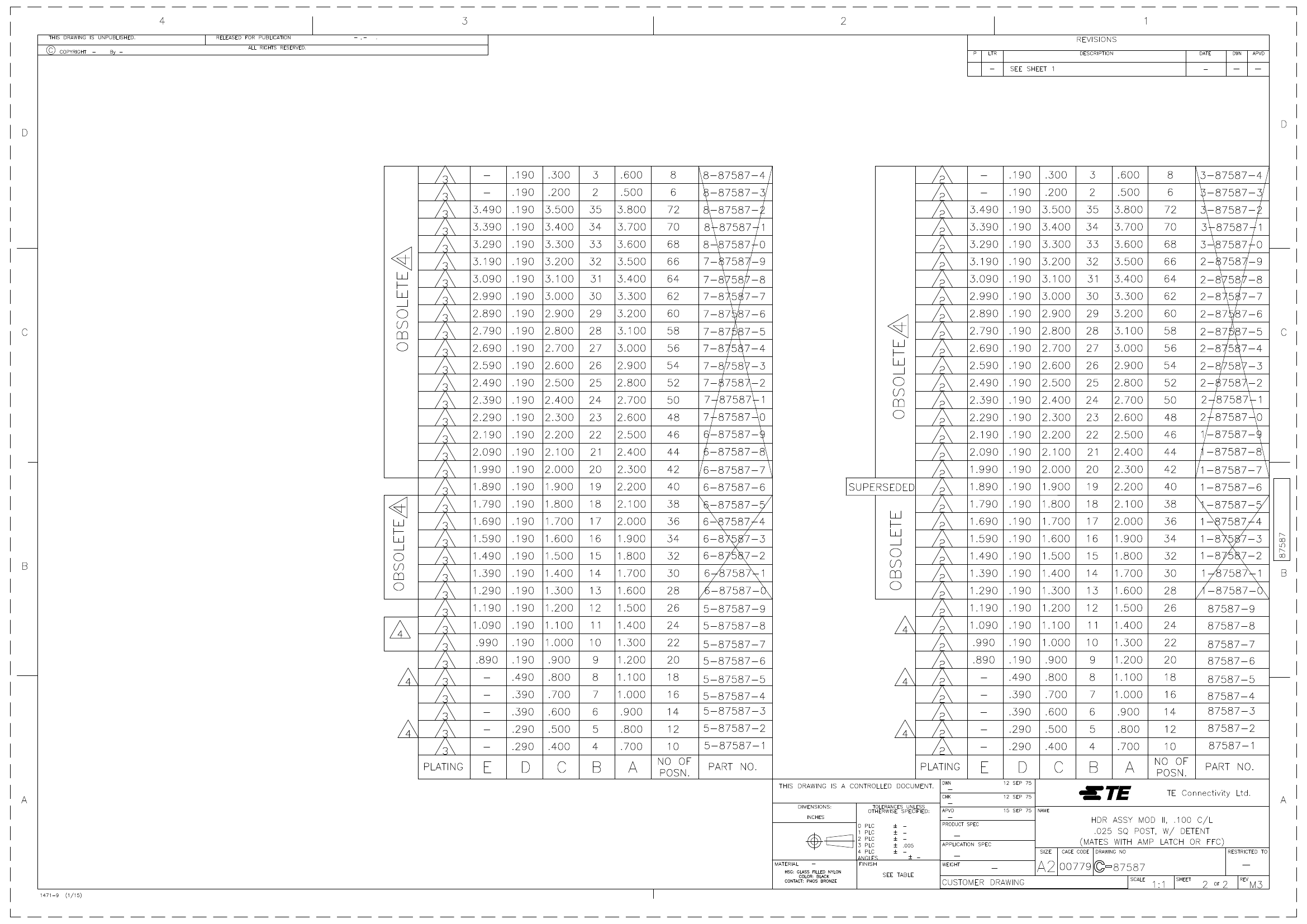

Preview

Download Datasheet

View All

5-87587-9 Related Products

	5-87587-9	87587-1	87587-4	5-87587-1	87587-3
Description	conn header 26pos dual .100 tin	conn header 10pos dual .100 tin	conn header 16pos dual .100 tin	conn header 10pos dual .100 tin	conn header 14pos dual .100 tin
Standard Package	784	240	176	1,680	192
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins
Packaging	Tray	Tray	Tray	Tray	Tray
Contact Type	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi
Connector Type	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded
Number of Positions	26	10	16	10	14
Number of Positions Loaded	All	All	All	All	All
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	2	2	2	2	2
Row Spacing	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Contact Mating Length	0.318" (8.08mm)	0.318" (8.08mm)	0.318" (8.08mm)	0.318" (8.08mm)	0.318" (8.08mm)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Terminati	Solde	Solde	Solde	Solde	Solde
Fastening Type	Detent Lock	Detent Lock	Detent Lock	Detent Lock	Detent Lock
Contact Finish	Ti	Tin-Lead	Tin-Lead	Ti	Tin-Lead
Contact Finish Thickness	100µin (2.54µm)	100µin (2.54µm)	100µin (2.54µm)	100µin (2.54µm)	100µin (2.54µm)
Col	Black	Black	Black	Black	Black
Mating Products	-	A25852-ND - CONN HOUSING 10POS .100 POL DUALA25853-ND - CONN HOUSING 10POS .100 POL DUALA25804-ND - CONN HOUSING 10POS .100 DUAL ROWA25854-ND - CONN HOUSNG 10POS .100 POL W/STRA25834-ND - CONN HOUSING 10POS .100 POL DUALA25805-ND - CONN HOUSING 10POS .100 DUAL ROWA25835-ND - CONN HOUSING 10POS .100 POL DUALA3034-ND - CONN HOUSING 10POS .100 DUAL	87977-6-ND - 16 MODIV HSG DR MRKD .100 POLA25863-ND - CONN HOUSNG 16POS .100 POL W/STRA25810-ND - CONN HOUSING 16POS .100 DUAL ROWA25809-ND - CONN HOUSING 16POS .100 DUAL ROWA25862-ND - CONN HOUSING 16POS .100 POL DUALA25861-ND - CONN HOUSING 16POS .100 POL DUALA25839-ND - CONN HOUSING 16POS .100 POL DUALA3037-ND - CONN HOUSING 16POS .100 DUAL	-	87977-5-ND - 14 MODIV HSG DR MRKD .100 POLA25860-ND - CONN HOUSNG 14POS .100 POL W/STRA25807-ND - CONN HOUSING 14POS .100 DUAL ROWA25859-ND - CONN HOUSING 14POS .100 POL DUALA25808-ND - CONN HOUSING 14POS .100 DUAL ROWA25858-ND - CONN HOUSING 14POS .100 POL DUALA25838-ND - CONN HOUSING 14POS .100 POL DUALA3036-ND - CONN HOUSING 14POS .100 DUAL
