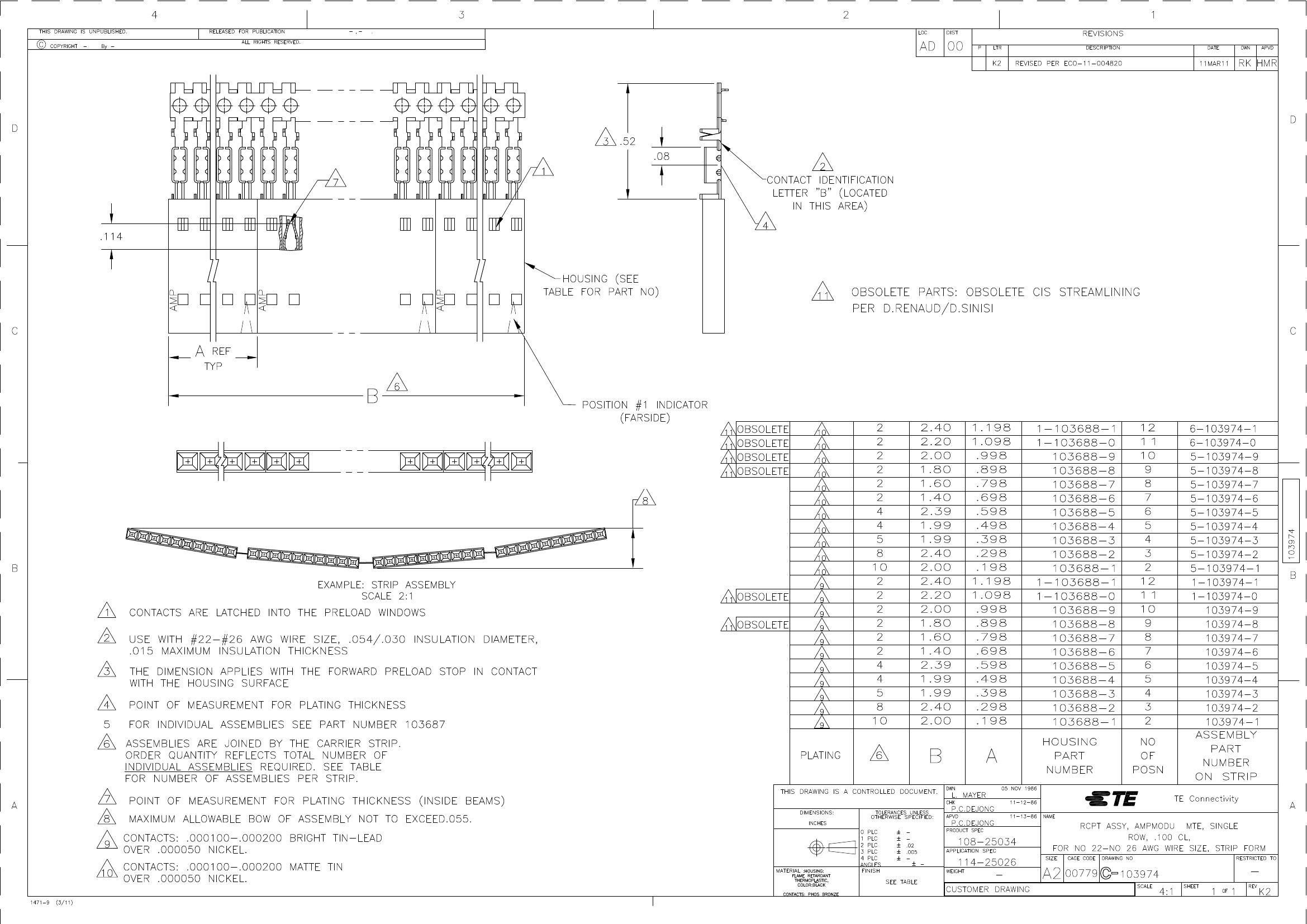

Preview

5-103974-8: Descriptionconn receptacle 9pos .100 tin; CategoryThe connector; File Size138KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5-103974-8 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-103974-8	-	-	View	Buy Now

5-103974-8 Overview

conn receptacle 9pos .100 tin

5-103974-8 Parametric

Parameter Name	Attribute value
Datasheets
103974
Product Photos
(5)-103976-8, (5)-103974-8
Standard Package	24
Category	Connectors, Interconnects
Family	Rectangular Connectors - Free Hanging, Panel Mou
Packaging	Tube
Connector Type	Receptacle
Contact Type	Female Socke
Number of Positions	9
Pitch	0.100" (2.54mm)
Number of Rows	1
Row Spacing	-
Mounting Type	Free Hanging (In-Line)
Fastening Type	-
Cable Terminati	IDC
Wire Type	Ribbon Cable
Wire Gauge	22-26 AWG
Features	Closed End
Contact Finish	Ti
Contact Finish Thickness	100µin (2.54µm)
Col	Black
Mating Products	103361-7-ND - CONN HEADER 9POS R/A GOLD146132-7-ND - CONN HEADER B/A 9POS SL PCB TIN103080-7-ND - CONN HEADER VERT 9POS PCB TINA34265-09-ND - CONN HEADR BRKWAY .100 09POS R/AA34264-09-ND - CONN HEADR BRKWAY .100 09POS R/AA34262-09-ND - CONN HEADR BRKWAY .100 09POS R/AA34261-09-ND - CONN HEADR BRKWAY .100 09POS R/AA34260-09-ND - CONN HEADR BRKWAY .100 09POS R/AA34256-09-ND - CONN HDR BRKWAY .100 09POS VERTA34254-09-ND - CONN HDR BRKWAY .100 09POS VERTA34253-09-ND - CONN HDR BRKWAY .100 09POS VERTA32990-ND - CONN HEADER VERT .100 9POS 15AUA32702-09-ND - CONN HEADR BRKWAY .100 09POS R/AA32701-09-ND - CONN HEADR BRKWAY .100 09POS STRA32700-09-ND - CONN HEADR BRKWAY .100 09POS STRA26517-09-ND - CONN HEADR BRKWAY .100 09POS R/AA26516-09-ND - CONN HEADR BRKWAY .100 09POS R/AA26515-09-ND - CONN HEADR BRKWAY .100 09POS R/AA26511-09-ND - CONN HEADR BRKWAY .100 09POS R/AA26510-09-ND - CONN HEADR BRKWAY .100 09POS R/AA26514-09-ND - CONN HEADR BRKWAY .100 09POS STRA26513-09-ND - CONN HEADR BRKWAY .100 09POS STRA26512-09-ND - CONN HEADR BRKWAY .100 09POS STRA26509-09-ND - CONN HEADR BRKWAY .100 09POS STRA26508-09-ND - CONN HEADR BRKWAY .100 09POS STR104345-7-ND - CONN HDR BRKWAY 9POS VERT 15AU104344-7-ND - CONN HDR BRKWAY 9POS VERT 30AU146128-7-ND - CONN HDR BRKWAY 9POS VERT SMDA26631-ND - CONN HEADER VERT .100 9POS 15AU
Associated Produc	A28718-ND - HEAD (IDC) MODU MTE W/O TL

Preview

Download Datasheet

View All

5-103974-8 Related Products

	5-103974-8	103974-8	6-103974-0
Description	conn receptacle 9pos .100 tin	conn receptacle 9pos .100 tin	conn receptacle 11pos .100 tin
Standard Package	24	24	20
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular Connectors - Free Hanging, Panel Mou	Rectangular Connectors - Free Hanging, Panel Mou	Rectangular Connectors - Free Hanging, Panel Mou
Packaging	Tube	Tube	Tube
Connector Type	Receptacle	Receptacle	Receptacle
Contact Type	Female Socke	Female Socke	Female Socke
Number of Positions	9	9	11
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	1	1	1
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Cable Terminati	IDC	IDC	IDC
Wire Type	Ribbon Cable	Ribbon Cable	Ribbon Cable
Wire Gauge	22-26 AWG	22-26 AWG	22-26 AWG
Features	Closed End	Closed End	Closed End
Contact Finish	Ti	Tin-Lead	Ti
Contact Finish Thickness	100µin (2.54µm)	100µin (2.54µm)	100µin (2.54µm)
Col	Black	Black	Black
Mating Products	103361-7-ND - CONN HEADER 9POS R/A GOLD146132-7-ND - CONN HEADER B/A 9POS SL PCB TIN103080-7-ND - CONN HEADER VERT 9POS PCB TINA34265-09-ND - CONN HEADR BRKWAY .100 09POS R/AA34264-09-ND - CONN HEADR BRKWAY .100 09POS R/AA34262-09-ND - CONN HEADR BRKWAY .100 09POS R/AA34261-09-ND - CONN HEADR BRKWAY .100 09POS R/AA34260-09-ND - CONN HEADR BRKWAY .100 09POS R/AA34256-09-ND - CONN HDR BRKWAY .100 09POS VERTA34254-09-ND - CONN HDR BRKWAY .100 09POS VERTA34253-09-ND - CONN HDR BRKWAY .100 09POS VERTA32990-ND - CONN HEADER VERT .100 9POS 15AUA32702-09-ND - CONN HEADR BRKWAY .100 09POS R/AA32701-09-ND - CONN HEADR BRKWAY .100 09POS STRA32700-09-ND - CONN HEADR BRKWAY .100 09POS STRA26517-09-ND - CONN HEADR BRKWAY .100 09POS R/AA26516-09-ND - CONN HEADR BRKWAY .100 09POS R/AA26515-09-ND - CONN HEADR BRKWAY .100 09POS R/AA26511-09-ND - CONN HEADR BRKWAY .100 09POS R/AA26510-09-ND - CONN HEADR BRKWAY .100 09POS R/AA26514-09-ND - CONN HEADR BRKWAY .100 09POS STRA26513-09-ND - CONN HEADR BRKWAY .100 09POS STRA26512-09-ND - CONN HEADR BRKWAY .100 09POS STRA26509-09-ND - CONN HEADR BRKWAY .100 09POS STRA26508-09-ND - CONN HEADR BRKWAY .100 09POS STR104345-7-ND - CONN HDR BRKWAY 9POS VERT 15AU104344-7-ND - CONN HDR BRKWAY 9POS VERT 30AU146128-7-ND - CONN HDR BRKWAY 9POS VERT SMDA26631-ND - CONN HEADER VERT .100 9POS 15AU	103361-7-ND - CONN HEADER 9POS R/A GOLD146132-7-ND - CONN HEADER B/A 9POS SL PCB TIN103080-7-ND - CONN HEADER VERT 9POS PCB TINA34265-09-ND - CONN HEADR BRKWAY .100 09POS R/AA34264-09-ND - CONN HEADR BRKWAY .100 09POS R/AA34262-09-ND - CONN HEADR BRKWAY .100 09POS R/AA34261-09-ND - CONN HEADR BRKWAY .100 09POS R/AA34260-09-ND - CONN HEADR BRKWAY .100 09POS R/AA34256-09-ND - CONN HDR BRKWAY .100 09POS VERTA34254-09-ND - CONN HDR BRKWAY .100 09POS VERTA34253-09-ND - CONN HDR BRKWAY .100 09POS VERTA32990-ND - CONN HEADER VERT .100 9POS 15AUA32702-09-ND - CONN HEADR BRKWAY .100 09POS R/AA32701-09-ND - CONN HEADR BRKWAY .100 09POS STRA32700-09-ND - CONN HEADR BRKWAY .100 09POS STRA26517-09-ND - CONN HEADR BRKWAY .100 09POS R/AA26516-09-ND - CONN HEADR BRKWAY .100 09POS R/AA26515-09-ND - CONN HEADR BRKWAY .100 09POS R/AA26511-09-ND - CONN HEADR BRKWAY .100 09POS R/AA26510-09-ND - CONN HEADR BRKWAY .100 09POS R/AA26514-09-ND - CONN HEADR BRKWAY .100 09POS STRA26513-09-ND - CONN HEADR BRKWAY .100 09POS STRA26512-09-ND - CONN HEADR BRKWAY .100 09POS STRA26509-09-ND - CONN HEADR BRKWAY .100 09POS STRA26508-09-ND - CONN HEADR BRKWAY .100 09POS STR104345-7-ND - CONN HDR BRKWAY 9POS VERT 15AU104344-7-ND - CONN HDR BRKWAY 9POS VERT 30AU146128-7-ND - CONN HDR BRKWAY 9POS VERT SMDA26631-ND - CONN HEADER VERT .100 9POS 15AU	103414-9-ND - CONN HEADER 11POS VERT .100 GOLD102203-8-ND - CONN HEADER 11POS R/A GOLD1-146281-1-ND - CONN HEADR BRKWAY .100 11POS STRA34265-11-ND - CONN HEADR BRKWAY .100 11POS R/AA34264-11-ND - CONN HEADR BRKWAY .100 11POS R/AA34262-11-ND - CONN HEADR BRKWAY .100 11POS R/AA34261-11-ND - CONN HEADR BRKWAY .100 11POS R/AA34260-11-ND - CONN HEADR BRKWAY .100 11POS R/AA34256-11-ND - CONN HDR BRKWAY .100 11POS VERTA34254-11-ND - CONN HDR BRKWAY .100 11POS VERTA34253-11-ND - CONN HDR BRKWAY .100 11POS VERTA32993-ND - CONN HEADER VERT .100 11POS 15AUA32702-11-ND - CONN HEADR BRKWAY .100 11POS R/AA32701-11-ND - CONN HEADR BRKWAY .100 11POS STRA32700-11-ND - CONN HEADR BRKWAY .100 11POS STRA26517-11-ND - CONN HEADR BRKWAY .100 11POS R/AA26516-11-ND - CONN HEADR BRKWAY .100 11POS R/AA26515-11-ND - CONN HEADR BRKWAY .100 11POS R/AA26511-11-ND - CONN HEADR BRKWAY .100 11POS R/AA26510-11-ND - CONN HEADR BRKWAY .100 11POS R/AA26514-11-ND - CONN HEADR BRKWAY .100 11POS STRA26513-11-ND - CONN HEADR BRKWAY .100 11POS STRA26512-11-ND - CONN HEADR BRKWAY .100 11POS STRA26509-11-ND - CONN HEADR BRKWAY .100 11POS STRA26508-11-ND - CONN HEADR BRKWAY .100 11POS STR104345-9-ND - CONN HDR BRKWAY 11POS VERT 15AU104344-9-ND - CONN HDR BRKWAY 11POS VERT 30AU146128-9-ND - CONN HDR BRKWAY 11POS VERT SMDA26635-ND - CONN HEADER VERT .100 11POS 15AU
Associated Produc	A28718-ND - HEAD (IDC) MODU MTE W/O TL	A28718-ND - HEAD (IDC) MODU MTE W/O TL	A28718-ND - HEAD (IDC) MODU MTE W/O TL
