MGM216M05%A datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> The resistor> MGM216M05%A

Preview

MGM216M05%A: DescriptionRESISTOR, METAL GLAZE/THICK FILM, 2W, 5%, 200ppm, 16000000ohm, THROUGH HOLE MOUNT, AXIAL LEADED; CategoryPassive components The resistor; File Size148KB，2 Pages; ManufacturerSEI(Stackpole Electronics Inc.); Websitehttps://www.seielect.com/

Download Datasheet Parametric View All

MGM216M05%A Overview

RESISTOR, METAL GLAZE/THICK FILM, 2W, 5%, 200ppm, 16000000ohm, THROUGH HOLE MOUNT, AXIAL LEADED

MGM216M05%A Parametric

Parameter Name	Attribute value
Objectid	1742893362
package instruction	AXIAL LEADED
Reach Compliance Code	unknown
ECCN code	EAR99
JESD-609 code	e3
Manufacturer's serial number	MG
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package shape	TUBULAR PACKAGE
method of packing	BULK
Rated power dissipation(P)	2 W
Rated temperature	70 °C
resistance	16000000 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	200 ppm/°C
Terminal surface	MATTE TIN
Terminal shape	WIRE
Tolerance	5%
Operating Voltage	3700 V

Preview

Download Datasheet

View All

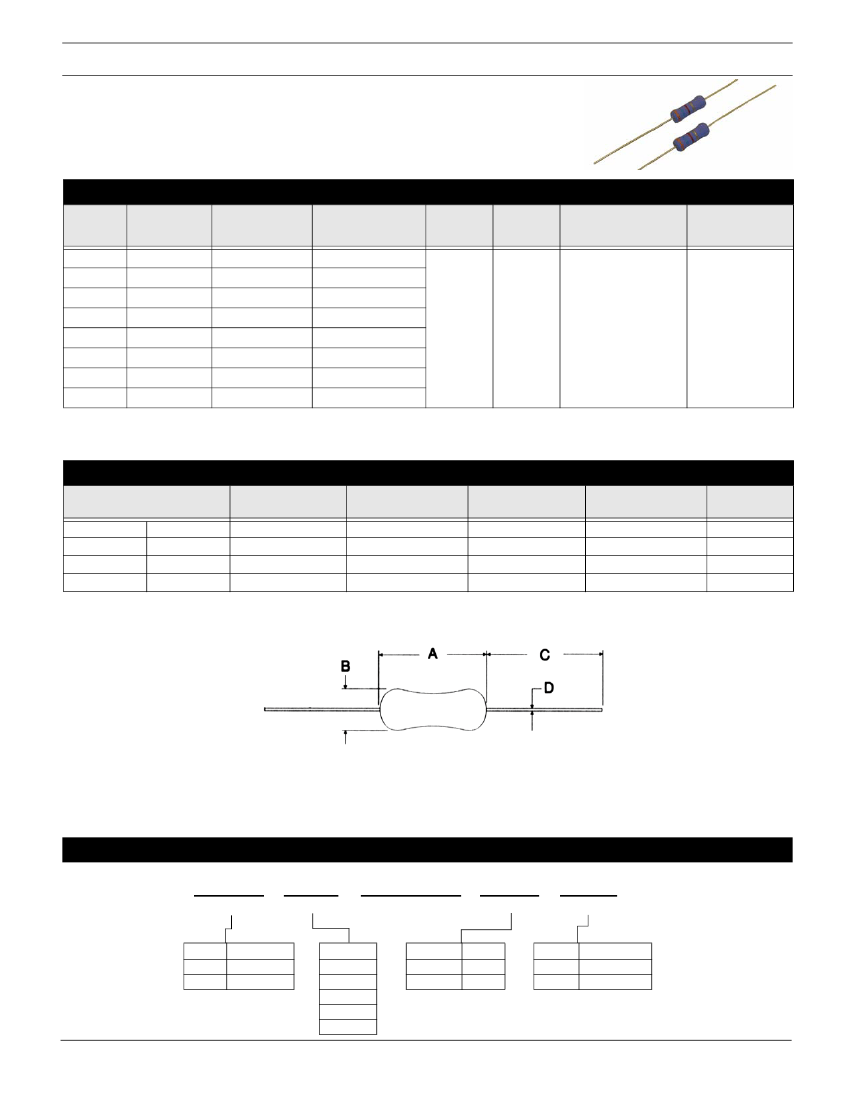

MG Series — High Voltage Metal Glaze Resistor

Features

• High voltage capability from 1600 to 3500 volts

• Inexpensive high voltage leaded

resistor solution

• High resistance values up to 200M

• Tolerances as low as 1%, TC’s as low

as 100ppm/°C

Electrical Specifications

Type /

Code

MG 1/4

MG 1/2

MG 1

MG2

MGM 1/2

MGM 1

MGM 2

MGM 3

Power Rating

(Watts) @

70°C

0.25W

0.5W

1W

2W

0.5W

1W

2W

3W

Maximum

Working Voltage*

1600V

2000V

3500V

1800V

2200V

3700V

4000V

Dielectric

Withstanding

Voltage

700V

100K -

200M

± 5%

± 1%

±200ppm/°C

±100ppm/°C

-55°C - +155°C

Resistanc

e

Range

Resistanc

e

Tolerance

Resistance

Temperature

Coefficient

Operating

Temperature

Rating

Mechanical Specifications

Type / Code

MG 1/4

MG 1/2

MG 1

MG 2

MGM 1/2

MGM 1

MGM 2

MGM 3

A

Body Length

6.3 ± 0.5

9 ± 0.5

11.5 ± 1

15.5 ± 1

B

Body Diameter

2.3 ± 0.3

3.2 ± 0.5

4.5 ± 0.5

5.0 ± 0.5

C

Lead Length (Bulk)

28 ± 2

26 ± 2

35 ± 2

32 ± 2

D

Lead Diameter

0.55 ± 0.03

0.65 ± 0.03

0.78 ± 0.03

Units

mm

How to Order

MG

SEI Type

1/2

Code

100K

Nominal Resistance

5%

Tolerance

R

Packaging

Type

MG

MGM

Description

EIA Std

Mini

Code

1/4

1/2

1

2

3

Tolerance

1%

5%

Values

E24

Code

R

A

Description

Tape

Bulk

Toll Free: (888) SEI-SEIS

(888) 734-7347

www.seielect.com

40

email: marketing@seielect.com
