GRPB431VWTD-RC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> GRPB431VWTD-RC

GRPB431VWTD-RC: Descriptionconn header .050" 43pos; CategoryThe connector; File Size305KB，1 Pages; ManufacturerSullins Connector Solutions; Environmental Compliance

Download Datasheet Parametric View All

GRPB431VWTD-RC Overview

conn header .050" 43pos

GRPB431VWTD-RC Parametric

Parameter Name	Attribute value
Datasheets

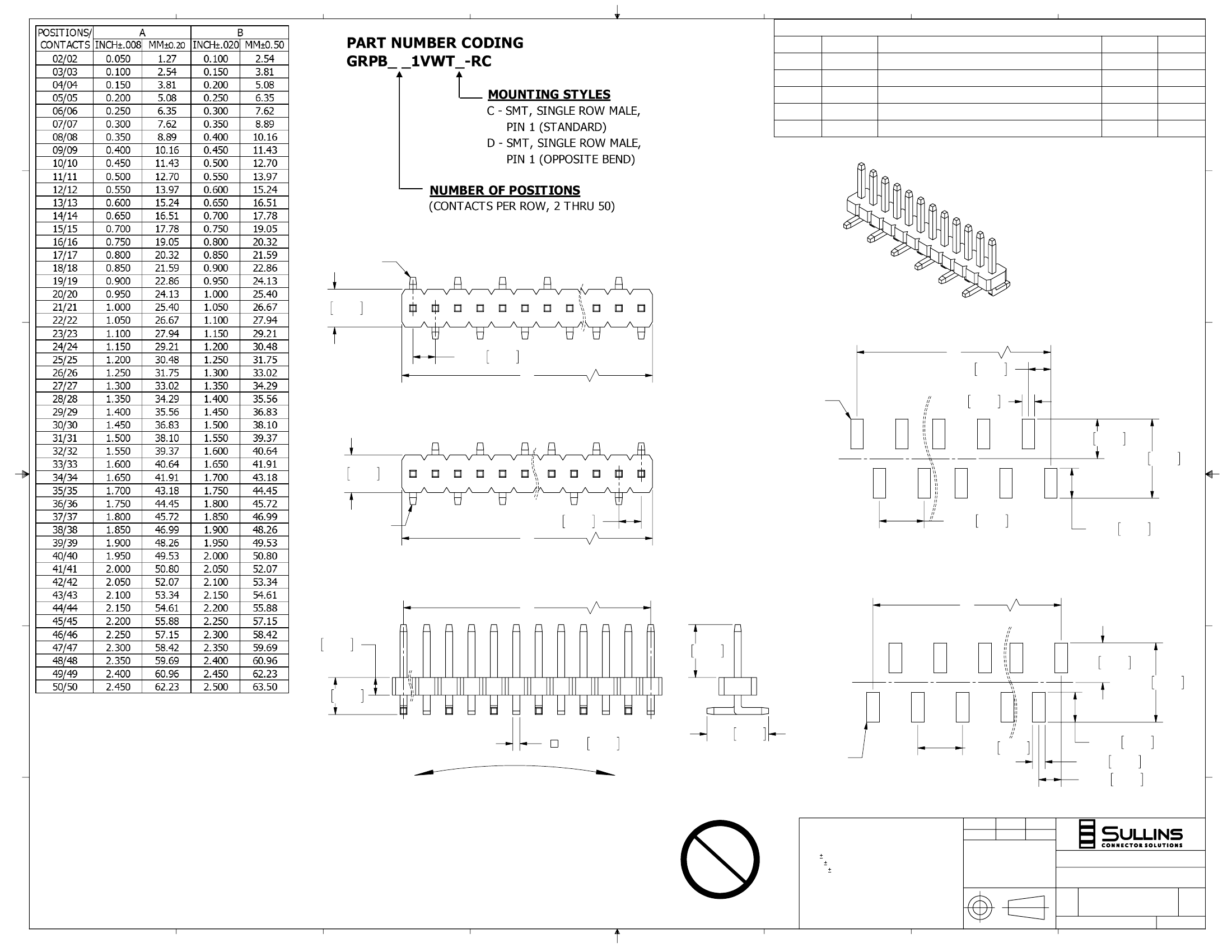

GRPBxx1VWTx-RC Drawing
Standard Package	1,000
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Bulk
Contact Type	Male Pi
Connector Type	Header, Unshrouded
Number of Positions	43
Number of Positions Loaded	All
Pitch	0.050" (1.27mm)
Number of Rows	1
Row Spacing	-
Contact Mating Length	0.118" (3.00mm)
Mounting Type	Surface Mou
Terminati	Solde
Fastening Type	-
Features	-
Contact Finish	Gold
Contact Finish Thickness	Flash
Col	-

Preview

Download Datasheet

View All

REVISIONS

REV.

ECO. NO

1458

1660

1689

1871

1811

DESCRIPTION

INITIAL RELEASE

ADD TOLERANCE TO TABLE, ADD PIN 1 ID

ADD 'D' MOUNTING, PIN 1 RIGHT

UPDATE DIM., TEXT & TOLERANCE BLOCK

UPDATE POSITION NO.

DATE

08/13/07

04/15/08

05/09/08

2/2/2009

2/16/2009

RAH

ASK

PIN 1

.084 2.14

.050 1.27

PIN 1

LEFT

.028 0.71

.089 2.25

.177 4.50

.050 1.27

GRPB_ _1VWTC-RC

(STANDARD)

.084 2.14

PIN 1

.050 1.27

.100 2.54

RECOMMENDED PCB SMD LAYOUT

GRPB_ _1VWTC-RC

.067 1.70

(OPPOSITE BEND, ONLY APPICABLE ON EVEN PIN COUNTS)

.039 1.00

.118 3.00

GRPB_ _1VWTD-RC

.089 2.25

.177 4.50

.083 2.10

NOTES:

1. INSULATOR MATERIAL: NYLON 9T.

*PROCESSING TEMPERATURE = 260° C FOR 10 SEC.

2. CONTACT MATERIAL: BRASS.

3. PLATING: GOLD FLASH OVERALL.

4. OPERATING TEMPERATURE: -40°C TO +105° C.

5. INSULATION RESISTANCE: 5000 MEGA OHM MIN.

6. CONTACT RESISTANCE: 20 MILLI OHM MAX.

7. DIELECTRIC WITHSTANDING: AC 500V.

8. UL FLAMMABILITY RATING: 94V-0.

9. CURRENT RATING: 1 AMP.

.138 3.50

.016 0.40

02-20, 0.20mm MAX.

21-50, 0.30mm MAX.

PIN 1

RIGHT

.100 2.54

.067 1.70

.028 0.71

.050 1.27

RECOMMENDED PCB SMD LAYOUT

GRPB_ _1VWTD-RC

*INDICATED TEMPERATURE AND TIME IS FOR COMPONENT

INSULATOR. HIGHER PROCESSING TEMPERATURES MAY BE USED,

PROVIDED HEAT IS APPLIED FROM BACK SIDE OF PCB, AND INSULATOR

DOES NOT EXCEED INDICATED TEMPERATURE AND TIME.

oHS COMPLIANT

DIMENSIONS ARE IN INCHES[MM]

TOLERANCES:

ANGULAR:

.XX= .012 [.30]

.XXX= .008 [.20]

.XXXX= .004 [.10]

SURFACE FINISH: 63 Ra

UNLESS OTHERWISE SPECIFIED:

DRAWN

DATE

NAME

12/08/08

REMOVE ALL BURRS AND SHARP EDGES .010 MAX

THE INFORMATION HEREIN CONTAINS

PROPIETARY INFORMATION OF

SULLINS ELECTRONICS AND IS NOT

DESCRIPTION

TO BE REPRODUCED, USED OR

DISCLOSED TO OTHERS FOR ANY

PURPOSE EXCEPT AS SPECIFICALLY

PART NUMBER

AUTHORIZED IN WRITING BY AN

OFFICER OF SULLINS ELECTRONICS.

.050" SINGLE ROW MALE HEADER, SMT

GRPB_ _1VWT_-RC

SIZE DWG. NO.

INTERPRET DIMENSIONS AND GEOMETRIC

TOLERANCING

PER: ANSI Y14.5M-1994

SCALE: 8:1

REV

10962

SHEET 1 OF 1

FILE NAME: C:\Documents and Settings\jhsieh\Desktop\JH PDM WIP\10962, GRPB_ _1VWT_-RC PRINT: 3/4/2009
