690357280876 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 690357280876

690357280876: DescriptionWR-MM male smt connector; CategoryThe connector; File Size362KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

690357280876 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	690357280876	-	-	View	Buy Now

690357280876 Overview

WR-MM male smt connector

690357280876 Parametric

Parameter Name	Attribute value
Datasheets
69035728xx76
3D Model
690357280876.igs
690357280876.s
690357280876.wrl
Standard Package	1
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Cut Tape (CT)
Contact Type	Male Pi
Connector Type	Header, Shrouded
Number of Positions	8
Number of Positions Loaded	All
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.059" (1.50mm)
Contact Mating Length	-
Mounting Type	Surface Mou
Terminati	Solde
Fastening Type	Locking Ram
Features	-
Contact Finish	Ti
Contact Finish Thickness	-
Col	Red
Dynamic Catalog	WR-MM Series
Mating Products	732-4885-6-ND - WR-MM FEMALE SMT CONNECTOR WITH732-4885-1-ND - WR-MM FEMALE SMT CONNECTOR WITH732-4885-2-ND - WR-MM FEMALE SMT CONNECTOR WITH
Other Names	732-4879-1

Preview

Download Datasheet

View All

MATERIAL:

HOUSING MATERIAL: PA6T

FLAMABILITY RATING: UL94-V0

COLOR: RED

CONTACT MATERIAL: PHOSPHOR BRONZE

CONTACT TYPE: STAMPED

CONTACT PLATING: MATT TIN OVER NICKEL

QUALITY CLASS: 25 MATING CYCLES

PITCH; 2.54 MM PER ROW

ENVIRONNEMENTAL:

OPERATING TEMPERATURE: -40°C UP TO 105°C

COMPLIANCE: LEAD FREE AND ROHS

ELECTRICAL:

CURRENT RATING: 1.5A PER PIN (PCB PIN)

WORKING VOLTAGE: 100VAC

INSULATION RESISTANCE: >1000MOHM

DIELECTRIC WITHSTANDING VOLT.: 500VAC/MN

CONTACT RESISTANCE: 10mOHM MAX

STANDARD

CERTFIED: E323964 / MOD. NUMBER 69035728xx7x

SOLDERING:

REFLOW PROCESS ONLY

DIMENSION:

DIM.A= 1.27 x No. of Spaces

DIM.B= DIM.A + 3.30

DIM.C= DIM.A + 4.30

AVAILABLE

xx : 4 TO 26 CIRCUITS

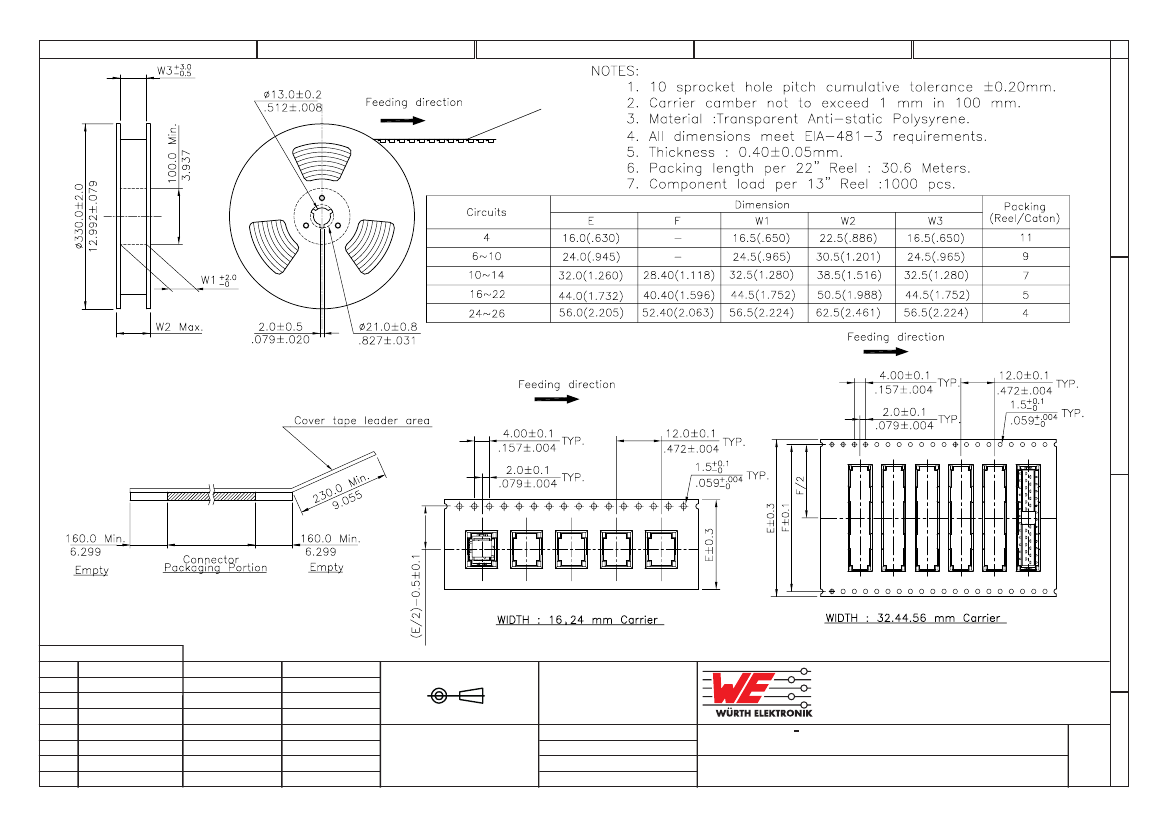

PACKAGING:

TAPE & REEL

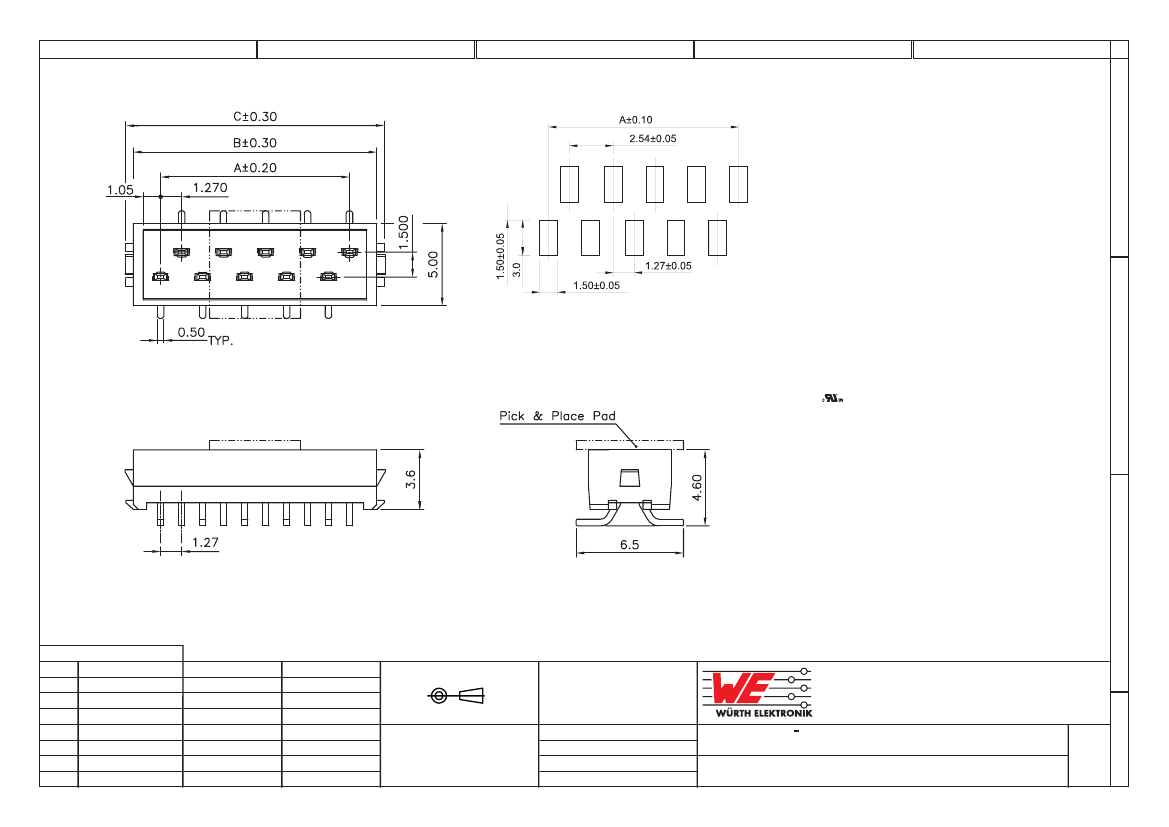

PCB LAYOUT - COMPONENT VIEW

RoHS Compliant

PROJECTION:

GENERAL TOLERANCE

.X = +/- 0.2

.XX = +/- 0.15

APPROVAL: RJ

REV

06-MAR-13

DATE

C DIM ADD

FILE

UNIT: MM

SCALE:

SHEET: 1/2

DRAW: EAGER

DESCRIPTION: MM MALE SMT CONNECTOR WITHOUT LATCH AND WITHOUT

SIZE

POLARIZATION

WERI PART NO: 690 357 28 xx 76

690357280876 Related Products

	690357280876	690357280476	690357281076	690357280676
Description	WR-MM male smt connector	WR-MM male smt connector	WR-MM male smt connector	WR-MM male smt connector
Standard Package	1	1,000	1,000	1,000
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins
Packaging	Cut Tape (CT)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)
Contact Type	Male Pi	Male Pi	Male Pi	Male Pi
Connector Type	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded
Number of Positions	8	4	10	6
Number of Positions Loaded	All	All	All	All
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	2	2	2	2
Row Spacing	0.059" (1.50mm)	0.059" (1.50mm)	0.059" (1.50mm)	0.059" (1.50mm)
Mounting Type	Surface Mou	Surface Mou	Surface Mou	Surface Mou
Terminati	Solde	Solde	Solde	Solde
Fastening Type	Locking Ram	Locking Ram	Locking Ram	Locking Ram
Contact Finish	Ti	Ti	Ti	Ti
Col	Red	Red	Red	Red
Dynamic Catalog	WR-MM Series	WR-MM Series	WR-MM Series	WR-MM Series
Mating Products	732-4885-6-ND - WR-MM FEMALE SMT CONNECTOR WITH732-4885-1-ND - WR-MM FEMALE SMT CONNECTOR WITH732-4885-2-ND - WR-MM FEMALE SMT CONNECTOR WITH	732-4883-6-ND - WR-MM FEMALE SMT CONNECTOR WITH732-4883-1-ND - WR-MM FEMALE SMT CONNECTOR WITH732-4883-2-ND - WR-MM FEMALE SMT CONNECTOR WITH	732-4886-6-ND - WR-MM FEMALE SMT CONNECTOR WITH732-4886-1-ND - WR-MM FEMALE SMT CONNECTOR WITH732-4886-2-ND - WR-MM FEMALE SMT CONNECTOR WITH	732-4884-6-ND - WR-MM FEMALE SMT CONNECTOR WITH732-4884-1-ND - WR-MM FEMALE SMT CONNECTOR WITH732-4884-2-ND - WR-MM FEMALE SMT CONNECTOR WITH
Other Names	732-4879-1	732-4877-2	732-4880-2	732-4878-2
