5767111-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 5767111-9

5767111-9: Descriptionconn plug 76pos .025 vert smd; CategoryThe connector; File Size336KB，2 Pages; ManufacturerAll Sensors

Download Datasheet Parametric View All

5767111-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5767111-9	-	-	View	Buy Now

5767111-9 Overview

conn plug 76pos .025 vert smd

5767111-9 Parametric

Parameter Name	Attribute value
Datasheets
5767111
RoHS Informati
5767111-9 Statement of Compliance
3D Model

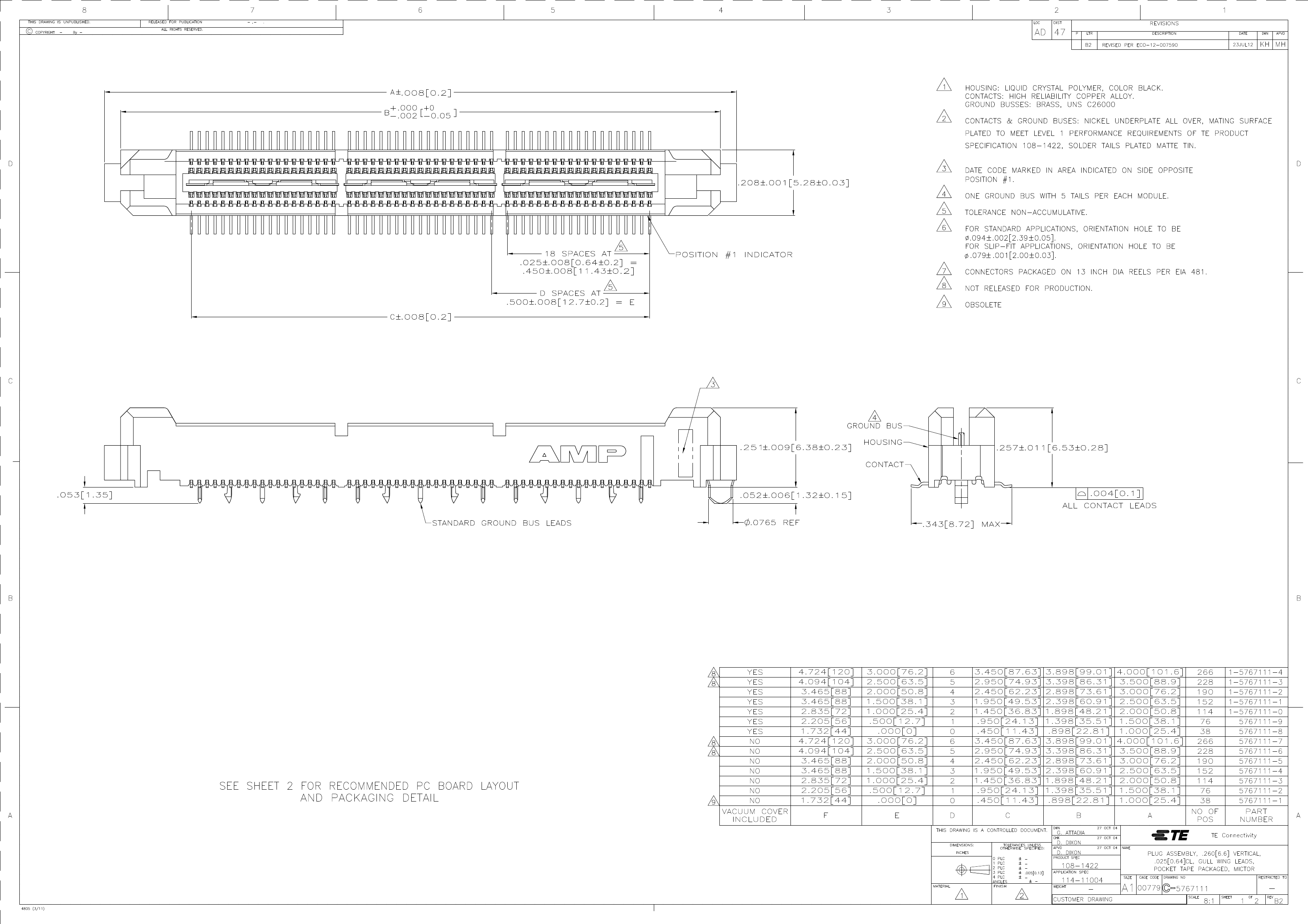

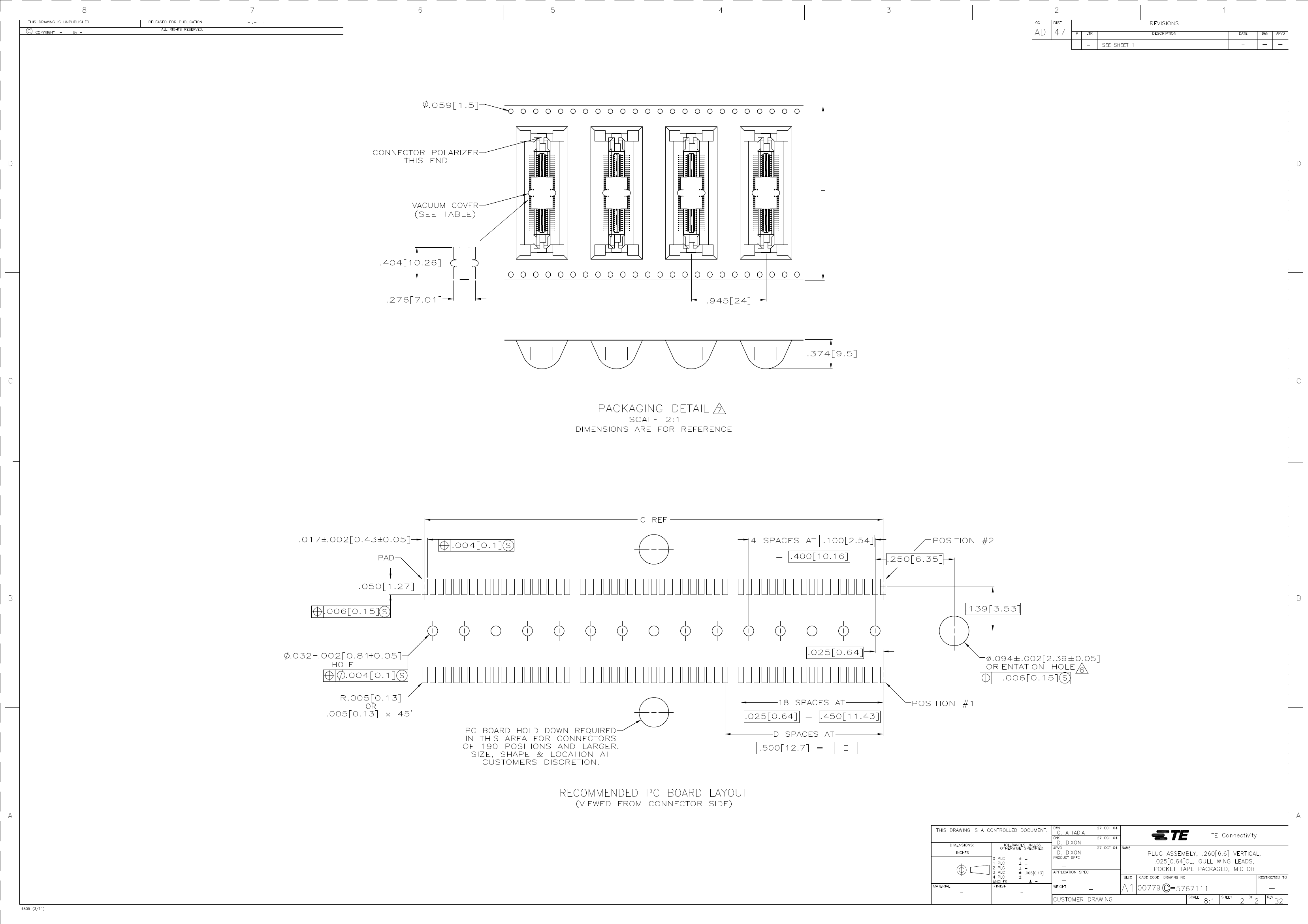

5767111-9.pdf
Standard Package	252
Category	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Packaging	Tape & Reel (TR)
Connector Type	Plug, Outer Shroud Contacts
Number of Positions	76
Pitch	0.025" (0.64mm)
Number of Rows	2
Mounting Type	Surface Mou
Features	Board Guide, Ground Bus (Plane)
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Mated Stacking Heights	6.6mm, 15.62mm
Height Above Board	0.251" (6.38mm)
Mating Products	A101823DKR-ND - CONN RCPT 76POS .025 VERT SMDA101823CT-ND - CONN RCPT 76POS .025 VERT SMD5767146-9-ND - CONN RCPT 76POS VERT .025 SMD767146-9-ND - CONN RCPT 76POS VERT .025 SMD5767146-2-ND - CONN RCPT 76POS VERT .025 SMD767146-2-ND - CONN RCPT 76POS VERT .025 SMD767094-2-ND - CONN RCPT 76POS VERT .025 SMD5767095-2-ND - CONN RCPT 76POS VERT .025 SMD767095-2-ND - CONN RCPT 76POS VERT .025 SMDA115512-ND - CONN RCPT 76POS VERT .025 SMDA115664-ND - CONN RCPT 76POS VERT .025 SMD5767178-2-ND - CONN RCPT 76POS VERT .025 SMD767178-2-ND - CONN RCPT 76POS VERT .025 SMDA115495-ND - CONN RCPT 76POS R/A .025 SMDA115651-ND - CONN RCPT 76POS R/A .025 SMD5767143-2-ND - CONN RCPT 76POS R/A .025 SMD767143-2-ND - CONN RCPT 76POS R/A .025 SMDA101817-ND - CONN RCPT 76POS .025 VERT SMDA115652-ND - CONN RCPT 76POS .025 VERT SMD5767061-2-ND - CONN RCPT 76POS .025 VERT SMD767061-2-ND - CONN RCPT 76POS .025 VERT SMDA115509-ND - CONN RCPT 76POS .025 VERT SMD767110-2-ND - CONN RCPT 76POS .025 VERT SMD5767114-9-ND - CONN RCPT 76POS .025 VERT SMD767114-9-ND - CONN RCPT 76POS .025 VERT SMD5767096-2-ND - CONN RCPT 76POS .025 VERT SMD767096-2-ND - CONN RCPT 76POS .025 VERT SMDA101823TR-ND - CONN RCPT 76POS .025 VERT SMD767096-9-ND - CONN RCPT 76POS .025 VERT SMDA101819-ND - CONN RCPT 76POS VERT .025 SMDA32309-ND - CONN RECEPT 76POS .025 VERT SMDA29125-ND - CONN RECEPT 76POS .025 VERT SMD

Preview

Download Datasheet

View All
