BS2-080-H600-55/1E datasheet, PDF

Datasheet> All Categories > The connector> The connector> BS2-080-H600-55/1E

BS2-080-H600-55/1E: DescriptionBoard Connector, 80 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Plug; CategoryThe connector The connector; File Size204KB，1 Pages; ManufacturerE-tec Interconnect Ltd.; Environmental Compliance

Download Datasheet Parametric View All

BS2-080-H600-55/1E Overview

Board Connector, 80 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Plug

BS2-080-H600-55/1E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304749746
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	PEG
body width	0.197 inch
subject depth	0.236 inch
body length	2.012 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Filter function	NO
Insulation resistance	1000000000 Ω
insulator material	POLYAMIDE
JESD-609 code	e4
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	80
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

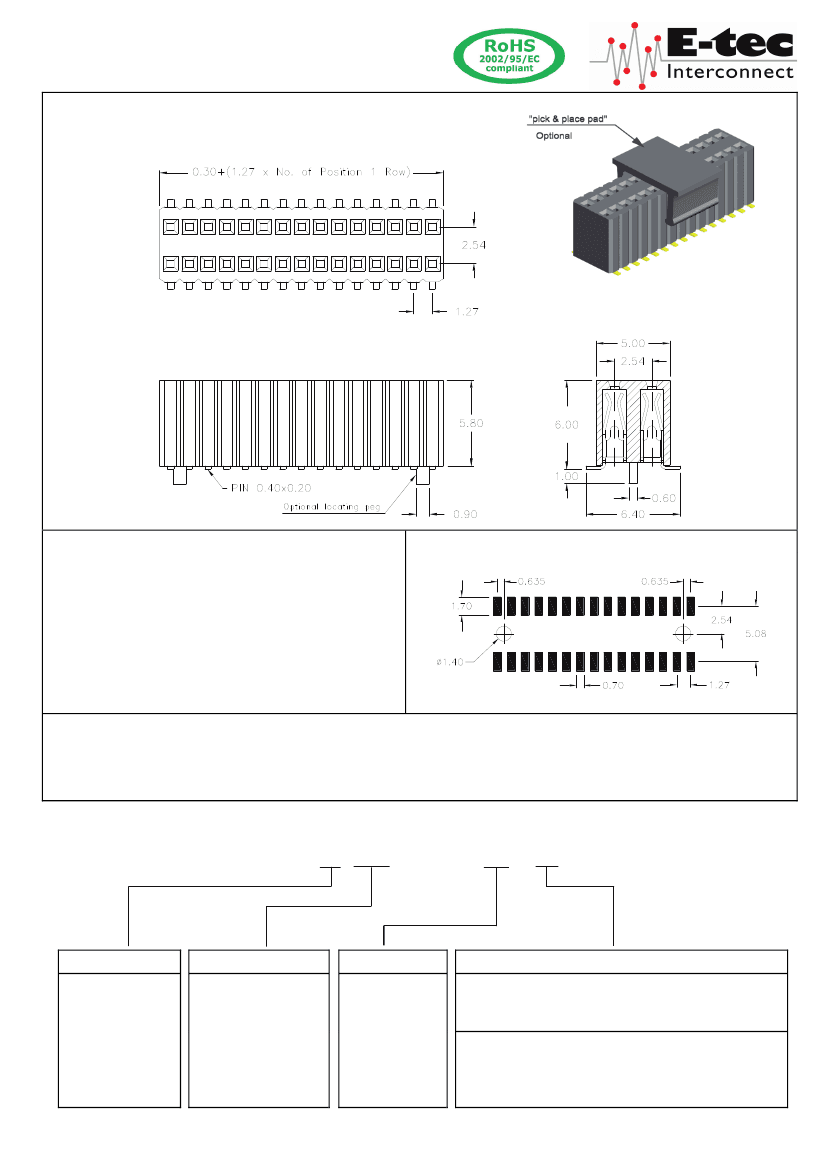

1.27mm x 2.54mm pitch Female Header

- SMT -

dual row

6.00mm profile

SPECIFICATIONS

Current rating

Insulator resistance

Contact resistance

Withstanding voltage

Operating temperature

Processing temperature

Contact material

(RoHS compliant)

Insulator material

(RoHS compliant)

1000 MΩ min.

20 mΩ max.

500 V AC

- 40°C to +105°C

+250°C

+0/-5°C

for 10sec.

Phosphor Bronze

Nylon UL 94 V-0

PCB

Surface Mount & Hole Layout

APPLICATION

AND

FEATURES

Standard: tube packing and without “pick & place pad”

Hi-rel inner contact design, mates with 0.46mm square pin headers

How to order

BS 2 - xxx - H 600 -

/1 X

Rows

dual row

Nbr of contacts

006

100

Plating

= gold

Packing and “pick & place pad” Option

without “locating pegs”

tube packing; with pick & place pad

reel packing; with pick & place pad

with “locating pegs”

tube packing; without pick & place pad

tube packing; with pick & place pad

reel packing; with pick & place pad
