3940-2161 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 3940-2161

Preview

3940-2161: DescriptionBoard Connector, 16 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, Crimp Terminal, Locking, Plug; CategoryThe connector The connector; File Size67KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric View All

3940-2161 Overview

Board Connector, 16 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, Crimp Terminal, Locking, Plug

3940-2161 Parametric

Parameter Name	Attribute value
Objectid	304389927
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.272 inch
subject depth	0.61 inch
body length	2.518 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Durability	60 Cycles
maximum insertion force	14.6784 N
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	3940-A
Plug contact pitch	0.156 inch
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	16
Evacuation force-minimum value	1.4734 N

Preview

Download Datasheet

View All

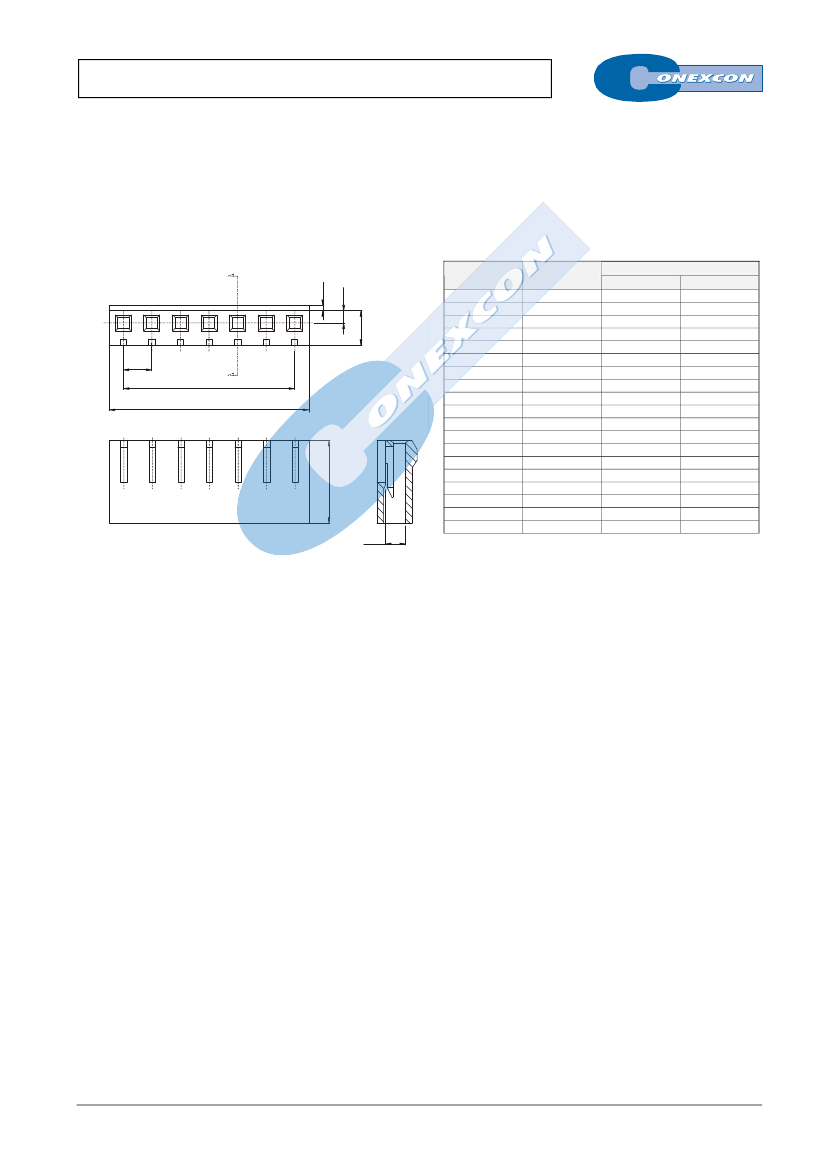

CRIMP HOUSING WITH LOCKING RAMP

3940-A SERIES.

3.96mm(0.156”). With Locking Ramp

Features



Available in 2 through 20 circuits

Polarised with locking ramp

Material: Nylon 6/6 UL 94V-0



Accepts 3979, 3060, 3079 and 3032 crimp terminal

Mates with: 3963, 3966, 3968, 3986, 3987 and 3988 headers

Dimensional Information

Ordering and Dimensional Information

F

0.80

.031

1.95

.077

Circuit Size

02

03

6.10

.240

Part Number

3940- 2021

3940- 2031

3940- 2041

3940- 2051

3940- 2061

3940- 2071

3940- 2081

3940- 2091

3940- 2101

3940- 2111

3940- 2121

3940- 2131

3940- 2141

3940- 2151

3940- 2161

3940- 2171

3940- 2181

3940- 2191

3940-2201

Dimensions

A

3,96(0,156)

7,92(0,312)

11,88(0,468)

15,84(0,624)

19,80(0,780)

23,76(0,935)

27,72(1,091)

31,68(1,247)

35,64(1,403)

39,60(1,559)

43,56(1,715)

47,52(1,871)

51,48(2,027)

55,44(2,183)

59,40(2,339)

63,36(2,494)

67,32(2,650)

71,28(2,806)

75,24(2,962)

B

8,50(0,335)

12.50 (0.491)

16.40 (0.647)

20.40 (0.803)

24.40 (0.959)

28.30 (1.115)

32.30 (1.271)

36.20 (1.427)

40.20 (1.583)

44.20 (1.739)

48.10 (1.894)

52.10 (2.050)

56.00 (2.206)

60.00 (2.362)

64.00 (2.518)

67.90 (2.674)

71.90 (2.830)

75.80 (2.986)

79.80 (3.142)

04

05

06

07

3.96

.156

F

A

B

SEC. F-F

08

09

10

11

12

13

14

15

15.5

.610

16

17

18

19

20

3.80

.150
