A-MO-6/4-SF-R

Description
conn mod plug 6p4c unshielded
CategoryThe connector
File Size62KB,1 Pages
ManufacturerASSMANN WSW components
Environmental Compliance
Download Datasheet Parametric View All

A-MO-6/4-SF-R Overview

conn mod plug 6p4c unshielded

A-MO-6/4-SF-R Parametric

Parameter NameAttribute value
Datasheets
A-MO-6/4-SF-R
Product Photos
A-MO-6/4-(SF,SR)(-R)
Featured Produc
Modular Connectors and Cables
Standard Package1,000
CategoryConnectors, Interconnects
FamilyModular Connectors - Plugs
PackagingBulk
Cable TypeFlat Oval Cable, Not Specified
Number of Positions/Contacts6p4c (RJ11, RJ14)
Features-
ShieldingUnshielded
Ratings-
Ingress Protecti-
TerminatiIDC
Length0.526" (13.35mm)
ColTranslucent - Cle
Wire Gauge-
Contact FinishGold
Contact Finish Thickness6µin (0.152µm)
Contact MaterialCopper Alloy
Current Rating2A
Voltage Rating250V
Housing MaterialPolycarbonate (PC)
Shield Material-
Dynamic CatalogA-MO Series
Other NamesAE1476AMO64SFR
1
2
3
4
5
6
7
A
Max 2.34
5.89±0.12
A
2.77±0.10
0.51±0.05
6.02±0.12
3.45±0.05
6.60±0.10
B
B
0.56±0.05
C
MP6P4C
13.35±0.2
C
6.10±0.07
3.25±0.12
D
ø1.0±0.05
Material:
• Housing: Polycarbonate UL94V2
• Contact Blade: High Strength Copper Alloy
• 100 Micron Nickel underplated
• Plating type: 8% Phosphor Bronze
• Operating Temperature: -40°C ~ 125°C
Electrical:
• Current Rating: 250V AC / Max @2.0A
• Dielectric: 500V AC
Complies with FCC68/F
D
E
7.20±0.05
9.65±0.10
E
F
F
Unit: MM
Scale
1:1
Drawn
Approved
12.19.11
Name
Chappell
Item No.
G
TOLERANCE
X.X
X.XX
X.XXX
±0.40
±0.25
±0.15
±3°

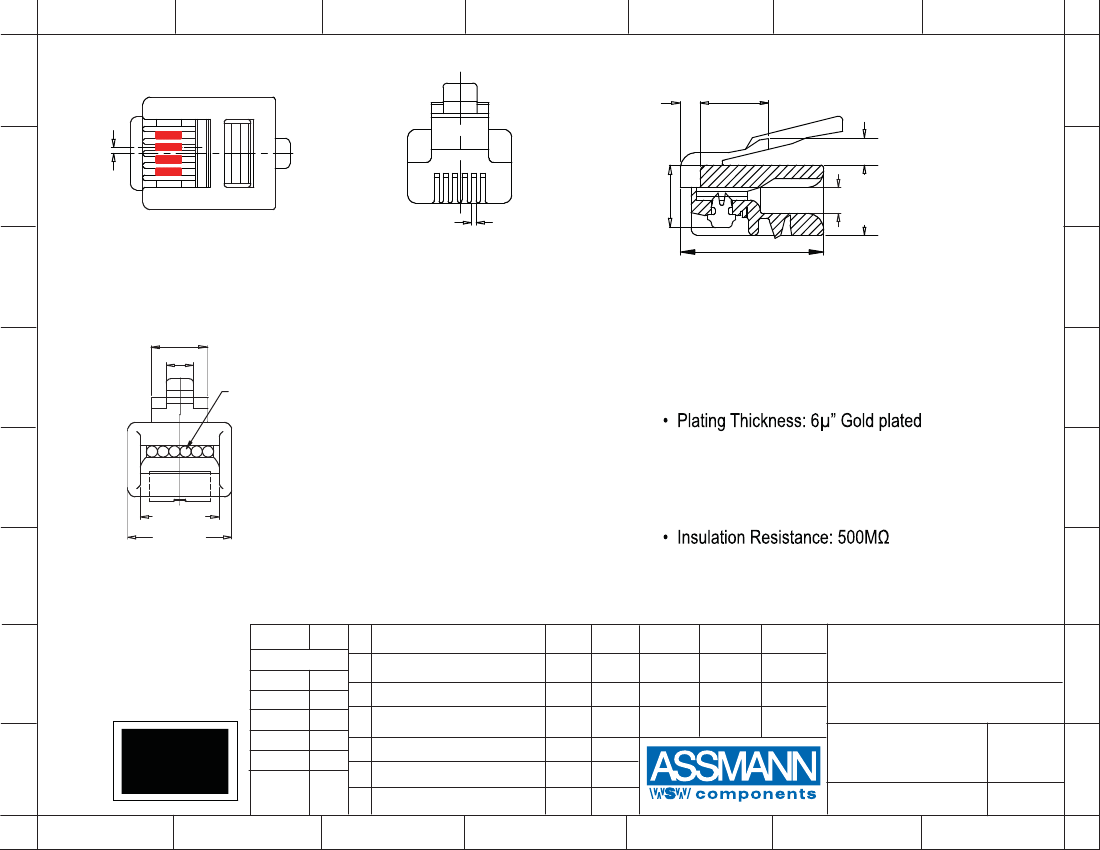

A-MO-6/4-SF-R
Title
Modular Cable Plug - 6P4C, Flat cable,
Unshielded
Drawing No.
G
H
RoHS
Complaint
1
2
Angle
rev00
Sheet
H
Modification
Date
Name
Replace
3
4
5
6
7
